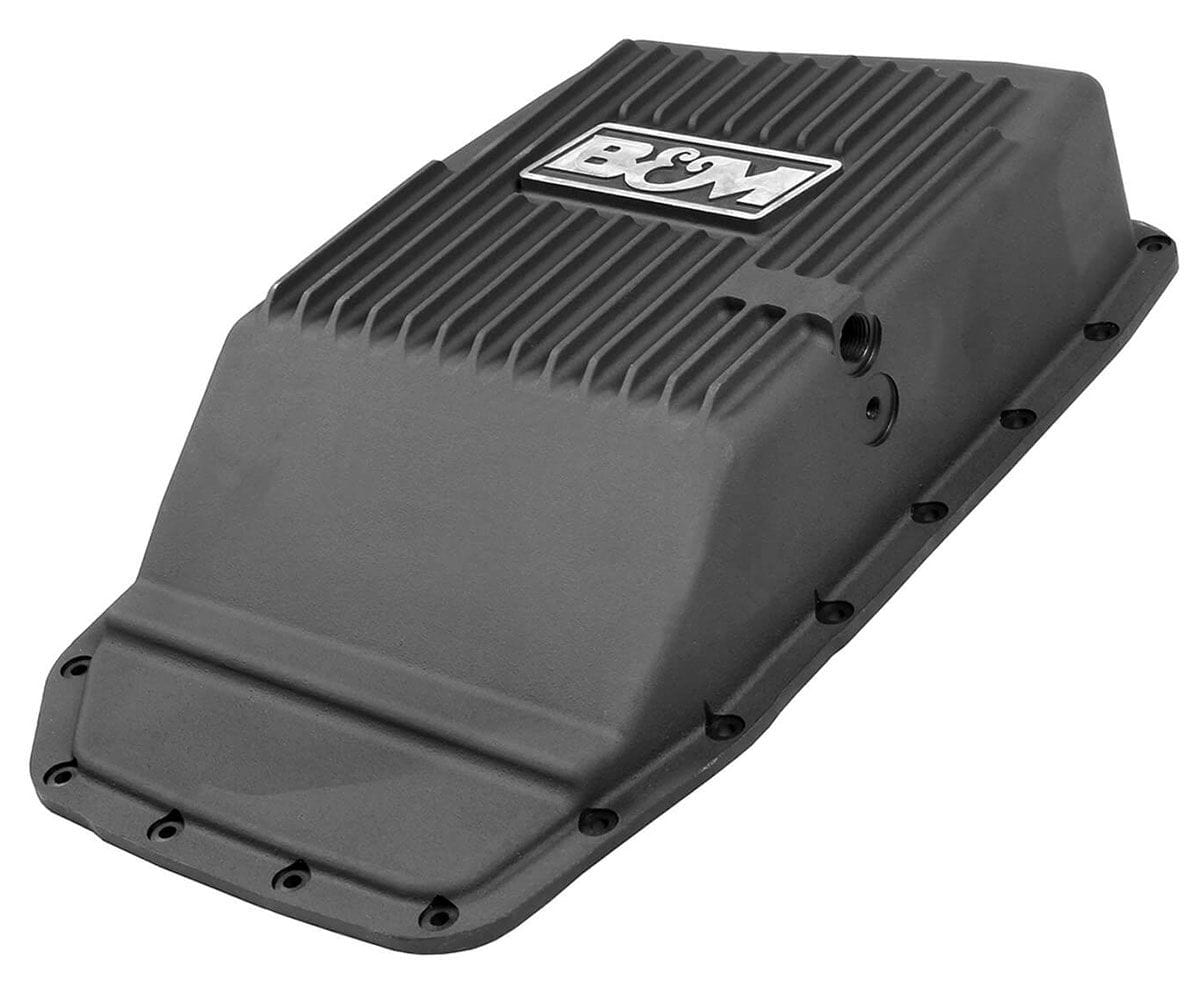

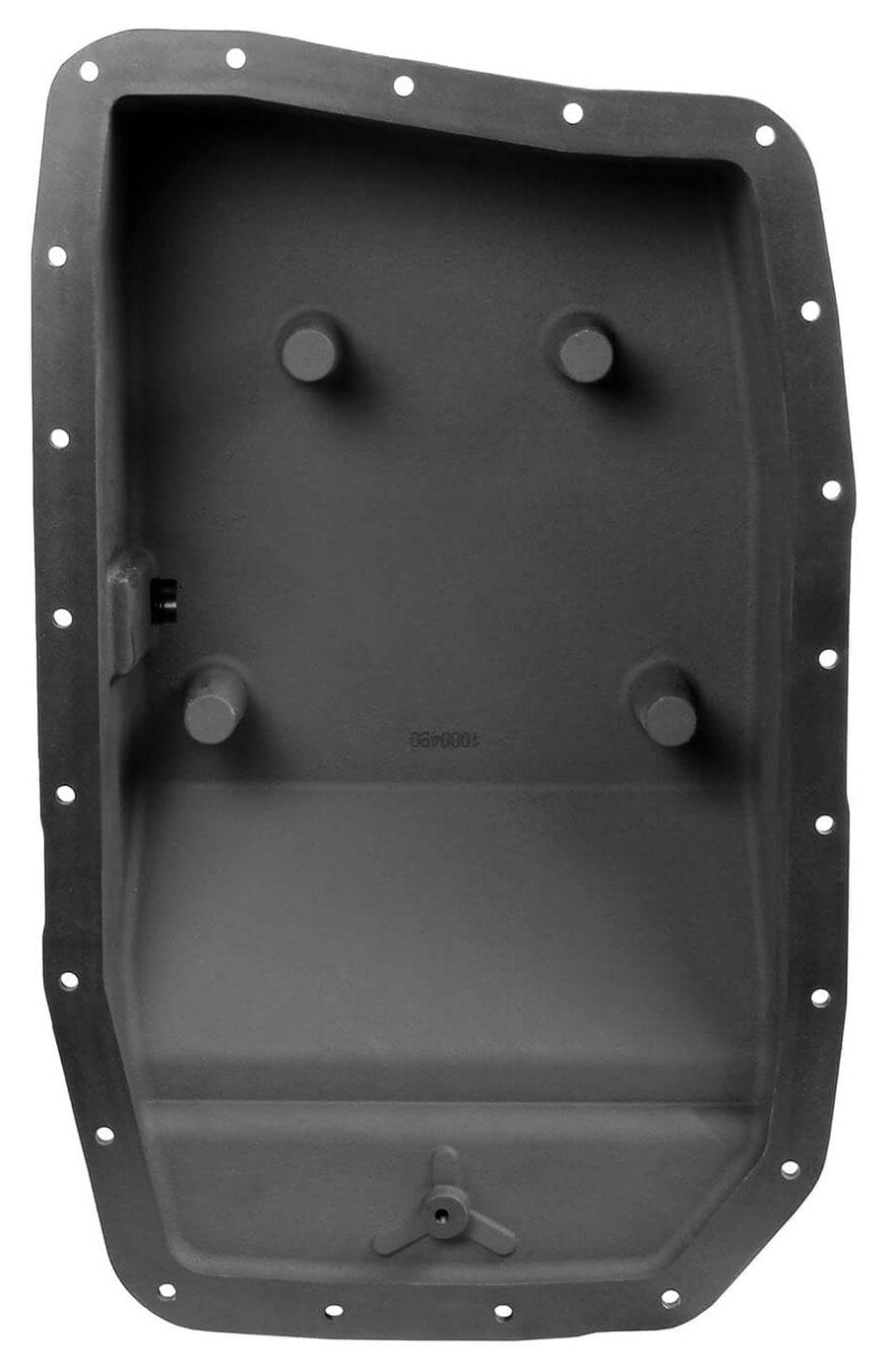

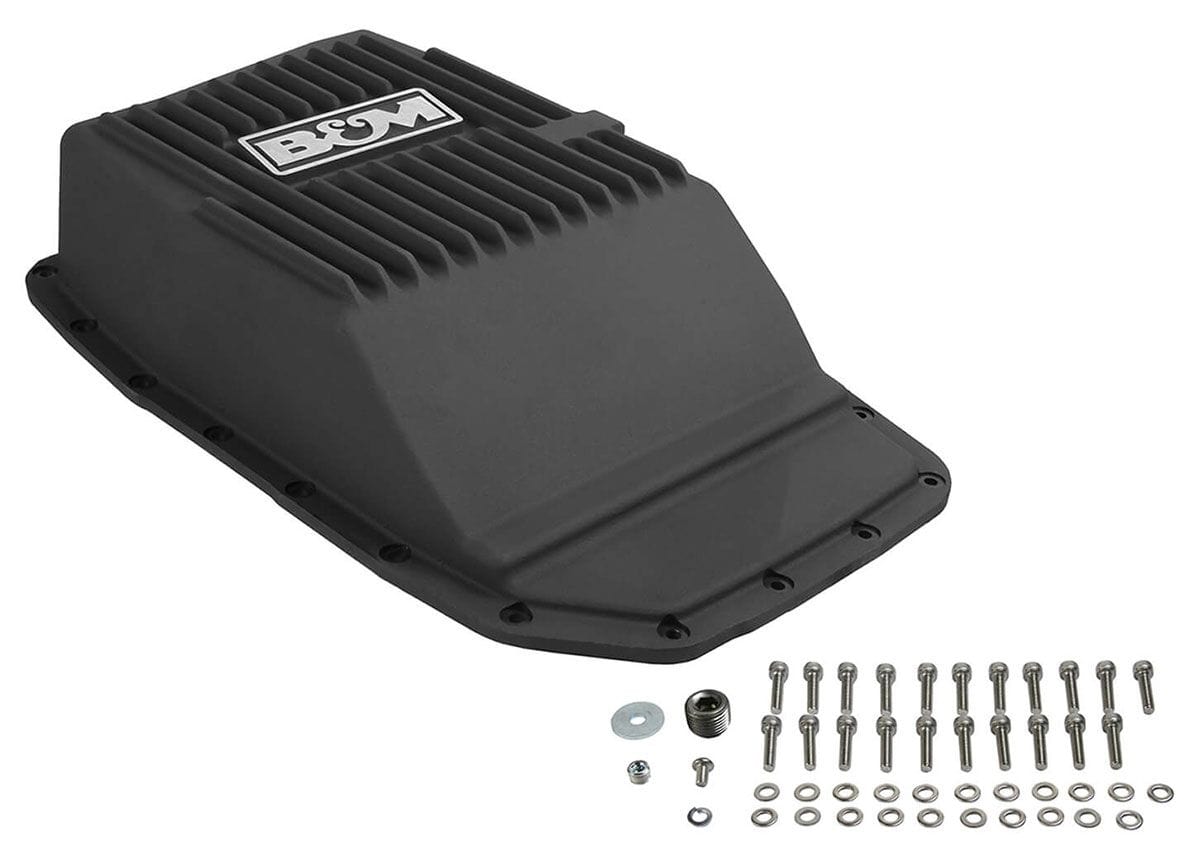

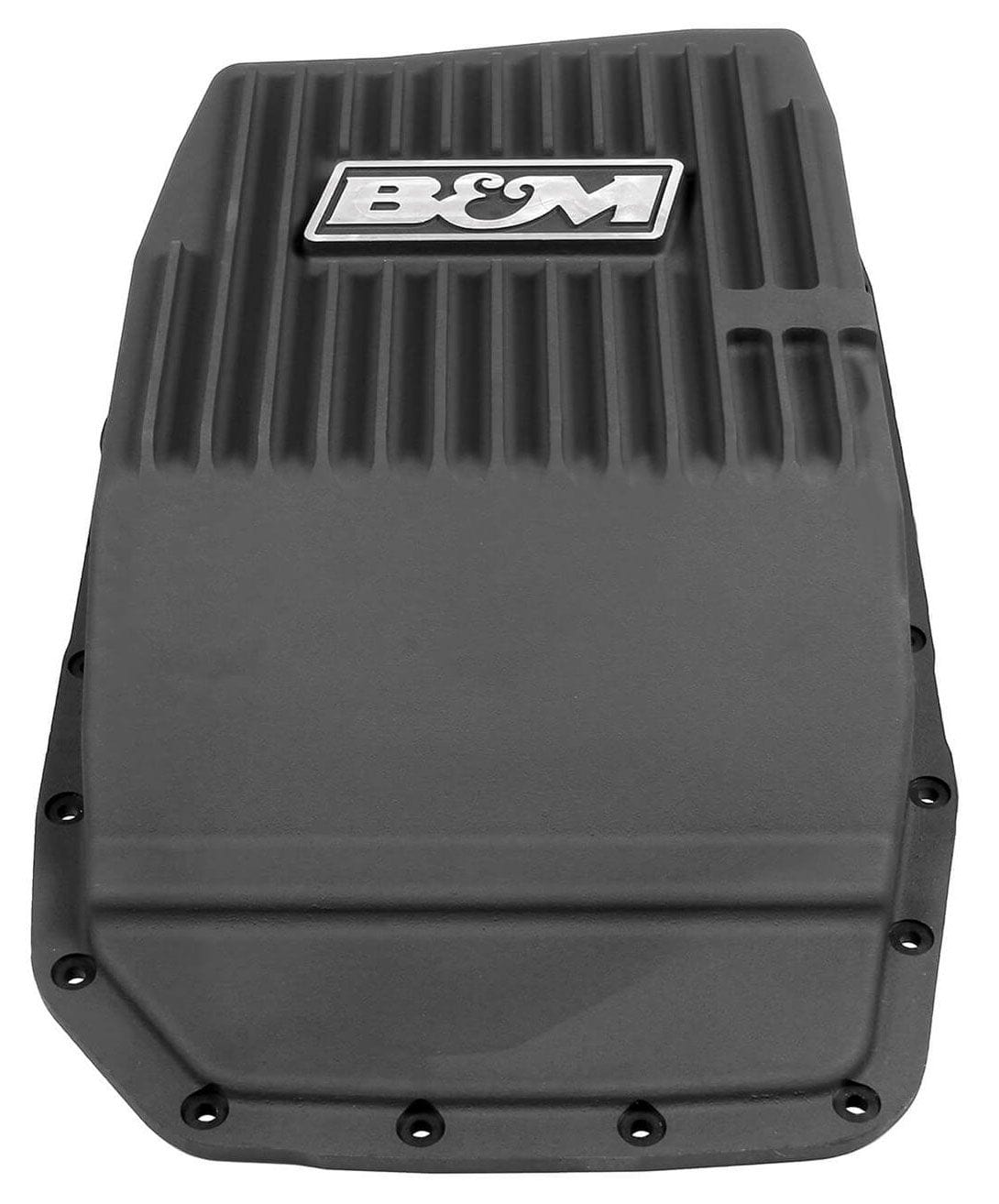

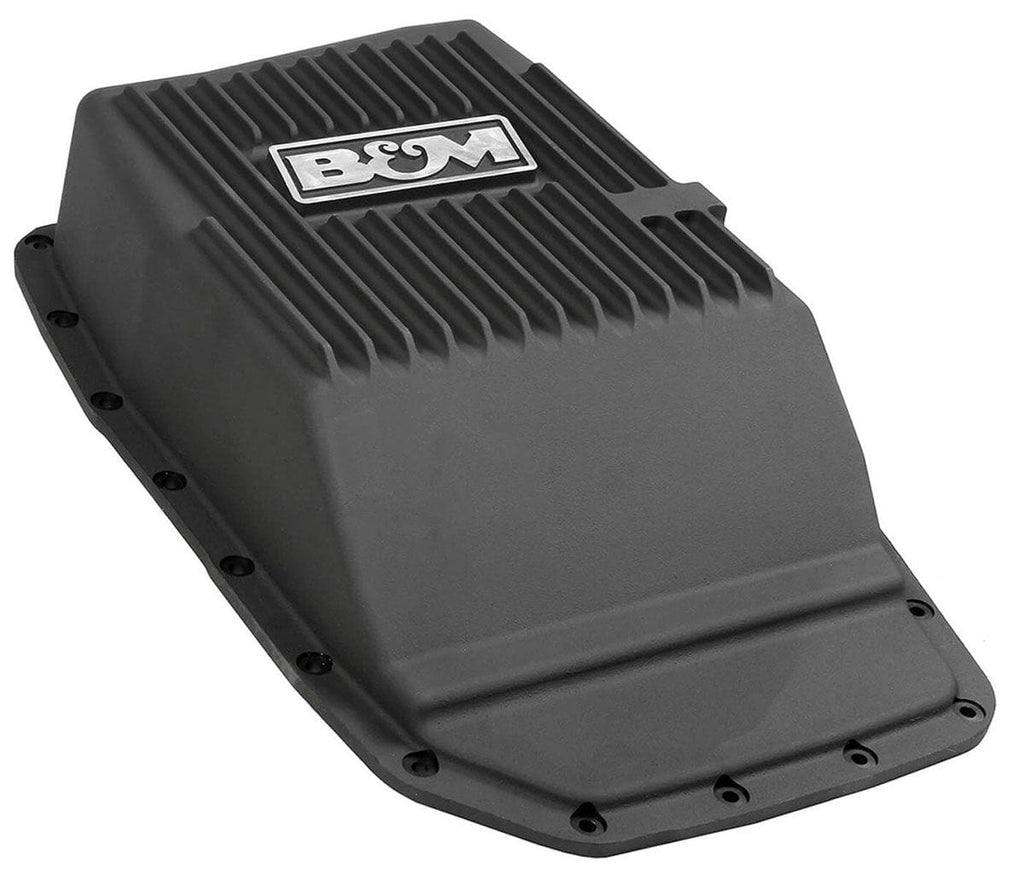

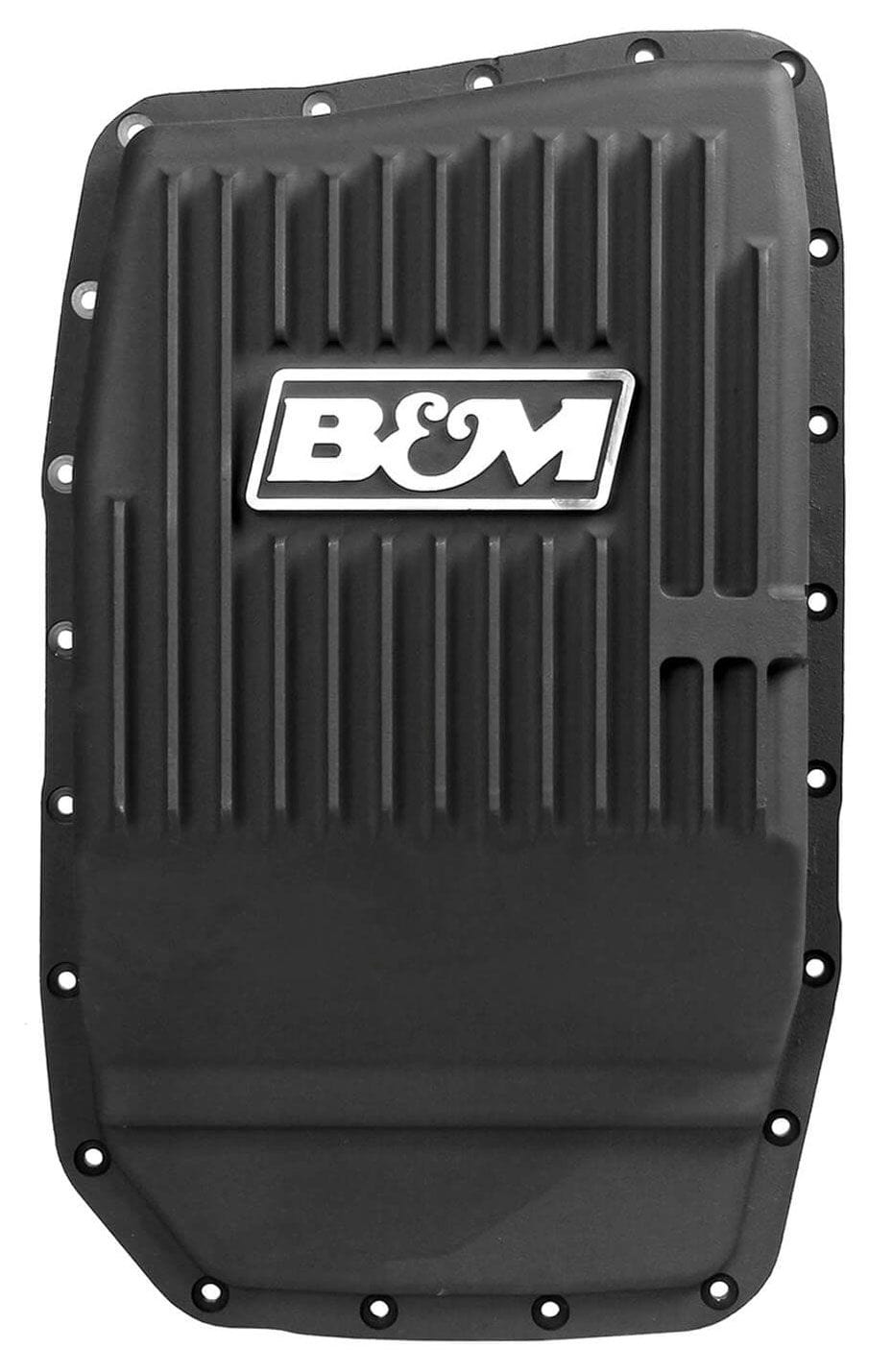

Deep Aluminium Trans Pan, BlackSuit Ford 6R80 & 6R100Brand: B&MPart Number: BM70394Description: Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port and the pan accepts the two factory magnets to capture wear materials protecting the transmission and for clean and easy servicing. Also includes 1/8 inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does Not fit 2010-2015 Camaro 8L90E transmissions. See Part# 70391 for 2010-2015 Camaro 8L90E transmission pan.
Features:
- Magnetic Drain Plug for Easy Servicing
- Adds 3.4-quarts of Transmission Fluid
- Includes Temperature Sensor Port
- Internal & External Cooling Ribs
- Increased Cooling Properties
- Lifetime Limited Warranty
- Custom B&M Logo
