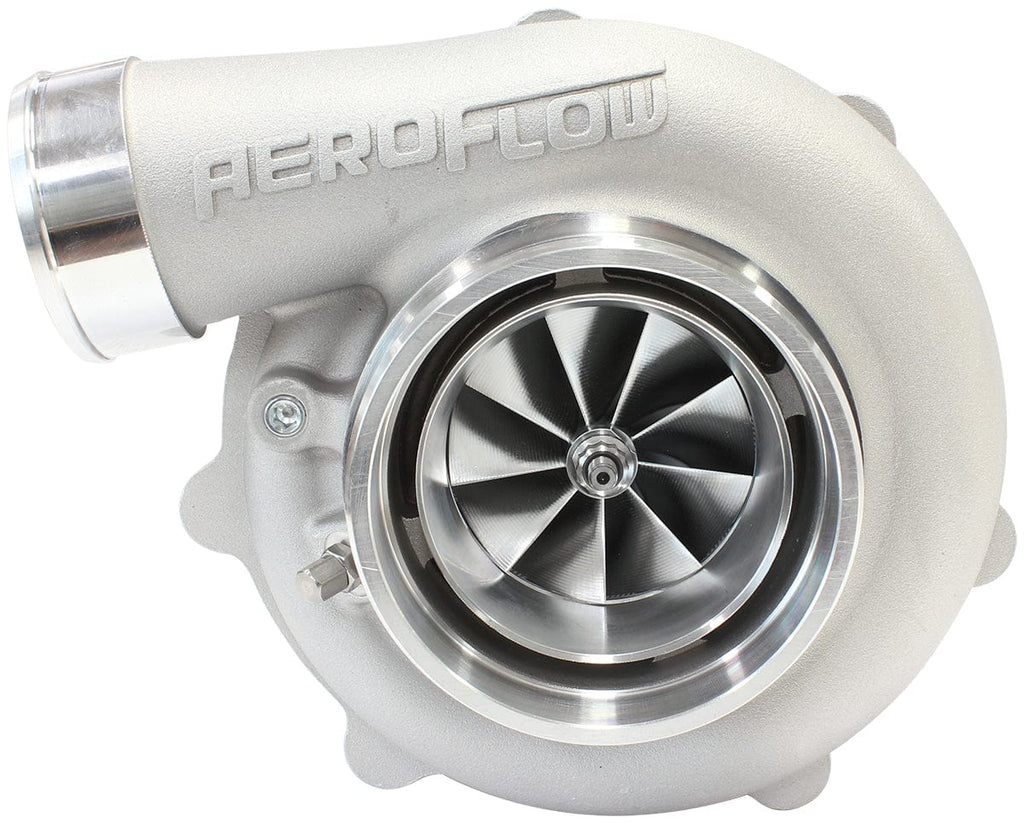

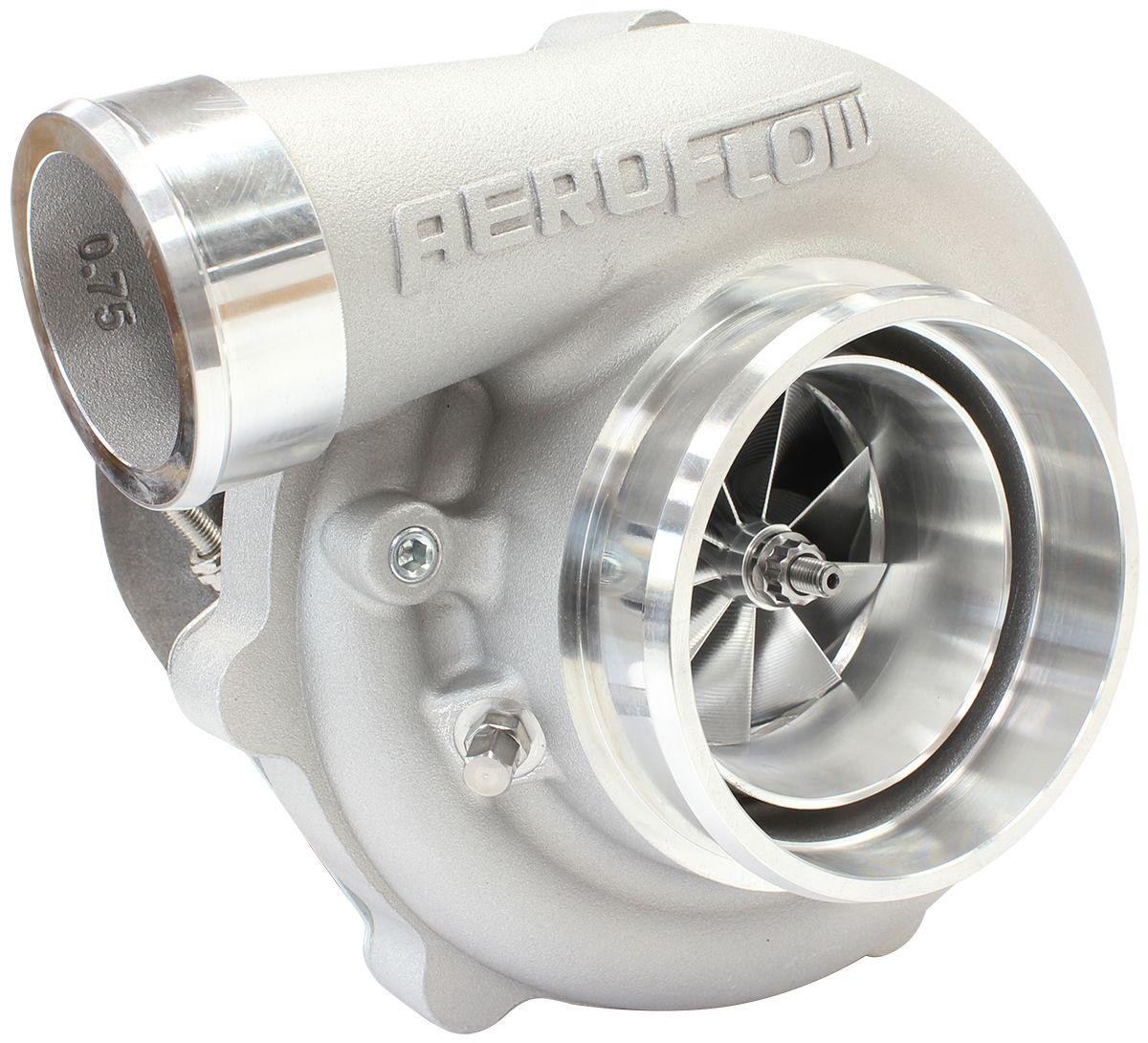

BOOSTED 6862 1.01 Reverse Rotation Turbocharger 1050HP, Natural Cast Finish
External Wastegate, V-Band Inlet & Exhaust Flanges
BOOSTED 6862 V-Band Reverse Rotation Turbocharger Specifications
This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted 6862 (AF8005-3073) standard rotation turbocharger.
Recommended horsepower rating: 700-1050HP
Recommended engine displacement: 2.0L to 5.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- 4 x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 68mm
Exducer: 84.3mm
Extended Tip: 87.06mm
A/R: 0.75
Compressor Inlet: 4" Slip fit
Compressor Outlet: 2.5" Slip fit
Turbine Specifications
Inducer: 68mm
Exducer: 62mm
A/R: 1.01
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: V-Band (AF8080-1000)
Wastegate
External wastegate
