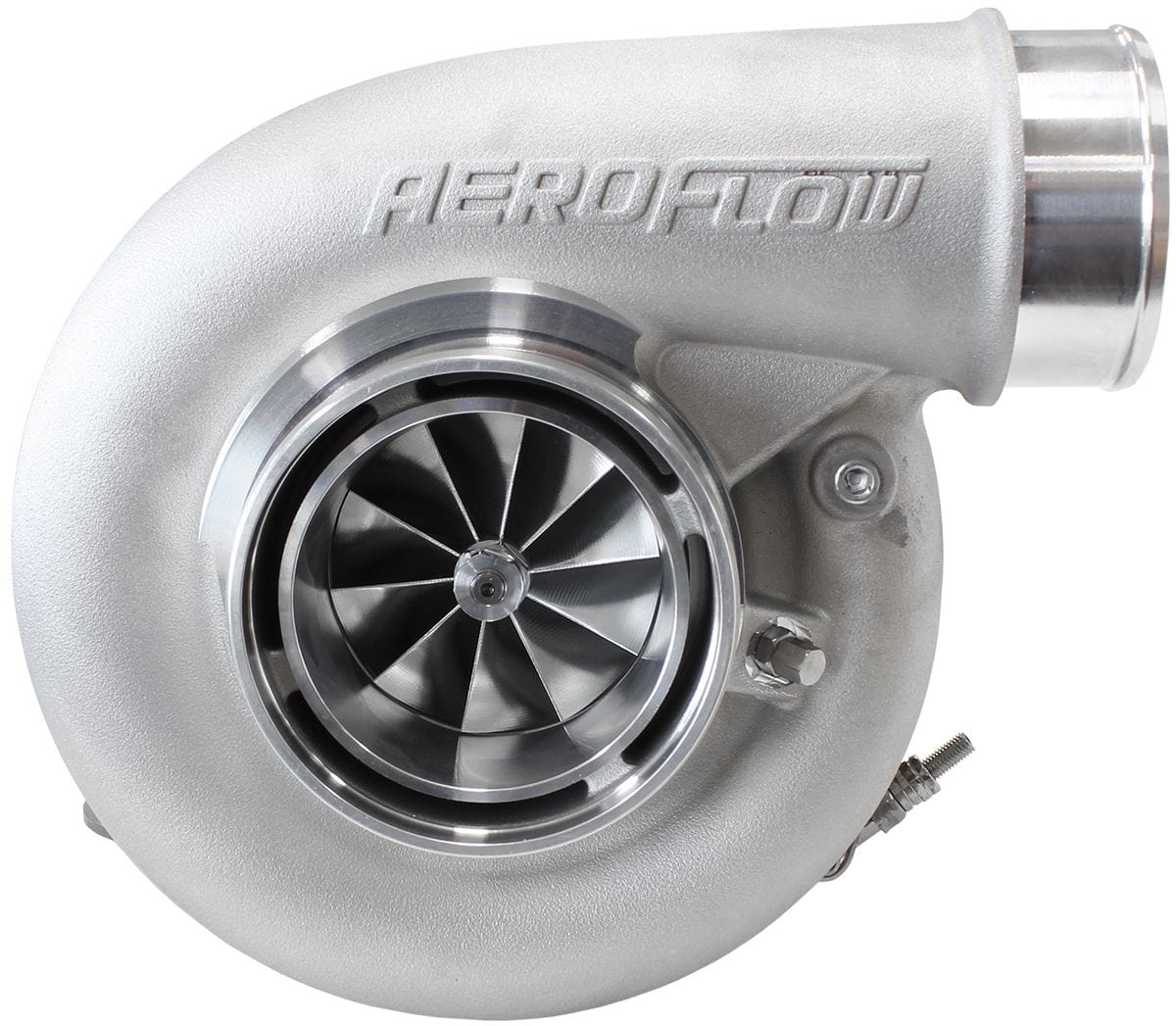

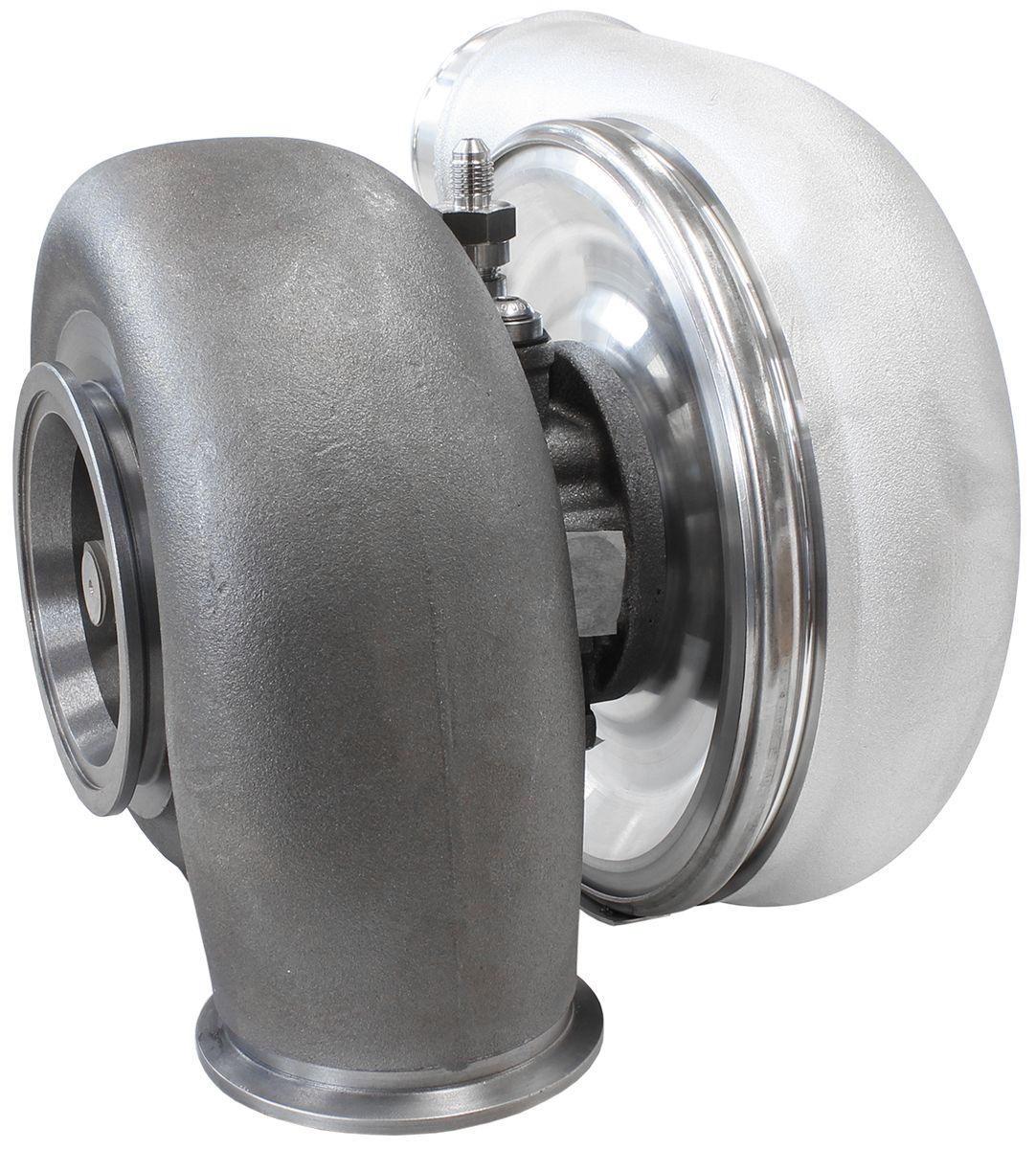

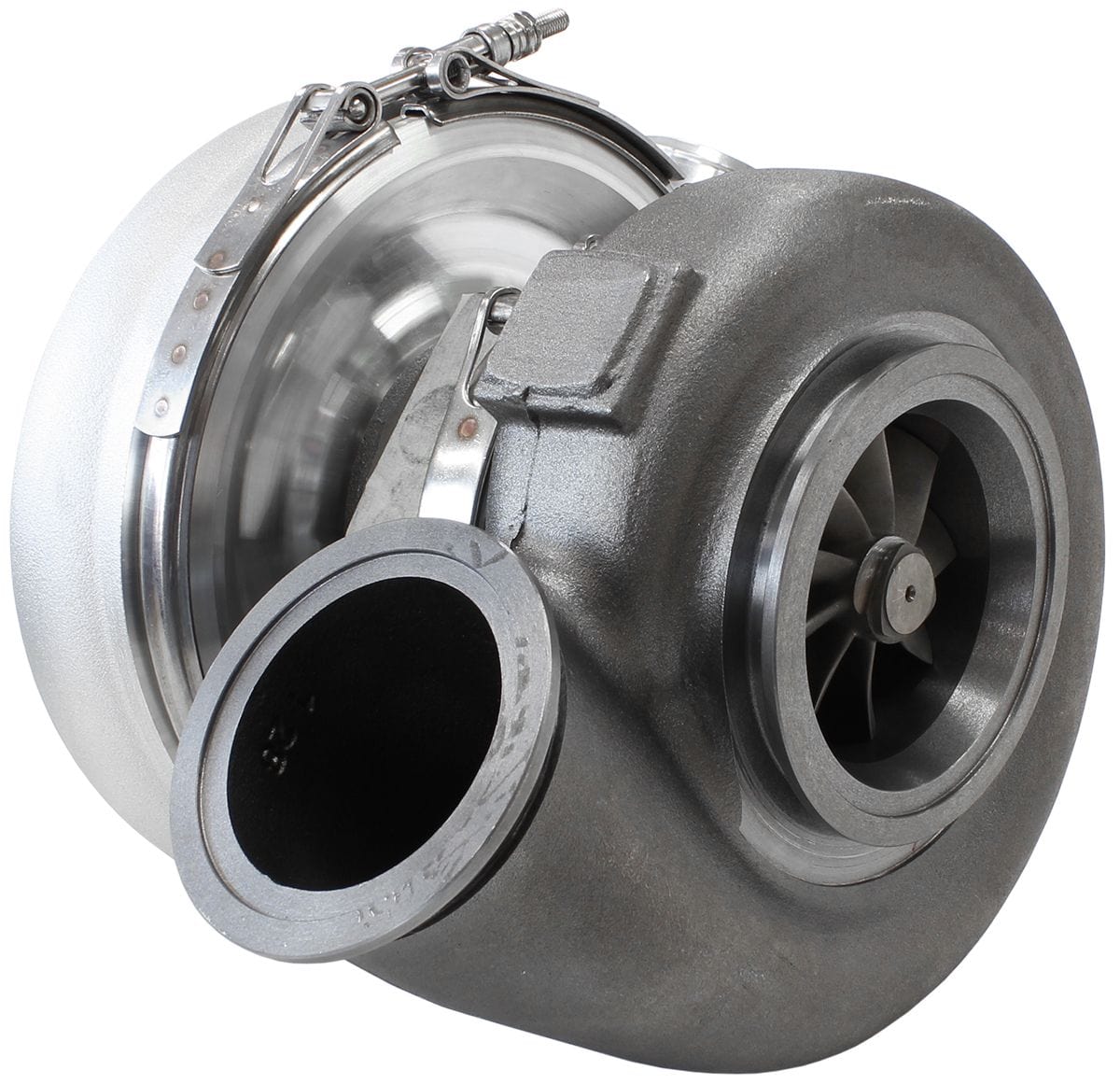

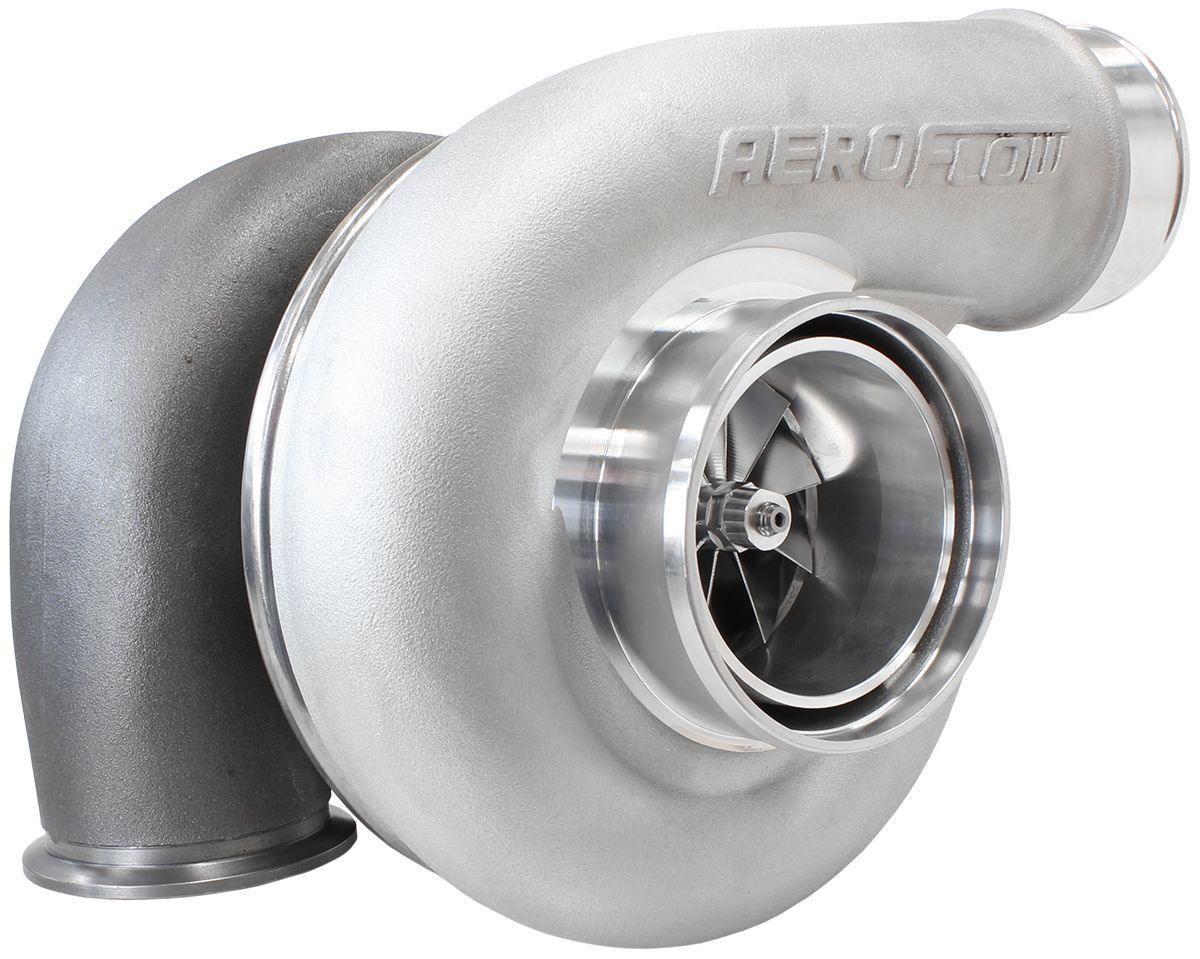

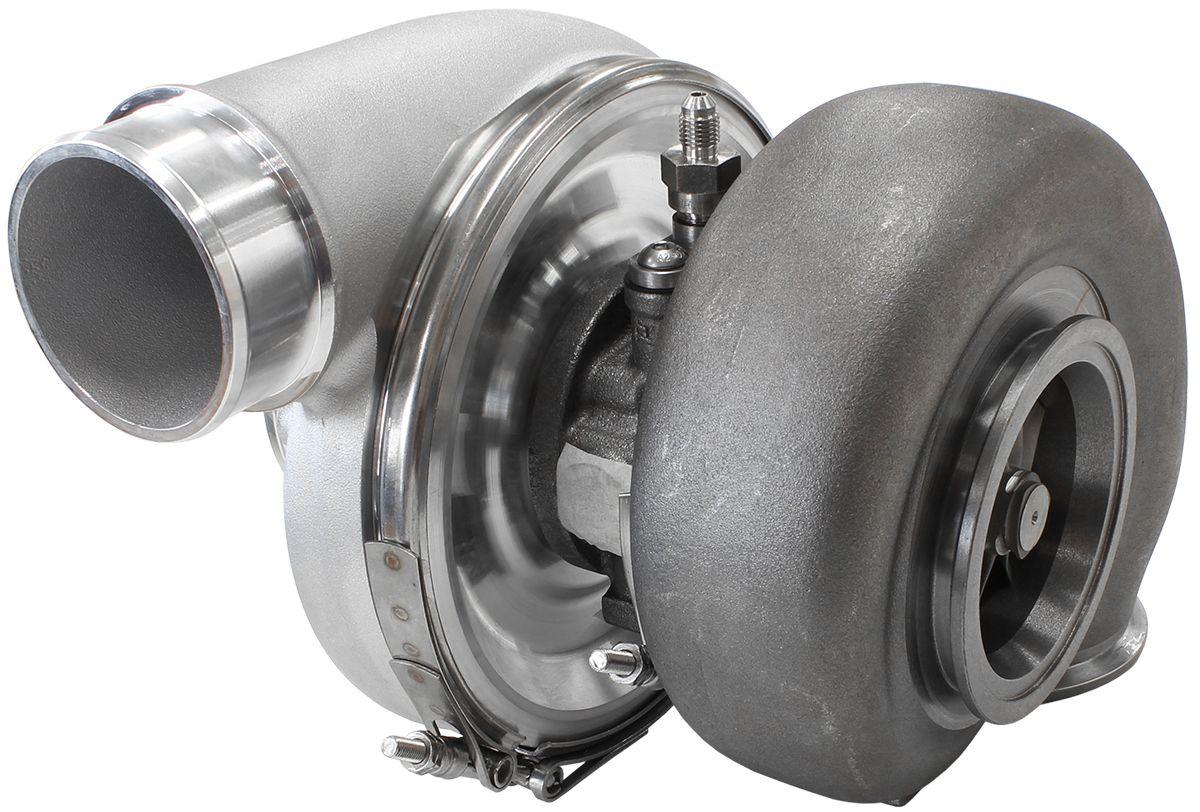

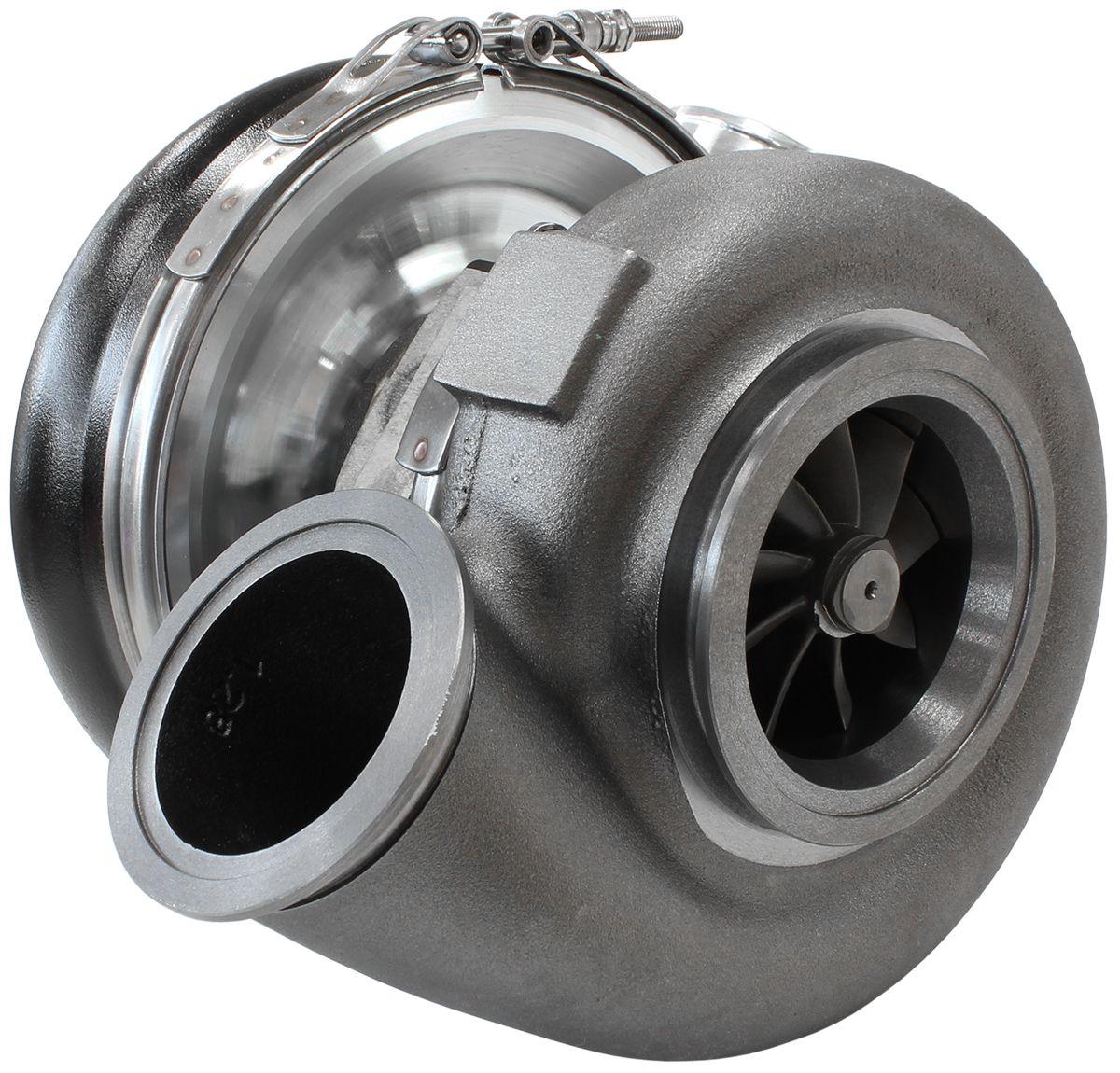

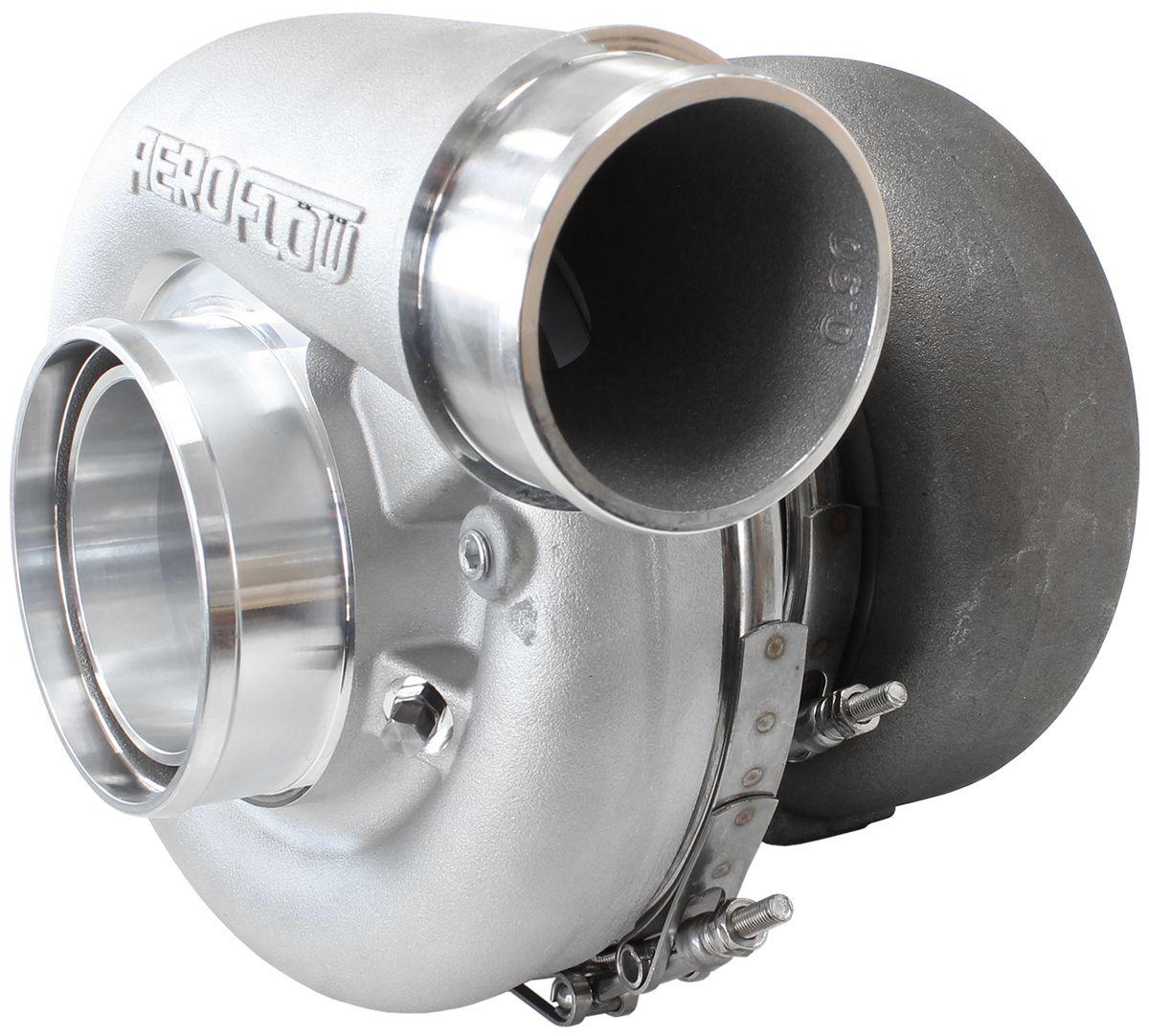

BOOSTED 7375 V-Band 1.15 Turbocharger 1200HP, Natural Cast Finish
External Wastegate, V-Band Inlet & Exhaust Flanges
BOOSTED 7375 V-Band Turbocharger Specifications
Recommended horsepower rating: 475-1200HP
Recommended engine displacement: 2.0L to 7.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 73mm
Exducer: 91mm
Extended Tip: 96mm
A/R: 0.90
Compressor Inlet: 4" Slip fit
Compressor Outlet: 3" Slip fit
Turbine Specifications
Inducer: 82mm
Exducer: 75mm
A/R: 1.15
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: V-Band (AF8080-1020)
Wastegate
External wastegate
