BOOSTED 7675 T4 1.15 Turbocharger 1120HP, Natural Cast Finish
External Wastegate, T4 Twin Entry Inlet Flange, V-Band Exhaust Flange
BOOSTED 7675 T4 Turbocharger Specifications
Recommended horsepower rating: 525-1120HP
Recommended engine displacement: 2.0L to 8.0L
- Dual ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)

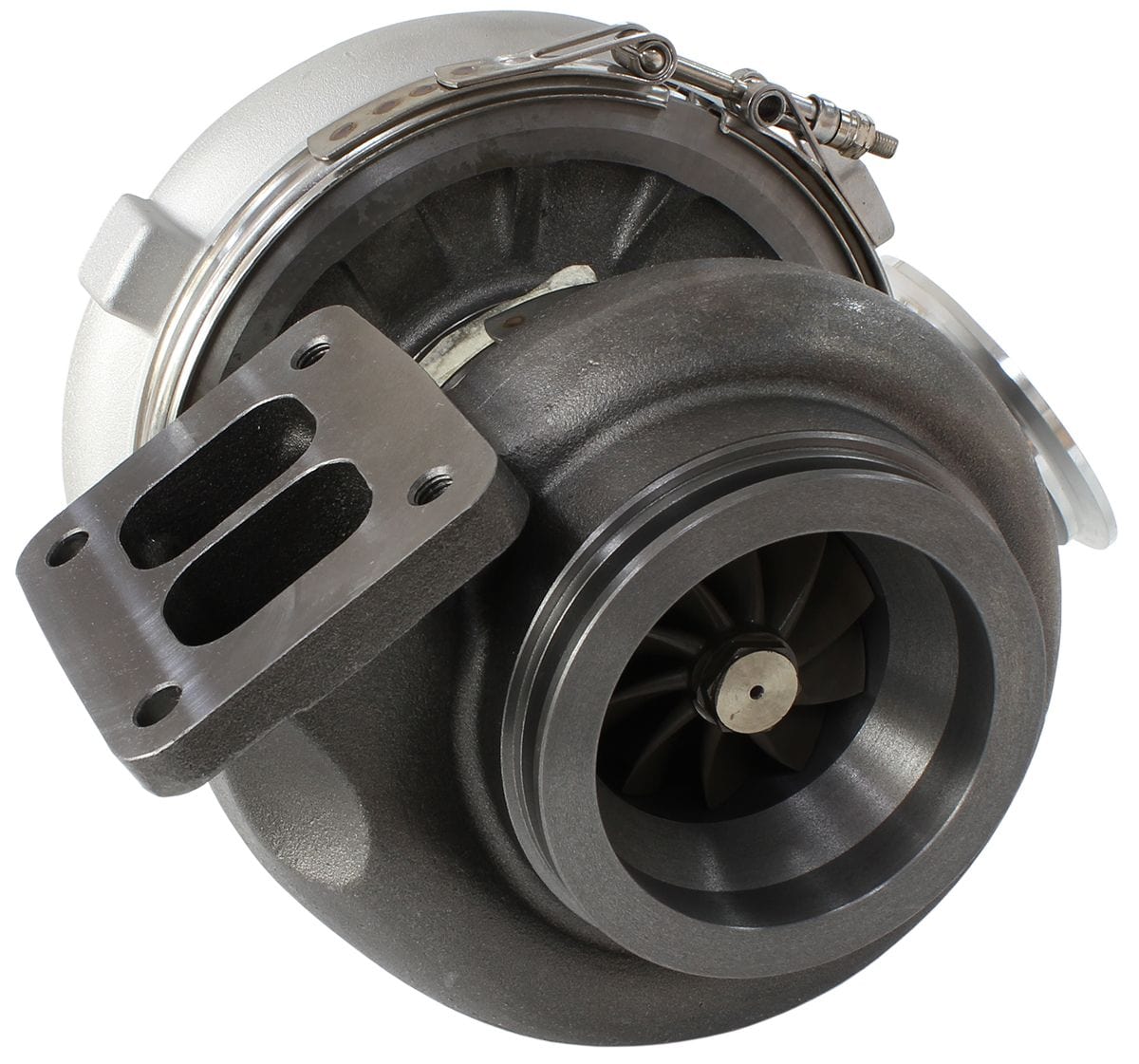

- T4 twin entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- M18 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 76mm
Exducer: 102mm
Extended Tip: 107mm
A/R: 0.60
Compressor Inlet: 5" Slip fit
Compressor Outlet: V-Band (AF8080-1009)
Turbine Specifications
Inducer: 82mm
Exducer: 75mm
A/R: 1.15
Turbine Inlet Flange: T4
Turbine Outlet Flange: V-Band (AF8080-1001)
Wastegate
External wastegate
