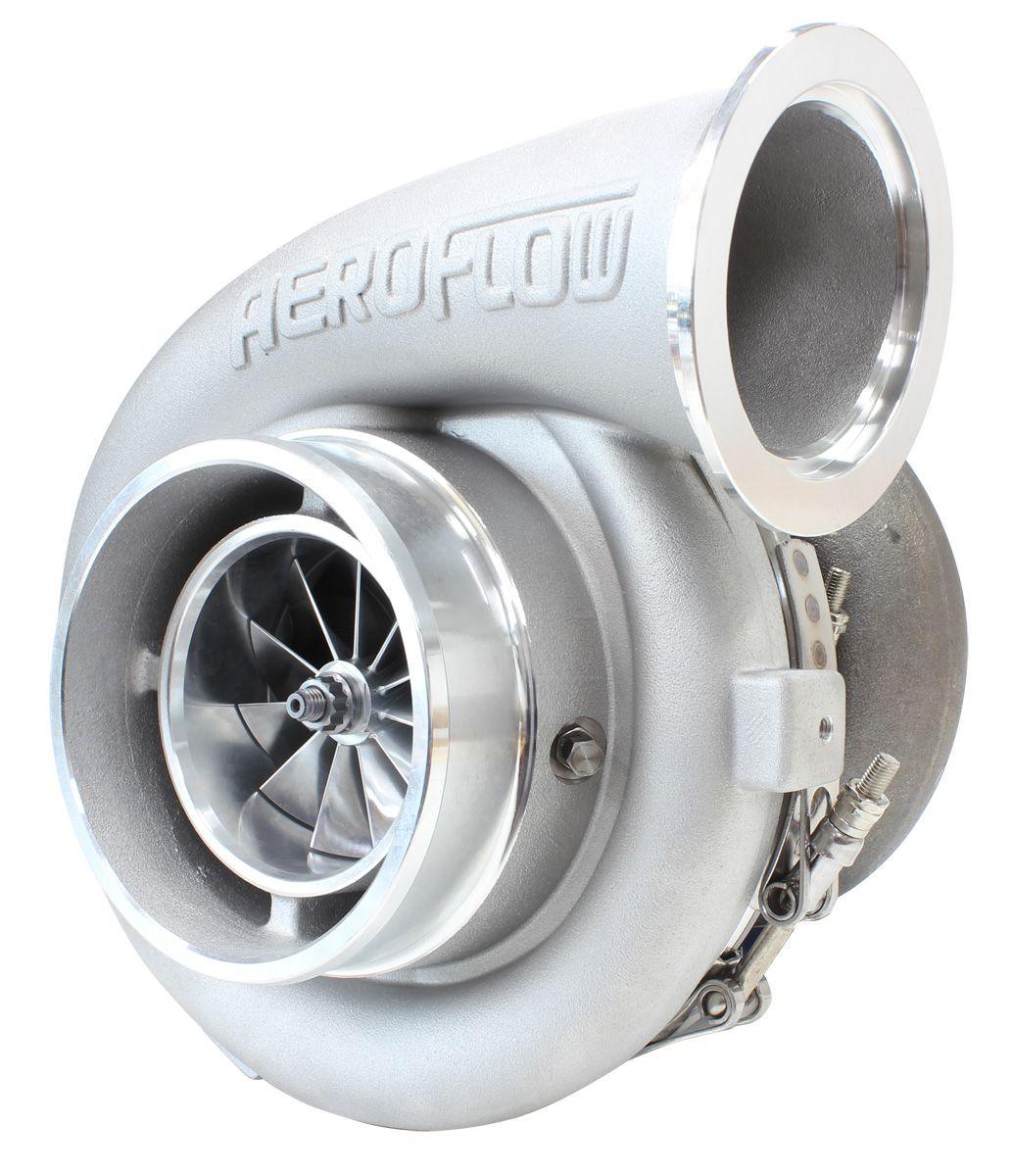

BOOSTED 8077 T4 1.15 Turbocharger 1250HP AF8005-4007

BOOSTED 8077 T4 1.15 Turbocharger 1250HP, Natural Cast Finish External Wastegate, T4 Twin Entry Inlet Flange, V-Band Exhaust Flange

Aeroflow PerformanceSKU: AF8005-4007BLK

Colour: Black

Variant

Price:

$2,998.77 NZD

Tax included Shipping calculated at checkout

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

BOOSTED 8077 T4 1.15 Turbocharger 1250HP, Natural Cast Finish
External Wastegate, T4 Twin Entry Inlet Flange, V-Band Exhaust Flange

BOOSTED 8077 T4 Turbocharger Specifications

Recommended horsepower rating: 700-1250HP
Recommended engine displacement: 2.0L to 8.0L

- Dual ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T4 twin entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- M18 x 1.5mm coolant port thread
- 1/4" NPT oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer: 79.80mm
Exducer: 108.40mm
Extended Tip: 113mm
A/R: 0.69
Compressor Inlet: 5" Slip fit
Compressor Outlet: V-Band (AF8080-1009)

Turbine Specifications
Inducer: 88.90mm
Exducer: 77.40mm
A/R: 1.15
Turbine Inlet Flange: T4
Turbine Outlet Flange: V-Band (AF8080-1001)

Wastegate
External wastegate
