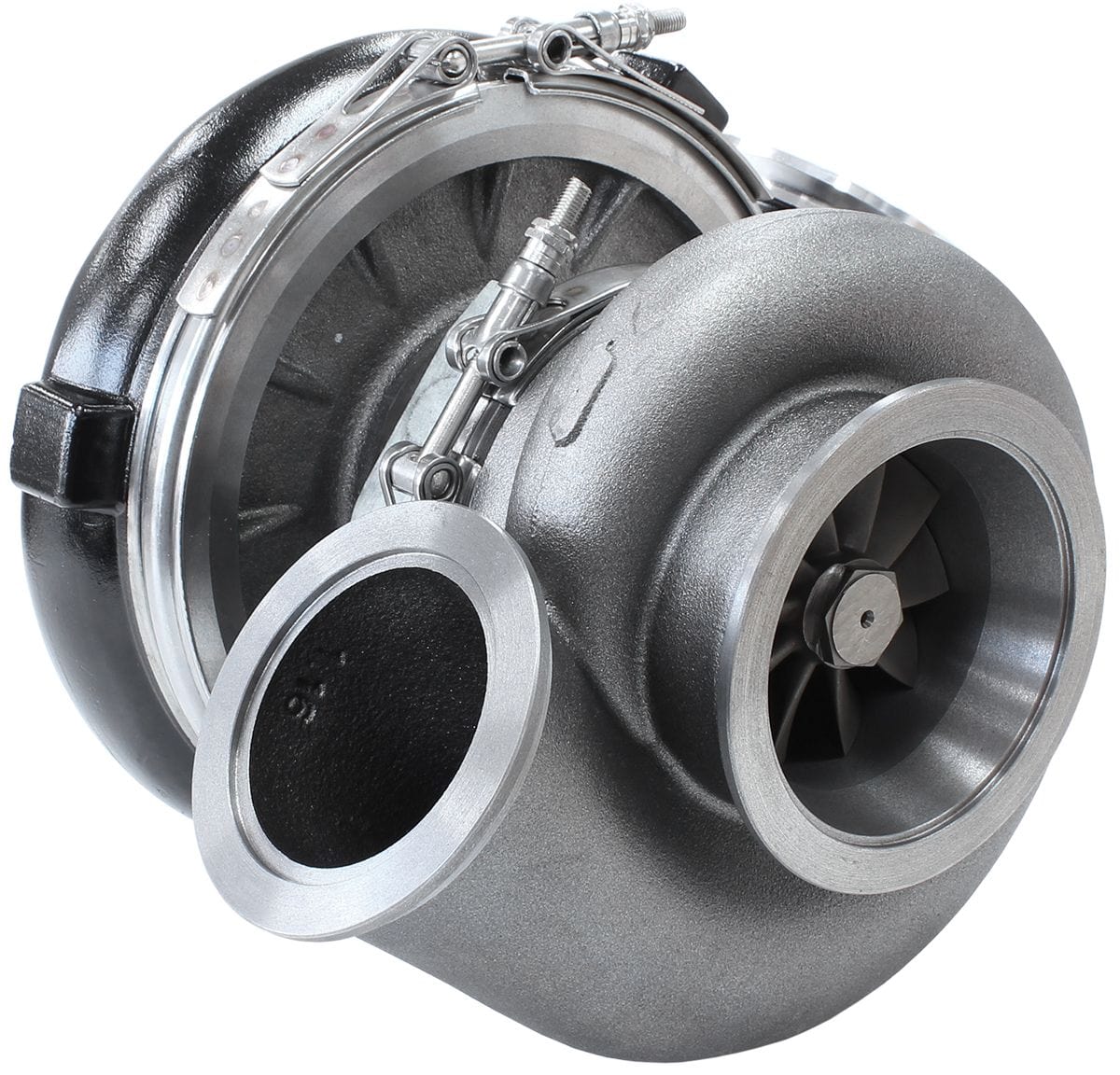

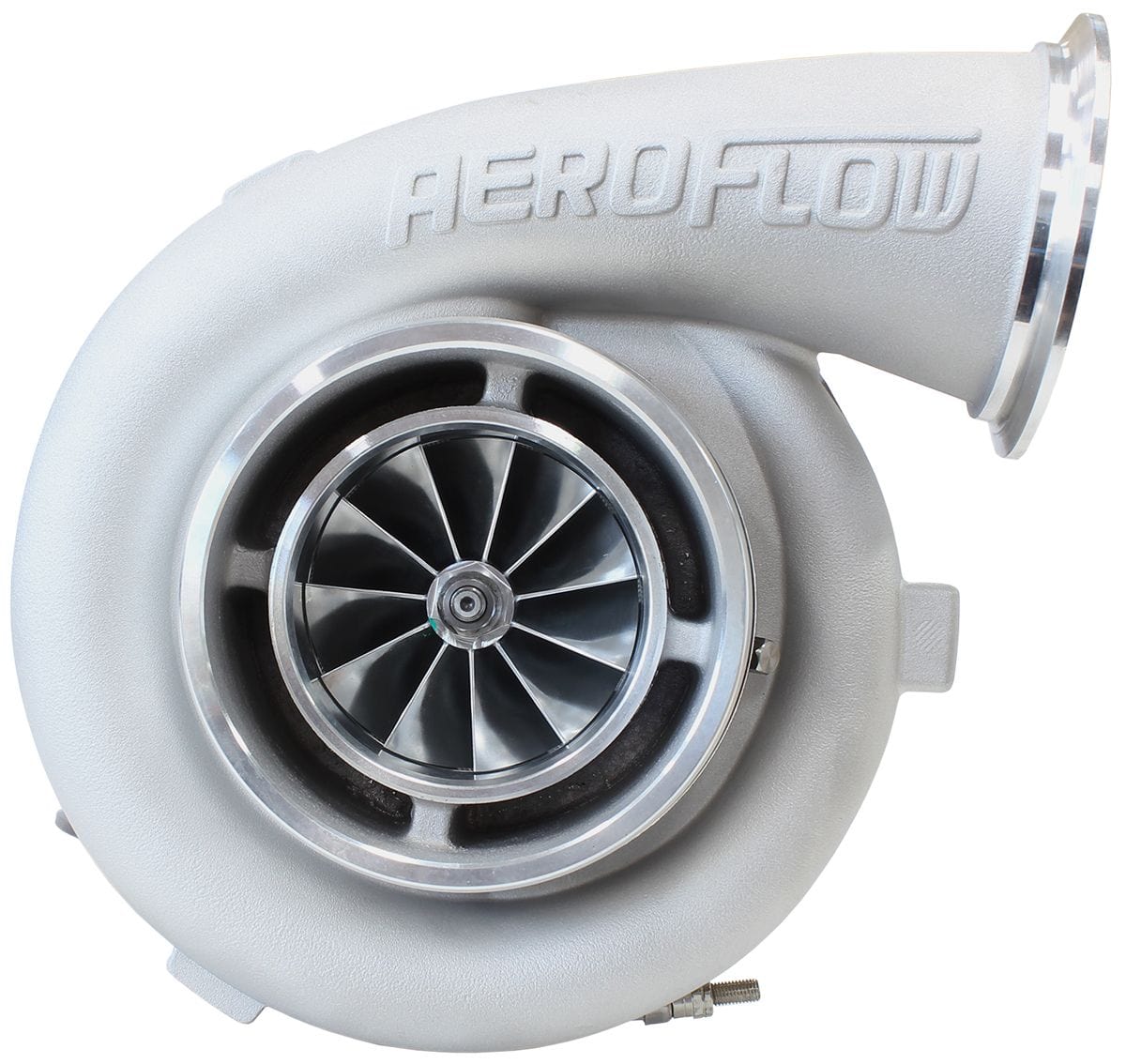

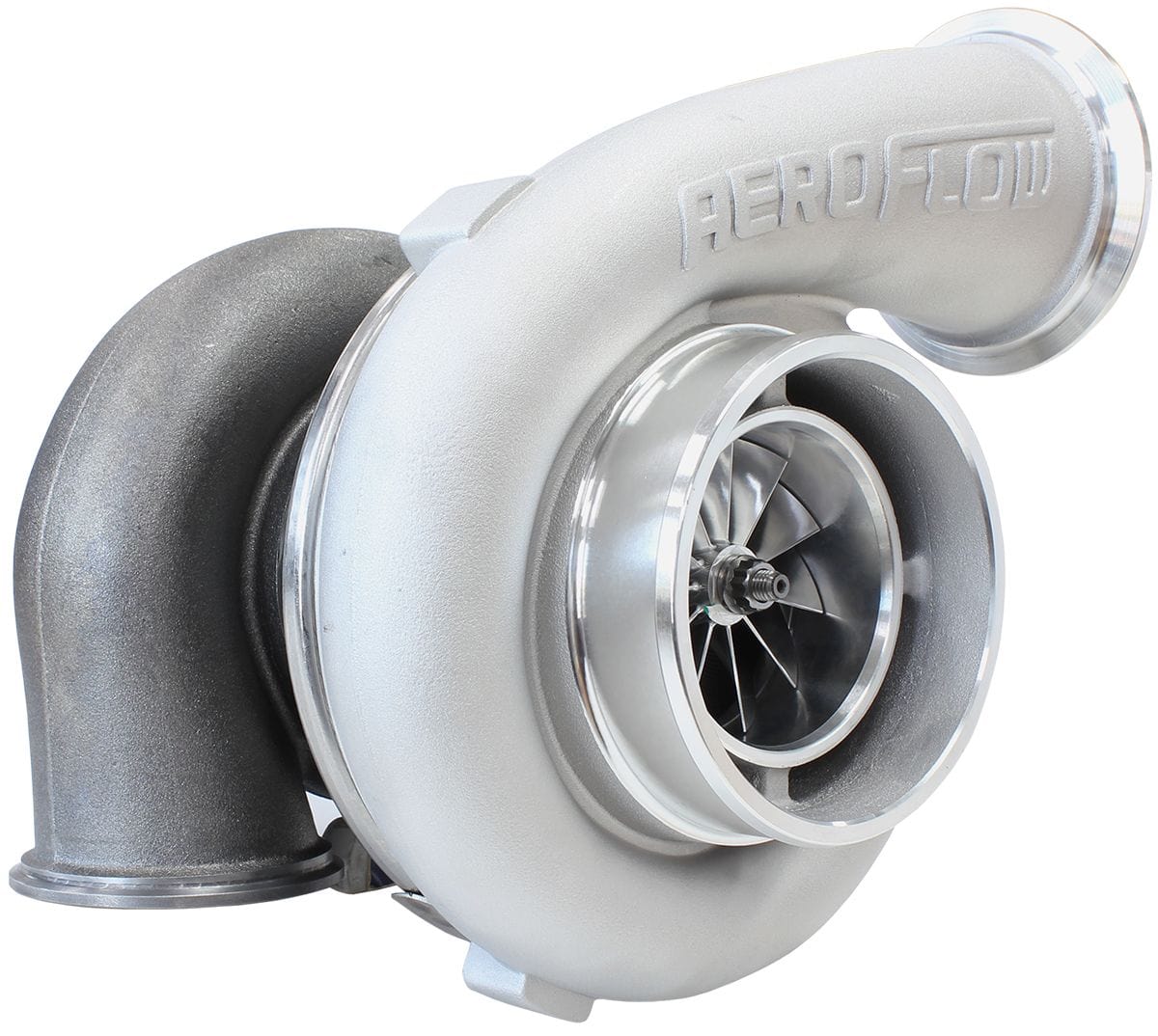

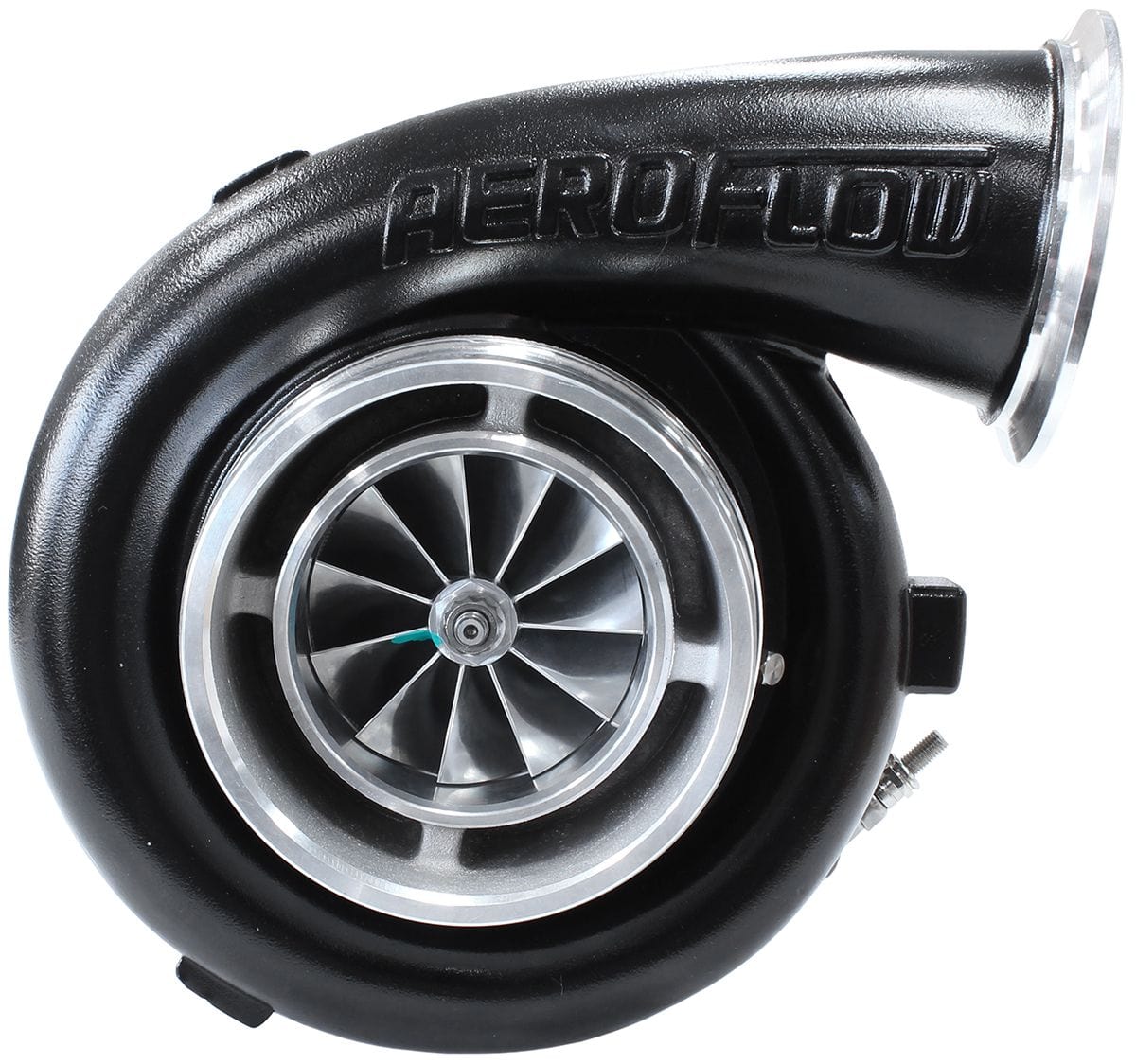

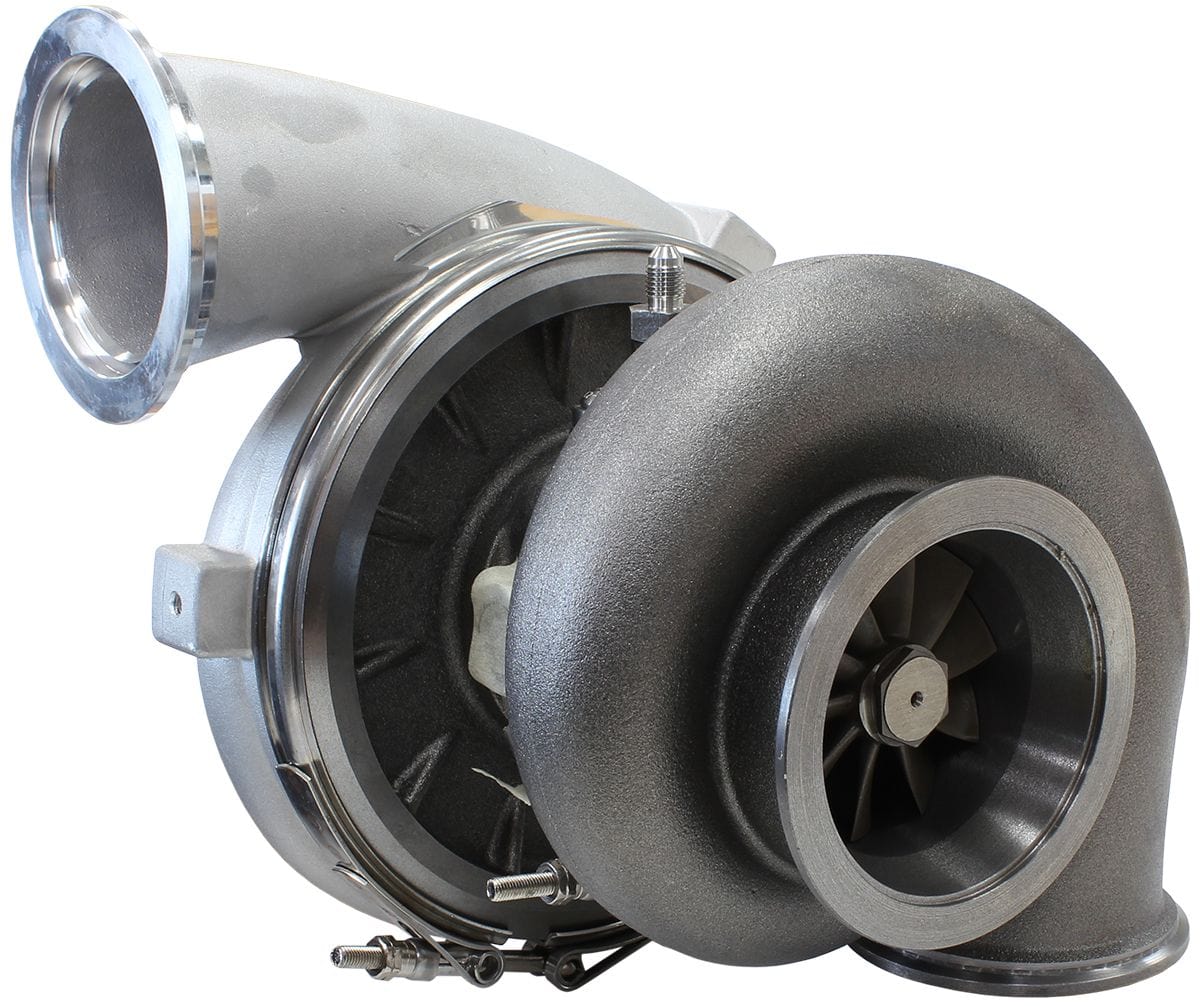

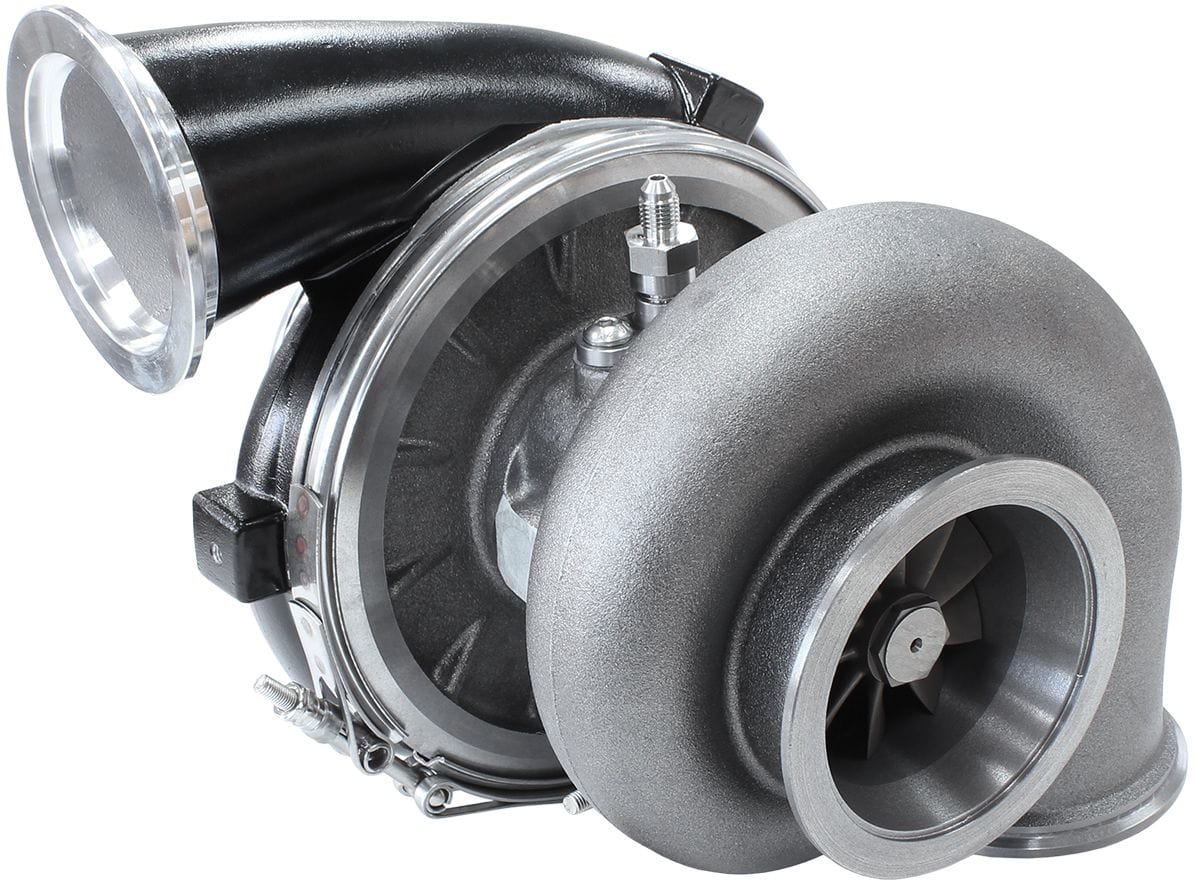

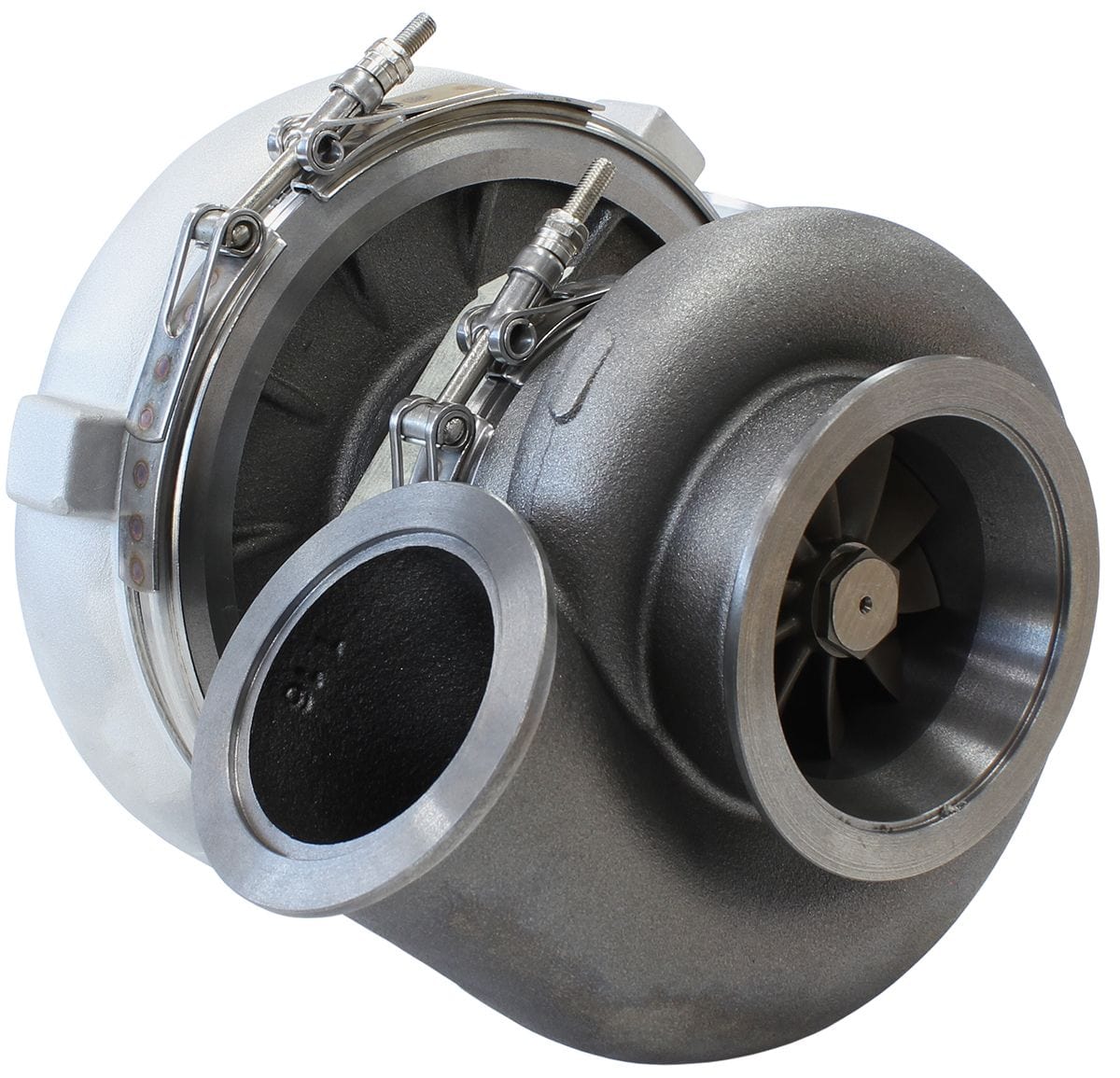

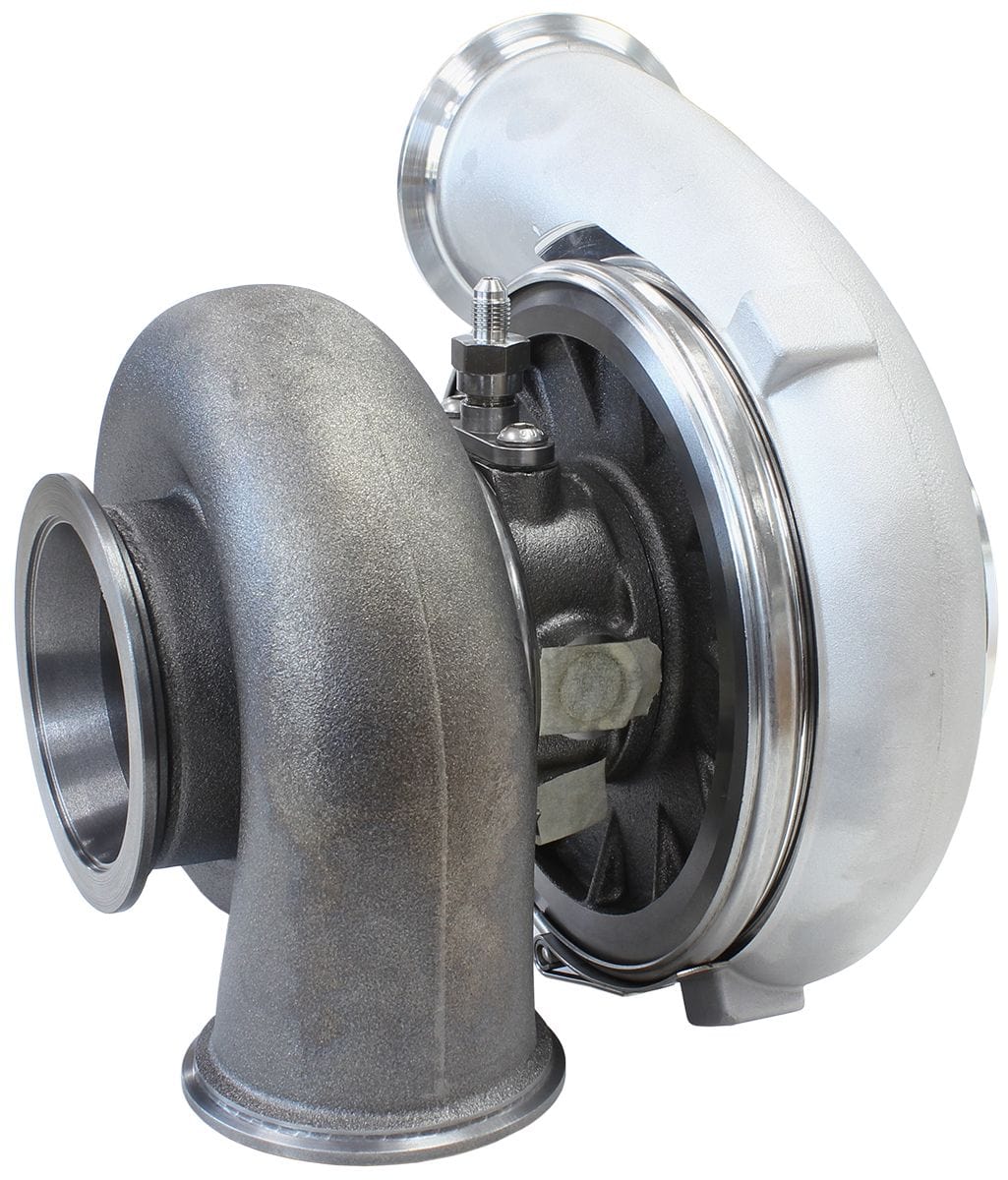

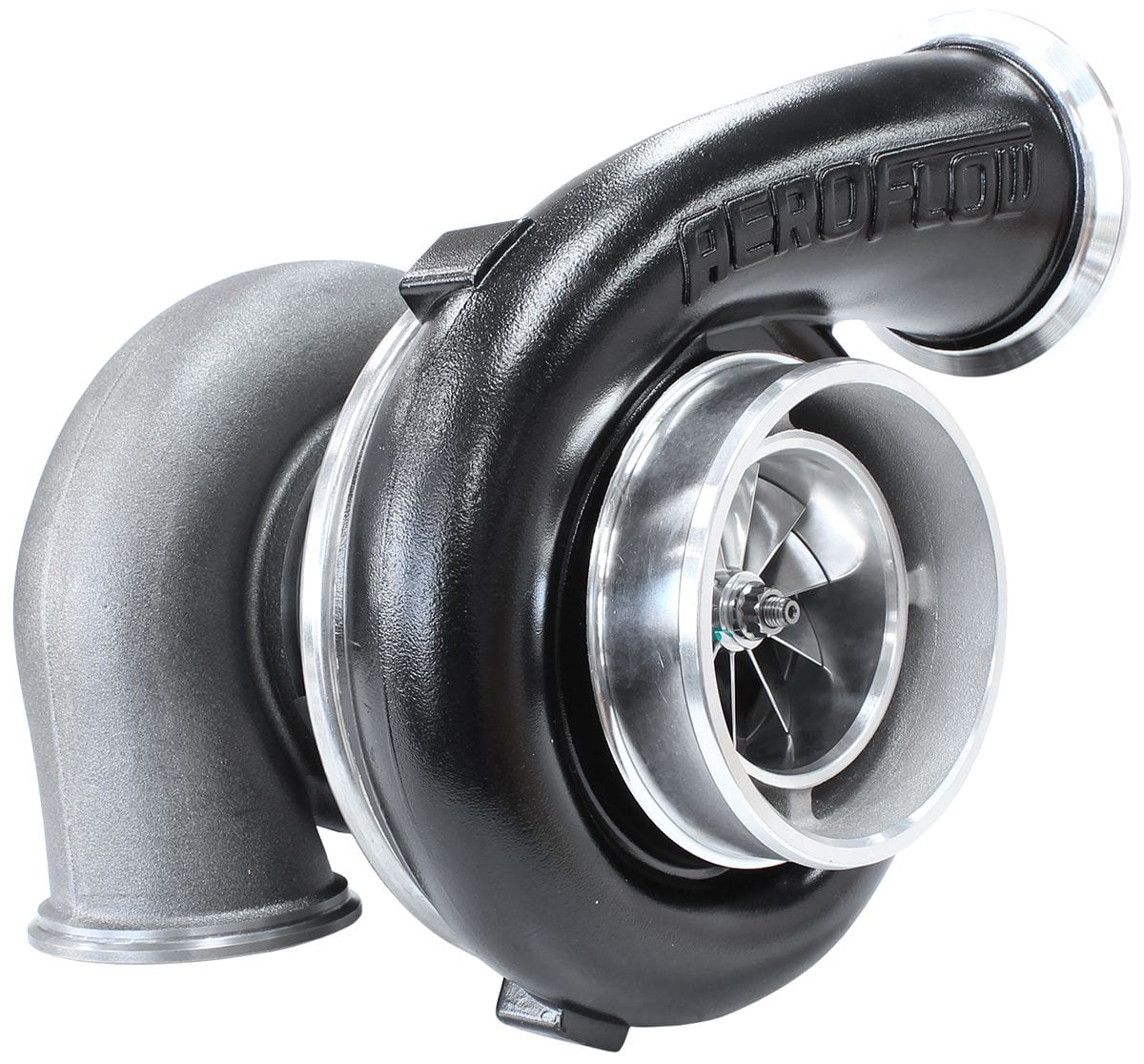

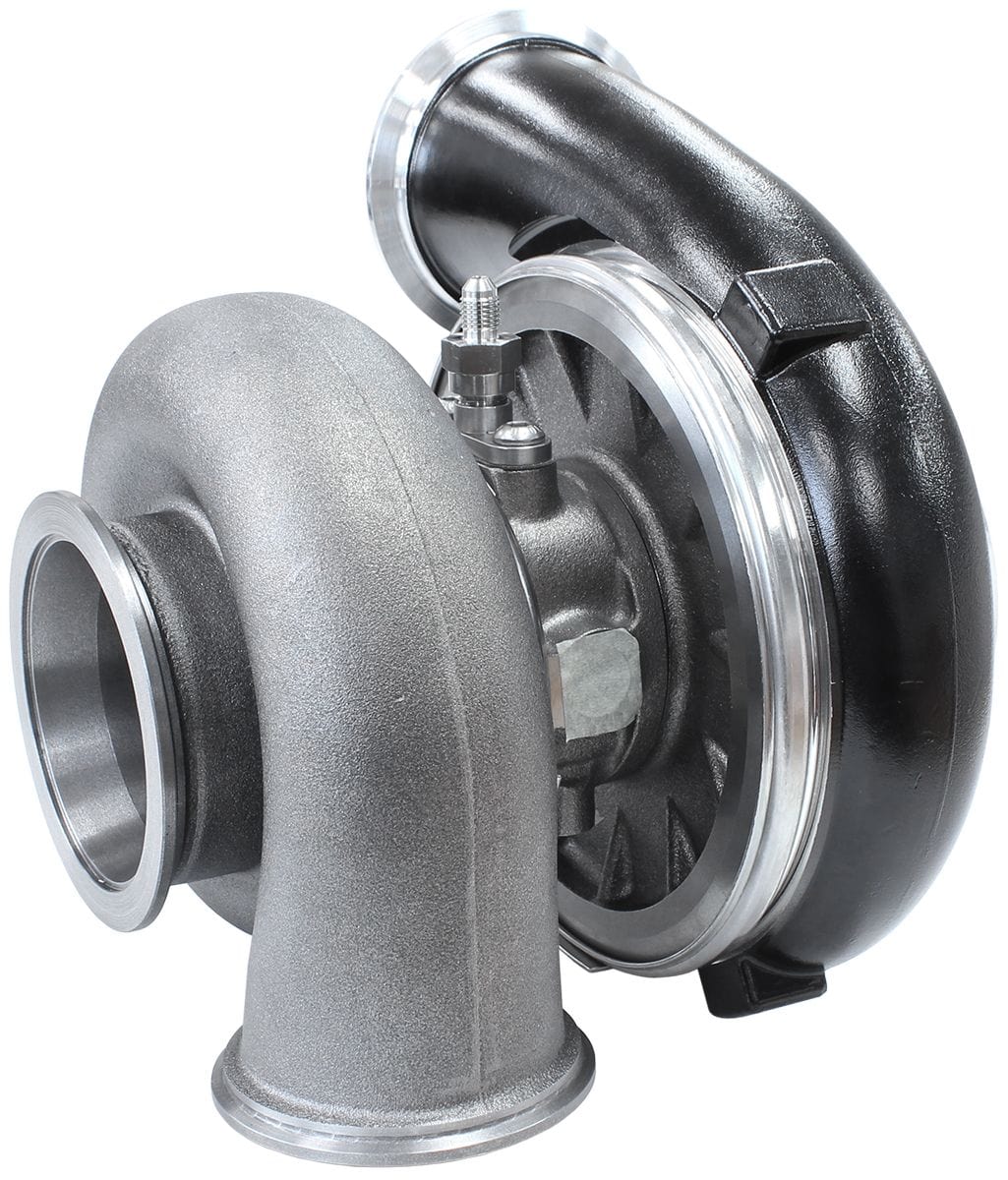

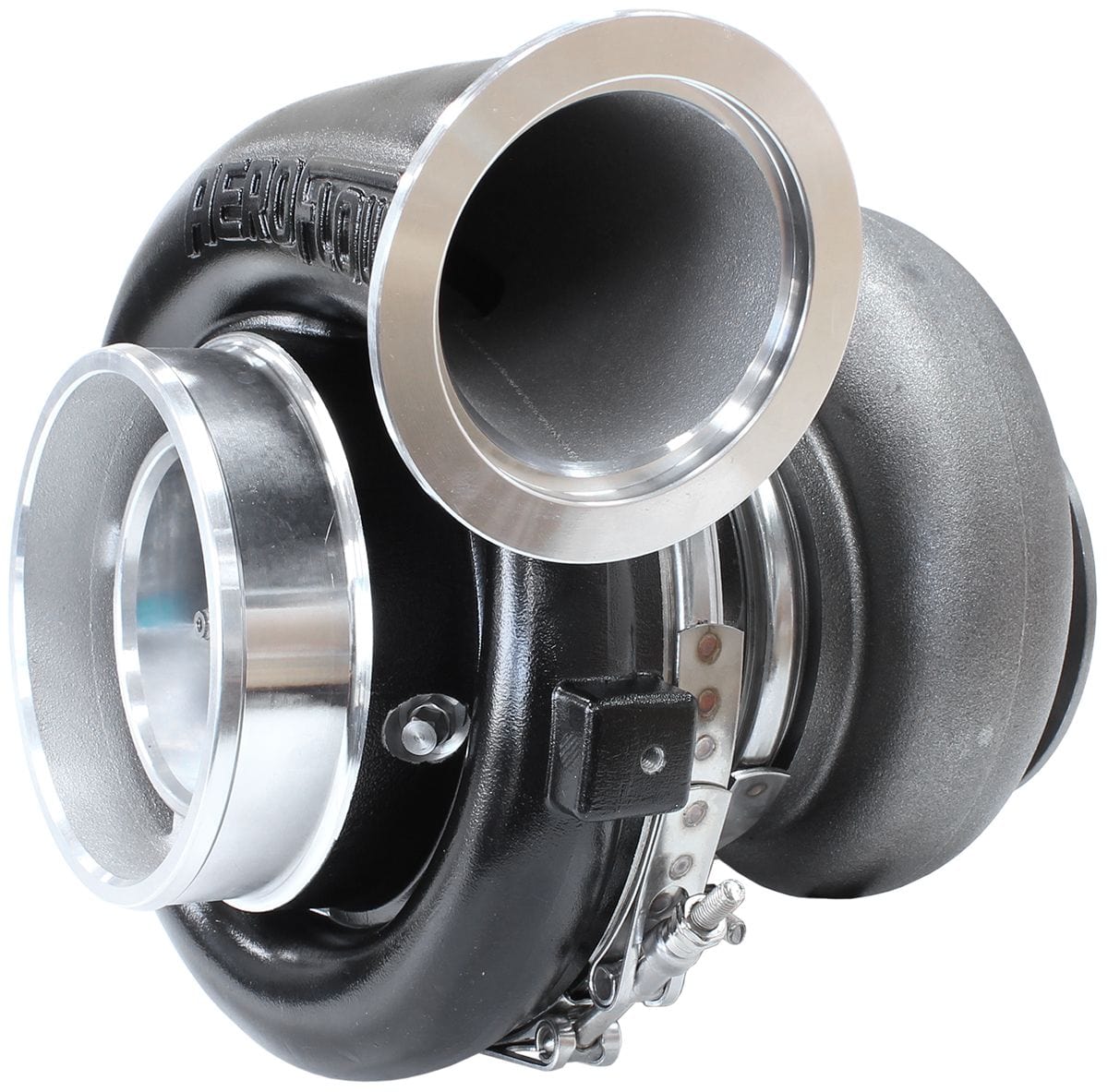

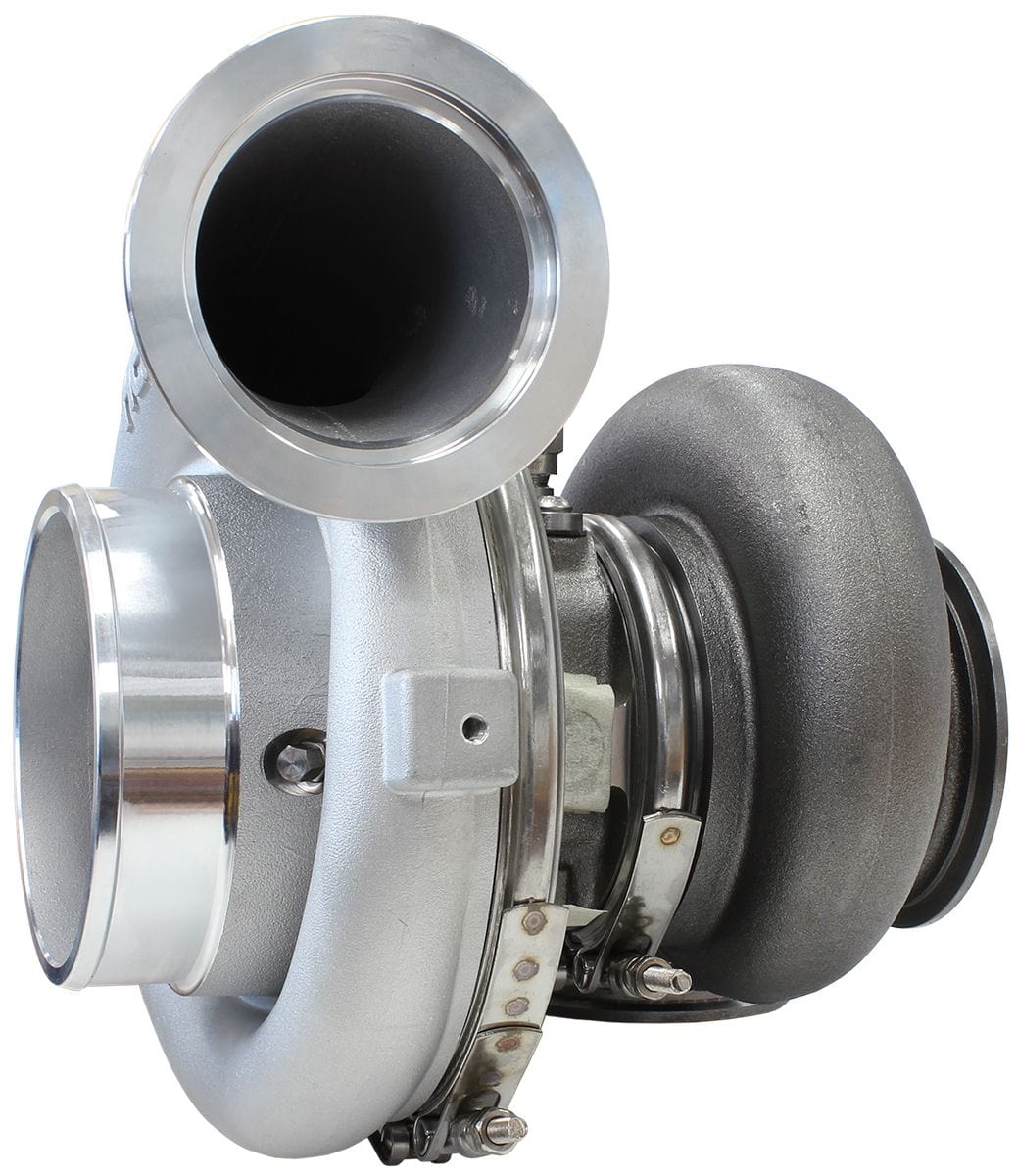

BOOSTED 8077 V-Band 1.16 Turbocharger 1250HP, Natural Cast Finish
External Wastegate, V-Band Inlet & Exhaust Flanges
BOOSTED 8077 V-Band Turbocharger Specifications
Recommended horsepower rating: 700-1250HP
Recommended engine displacement: 2.0L to 8.0L
- Dual ceramic ball bearing
- 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange
- M18 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 79.80mm
Exducer: 108.40mm
Extended Tip: 113mm
A/R: 0.69
Compressor Inlet: 5" Slip fit
Compressor Outlet: V-Band (AF8080-1009)
Turbine Specifications
Inducer: 88.90mm
Exducer: 77.40mm
A/R: 1.16
Turbine Inlet Flange: V-Band (AF8080-1021)
Turbine Outlet Flange: V-Band (AF8080-1001)
Wastegate
External wastegate
