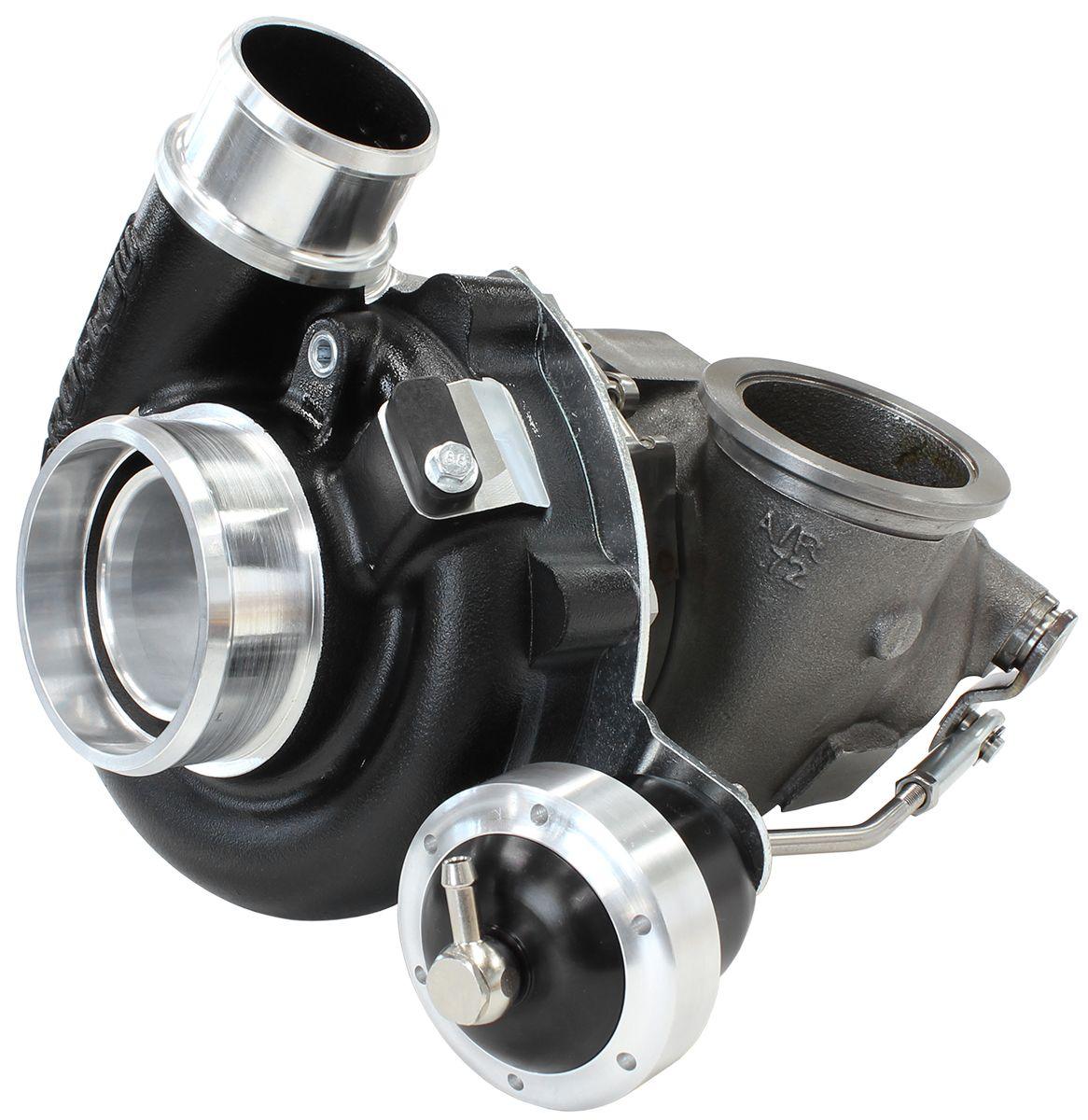

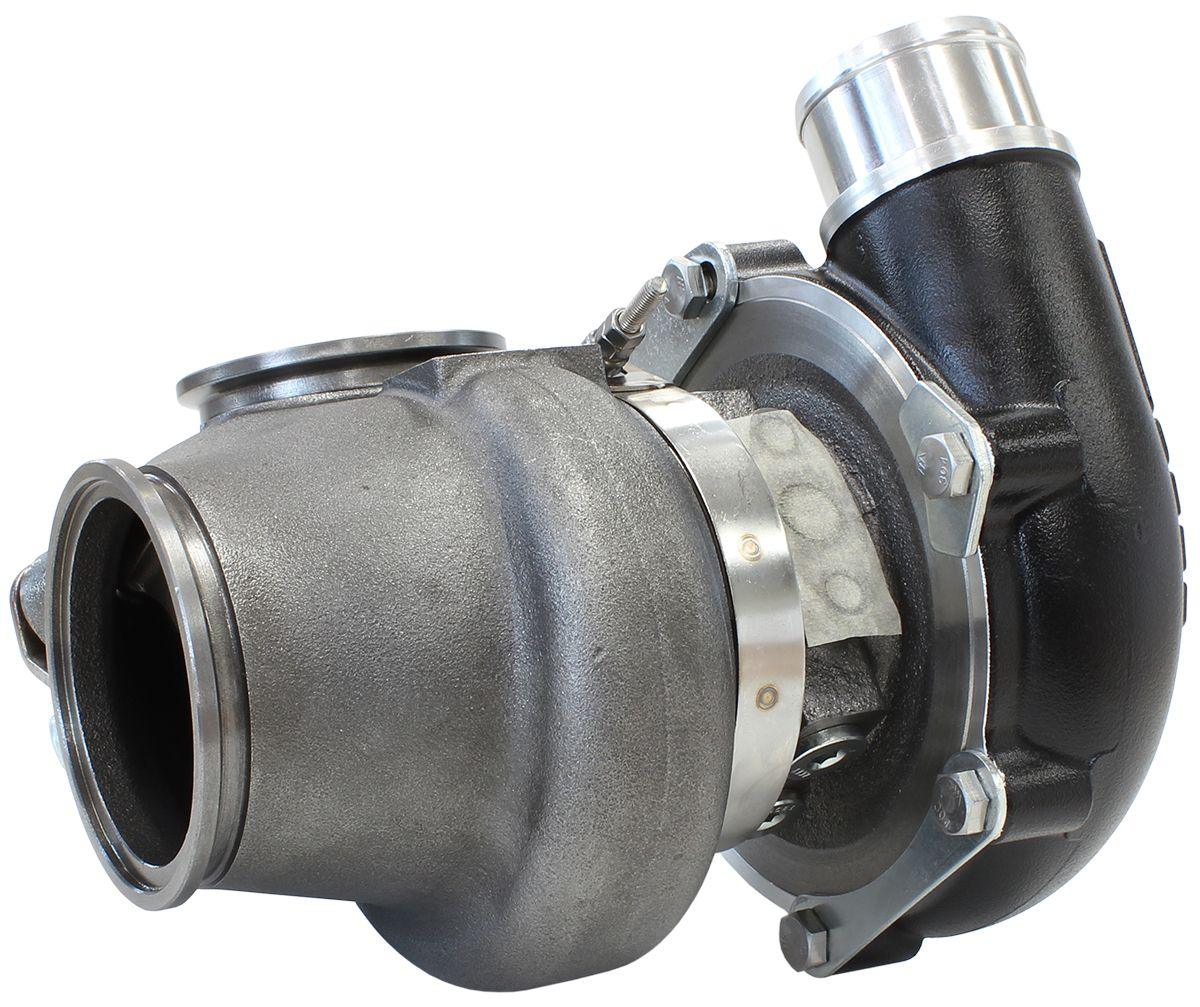

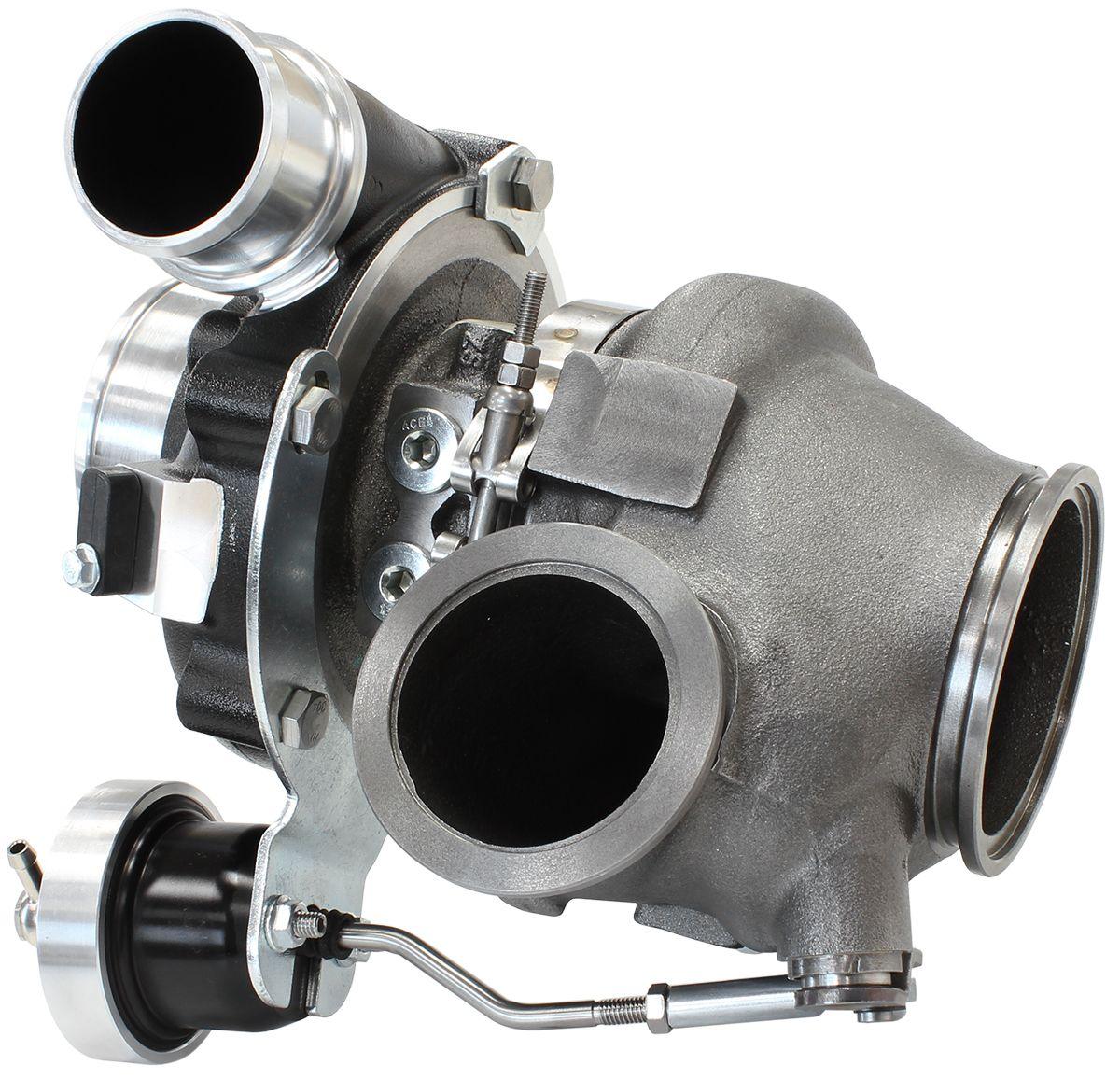

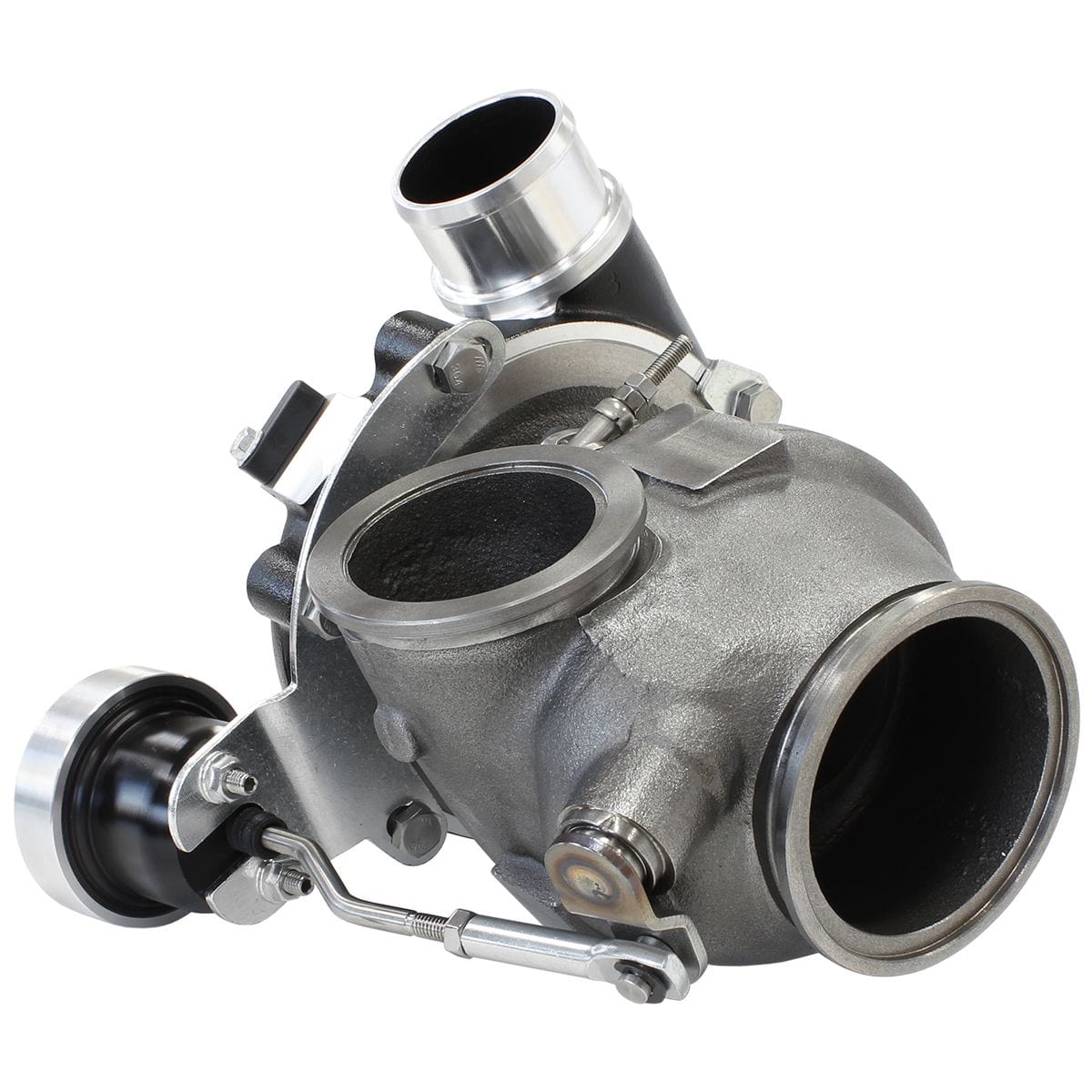

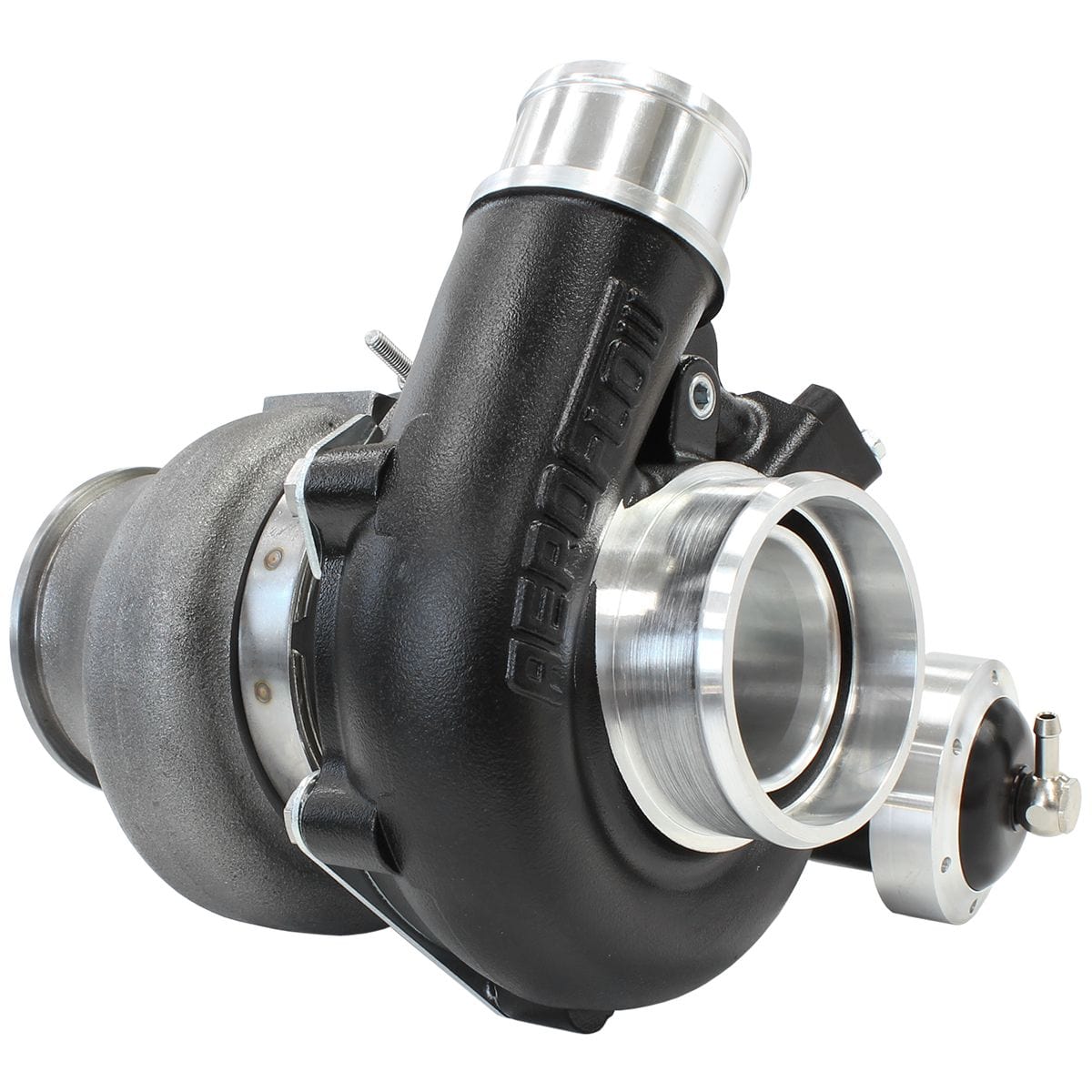

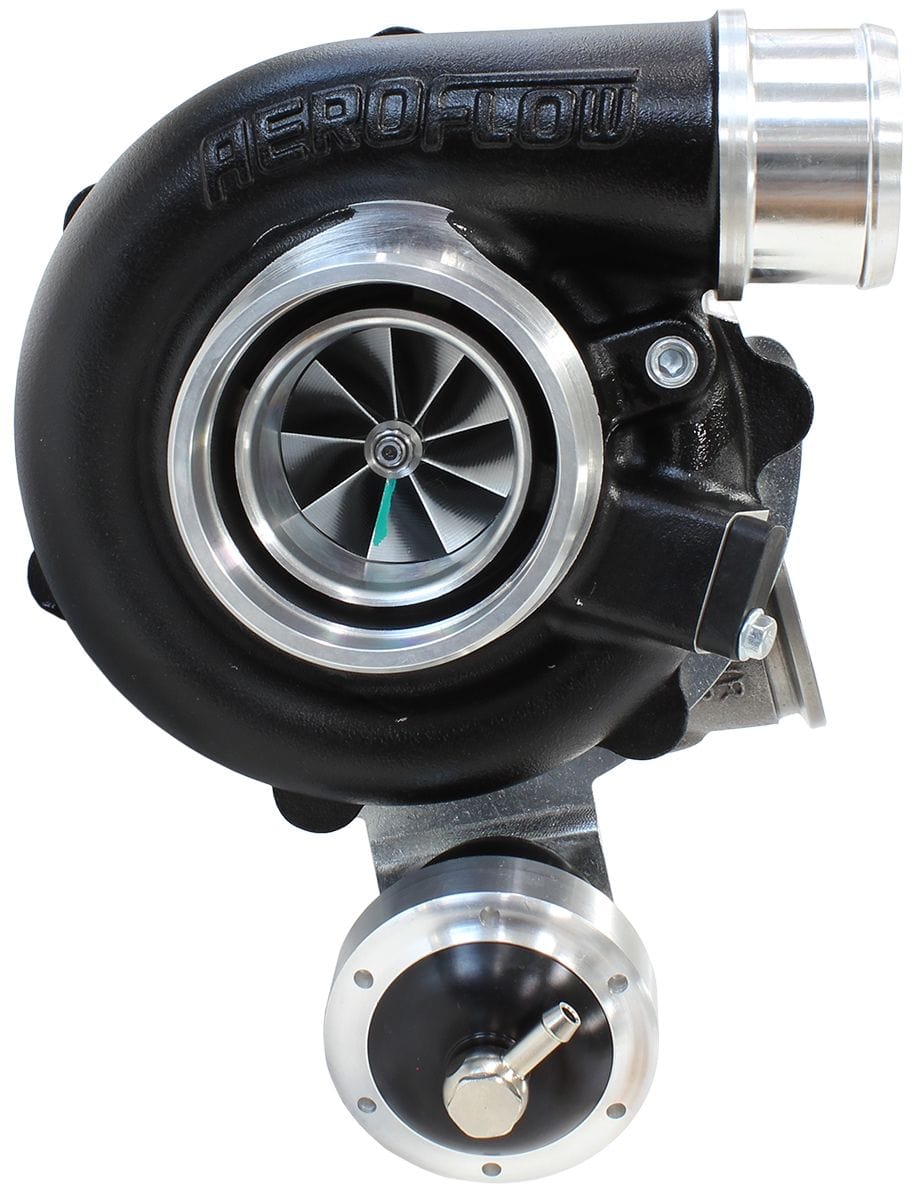

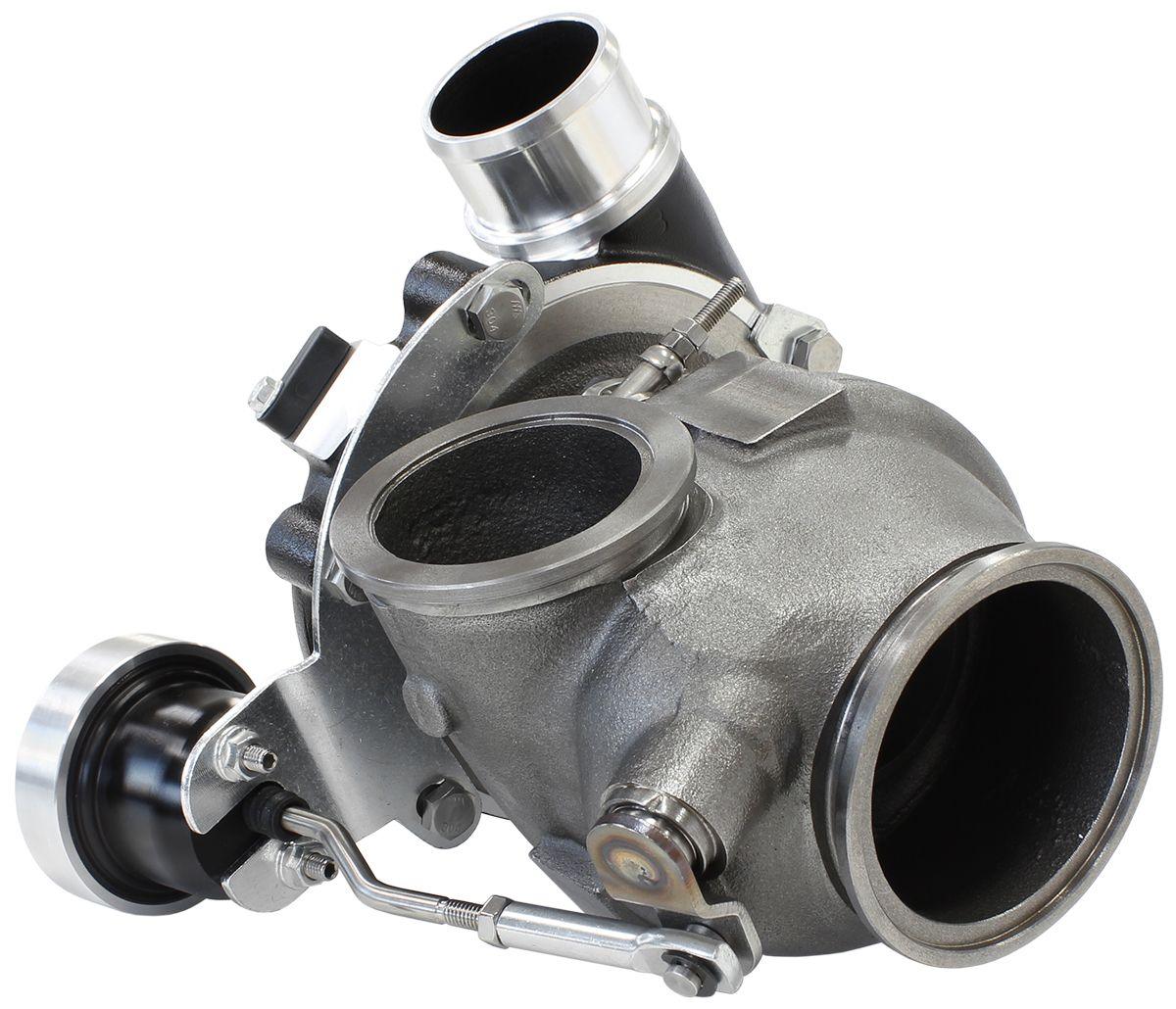

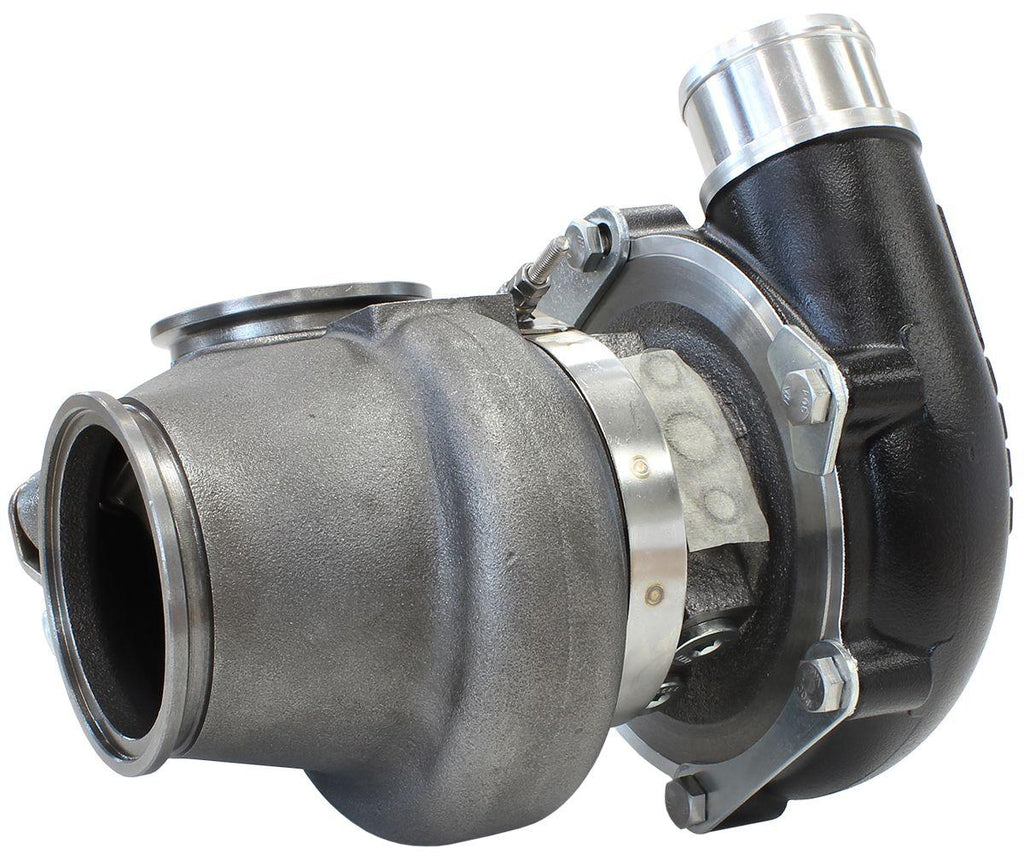

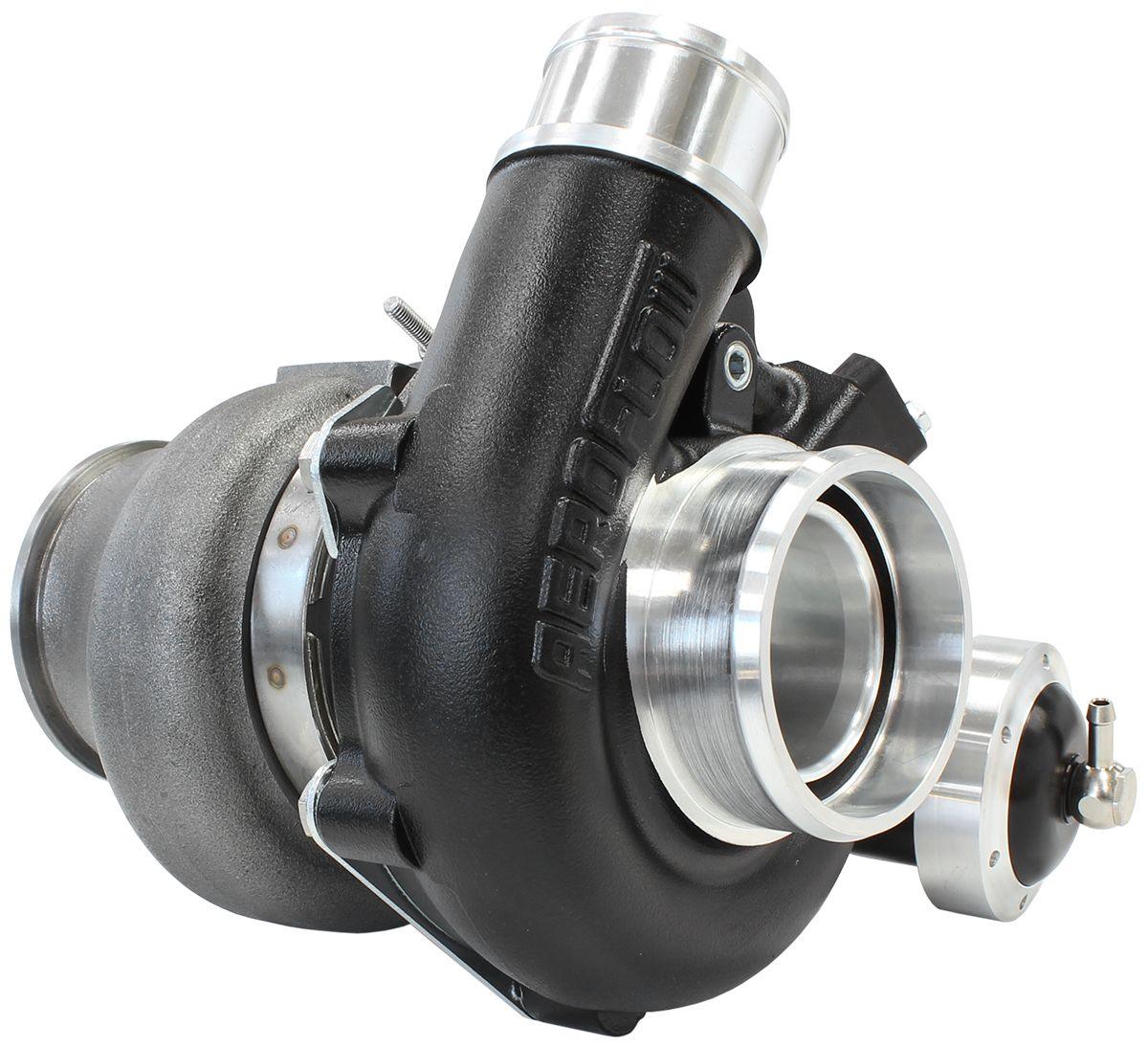

BOOSTED TURBO 4849.72 V BAND FLANGE V BAND OUTLET G25-550 NAT IWG

filler

Colour: Black
Price:
Sale price$2,249.98

GST included Shipping calculated at checkout

Stock:
In stock

Description

BOOSTED 4849 .72 Turbocharger 550HP, Natural Cast Finish
Internal Wastegate, V-Band Inlet & Exhaust Flanges
G25-550

Recommended horsepower rating: 300-550HP
Recommended engine displacement: 1.4L to 3.0L

- V-Band turbine inlet and outlet
- Dual ceramic ball bearing
- Point Milled compressor wheel
- Ported shroud compressor housing cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- SiMo-nodular cast iron rear housing
- 4 x M14 x 1.5mm coolant fitting ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fitting with in-built restrictor (Warranty VOID if not used)
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- Internal wastegate option with 9psi spring & 32mm hole size

Compressor Specifications
Inducer: 48mm
Exducer: 62mm
Extended Tip: 62mm
A/R: 0.70
Compressor Inlet: 3" Slip fit
Compressor Outlet: 2" Slip fit

Turbine Specifications
Inducer: 54mm
Exducer: 49mm
A/R: 0.72
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: V-Band (AF8080-1000)

Wastegate
Internal wastegate with 9psi actuator
