Braided Sleeve Heat Shield

filler

Hose Side (ID): 1" (25.4mm) I.D Suit Hose -6, -8, -10, -12
Length (Meters): 1M
Price:
Sale price$49.99

GST included Shipping calculated at checkout

Stock:
In stock

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Description

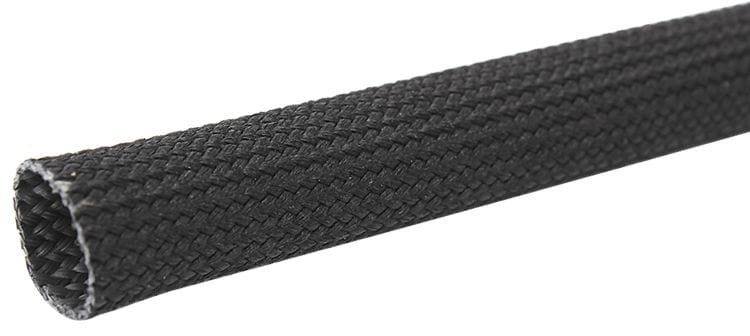

Braided Sleeve Heat Shield

AF91-9000 AF91-9001 AF91-9002 AF91-9050 AF91-9051 AF91-9052

Aeroflow’s braided sleeve is lightweight and extremely flexible. It is braided from fiberglass yarns and coated with high temperature resins. It can be used for insulating wire bundles or cables as well protecting against damage caused by abrasion from sharp edges, high impacts and vibration. With a tough woven construction, this braided heat sleeve withstands up to 500°C (932°F) and splashes of 1100°C (2000°F). It is not recommended for direct contact with any heat source.

It is recommended for a tight fit choose a braided sleeve diameter that is a smaller size than required for your application. For a more flexible/loose fit select a braided sleeve diameter that is the same size or slightly larger than your application, this will ensure that the cables are able to smoothly and easily move.

If the braided sleeve is not cut correctly it can fray. To prevent fraying use a hot cutting tool such as a hot knife or a soldering iron with a sharp tip. Slice the braid using even pressure to leave an evenly sealed edge on the braid. While the end is cooling you can flare it using a small cone-shaped object to hold it open. Once the braid sleeve is cut to size simply push and slide the sleeve into place over the cable and finish it off with either heat shrink or Aeroflow hose end finishers for that professional look.

Warning glass fibres can cause irritation to sensitive skin always use correct personal protection equipment when handling this product.
