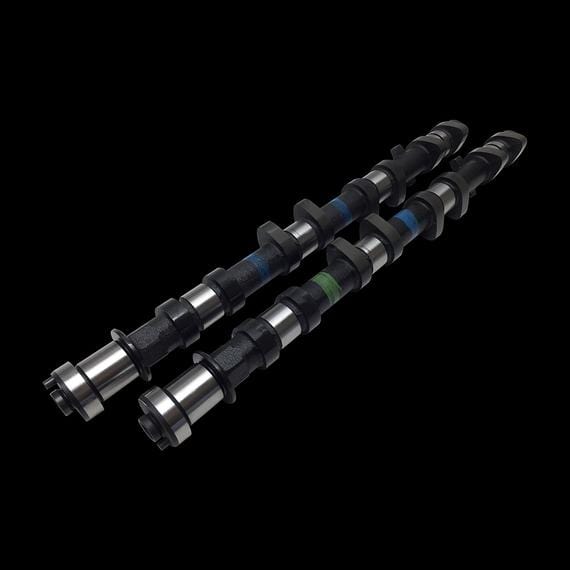

Brian Crower Cams Stage 2 264 264 Toyota MR2 Celica Alltrac 3SGTE 3S-GTE
Brand: Brian Crower
Part Number: BC0351
Description:
Brian Crower is known for making high quality camshafts that make power without breaking the bank. There is no other cam manufacturer on the market that gives you more value for your dollar, and the parts just work. We use them in our own cars and we encourage our customers to use them as well.
3SGTE CAMSHAFTS
There are four generations of the Toyota 3SGTE/3SGE, which were used in the Toyota Celica, MR2, Caldina and Altezza. All 3SGTE engines had a displacement of 2.0 L, with the 3SGTE being the performance factory turbo designation. The second generation, found in the MR2 turbo, was produced from 1990 to 1994, receiving a slight boost in horsepower and torque. It also proved to be a slightly more reliable engine. The second generation non turbo also did-away with the T-VIS system, which was replaced by the ACIS (Acoustic Control Induction System), proving to be much more efficient. T-VIS was, however, retained on the second-generation 3SGTE. The third generation 3SGTE was produced from 1994 to 1999 in the Celica and MR2. Power output was increased over the Gen 2, while torque figures stayed the same. It received a minor revision in 1996 for emissions (EGR) which reduced power output. These cams do not fit the BEAMS 3SGE 4th generation engine ("Black Top") which began production in 1997 and is equipped with VVT-i. BEAMS is an acronym which stands for Breakthrough Engine with Advanced Mechanism System.
Stage 2 Street/Strip Specification
Plug and play application. Short duration for nice street manners, slight lope at idle. Excellent all purpose spec. OEM spring OK.
Bucket Diameter: 1.200"
Fitment
-
Make: Toyota / Lexus
-
Model: MR2 90-99 SW20, Celica All-Trac 90-93 ST185
-
Engine: 3S-GTE Gen 2 SW20 ST185
Specifications
-
Cam ADV Duration: 264/264
-
Duration at 0.050: 216/216
-
Duration 050: 216/216
-
Name: Stage 2
-
Cam Type: Intake & Exhaust
-
Cam lift txt: .344"/.344" (8.74mm/8.74mm)
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–20 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
