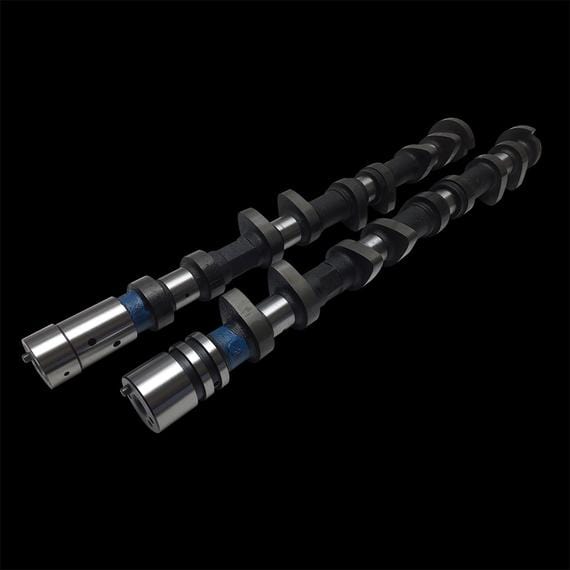

Brian Crower Cams Stage 3 280 280 Mitsubishi Lancer Evo X 4B11 4B11T
Brand: Brian Crower
Part Number: BC0132
Description:
Brian Crower is known for making high quality camshafts that make power without breaking the bank. There is no other cam manufacturer on the market that gives you more value for your dollar, and the parts just work. We use them in our own cars and we encourage our customers to use them as well.
Brian Crower is known for making high quality camshafts that make power without breaking the bank. The Stage 3 cams have a longer duration profile with added RPM potential. Intended for fully built engines, it requires tuning and upgraded valve springs.
| 4B11 CAMSHAFTS The 4B11T is the first engine in the Lancer Evolution series that uses a die-cast aluminum cylinder block versus the cast-iron block used in the previous turbocharged 4G63 engine that powered all previous models. The engine weight has been reduced by 26 lbs compared to the 4G63, even with the addition of a timing chain instead of a belt and MIVEC continuous variable valve timing on both the intake and exhaust camshafts (the 4G63 had MIVEC valve timing & lift switching type on the intake only). A revised turbocharger offers up to 20-percent quicker response at lower engine speeds compared to previous 4G63. The 4B11T offers a broader torque curve, producing more torque than the 4G63 at all engine speeds, helped by the engine's square bore and stroke design (both measure 86.0 mm). Redline starts at 7,000 rpm, with a fuel cutout at 7,600 rpm to protect the engine. A semi-closed deck structure, an integrated ladder frame and four-bolt main bearing caps contribute to engine strength and durability. Unlike the 4G63, the 4B11T does not use a balancer shaft. Aluminium is used for the timing chain case and cylinder head cover. The engine features an electronically controlled throttle, an isometric short port aluminum intake manifold and the stainless steel exhaust manifold is positioned at the rear of the engine. The use of a direct-acting valvetrain (buckets) eliminates the need of the roller rocker arm configuration previously used in the 4G63 and its valve stem seals are integrated with the spring seats. |
|
|
4B11 CAMSHAFTS The 4B11T is the first engine in the Lancer Evolution series that uses a die-cast aluminum cylinder block versus the cast-iron block used in the previous turbocharged 4G63 engine that powered all previous models. The engine weight has been reduced by 26 lbs compared to the 4G63, even with the addition of a timing chain instead of a belt and MIVEC continuous variable valve timing on both the intake and exhaust camshafts (the 4G63 had MIVEC valve timing & lift switching type on the intake only). A revised turbocharger offers up to 20-percent quicker response at lower engine speeds compared to previous 4G63. The 4B11T offers a broader torque curve, producing more torque than the 4G63 at all engine speeds, helped by the engine's square bore and stroke design (both measure 86.0 mm). Redline starts at 7,000 rpm, with a fuel cutout at 7,600 rpm to protect the engine. A semi-closed deck structure, an integrated ladder frame and four-bolt main bearing caps contribute to engine strength and durability. Unlike the 4G63, the 4B11T does not use a balancer shaft. Aluminium is used for the timing chain case and cylinder head cover. The engine features an electronically controlled throttle, an isometric short port aluminum intake manifold and the stainless steel exhaust manifold is positioned at the rear of the engine. The use of a direct-acting valvetrain (buckets) eliminates the need of the roller rocker arm configuration previously used in the 4G63 and its valve stem seals are integrated with the spring seats. |
| 4B11 CAMSHAFTS The 4B11T is the first engine in the Lancer Evolution series that uses a die-cast aluminum cylinder block versus the cast-iron block used in the previous turbocharged 4G63 engine that powered all previous models. The engine weight has been reduced by 26 lbs compared to the 4G63, even with the addition of a timing chain instead of a belt and MIVEC continuous variable valve timing on both the intake and exhaust camshafts (the 4G63 had MIVEC valve timing & lift switching type on the intake only). A revised turbocharger offers up to 20-percent quicker response at lower engine speeds compared to previous 4G63. The 4B11T offers a broader torque curve, producing more torque than the 4G63 at all engine speeds, helped by the engine's square bore and stroke design (both measure 86.0 mm). Redline starts at 7,000 rpm, with a fuel cutout at 7,600 rpm to protect the engine. A semi-closed deck structure, an integrated ladder frame and four-bolt main bearing caps contribute to engine strength and durability. Unlike the 4G63, the 4B11T does not use a balancer shaft. Aluminium is used for the timing chain case and cylinder head cover. The engine features an electronically controlled throttle, an isometric short port aluminum intake manifold and the stainless steel exhaust manifold is positioned at the rear of the engine. The use of a direct-acting valvetrain (buckets) eliminates the need of the roller rocker arm configuration previously used in the 4G63 and its valve stem seals are integrated with the spring seats. |
Fitment
-
Make: Mitsubishi
-
Model: Evo X CZ4A
-
Engine: 4B11T Evo X
Specifications
-
Cam ADV Duration: 280/280
-
Duration at 0.050: 240/234
-
Duration 050: 240/234
-
Name: Stage 3
-
Cam Type: Intake & Exhaust
-
Cam lift txt: .495"/.445" (11.94mm/10.64mm)
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–20 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
