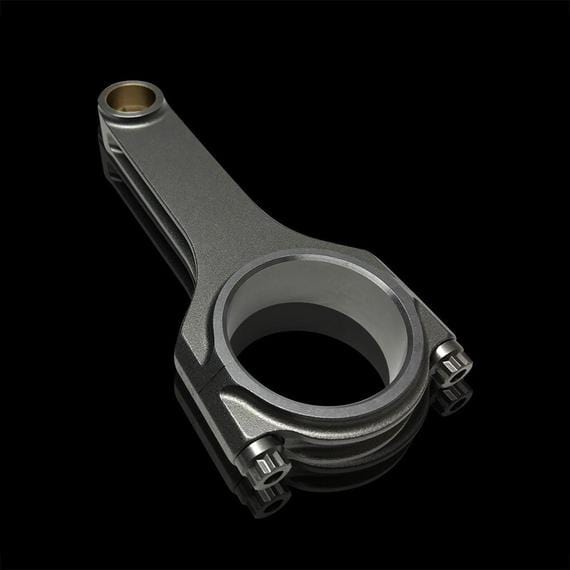

Brian Crower H Beam Rods Volkswagen 1.8T Golf Jetta A4 TT * Requires Rod Bearings with a Tang: 4B1606H, CB-1426P, or CR4104XP *
Brand: Brian Crower
Manufacturer's Part Number: BC6709
Stealth Ride Part Number: BC6709
UPC:
Description:
Although the name implies that the Sportsman is a 2nd tier part, the Sportsman incorporates every feature of the premier BC625+ rod, only that the fasteners have been changed to the more economical, yet venerable ARP2000 bolt, rated to 220,000 p.s.i. The Sportsman is rated in excess of 200HP per cylinder and priced for the everyday performance buff.
This rod is an H-Beam construction giving it a very strong strength rating for its cost. We often us H-Beam rods in most of our builds unless the build criteria call for very high horsepower or an extremely light rod for an all motor car.
If you are unsure about which rod you should choose for your build, please dont hesitate to contact us now
Although the name implies that the Sportsman is a 2nd tier part, the Sportsman incorporates every feature of the premier BC625+ rod, only that the fasteners have been changed to the more economical, yet venerable ARP2000 bolt, rated to 220,000 p.s.i. The Sportsman is rated in excess of 200HP per cylinder and priced for the everyday performance buff.
This rod is an H-Beam construction giving it a very strong strength rating for its cost. We often us H-Beam rods in most of our builds unless the build criteria call for very high horsepower or an extremely light rod for an all motor car.
If you are unsure about which rod you should choose for your build, please dont hesitate to contact us now
More Information Availability New | In Stock / Available |
Note | 20mm pin. For use with rod bearings with a tang: 4B1606H-STD, CAL-4B1606H, CB-1426P or CR4104XP. |
Item Weight | 565 g |
Shipping Weight (Dimensional) | 6.000000 |
Clearance Sale | No |
Availability | Available |
Part Type | Connecting Rods |
Make | Audi, Volkswagen |
Vehicle Model | Jetta / Golf GTI / Passat / A4 / A6 / TT |
Model | A4 97-01 B5 8D, A4 FWD 02-05 B6 8E/8H, Passat 98-05 B5-B5.5, TT 00-06 MK1 8N, GTI 00-06 MK4, Jetta 00-05 MK4, A4 Quattro 02-05 B6 8E |
Engine | 1.8T 20V, 2.0L 16V 9A |
Rod Length | 5.669" / 144mm |
Rod Length Oversize | Standard Length |
Pin Size | 0.787" / 20mm |
Brand | Brian Crower |
Small End Width | 0.980 |
Rod Material | Forged Steel |
Rod Bolt | 3/8" ARP 2000 |
Big End Width | 0.98 |
Big End Bore | 1.992 |
Beam Type | H-Beam |
Carb Legal | Unspecified |
Shipping Label | |
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
