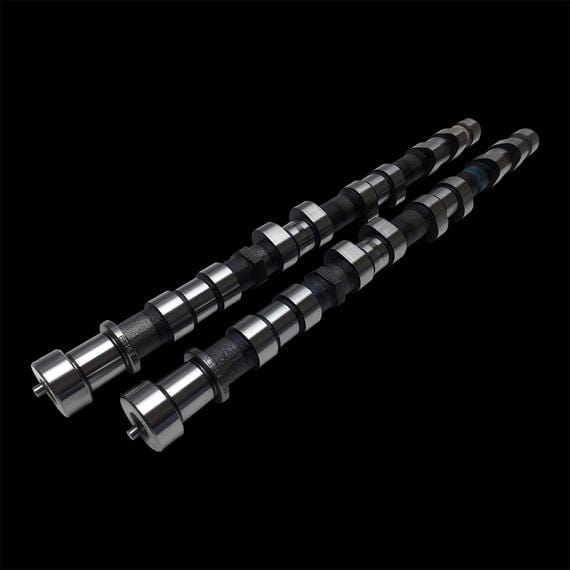

Brian Crower Stage 3 276/276 Camshafts Mitsubishi Eclipse DSM 4G63 1G 2G
Brand: Brian Crower
Manufacturer's Part Number: BC0104
Stealth Ride Part Number: BC0104
UPC:
Description:
This is NEW Brian Crower Camshaft is a longer duration profile (276) which has added RPM potential, it's intended for fully built engines. Valvespring & Retainers are required (BC0100) along with tuning.
The Mitsubishi Eclipse has been in production since 1989 and is produced solely for the United States and Canadian market, where it has also been built as the Eagle Talon and the Plymouth Laser through Mitsubishi Motors Corporation's close relationship with the Chrysler Corporation (now DaimlerChrysler) known as Diamond Star Motors, or DSM. The first generation Mitsubishi Eclipse was available in four trim levels in both FWD and AWD models, but all were equipped with the 4G63 engine, most in the turbocharged (4G63T) variety. The 1st Gen engine (6 bolt crank) was used from 1989-1992. The second generation engine (7 bolt crank) was introduced in 1993, but used in the 1st Gen chassis through 1994. In 1995 there was a major update in styling, including a convertible model called the Spyder. The 7 bolt, 4G63 engine was used until 1999. Both the 1st Gen and 2nd Gen 4G63 engines use the same camshafts, however do not confuse the 4G63 engine with the non-turbo, 420A Chrysler engine that was used in the base FWD Eclipse from 1995 to 1999.
More Information Availability New | In Stock / Available |
Shipping Weight (Dimensional) | 10.000000 |
Clearance Sale | No |
Availability | Available |
Part Type | Camshafts |
Make | Mitsubishi |
Model | Eclipse GST FWD 90-94 1G, Eclipse GSX AWD 90-94 1G, Eclipse GST FWD 95-99 2G, Eclipse GSX AWD 95-99 2G, Galant VR-4 91-92, Evo 1-3 CD9A/CE9A |
Engine | 4G63T (6-Bolt), 4G63T (7-Bolt DSM / Evo 1-3) |
Cam ADV Duration | 276/276 |
Duration at 0.050 | 220/220 |
Duration 050 | 220/220 |
Brand | Brian Crower |
Name | Stage 3 |
Valve Lift | .436"/.436" (11.07mm/11.07mm) assumes with 1.73 Rocker Ratio |
Cam Type | Intake & Exhaust |
Cam lift txt | .252"/.252" (6.4mm/6.4mm) |
Carb Legal | Unspecified |
Shipping Label | |
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
