Brian Crower Brian Crower STROKER KIT - Can-Am X3, 73.5mm Billet Crank, Carrillo Rods, Custom Pistons, Unbalanced BC0937 SR

Roll over image to zoom in Click on image to zoom

Brian Crower Stroker Kit Maverick X3 Turbo 2017+ 73.5mm Billet Crank Carrillo Rods Custom Pistons (BC0937)

Name: Brian Crower Stroker Kit Maverick X3 Turbo 2017+ 73.5mm Billet Crank Carrillo Rods Custom Pistons (BC0937)
Brand: Brian Crower
SKU: BCR BC0937
Price: 9468.90 NZD
Availability: InStock
Rating: 5 (34 reviews)

Fits: Can-Am Maverick X3 Turbo 2017-2019, Maverick X3 Turbo/Turbo R & RR 20+ Rotax 900 ACE | Stroke: 73.5mm (Stroker), Rod Length: 4.606" / 117mm | Requires aftermarket billet girdle for case.

Brian CrowerSKU: BCR BC0937 Manufacturer's SKU: BC0937

Special Order

Estimated Shipping Time is 5-20 working days

📦 SPECIAL ORDER ITEM

This is a special order item. When you complete your order, we will order it from the supplier.

📦 Returns & Refunds Policy

Special Order Items Are not entilted to returns or refunds for change of mind, incorrect orders, or fitment issues.

Refunds or replacements are only available for faulty or damaged products. Claims must be made within 7 days of receiving your order, with proof of the fault.

Price:

$9,468.90 NZD

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Brian Crower Stroker Kit Maverick X3 Turbo 2017+ 73.5mm Billet Crank Carrillo Rods Custom Pistons

Brand: Brian Crower
Part Number: BC0937

Description:

Brian Crower STROKER KIT - Can-Am X3, 73.5mm Billet Crank, Carrillo Rods, Custom Pistons, Unbalanced

Brian Crower Stroker Kit 73.5mm Billet Crank Carrillo Rods Custom Pistons For Maverick X3 Turbo 2017+

The BC stroker kit for the Can-Am X3 engine platform incorporates a 73.5mm (+3.8mm) stroke in the OEM crank pin configuration. This 73.5mm stroke along with the stock 74mm bore turns the ROTAX 900 into a square engine which delivers the perfect balance of speed and pulling capability. Depending on bore size that you decide, the BC kit will take you up to a 948.35cc with stock 74mm bore or 974.17cc with the big bore 75mm configuration. Due to the added stroke and absolute zero room in the OEM case, you are required to source an aftermarket billet girdle for added stroker clearance. As usual, each BC kit features your choice of custom CP, JE or BME aluminum forged pistons, 5100 series wrist pins (9310 pins available upon request for big HP applications), locks and complete ring pack. Available in any desired bore and compression ratio.

BC 4340 billet steel crankshaft (73.5mm stroke). Requires aftermarket billet girdle for case.

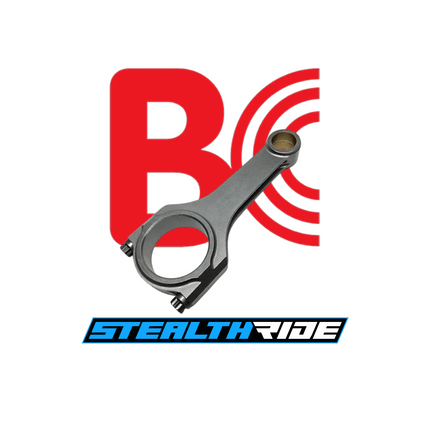

Carrillo connecting rods featuring 3/8 CARR fasteners.
CP, JE or BME aluminum forged pistons (any bore size, any compression ratio).
5100 Series carbon steel alloy wrist pins. 9310 Series pin upgrade avail.
Ductile iron plasma top rings, tapered second ring, low tension oil rings.
Fully system balanced and ready to install.

Fitment

Make: Can-Am
Model: Maverick X3 Turbo 2017-2019, Maverick X3 Turbo/Turbo R & RR 20+
Engine: Rotax 900 ACE

Specifications

Note: Requires aftermarket billet girdle for case.
Rod Length: 4.606" / 117mm
Rod Length Oversize: Standard Length
Stroke: 73.5mm (Stroker)
Pin Size: 0.708" / 18mm
Crank Material: 4340 Billet Steel
Rod Material: Forged Steel
Rod Bolt: 3/8" CARR
Beam Type: H-Beam

Please note: This is a special order item by Stealth Ride. Usual wait times are 5–20 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
