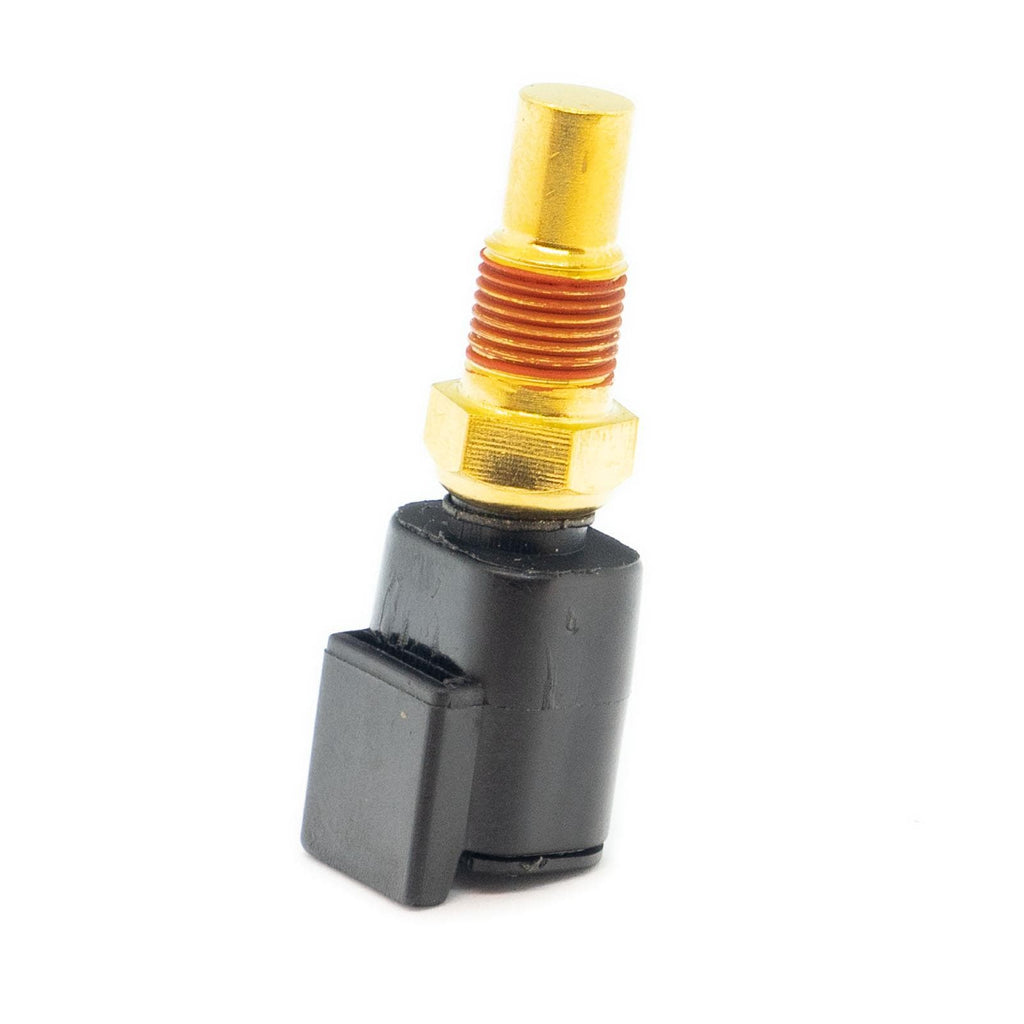

Link ECU Coolant Temperature Sensor NTC1-8
Coolant Temperature Sensor 1/8 NPT with plug and terminals
Brand: Link ECU
Part Number: 101-0076
Description:
The Link Coolant Temperature Sensor (1/8" NPT) is a high-quality NTC thermistor sensor designed to provide accurate temperature measurement for a wide range of automotive fluids. Suitable for coolant, engine oil, transmission oil, fuel and other compatible liquids. With a compact threaded design and proven temperature calibration, it delivers reliable temperature data for engine management, data logging and protection strategies.
Suits
- All Link ECUs.
- Other aftermarket ECUs supporting NTC temperature sensors.
What's in the Box
- Water Temp Sensor 1/8 NPT

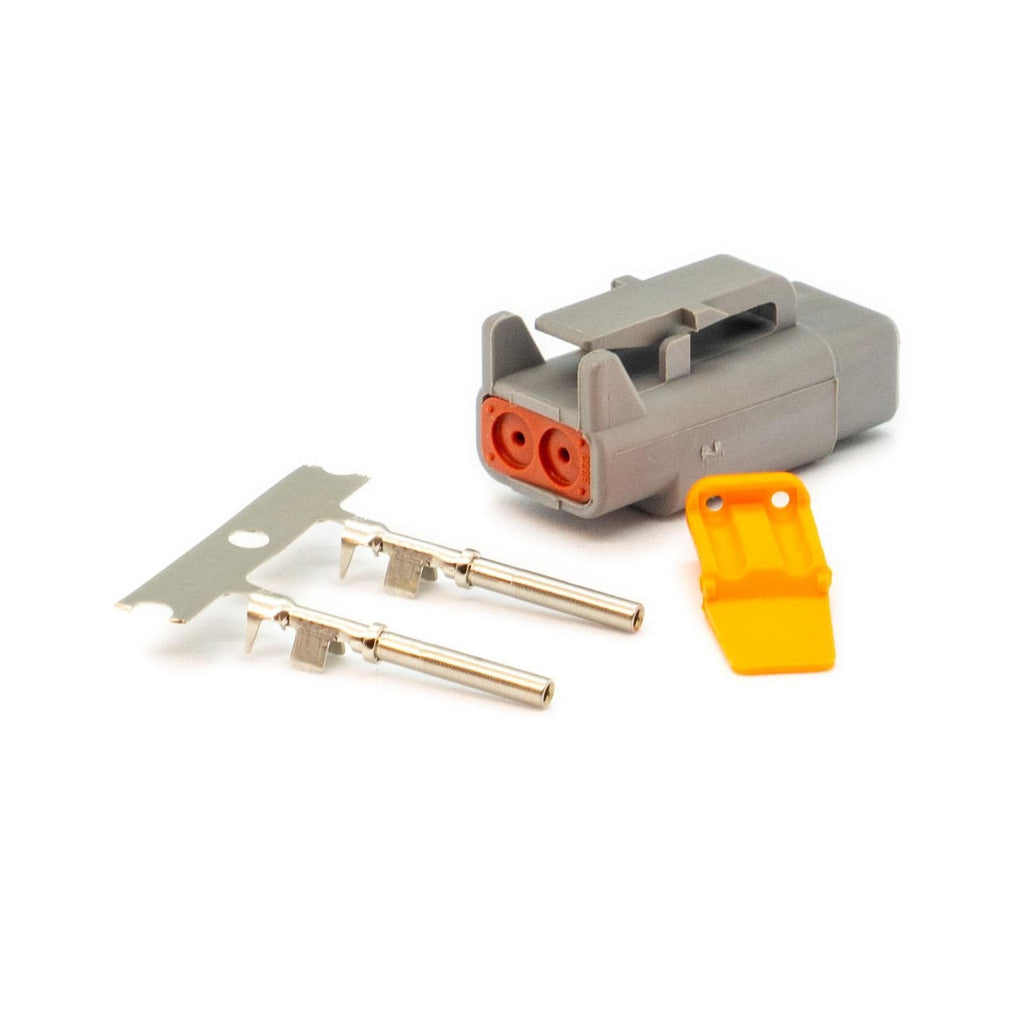

- Deutsch 2 way Connector Kit
Specifications
-
Highlights: The Link Coolant Temperature Sensor has the following specifications:; NTC thermistor temperature sensor.; 1/8" NPT thread.; Two-wire sensor.; Compact metal body.; Proven Link calibration data.; Suitable for and water, oil, fuel temperature measurement.; Signal and Sensor Ground connections.; Comes with Deutsch 2 way Connector Kit.
-
Product Dimensions: 55mm(L)x15mm(W)x20mm(H); 2.17in(L)x0.59in(W)x0.79in(H)
-
Product Weight: 5 grams (0.18 ounces)
-
Electrical: Operating Voltage Range: 5V
-
PCLink Calibration Name: "Link NTC1-8 & IAT1-8" OR "Delphi AC IAT"
-
Raw Calibration Specs: 40degC: 65,500 ohm; 30degC: 51,791 ohm; 20degC: 28,146 ohm; 10degC: 15,873 ohm; 0degC: 9,256 ohm; 10degC: 5,572 ohm; 20degC: 3,457 ohm; 30degC: 2,205 ohm; 40degC: 1,443 ohm; 50degC: 965 ohm; 60degC: 660 ohm; 70degC: 462 ohm; 80degC: 329 ohm; 90degC: 238 ohm; 100degC: 175 ohm; 110degC: 131 ohm; 120degC: 99 ohm; 130degC: 76 ohm; 140degC: 59 ohm; 150degC: 47 ohm
-
Connector: PKD2F 101-0131
Notes

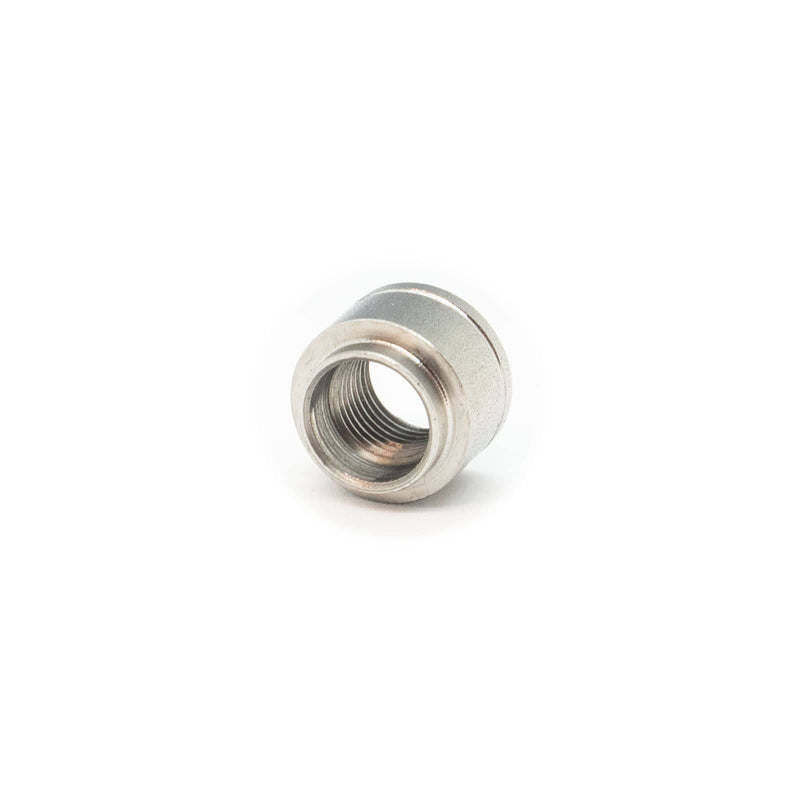

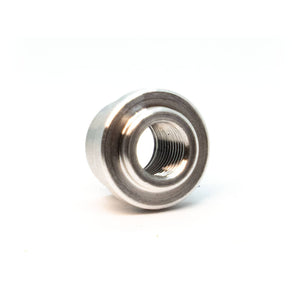

- Aluminum and steel weld in mounting bosses available.
