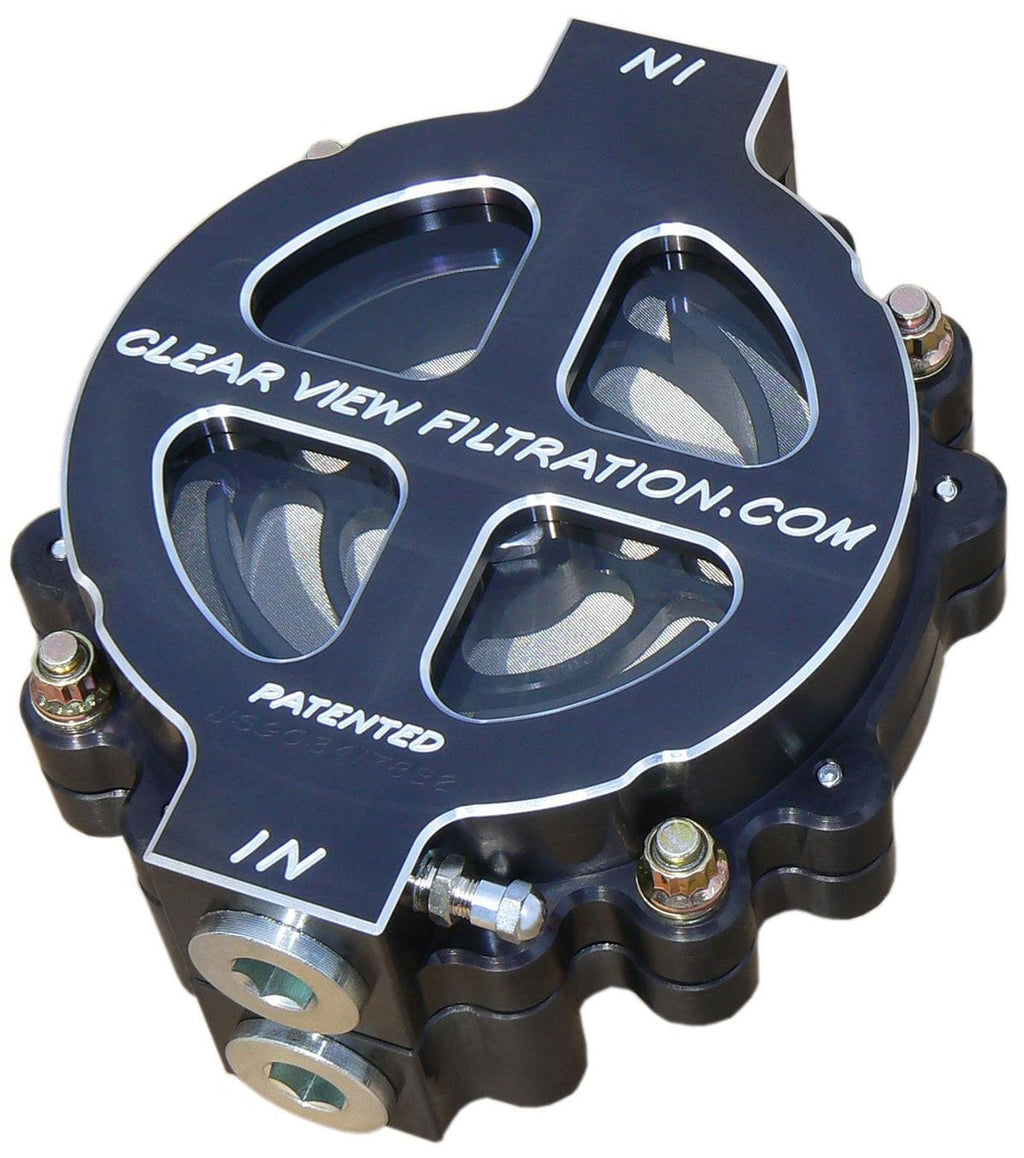

6" Hi-Flow See ThroughOil Filter - Black Anodised-12AN Inlet/Outlet Ports With 115 Micron ElementBrand: CLEARVIEWPart Number: CV100-115-BDescription: 6" Hi-Flow See Through Filter Assembly with #12 Portsand 115 Micron Element, for running 60 weight or heavier oil. For Supercharged Hemi's, Pro Mod and Extreme Engine combinations pushing high volumes of oil.
Features:
- Smallest Particles Filtered: 115 Microns
- Bypass Relief Valve: Yes
- Inlet &Outlet Fitting: #12 O-Ring Boss - 1 1/16" - 12 TPI
- Operating Temp: max 220 degrees Fahrenheit
- Operating Pressure: max 150 PSI
- Height: 3.250 in.
- Width: 6.750 in.
- Length: 7.750 in.
- Filter Weight: 5.75 pounds
See Through Oil Filters can be used for many applications including Racing, Marine, Automotive, Farm, and for Industrial Hydraulic Systems. These Patented Oil Filter Assemblies allow the user to visually see oil pumping through the filter, which helps to determine the condition of the oil. When oilis not being pumped through the filter it can quickly drained using an air chuck forfilling tires and compressed air. A hand bicycle pump will also work. Apply a small shot of air to the air fitting on the side of the inlet opening.Oil will empty out of the assembly in seconds exposing the filter element and filtered particles, even when filtering non transparent fluids like dirty oil. The SeeThrough top allows the user tovisually inspect particles andcontaminants that were filtered out of the system to determine if they are from normal use or from bearings and other components excessively wearing in the engine or machinery supplying the Filter Assembly.
- When using 50 weight or lighter oila 60 micron element is recommended. When using 60 weight or heavier oil A 115 micron element is recommended.
- Filters have 2 Inlet and 2 Outlet Openings that are threaded for#12 O-Ring Boss - 1-1/16-12 TPI fittings. The Inlet and Outlet Ports are machined to 7/8" diameter and will flow a #16 line when using #12 O-RingBoss to #16 JIC bored out fittings. All 4 ports can be used, but #16 fittings can notgo in and out of the same sideof the filter assembly.
