Clear View Filtration 4" Screw-On Oil Filter Assembly - Black Anodised CV405-115-B

CV405-115-B - 4" SCREW ON OIL FILTER 115 MIC

CLEARVIEWSKU: CV405-115-B

Product: -12AN Inlet/Outlet Ports With 115 Micron Element, Suit System 1 Oil F
Price:
Sale price$1,433.83 NZD

Tax included Shipping calculated at checkout

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Description

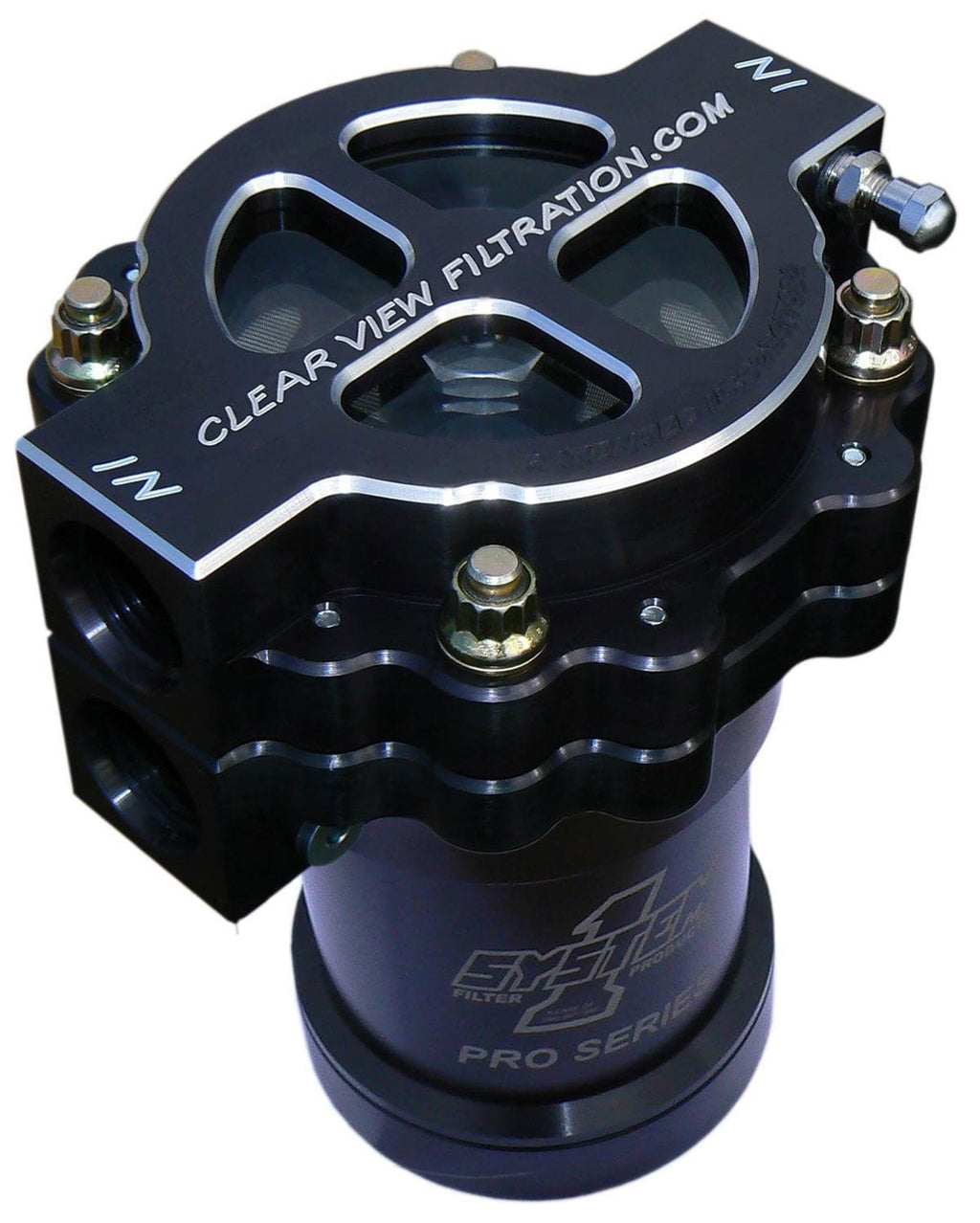

4" Screw-On Oil FilterAssembly - Black Anodised-12AN Inlet/Outlet Ports With 115 Micron Element, Suit System 1 Oil Filter
Brand: CLEARVIEW
Part Number: CV405-115-B
Description:

4" Screw-On See Through Filter Assembly with #12 Portsand 115 Micron Element, for running 50 weight or lighter oil. Can use System 1 Filters or Disposable filters on the bottom.

Features:

  • SmallestParticles Filtered: depends onSystem 1 or disposable filter microns, varies on brand
  • Recommended Disposable Filter: (not included) K&N #HP-2003 or #HP-3002 or WIX #51069 or #51060
  • BlackOut Seriescan use Napa Gold filters
  • Recommended System 1 Filter: (not included) System 1 Billet Pro Series and Chevy adapter threaded bushing
  • Disposable Filter Thread Size: 13/16" - 16 TPI
  • Bypass Relief Valve: Yes
  • Inlet &Outlet Fitting:
  • #12 O-Ring Boss - 1-1/16" - 12 TPI
  • Operating Temp: max 220 degrees Fahrenheit
  • Operating Pressure: max 150 PSI
  • Height (without disposable filter): 3.00 in.
  • Width: 5.00 in.
  • Length: 6.00 in.
  • Filter Weight: 3.40 pounds

Clear View Filtration's Patented Dual Oil Filter Assemblies arethe Best Oil Filtration SystemAvailable. This 4" Screw-On Filter Assembly was designed for most Big and Small Block Engine combinations, includingStreet, Dirt and Marine use. This filter also has a single O-Ring groove for use with a System 1 filter. This filter is the best choice for motorsports ran on dirt and other applications where the user wants to filter microscopic and dust particlesout of the oil system. Also where space is limited and being light weight is important! Oil first flows through the See Through Filterwith a coarse 115 micron screen which traps all the larger particles that can be viewed and inspected while themicroscopic particles flow into the System 1 which has a finer mesh screen. The clean filtered oil flows out of the filter assembly through the outlet opening back into the engine. A shot of air empties the filter in seconds exposingthe element and filtered particles without draining or leaking any oil and without unbolting or loosening any fasteners or fittings. Filtersare remotely mounted and can work on many applications including diesels. This dual stage filter will extend the life and flow of the disposable filter and still allow visual inspection of filtered particles for engine inspection.

  • The 4" Screw-On Filters have 2 Inlet and 1 Outlet Port openings that are threaded for #12 O-Ring Boss - 1-1/16-12 TPI fittings. The Inlet and Outletopenings have been machined to0.625" or 5/8" inside diameterso it will not restrict fluid when using #12 lines.
  • Recommended System 1 is the Billet Pro Series. The Cast System 1 willonly use the outside sealing O-Ring. Must use System 1's GM13/16-16 tpi threaded insert.
