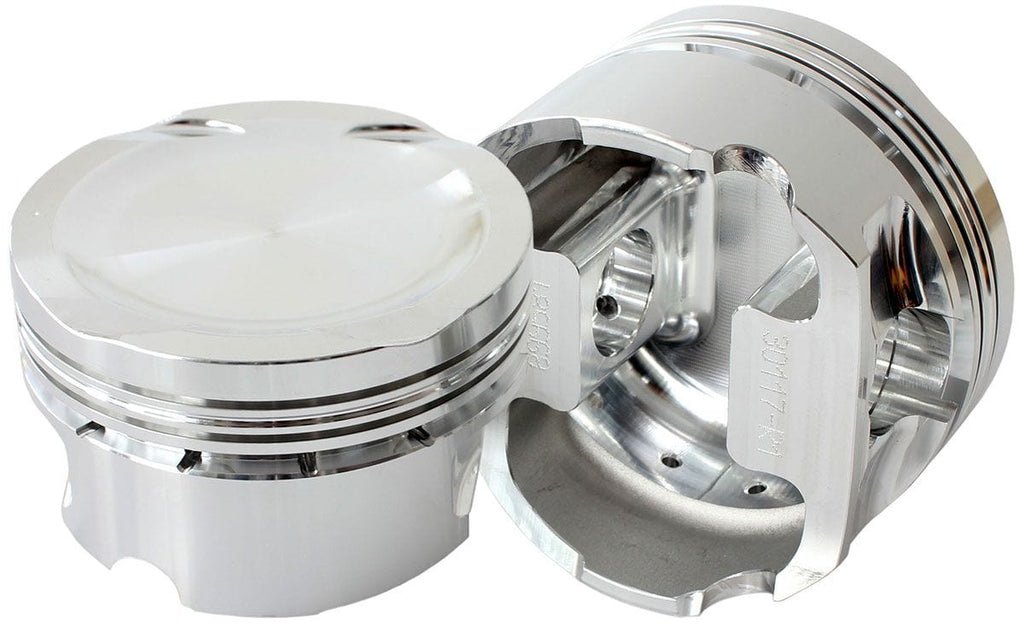

Diamond Pistons 5.0L Coyote Dome Top Forged Pistons With Rings D30101-8
Roll over image to zoom in Click on image to zoom
Diamond Pistons 5.0L Coyote Dome Top Forged Pistons With Rings D30101-8

Diamond Pistons 5.0L Coyote Dome Top Forged Pistons With Rings D30101-8

D30101-8 - FORD 5.0L COYOTE 3.640" B +8cc

DIAMONDSKU: D30101-8
Product: 3.640" bore, 3.650" stroke, 5.933" rod length, +8.0cc dome volume
Price:
$2,477.80 NZD

Tax included Shipping calculated at checkout

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Description

5.0L Coyote Dome Top Forged Pistons With Rings3.640" bore, 3.650" stroke, 5.933" rod length, +8.0cc dome volume
Brand: DIAMOND
Part Number: D30101-8
Description:

Piston Specifications:

  • Block: 5.0L Coyote
  • Bore: 3.640
  • Stroke: 3.650
  • Rod: 5.933
  • Comp Heigh: 1.169"
  • Weight: 388
  • Pin: .866 x 2.500"
  • CC's: Dome Top 8.0
  • Comp Ratio With 57cc Head: 11.6
  • Ring Set: 09053640

Piston Features:

  • Designed to be used with 2011-17 5.0L Coyote cylinder heads
  • 3D milling on piston crowns for ready to install finish
  • Offset pins for quiet operation
  • Top ring down dimension: .300"
  • Ratios figured for .040 head gasket @ 8.937 Deck
  • Premium 1.5mm x 1.5mm x 3.0mm ring package
  • Premium 8620 .155W wrist pins included
  • Oversized valve pockets - for larger than stock valve sizes
  • Valve pocket depth: 0.075" intake and 0.075" exhaust
  • Made from 2618 alloy
