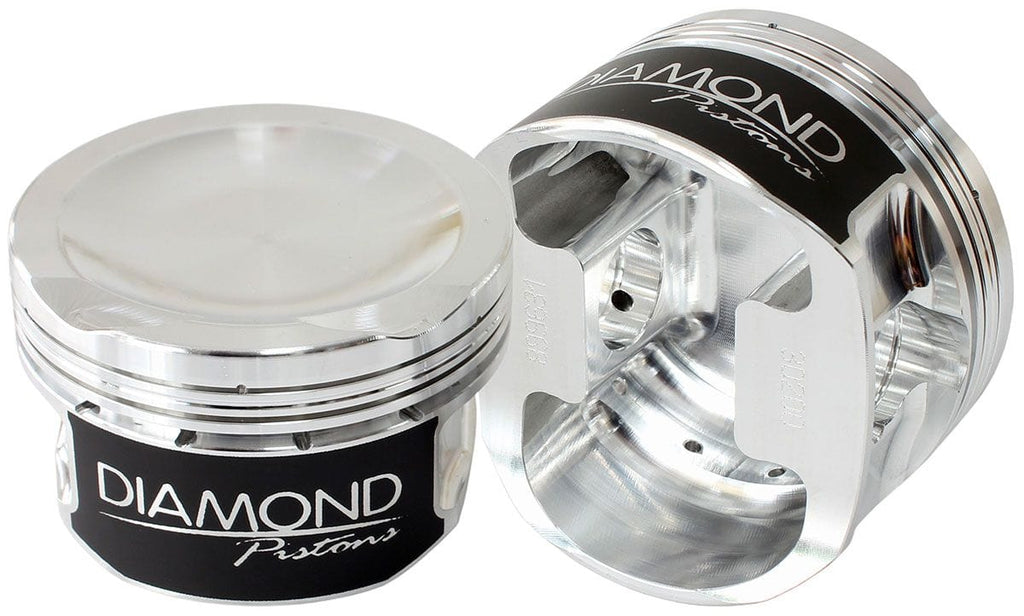

Diamond Pistons Ford Barra 4.0L Turbo Dish Top Forged Pistons With Rings D30204-6

D30204-6 - FORD XR6 TURBO 3.642" BOR -9cc

Save $117.25

DIAMONDSKU: D30204-6

Product: 3.642" bore, 3.910" stroke, 6.058" rod length, -9.0cc dome volume

Variant

Price:

$2,562.92 NZD $2,680.17 NZD

Tax included Shipping calculated at checkout

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Ford Barra 4.0L Turbo Dish Top Forged Pistons With Rings3.642" bore, 3.910" stroke, 6.058" rod length, -9.0cc dome volume
Brand: DIAMOND
Part Number: D30204-6
Description:

Piston Specifications:

Block: Ford Barra 4.0L Turbo
Bore: 3.642
Stroke: 3.910
Rod: 6.058
Comp Heigh: 1.215"
Weight: N/A
Pin: .866 x 2.500"
CC's: Dish Top -9.0
Comp Ratio With 70cc Head: 9.1
Ring Set: 09533642

Piston Features:

3D milling on piston crowns for ready to install finish
Offset pins forquiet operation
Moly skirt coating for friction loss and skirt wear protection
Side gas ports for better ring seal
Ratios figured for 94mm x .040 head gasket @ 9.228 Deck Height
Top ring down dimension: .280"
Premium 8620 .180W wrist pins chamfered forroundwire locks included
Premium 1.0mmx 1.2mm x 2.8mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.122" intake and 0.000" exhaust
2618 material for High HP/Boost applications
