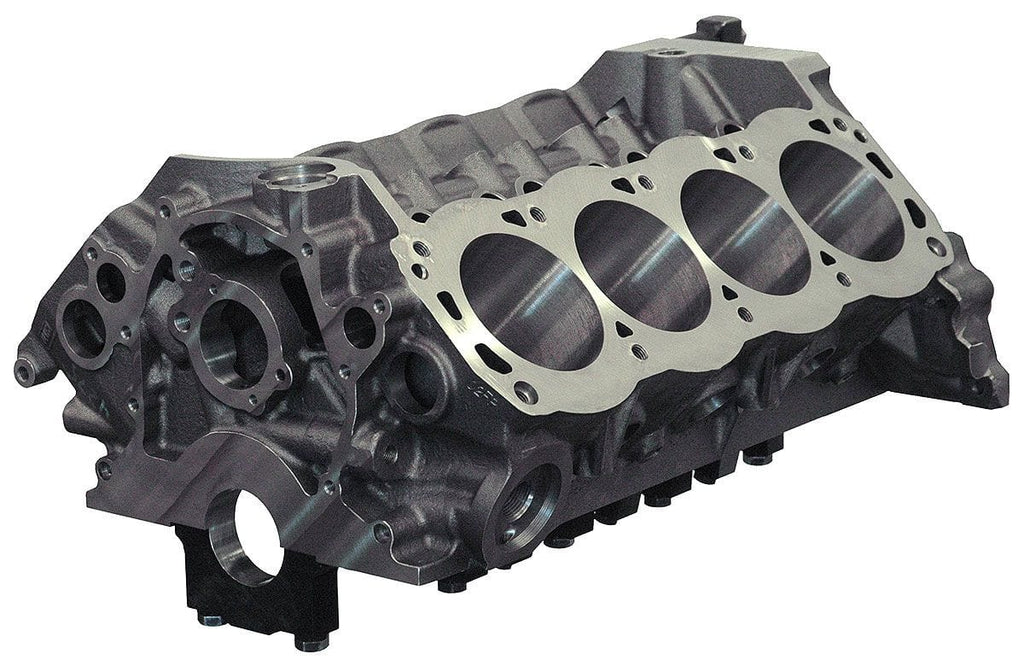

Ford Windsor SHP Engine Block, 4.125" Bore, 351C Mains, 9.500" DeckBrand: DARTPart Number: DA31375235Description: The SHP Ford block is tailored to the most popular performance and racing applications, with an 8.200” (302), 9.200″ (351c) or 9.500” (351w) deck height and a choice of 4.000” or 4.125” siamesed cylinder bores which can safely be bored to 4.185”. Steel main caps are splayed 4-bolt on the center three and 2-bolt on #1 and #5, and utilize 1/2” bolts. The valley is machined to accept factory roller lifter guides and retainer (spider).
Features:
- Priority main oiling system directs oil to main bearings first for more dependable lubrication.
- No provision for oil restrictors.
- Available with an 8.200” (302), 9.200″ (351c) or 9.500” (351w).
- Provisions for OE stock roller lifters, dog bones & spider. • Siamese bores 4.000” or 4.125” (unfinished) with extra thick cylinder walls.
- Extended cylinder barrels for improved piston support.
- Extra thick decks ensure reliable head gasket seal.
- Blind head bolt holes don’t go through to water jacket.
- Steel 4-bolt main caps on #2, 3 and 4 with splayed outer bolts. 2-bolt main caps on #1 and 5.
- Can use most stock components and accessories.
- Scalloped water jackets increase coolant flow around cylinder barrels to prevent detonation, extend engine life and produce consistent cylinder temperatures.
- Parts kit sold separately (PN 32000015)
