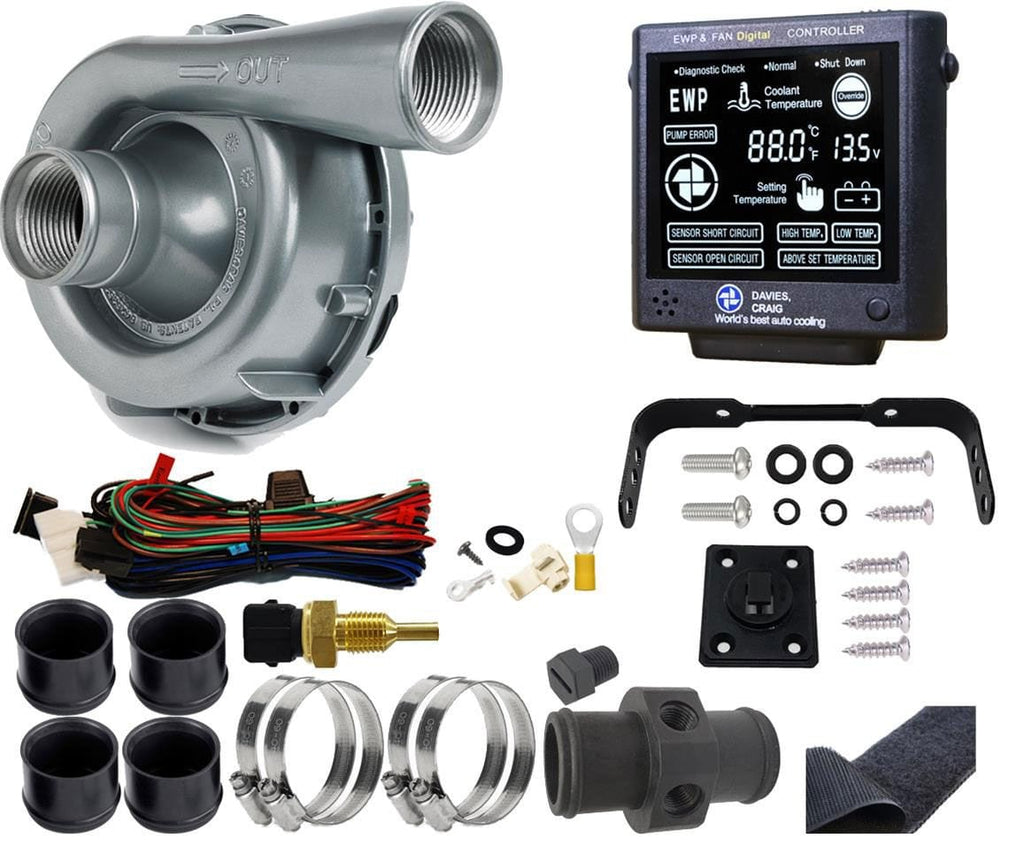

EWP & LCD Controller Kit
Aluminium Electric Water Pump - 130 Litres/Min Suit Engines 6-8 Cyl Over 400 HP & Heavy Duty 4WD's
DC8990
8990
Davies Craig's remote-mounted, universal-install and compact EWP130 is an advanced, lightweight and powerful Electric Water Pump, offering superior coolant circulation qualities to the mechanical water pump. It is suitable for most engines – large six-cylinder and V8s, 4WDs and most engines up to 400HP. It offers the same fitting options as the EWP80, and can be installed as an auxiliary or booster pump. The LCD EWP & Fan Digital Controller is scientifically calibrated to manage the flow rate of engine coolant to lock onto a targeted engine temperature
The unique LCD EWP/Fan Digital Controller will manage the operation of your chosen EWP by varying the speed of your pump in response to coolant temperature and manage control of your electric Thermatic Fan, No need for a separate thermal switch. The Controller varies the speed of your EWP looking for, and locking onto your target temp. If the engine temp goes 3 degrees C over the target, the Controller will run your radiator fan until the target temp is restored. And it now does 12 & 24 Volt
This LCD EWP/Fan Digital Controller (Part #8000) is Australian designed and as part of this Australian manufacturing company's continuous improvement program this advanced Digital Controller boasts a suite of enhancements.
These include:
The prominent blue Liquid Crystal Display screen (pictured)
Now suitable for all 12v & 24v electrical systems, with relevant displays
Genuine Thermometer, with coolant and targeted/set temp. displays
Diagnostic check & warm-up signals
Nine (9) targeted/set coolant temperatures, 60C (140F) to 100C (212F)
Flashing "EWP" logo signifying water pump in operation
Davies Craig Thermatic Fan logo, circulating signifying fan in operation
Flashing High & Low Voltage indicators
Low & High Temp indicators
Audible alarm -
-if coolant temp doesn't exceed 40°C (104°F) within 5 mins of start-up
-when coolant temperature exceeds 10°C (50°F) of set/target
-when coolant temperature exceeds 100°C (212°F)
Above Set/Target Temperature indicator accompanies audible alarm
Temperature Sensor short & open circuit indicators
Automatic time-out, EWP runs for 3 minutes or until engine temp has reduced to -10°C (-14°F) below set/targeted temp whichever occurs first.
The updated Davies, Craig LCD EWP/Fan Digital Controller (#8000) as an engine management component has undergone extensive research, development, vehicle and test centre scrutiny.
The updated LCD Digital Controller how has two specific functions. This unique Controller will now manage the operation of the EWP by varying the speed of the EWP in response to the temperature of the engine and manage control of your electric engine fan. The Controller has a push-button on the facia panel that offers target temperatures, 60°C (140°F) 65°C (150°F) 70°C (160°F) 75°C (165°F) 80°C (175°F) 85°C (185°F) 90°C (195°F) 95°C (205°F). Generally, higher engine temperature will offer improved fuel efficiency and lower engine temperature more power. The LCD Digital Controller will now operate the engine's electric fan automatically once the engine has reached +3c above the target temperature. A significant benefit too is the Controller allows the EWP to run on after ignition shutdown to reduce heat soak. It is recommended that engine operational temperatures be checked with manufacturer.
The LCD Digital Controller can be used with our EBP however it is not recommended as it will not vary the speed of the pump in response to temperature but rather simply turn the pump on and off once the top end temperature is reached. For a far more economical & appropriate solution, we would recommend Part Number 0401 & 0444 to turn the EBP on and off at your set temp.
Note: This controller (Part
