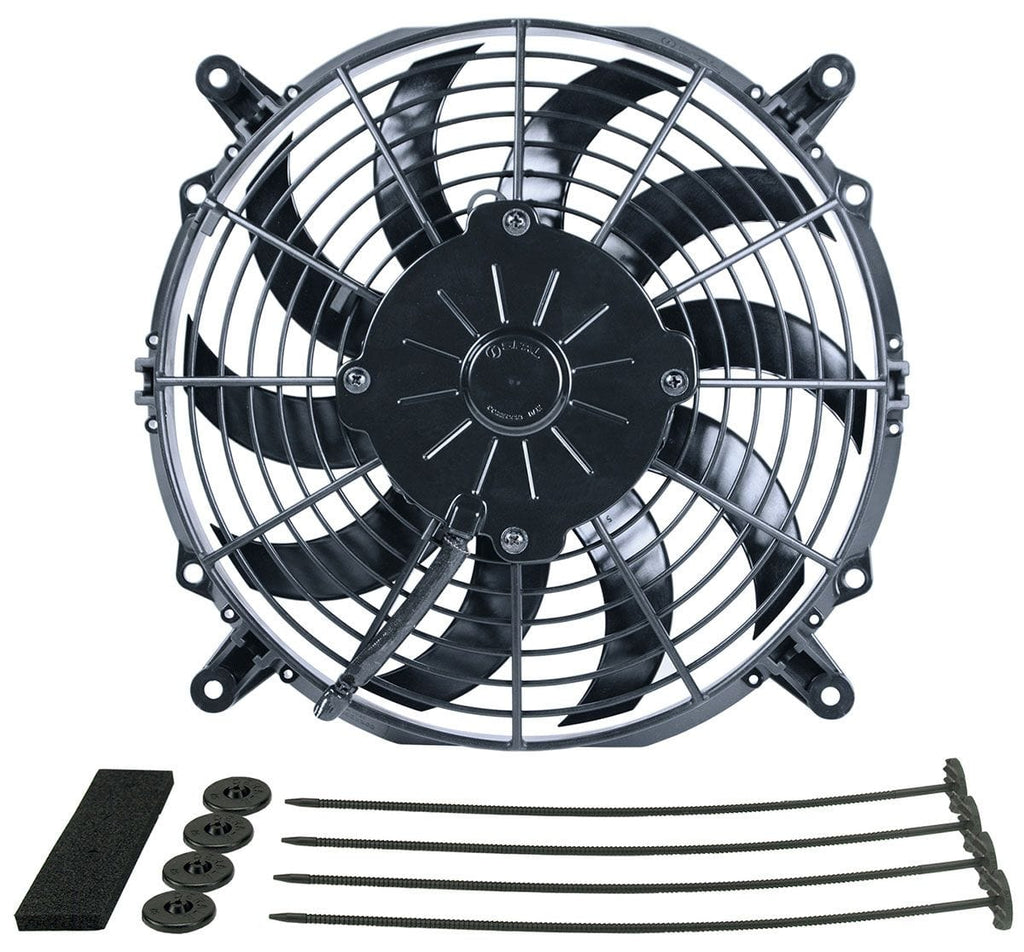

10" High Output Electric Thermo Fan820 cfm - Puller Type With Curved BladesBrand: DERALEPart Number: DP16110Description: A 10" Diameter version of our high performance H.O. Extreme series of electric fans, this powerful unit uses 10 thin, curved blades to provide a low profile (only 2 1/16" at widest point) for limited space applications. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 timeslonger than normal electric fan motors, this puller fan isdesigned to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.
Features
- Primary cooling fan eliminatesfuel and horsepower robbing belt driven fans
- 10 thin curved blades allow ultralow profile design for limitedspace applications
- Sealed waterproof/dustproof IP68 certified motors
- Ultraquiet S-blade designs
- Designed for maximum performance at high static pressure loads for moreeffective cooling
- Longlasting, sealed IP68 certifiedwaterproof & dustproof motor
- 825 CFM
- Includes mounting kit and illustrated installation instructions
- Puller only (engine side)
Specifications
- CFM fan: 825
- Amp draw: 9.2
- Width: 10-9/16"
- Height: 11-1/8"
- Depth: 1-1/8"
- Overall Depth: 2-1/16"
- Mounting: 9-11/16" x 5-13/16"
