EAGLE 4.500 Stroke, 6.535 Rod, Internal Balance Eagle Crankshafts BB Chev 454, 502 & Tall Deck Forged 4340 Crankshaft EA445445006535 SR

Roll over image to zoom in Click on image to zoom

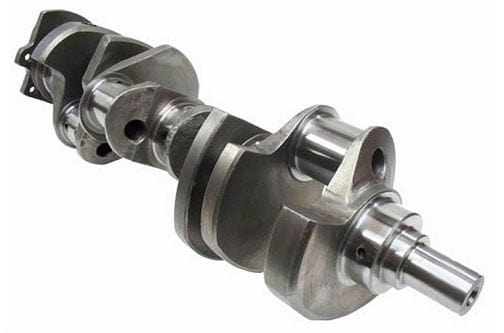

Eagle Crankshafts BB Chev 454, 502 & Tall Deck Forged 4340 Crankshaft EA445445006535

EA445445006535 - EAGLE B/B CHEV CRANK 4.500 454

Eagle Specialty ProductsSKU: EA445445006535

🏢 Proudly NZ Owned — Local Team in Wellington

We make getting the world’s best performance parts simple — no confusion, no overseas import surprises, You are safe with us!

💳 Transparent Pricing, Our prices Include GST - No Hidden Fees

Clear, upfront costs every time you order, All duties and GST shown upfront

Product: 4.500 Stroke, 6.535 Rod, Internal Balance

Variant

Price:

$2,468.08 NZD

GST included Shipping calculated at checkout

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

BB Chev 454, 502 & Tall Deck Forged 4340 Crankshaft4.500 Stroke, 6.535 Rod, Internal Balance
Brand: EAGLE
Part Number: EA445445006535
Description:

Eagle "ESP" 4340 steel cranks feature exceptional strength and unsurpassed quality at a reasonable price. The perfect choice for high performance application. These 4340 cranks are comparably priced with other cranks of lesser strength. These cranks start as forged 4340 steel non-twist forgings that undergo a multi-stage heat treat process and x-rayed, magnafluxed and sonic tested to ensure your crank is free of cracks, air pockets and any imperfections that could occur during the forging process. They are stress relieved and shot peened for durability and longevity. During the machining process, the crank is indexed for correct stroke and all of the rod & main journals receive a .125" radius in the corners for increased strength. The journals are then precision ground & micro-polished to an R.A. of less than 5 and Nitrided for superior wear resistance. All of the oiling holes are cross drilled & chamfered for improved oiling to the rods and mains. Counterweights are designed for easy balancing and do not require any machining for block clearance. Each "ESP" crankshaft is inspected for dimension, size and stroke accuracy so you know it is capable of going from the box to your block without worries. Eagle also guarantees a target bobweight +/-2% that reduces balancing time.

Crank Specification

Stroke: 4.500"
Rod Length: BB Chev 6.535"
Main Journal: BB Chev 2.750"
Rod Journal: BB Chev 2.200"
Balance: Internal
Maximum HP: 1500
Main Seal: 2 Piece
