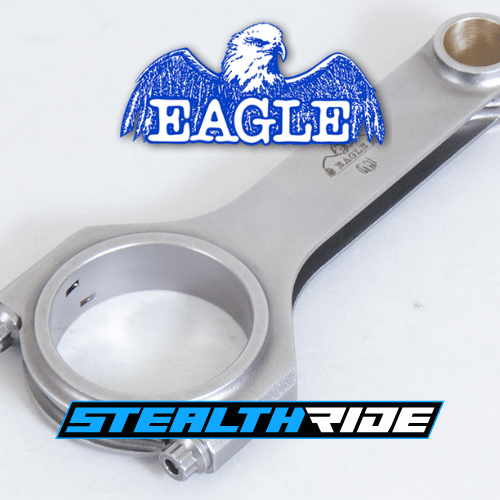

Eagle H-Beam Connecting Rods CRS6243R3D

Name: Eagle H-Beam Connecting Rods CRS6243R3D
Brand: Eagle Specialty Products
SKU: EA CRS6243R3D
Price: 1613.23 NZD
Availability: InStock
Rating: 5 (34 reviews)

Eagle Specialty ProductsSKU: EA CRS6243R3D Manufacturer's SKU: CRS6243R3D

Special Order

Estimated Shipping Time is 5-20 working days

📦 SPECIAL ORDER ITEM

This is a special order item. When you complete your order, we will order it from the supplier.

📦 Returns & Refunds Policy

Special Order Items Are not entilted to returns or refunds for change of mind, incorrect orders, or fitment issues.

Refunds or replacements are only available for faulty or damaged products. Claims must be made within 7 days of receiving your order, with proof of the fault.

Price:

$1,613.23 NZD

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal.

The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin modelsÃ¢â‚¬â€and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades. Instructions and rod bolt lubrication are included. Order the model designed for your vehicle year/make and engine application.
Brand: Eagle Specialty Products
Manufacturer's Part Number: CRS6243R3D
Part Type: Connecting Rods
Product Line: Eagle H-Beam Connecting Rods
Stealth Ride Part Number: EACRS6243R3D
UPC: 00793348044552
Connecting Rod Length Center to Center (in.): 6.243 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.984 in.
Rod Journal Diameter (in.): 2.126
Big End Bore Diameter (in.): 2.2520
Quantity: Sold as a set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.932
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 180,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 640
Pin End Width (in.): 0.932 in
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Shot-peened
Notes: Recommended bearings: Clevite CB1808A or King CR8032SM. Torque to 63 ft-lbs with ARP moly lube only.
