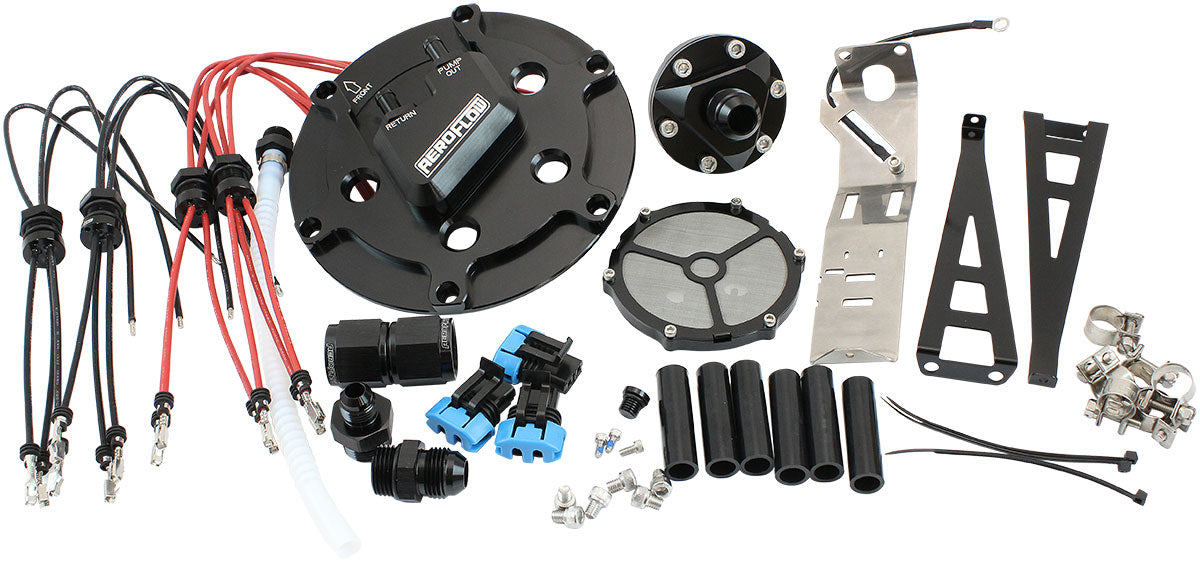

Early Nissan In-Tank Triple Fuel Pump ModuleDirect Bolt In for S13, 180sx & Skyline R32
The Aeroflow Performance early Nissan direct fit bolt in in-tank fuel module is specifically designed for the Nissan Skyline R32 (all models expect GTR and GTS4), Nissan S13 and Silvia/180sx (all models). This module is compatible of holding up to 3 x 40mm diameter fuel pumps at a time. THESE FUEL PUMPS MUST FEATURE INTERNAL CHECK VALVES. We recommend the use of our Aeroflow Performance 450LPH (AF49-1242) or 525LPH (AF49-1057) fuel pumps which are sold separately. This module will perfectly support higher horsepower applications while still retaining the factory fuel tank slotting into the exact OEM factory location. It also allows you to reuse the OEM fuel level sender for complete compatibility with factory electronics.
This hanger is CNC machined from billet 6061-T6 aluminium. The module incorporates a built-in fuel manifold chamber for better pressure equalization. This chamber allows just one feed and one return line to be used from the fuel tank just like factory. A brand-new filter sock made from stainless steel mesh and individual chambers for each fuel pump are located on the bottom.
The module features our 3 wire electrical bulkheads to allow the user to wire each fuel pump individually to stage them when required. With the third set of wires for the OEM fuel level sender to keep the wiring neat and in one location. With -8ORB ports for feed and return and both factory OEM push on barb connections and AN custom plumbing options included depending on the fuel system.
