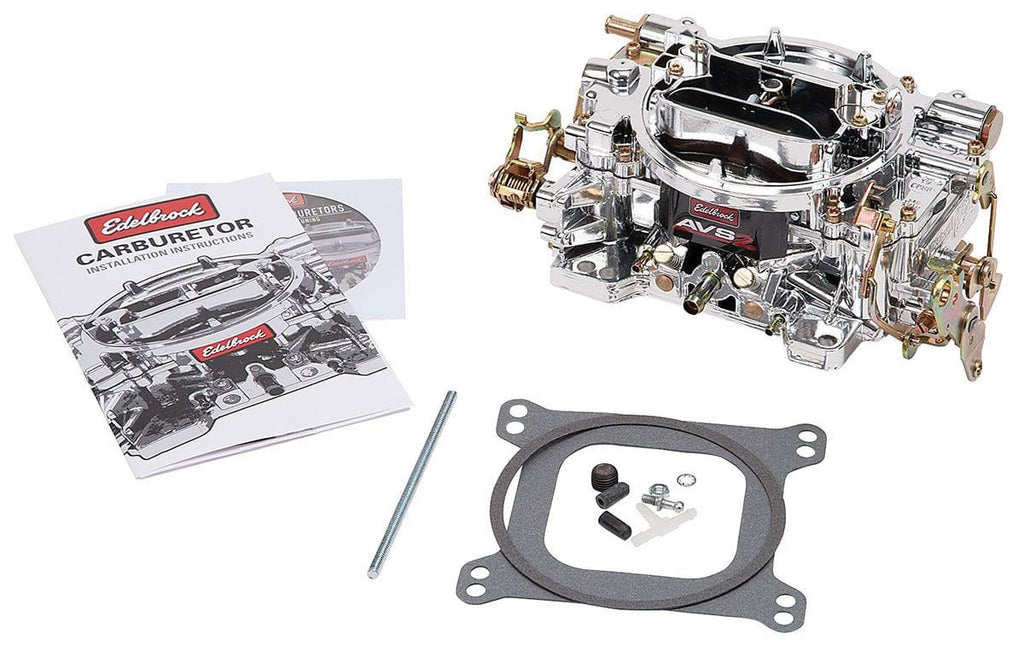

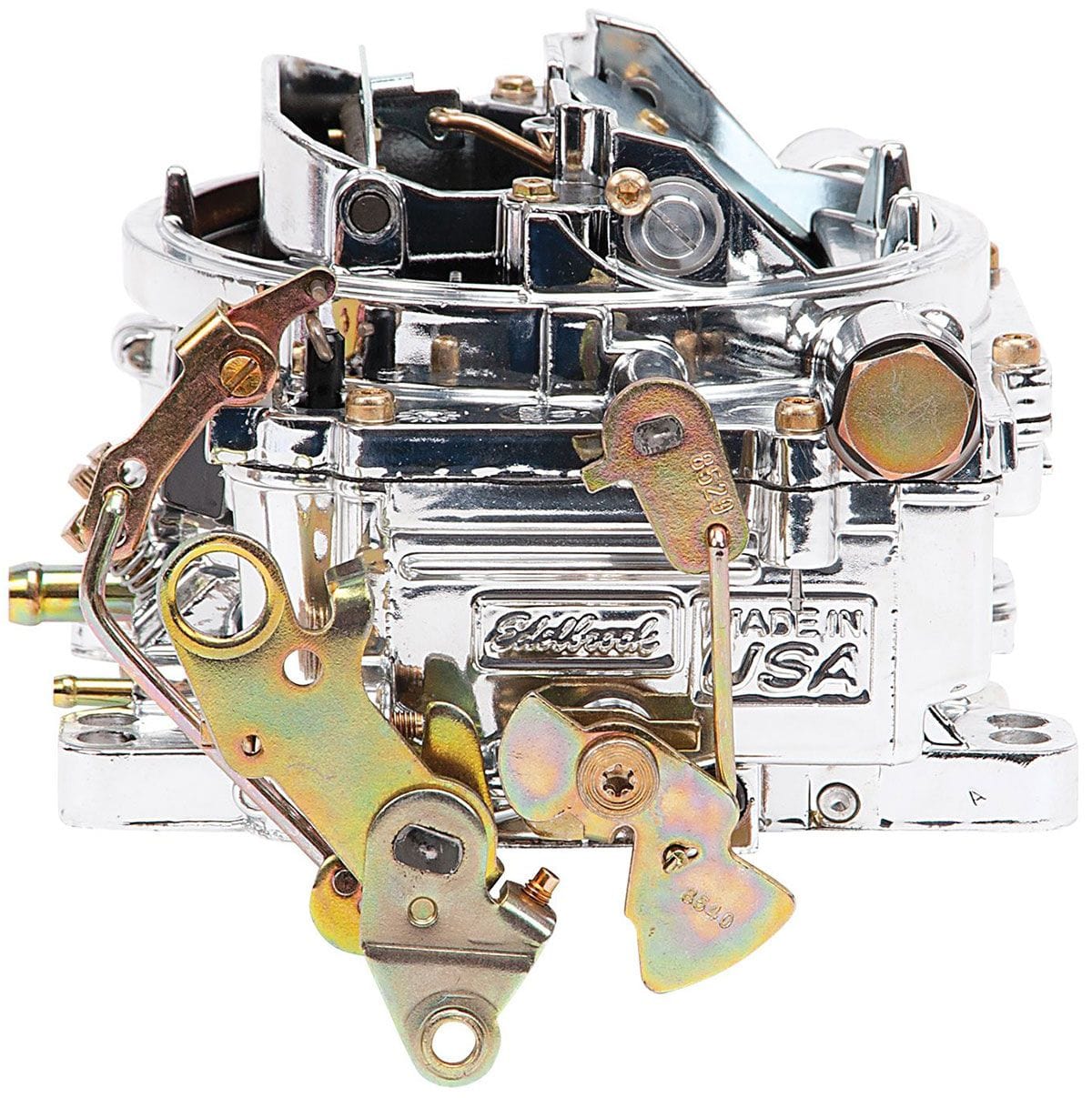

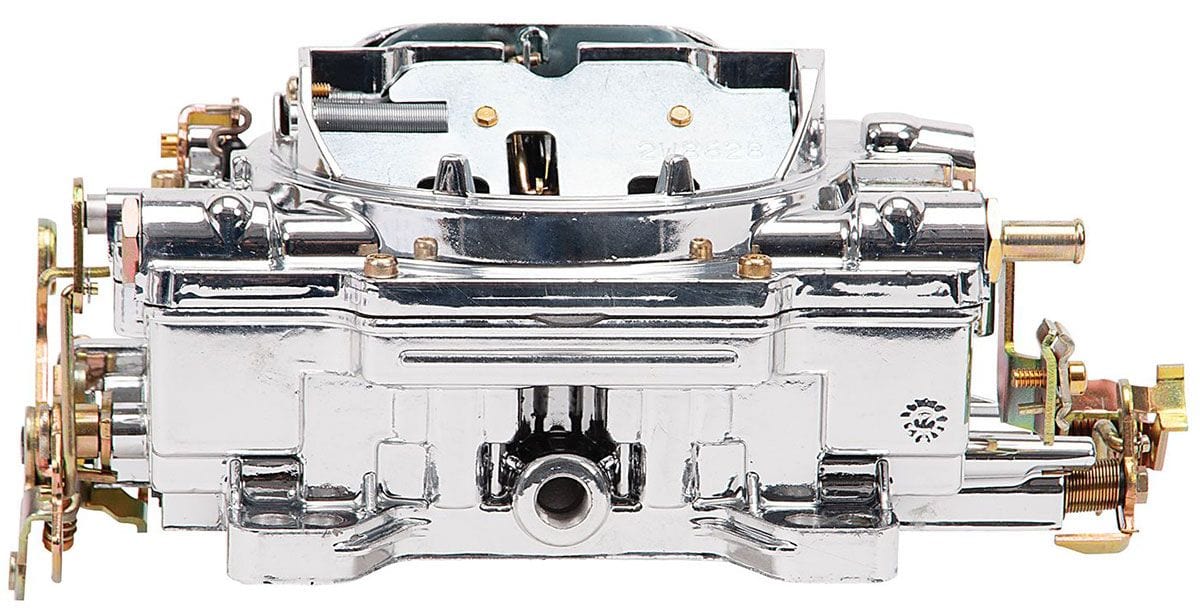

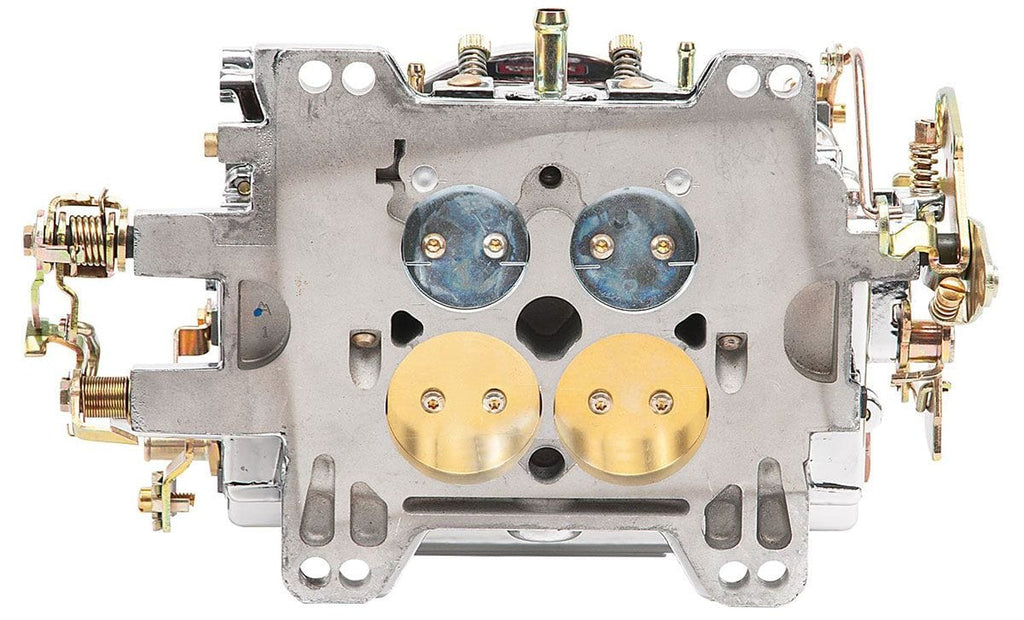

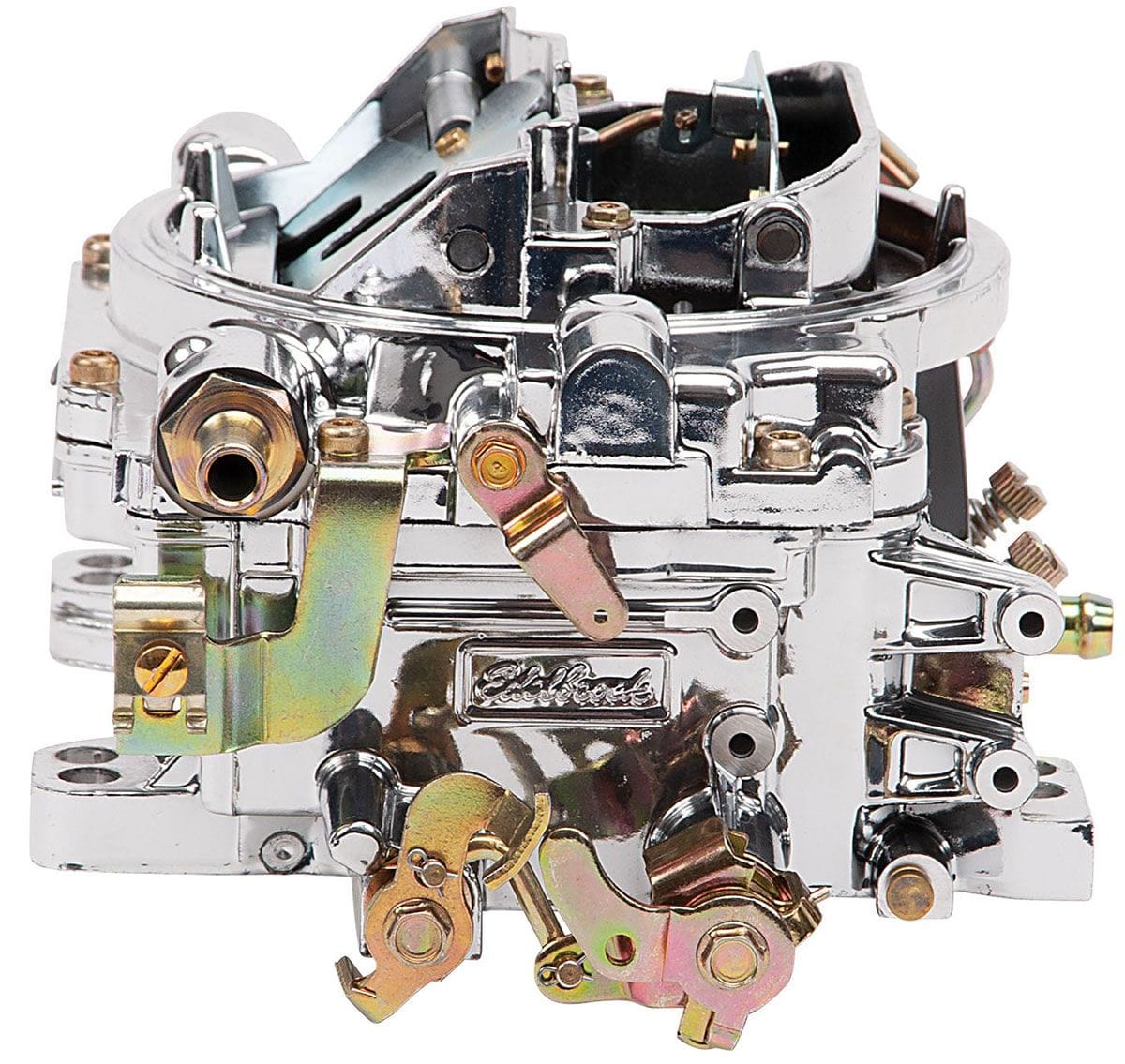

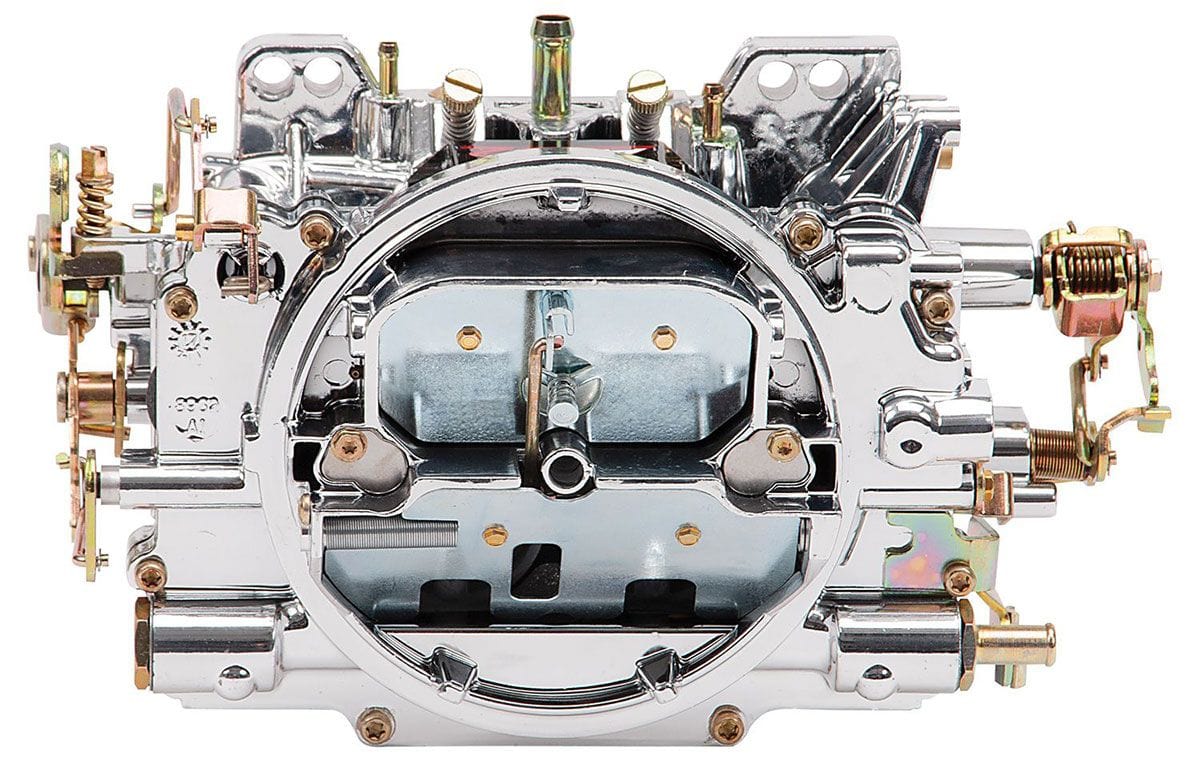

650 CFM AVS2 Series CarburettorManual choke, square flange, non-EGR, Endurashine FinishBrand: EDELBROCKPart Number: ED19054Description: The Edelbrock #19054 AVS2 Series EnduraShine 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block andsome big-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance.The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds.The Edelbrock #19054 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with: Metering Jets - Primary .101, Secondary .098; Metering Rods - .070 x .037; Step-Up Spring - orange (5" Hg). Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design.
- Manual choke AVS2 Carbs cannot be converted to electric choke
- Thunder Series AVS2 Carbs will work with Fordautomatic overdrive trans (AOD) when used with Lokar bracket SRK-4000
- Edelbrock carburetors are not calibratedfor or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty.
- The use of anew fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor
- You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds
