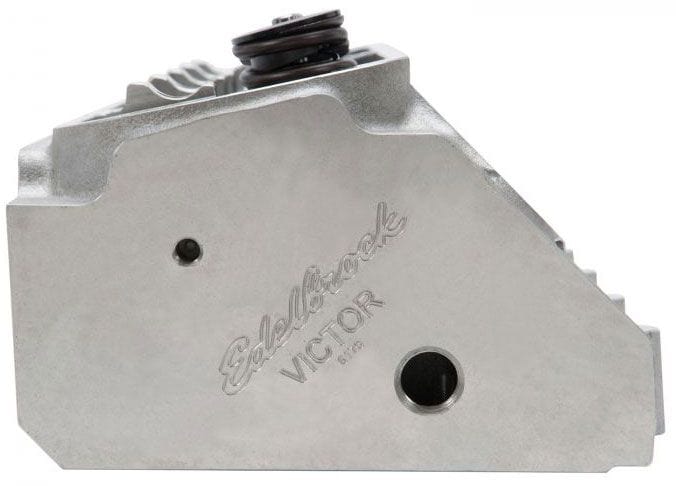

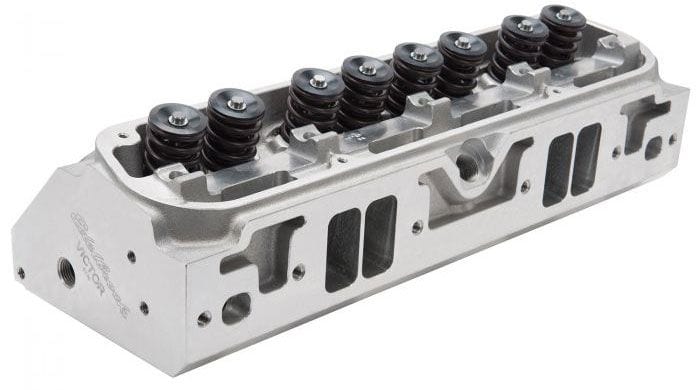

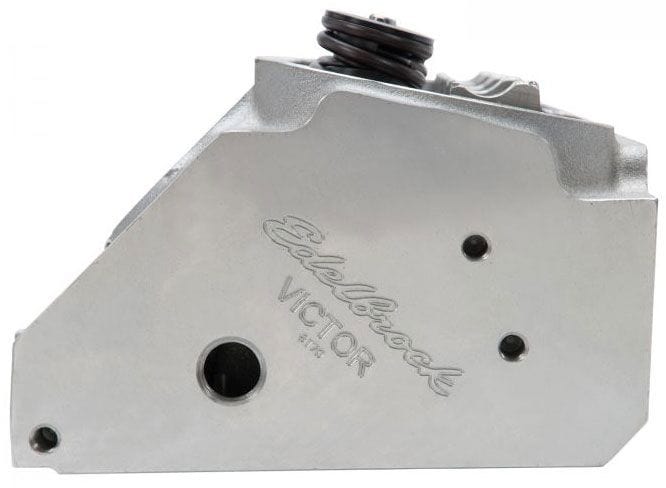

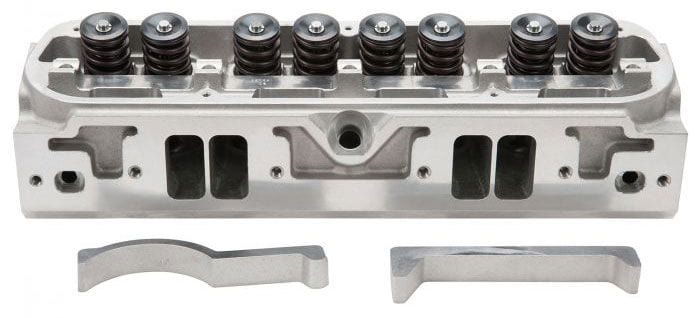

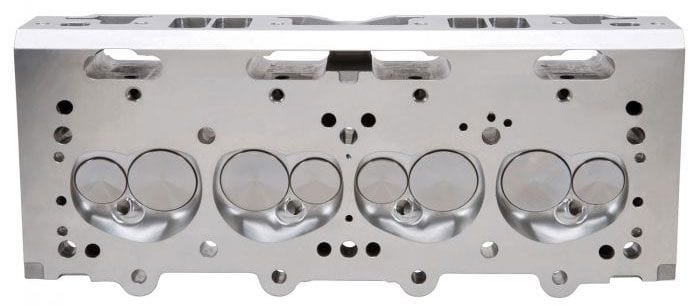

Victor Jr. 16° Cylinder Head - Single - CompleteSB Chrysler, 225cc Intake Ports, 60cc Combustion ChambersBrand: EDELBROCKPart Number: ED61729Description: These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available; bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.
Specifications:
- CNC Ported: No
- Combustion Chamber Volume: 60 cc
- Deck Height: 9.600 in
- Deck Thickness: 0.625 in
- Intake Valve Diameter: 2.15 in
- Exhaust Valve Diameter: 1.60 in
- Guide Plates Included: No
- Intake Runner Volume: 225 cc
- Material: Aluminum
- Push Rod Diameter: 0.312 in
- Valve Angle: 16 deg
- Valve Spring Diameter: 1.55 in
- Valve Spring Maximum Lift: 0.670 in
- Valve Stem Diameter: 0.3438 in
