Front Control Arm Lower - Inner Rear Bushing Double Offset Kit to Suit Subaru Impreza VA, VB WRX/STI and Levorg VM
Details:
Foot Note 2: Adds +0.5deg caster + anti-lift
Foot Note 3: 3 Year / 60,000Kms
Sub Brand: Performance
Components Per: 2 Shell Bushings, 10 Spacers
Fitting Position: Rear
Wheel Alignment: Yes
Installation Difficulty: Suspension Specialist recommended. Use our Click & Fit service.
Installation time: 2 Hours

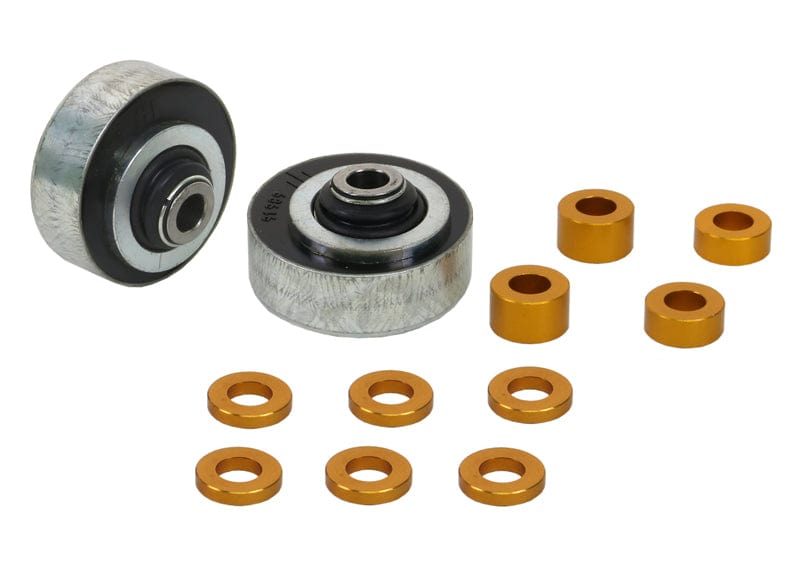

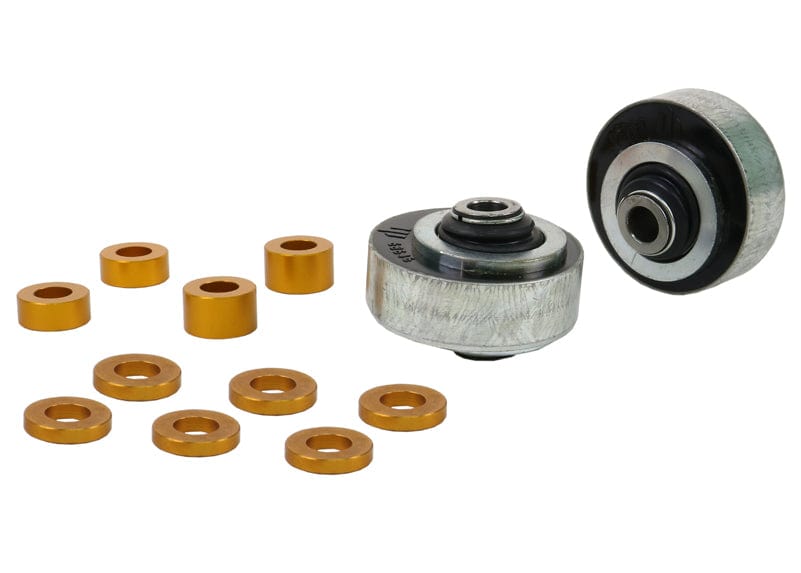

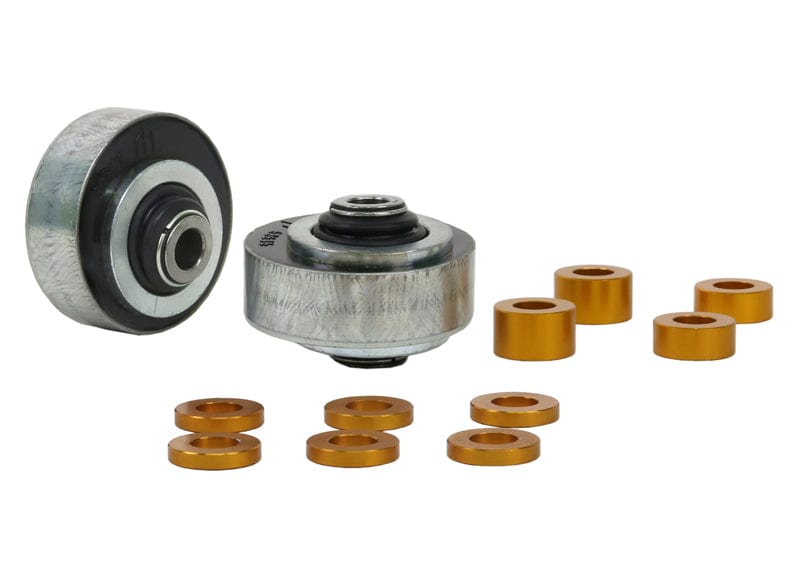

Kit Contents: 2 Shell Bushings, 10 Spacers
Descriptions:
Benefit Note:

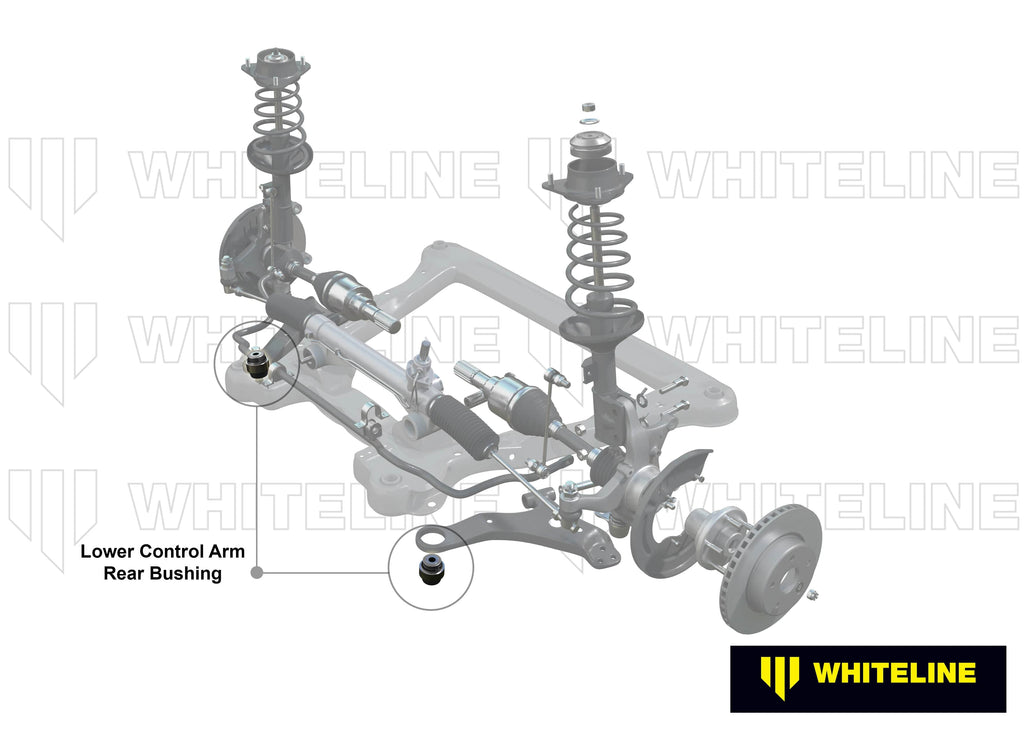

Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance. Whiteline's Anti Geometry Kit replaces the front control arm rear vertically mounted bushing and featuring low compliance synthetic elastomer with high performance/low compliance bearings for optimum dynamic alignment. Positive static caster gains can also be achieved by the offset orientation of the bearing and unique to any Whiteline Anti geometry kit before it, KCA425 allows owners to tune geometry from Anti Lift to Anti Dive via a combination of recommended spacers delivering a window of handling behaviour and vehicle set up for the driver's needs. *All prices shown on the Whiteline website include GST. You will not be charged any additional fees related to tax.
Vehicle Types;
- Make/Model: SUBARU IMPREZA, Chassis Group: 2011-2014 | IMPREZA WRX STI GV, GR, Important Note: Performance Alignment - adds +0.5deg caster + anti-lift
- Make/Model: SUBARU LEVORG, Chassis Group: 2014-2020 | LEVORG VM, Important Note: Performance Alignment - adds +0.5deg caster + anti-lift
- Make/Model: SUBARU WRX, Chassis Group: 2014-2021 | WRX STI VA, Important Note: Performance Alignment - adds +0.5deg caster + anti-lift
- Make/Model: SUBARU WRX, Chassis Group: 2014-2021 | WRX VA, Important Note: Performance Alignment - adds +0.5deg caster + anti-lift
- Make/Model: SUBARU WRX, Chassis Group: 2022-ON | WRX VB, VN, Important Note: Performance Alignment - adds +0.5deg caster + anti-lift
