Front Roll Centre/Bump Steer - Correction Kit
To suit Audi, Seat, Skoda and Volkswagen PQ35/MQB Fwd/Awd
Brand: Whiteline
Part Number: KCA472
Description:
A must for lowered vehicles, Whiteline roll centre and camber adjusting correction kit, is designed to correct roll-centre geometry using specially engineered ball-joints, whilst at the same time allowing fine tunning of camber settings with up to ½ a degree of negative camber gain, perfect for track days and spirited driving! Raising the front roll-centre (along with negative camber) results in a substantial increase to front roll resistance and a significant reduction in suspension compression on the outside front tyre during cornering. The result is more even weight distribution and improved tyre contact ultimately improving front end grip, cornering speeds and tyre life when driving the vehicle to it’s potential. A must for lowered vehicles, Whiteline roll centre and camber adjusting correction kit, is designed to correct roll-centre geometry using specially engineered ball-joints, whilst at the same time allowing fine tunning of camber settings with up to a degree of negative camber gain, perfect for track days and spirited driving!
Key Features
- Check clearance with aftermarket rotor
- Essential for lowered vehicles
Fitment
- Audi A3 8P FWD (2003–2013)
- Audi A3 8P Quattro (2003–2013)
- Audi A3 S3 8P (2006–2013)
- Audi Q3 8U FWD (2011–2018)
- Audi Q3 8U Quattro (2011–2018)
- Seat Altea 5P FWD (2004–2015)
- Seat Altea XL 5P AWD (2004–2015)
- Seat Altea XL 5P FWD (2004–2015)
- Seat Leon 1P (excl Cupra) (2005–2012)
- Seat Toledo 5P (2004–2009)
- Skoda Octavia 1Z AWD (2004–2013)
- Skoda Octavia 1Z FWD (2004–2013)
- Skoda Superb 3T B6 AWD (2008–2015)
- Skoda Superb 3T B6 FWD (2008–2015)
- Skoda Yeti 5L AWD (2009–2017)
- Skoda Yeti 5L FWD (2009–2017)
- VW Caddy MK3 TYP 2K 4MOTION (2004–2015)
- VW Caddy MK3 TYP 2K FWD (2004–2015)
- VW CC TYP 357 4MOTION (2008–2012)
- VW CC TYP 357 FWD (2008–2012)
- VW EOS 1F (2006–2015)
- VW Golf MK5 TYP 1K FWD (2003–2009)
- VW Golf MK5 GTI TYP 1K (2004–2009)
- VW Golf MK5 TYP 1K 4MOTION (2004–2009)
- VW Golf MK5 R32 TYP 1K (2005–2010)
- VW Golf MK6 TYP 5K, AJ FWD (2008–2013)
- VW Golf MK6 Gti, GTD TYP 5K (2009–2012)
- VW Golf MK6 R TYP 5K (2009–2013)
- VW Golf MK6 TYP 5K, AJ 4MOTION (2009–2013)
- VW Golf MK6 TYP 517 Convertible (2011–2016)
- VW Golf Plus 521, 5M (2004–2013)
- VW Jetta MK5 TYP 1K (2005–2010)
- VW Jetta MK6 TYP 162, 163, AV (2010–2018)
- VW Passat MK6 B6 TYP 3C2, 3C5 FWD (2005–2010)
- VW Passat MK7 B7 TYP 362, 365 FWD (2010–2015)
- VW Passat Alltrack MK7 TYP 365 (2012–2014)
- VW Scirocco MK3 TYP 137, 138 (2008–2017)
- VW Tiguan 5N 4MOTION (2007–2018)
- VW Tiguan 5N FWD (2007–2018)
- VW Touran 1T1, 1T2 (2003–2010)
- VW Touran 1T3 (2010–2015)
Note: Adjustable camber and roll centre - check clearance with aftermarket rotors

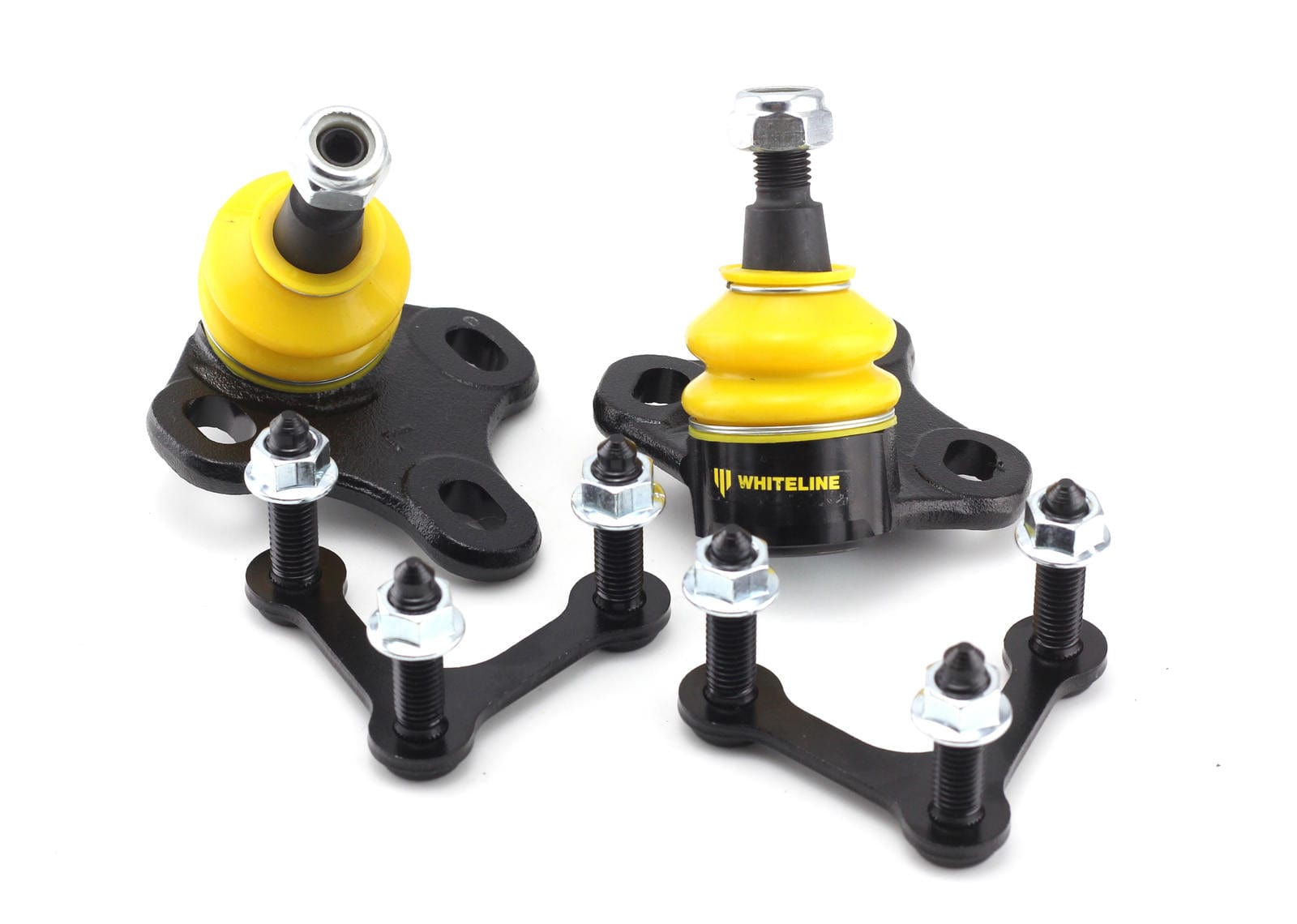

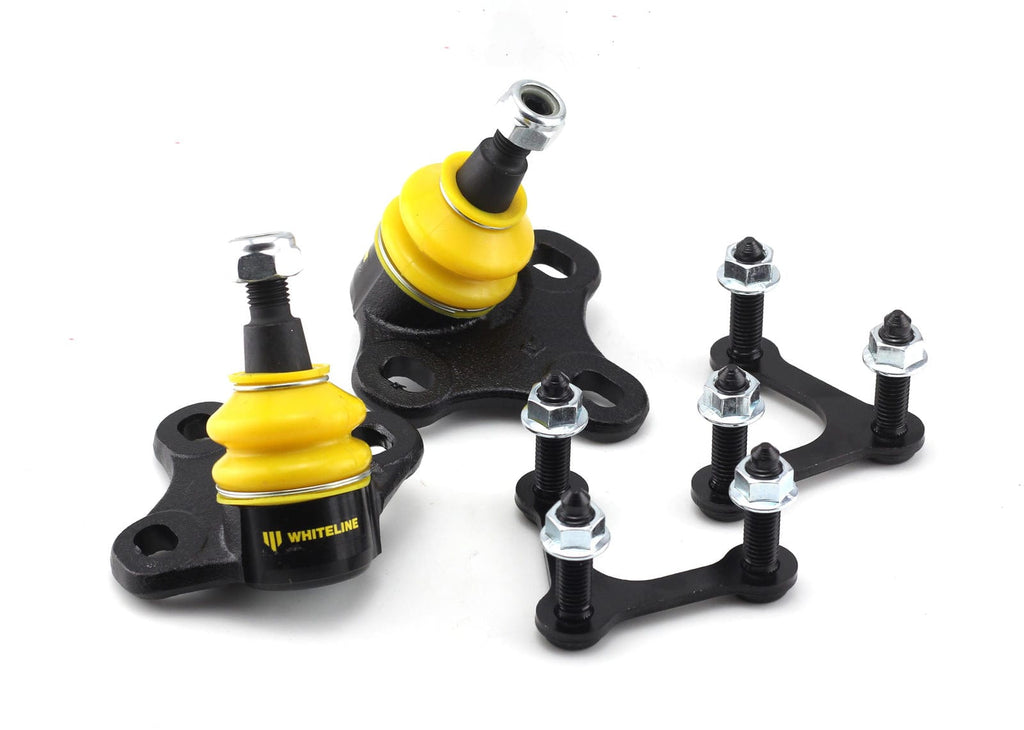

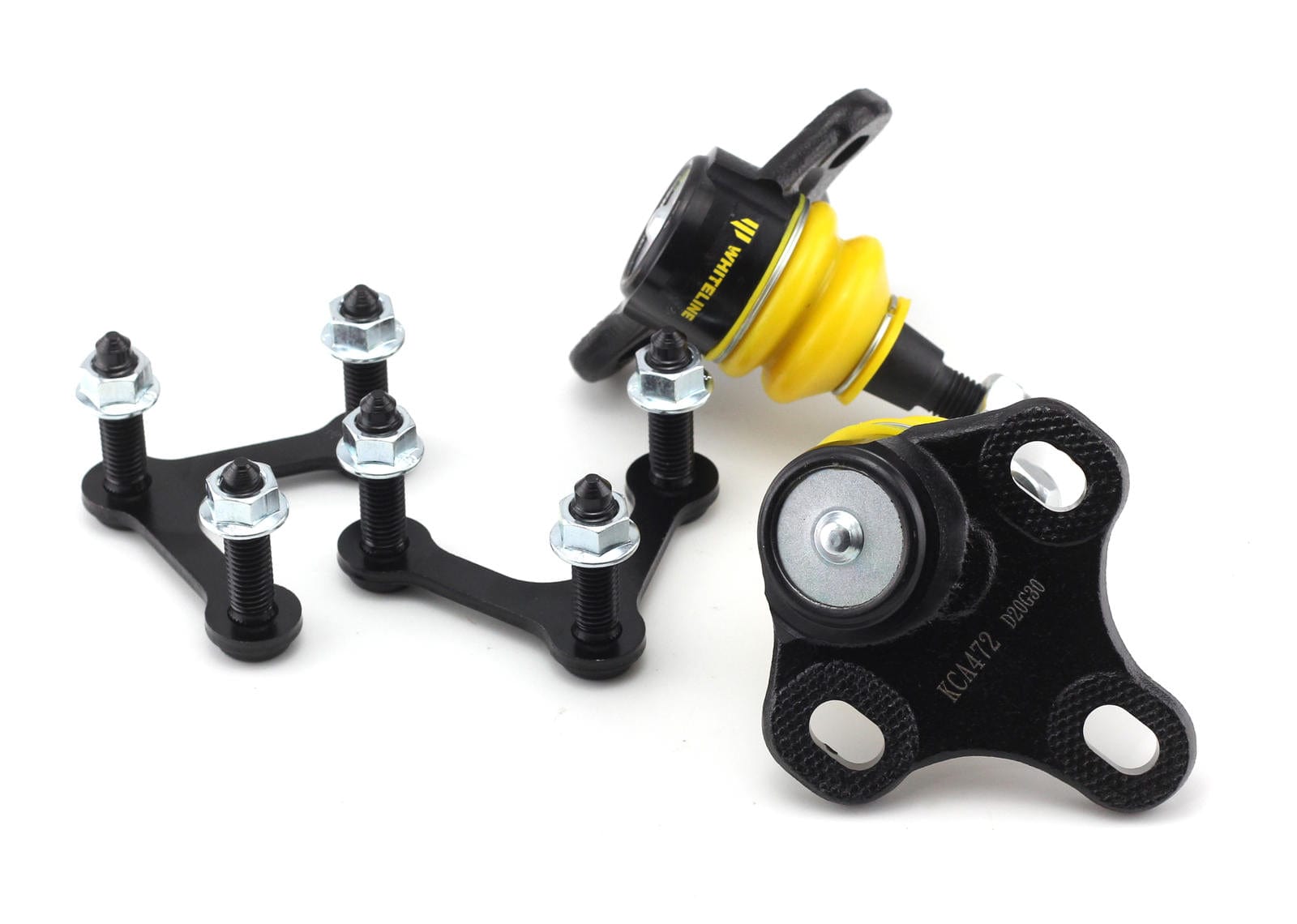

What's in the Box
2 Ball Joints
Specifications
-
Position: Front Axle
-
Range: Whiteline Performance
-
Warranty: 3 Year / 60,000Kms
-
Installation: Advanced – experience recommended
-
Typical install time: 2 Hours
-
Wheel alignment: Recommended after fitting
