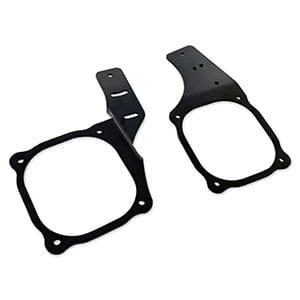

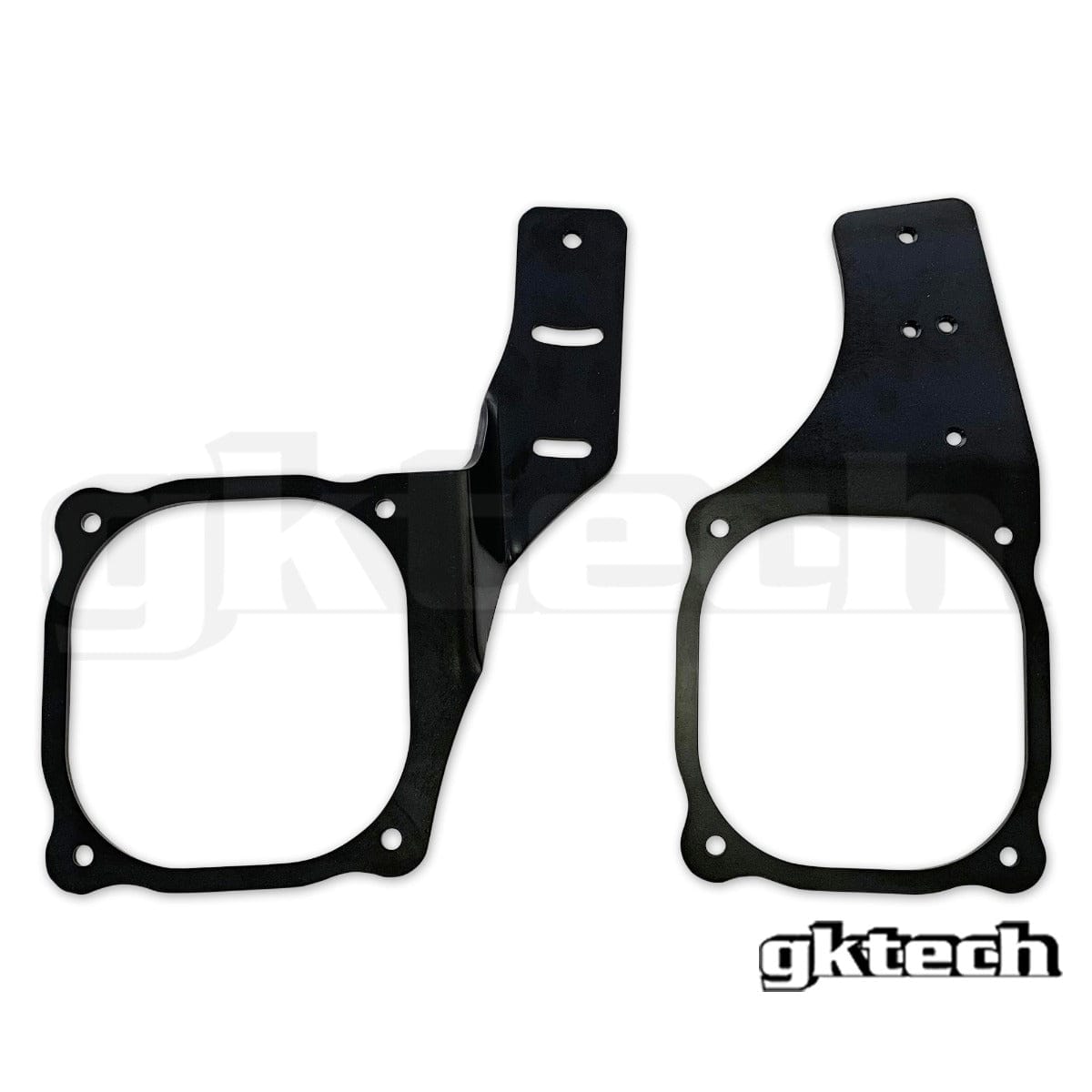

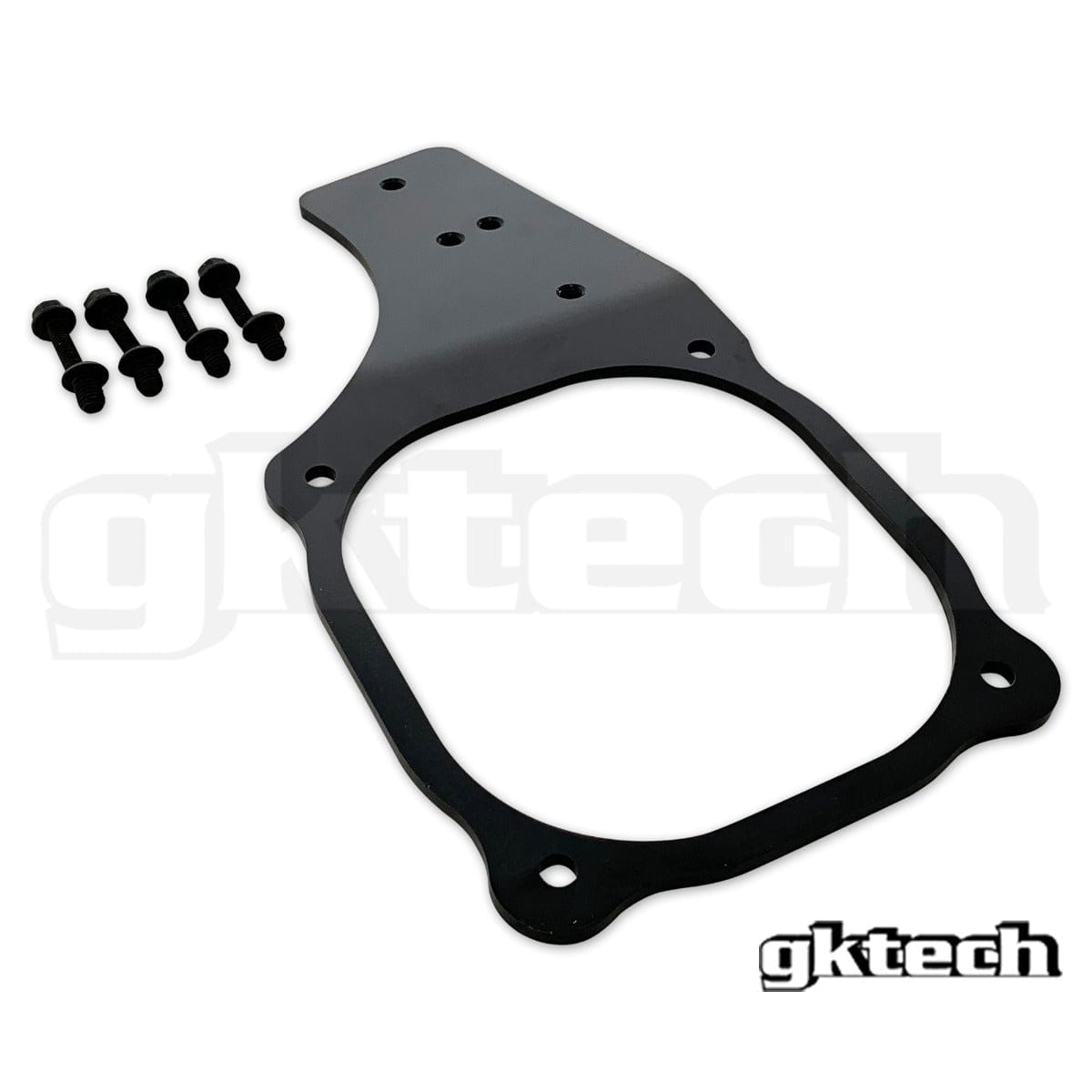

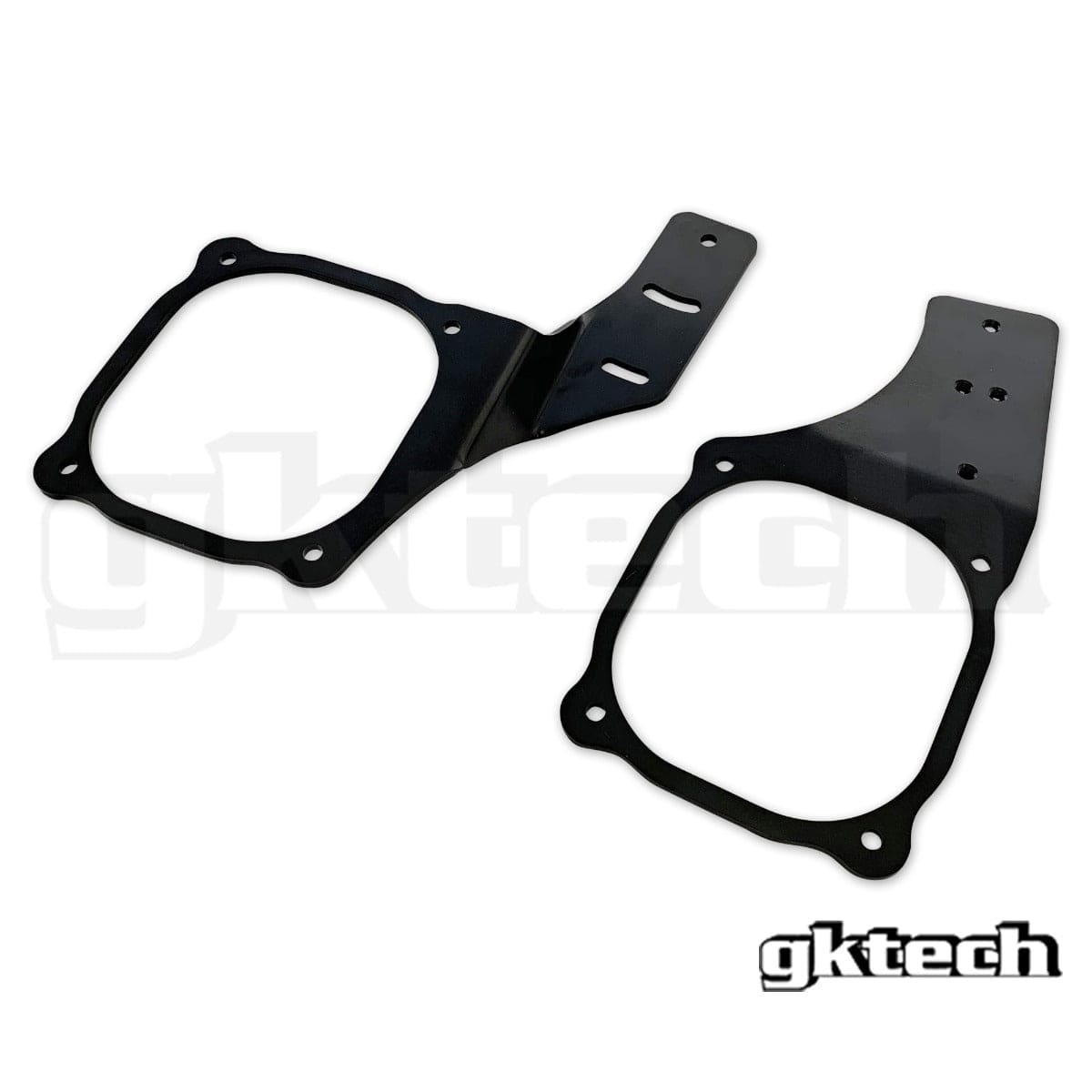

GKTech G35, V35 Skyline car specific handbrake mount
Suits Nissan V35
Brand: GKTech
Part Number: Z33X-CNSL, Z33X-CNSR, V35X-HBKR, G35X-HBKL
Description:
GKTech G35, V35 Skyline car specific handbrake mount. Suits Nissan Skyline V35. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
When installing a hydraulic handbrake in your car, you'd typically have to drill holes or weld a bracket in place.
GKTech understand that not everyone wants to do that, so they have made these bolt in brackets.
The brackets bolt to the stock gearbox shifter hole and allows you to fit their hydraulic handbrake assembly without modifications to the gearbox tunnel.
- 100% direct fit with no modifications required to the gearbox tunnel
- Available for either center console or side mount LHD and RHD variants.
- Laser cut from 5mm thick 4130 Chromoly sheet and zinc coated for longevity

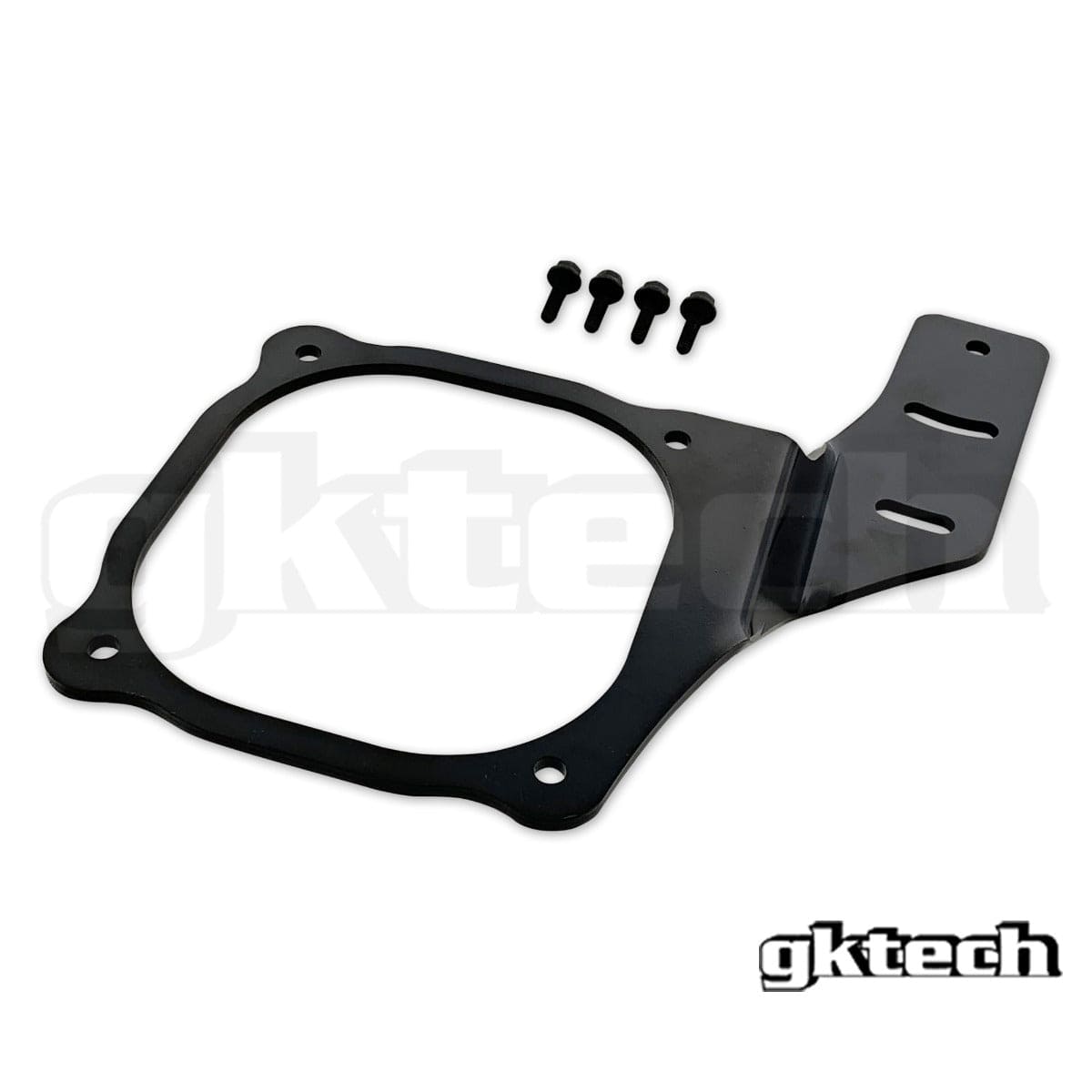

- Includes 4x replacement M6x20mm bolts
NOTE: Console version will require some trimming under the center console and require you to cut a hole for the lever.
NOTE #1: Will NOT fit on automatic vehicles. The automatic tunnel differs to the manual tunnel. They do have AT mounts however they cannot confirm fitment of the AT Tunnel mounts to V35/G35, only Z33. Please contact Stealth Ride if you do have an automatic V35/G35.

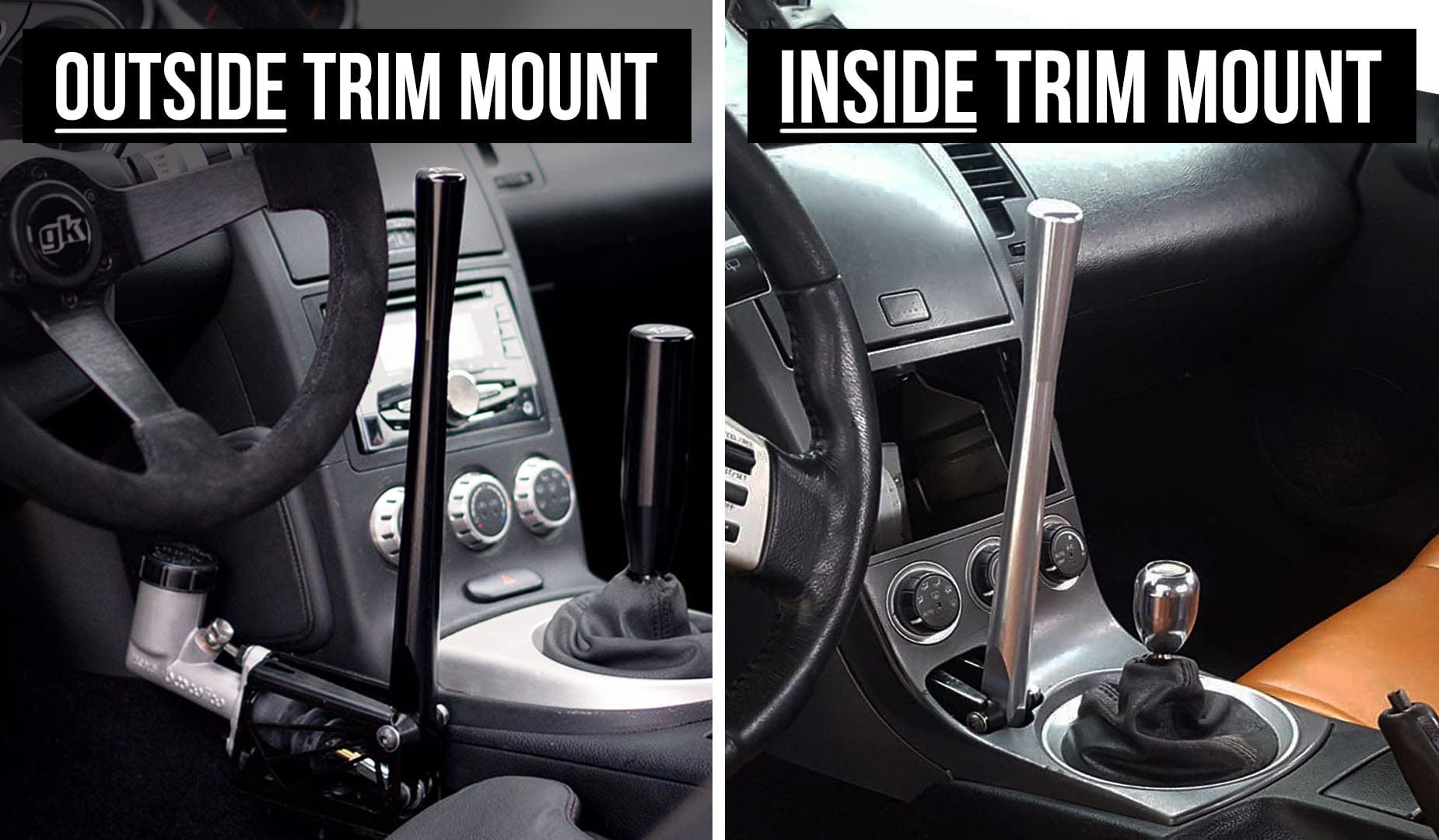

NOTE #2 Inside and outside mounts refer to the position of the handbrake lever when using their mounting plates.
Inside mount = mounts inside/within the center console itself, this will require trimming beneath the AC unit when used on both the left and right-hand side.
Outside mount = mounts outside the center console itself, no modifications required to the trim when used on both the left and right-hand side.
Please refer to product images upon ordering.
NOTE #3 Will NOT fit on automatic vehicles. The automatic tunnel differs to the manual tunnel.
Suits
- Nissan Skyline V35 (2001–2007), VQ35DE
Part Numbers
- INSIDE trim mount - LEFT side: Z33X-CNSL
- INSIDE trim mount - RIGHT side: Z33X-CNSR
- V35/G35 OUTSIDE trim mount - RIGHT side of console: V35X-HBKR
- V35/G35 OUTSIDE trim mount - LEFT side of console: G35X-HBKL
