GKTech 5x114.3 Hub Centric Wheel Spacers (5X114BUNDLE)
Suits a wide range of Nissan models
Brand: GKTech
Part Number: 5X114BUNDLE
Description:

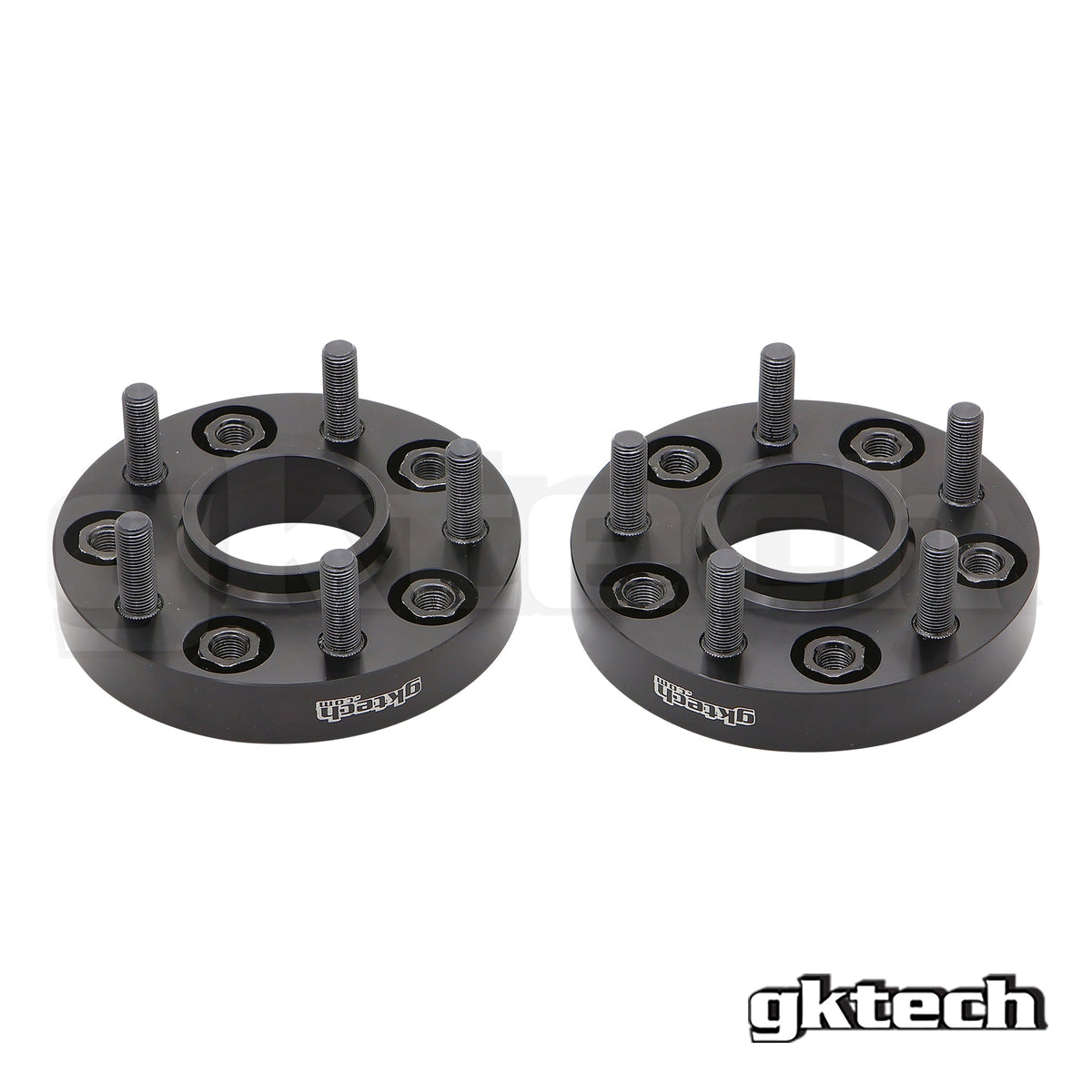

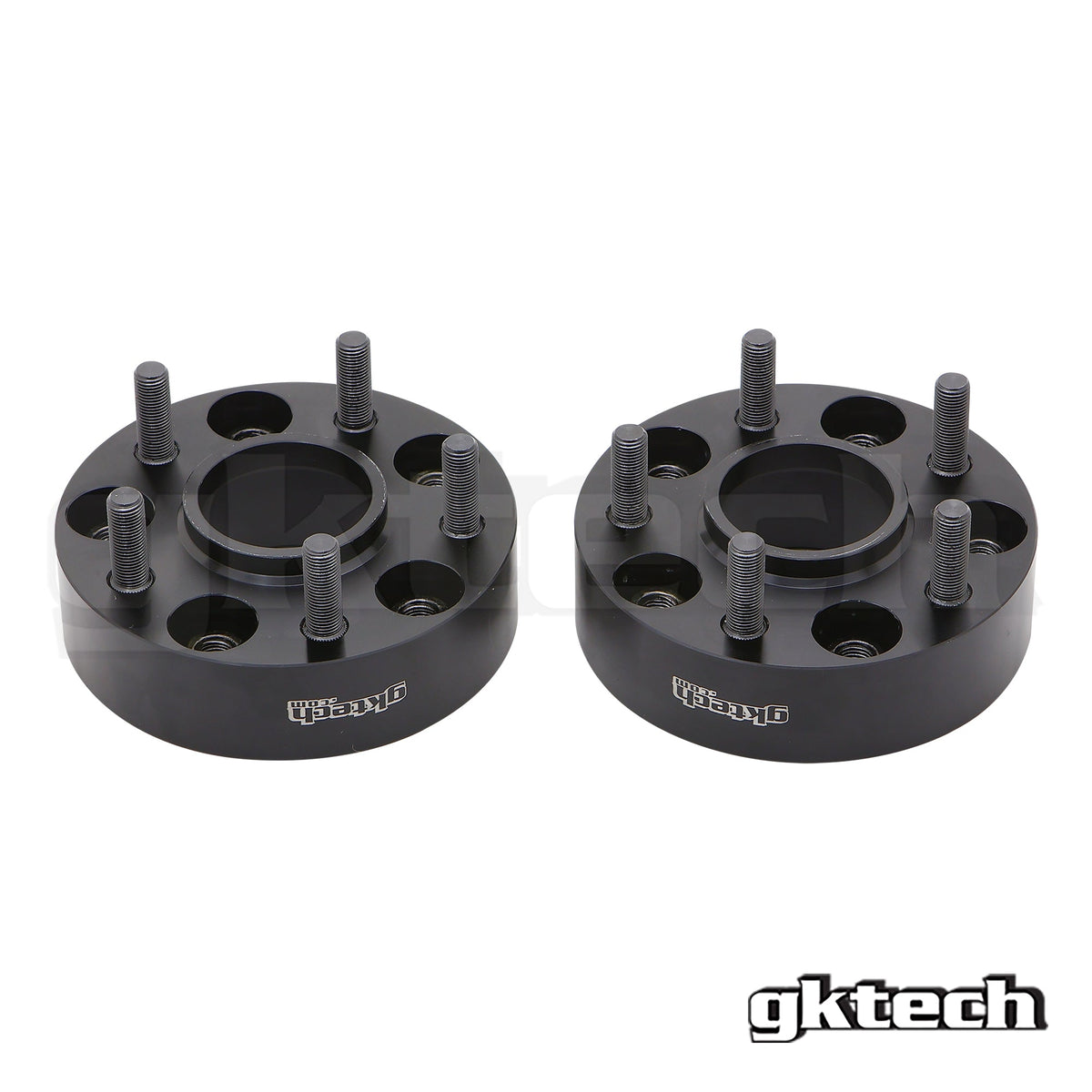

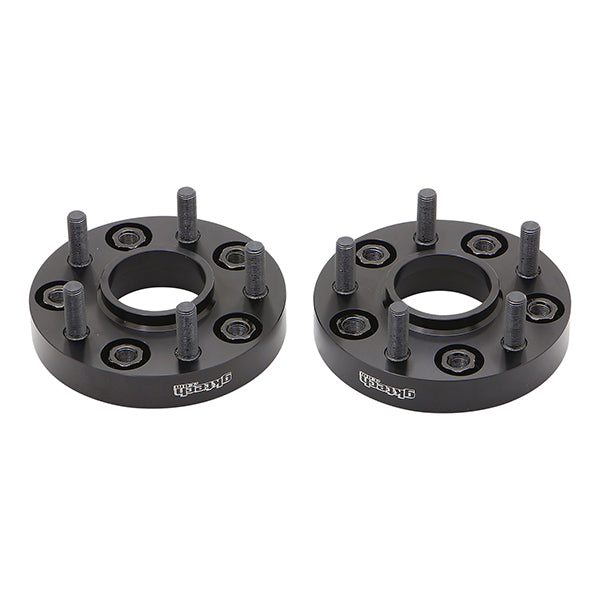

GKTech 5x114.3 Hub Centric Wheel Spacers, kit part number 5X114BUNDLE. Suits a wide range of Nissan models. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTECH bolt on spacers are used to space the wheel, they not only allow for adjustment of the fitment of your wheels but can provide clearance to the suspension components and even provide more lock!

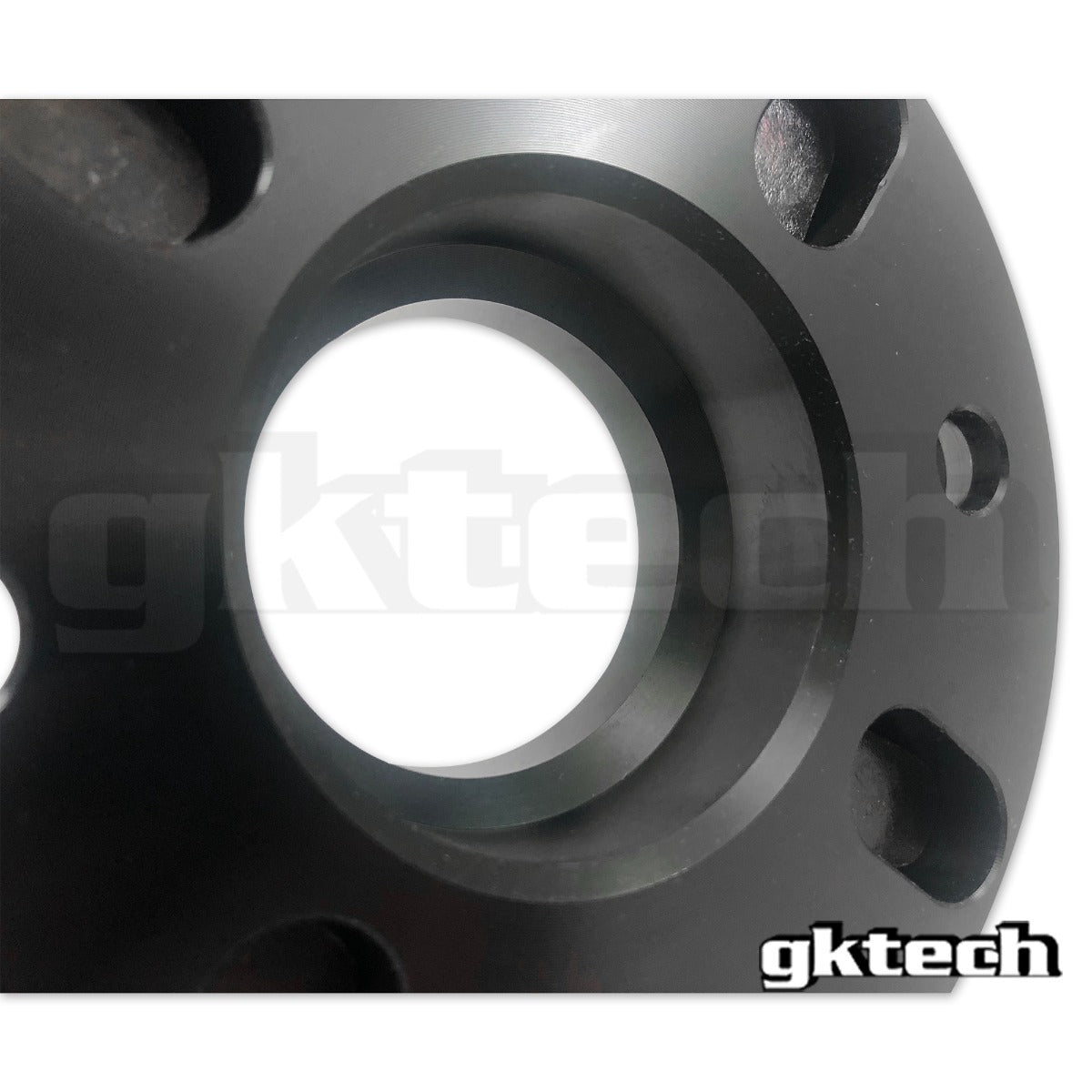

The wheel spacers are hub centric to suit Nissans 66.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength along with grade 10.9 studs, which you have the option of either standard length studs or extended wheel studs.

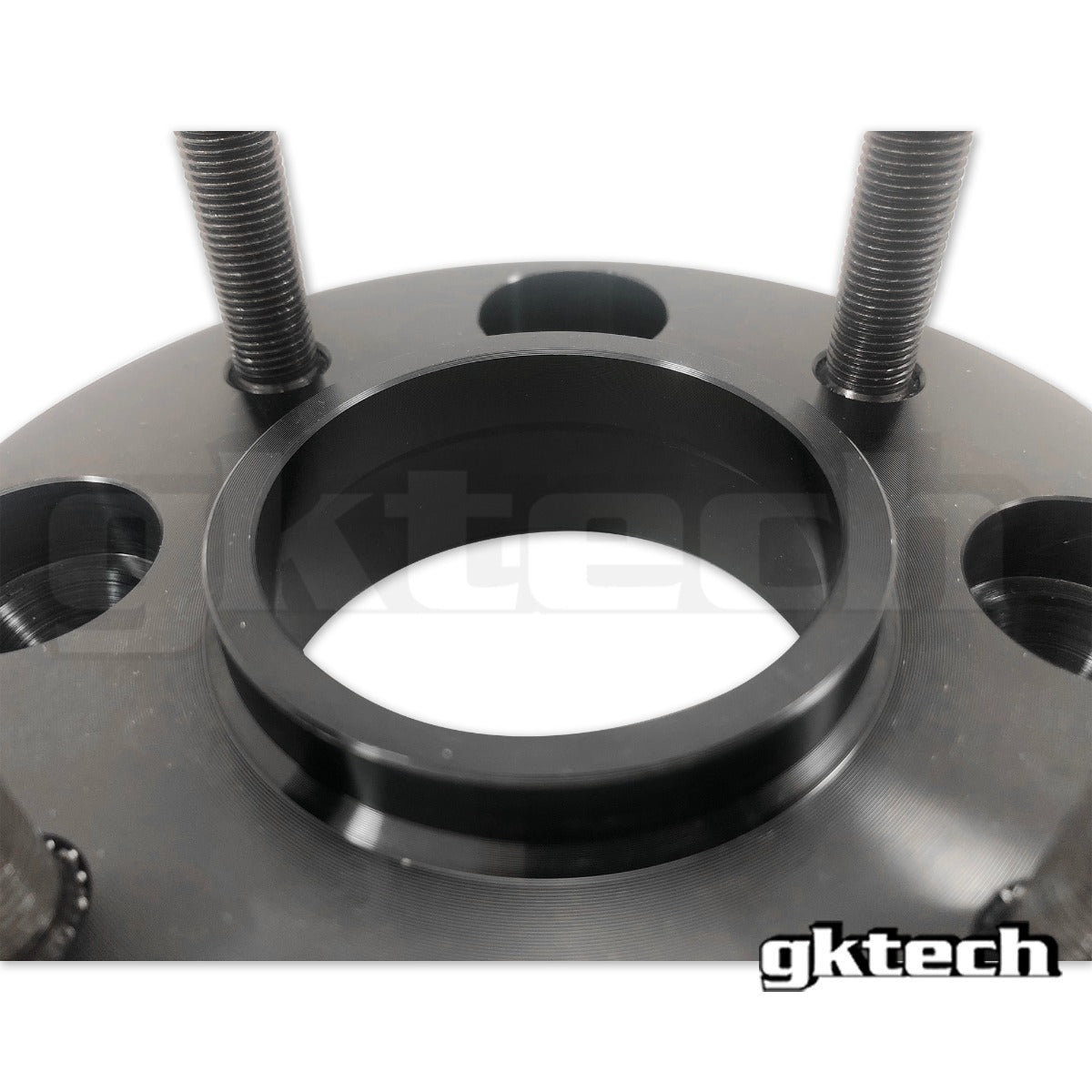

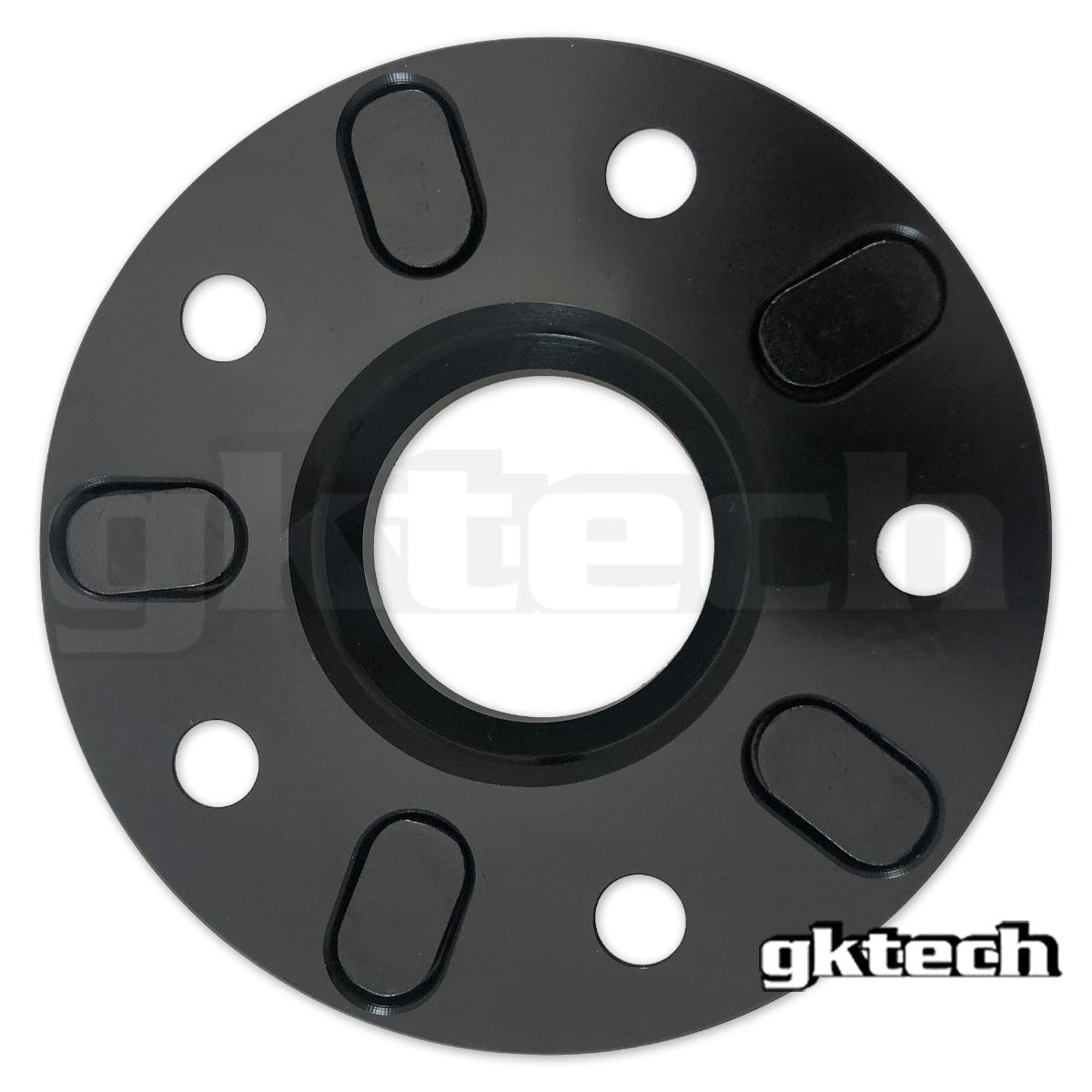

GKTech's unique design uses an oval-shaped stud to prevent any chance of the stud spinning within the spacer and damaging the knurl when over tightened, a common occurrence with generic spacers found on the market.
- CNC machined aluminium T6-6061 construction
- Grade 10.9 studs
- Hub centric to suit 66.1mm
- M12 x 1.25 thread

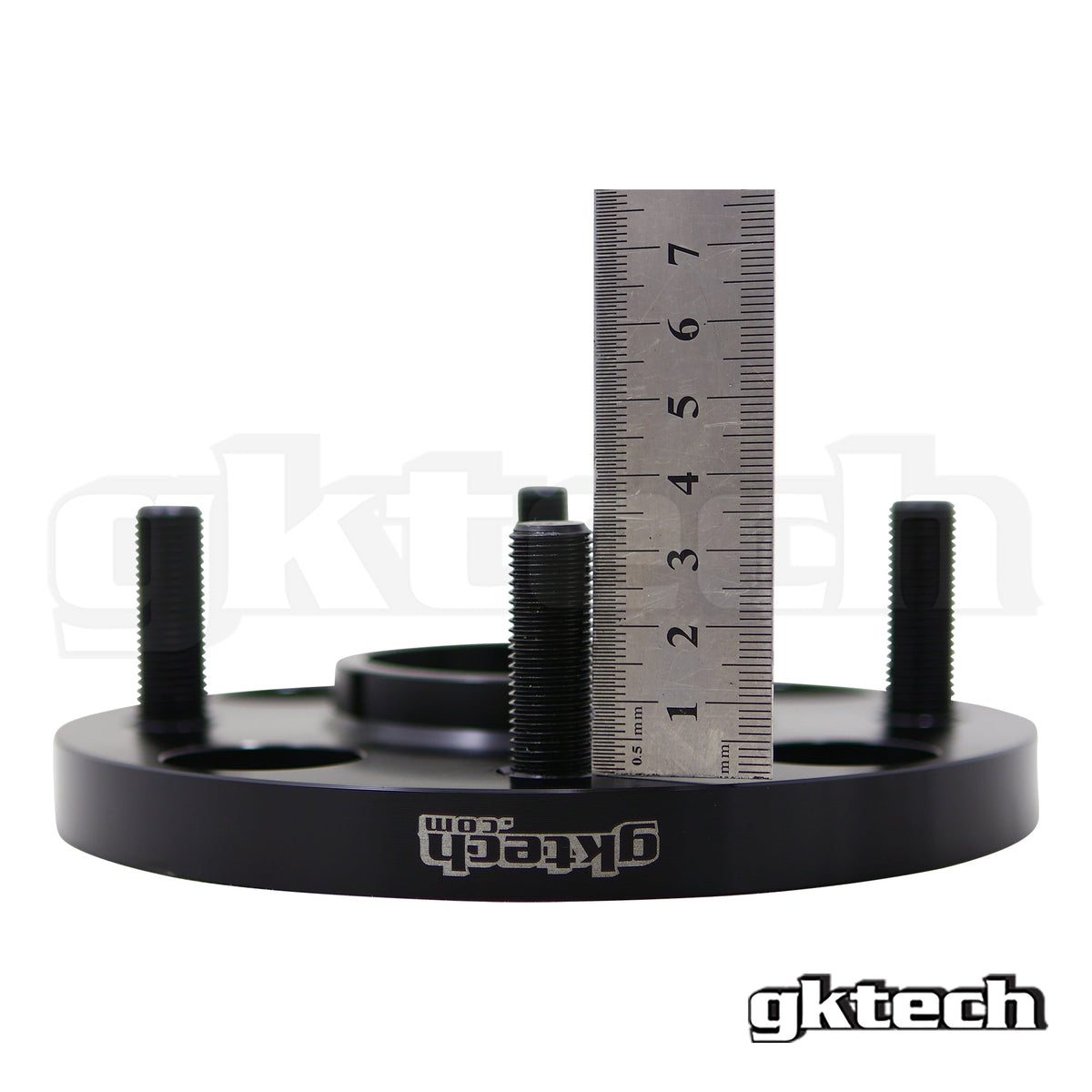

- Either 35mm or 60mm long studs
- Oval shaped studs to prevent stripping of the knurl
NOTE: Sold as a PAIR
NOTE: You may need hub centric rings that they have available to suit your aftermarket wheels etc
| Sizes (width) |
PCD |
Centre bore |
Spacer
O.D
|
Standard stud length |
Extended stud length |
Stud thread |
| 15mm |
5x114.3 |
66.1mm |
150mm |
35mm |
60mm |
M12 x 1.25 thread |
| 20mm |
5x114.3 |
66.1mm |
150mm |
35mm |
60mm |
M12 x 1.25 thread |
| 25mm |
5x114.3 |
66.1mm |
150mm |
35mm |
60mm |
M12 x 1.25 thread |
| 30mm |
5x114.3 |
66.1mm |
150mm |
35mm |
60mm |
M12 x 1.25 thread |
| 40mm |
5x114.3 |
66.1mm |
150mm |
35mm |
60mm |
M12 x 1.25 thread |
| 50mm |
5x114.3 |
66.1mm |
150mm |
35mm |
60mm |
M12 x 1.25 thread |
Options
-
Spacers with standard length studs: None, 15mm Spacer with standard studs (5114-15MMSS), 20mm Spacer with standard studs (5114-20MMSS), 25mm Spacer with standard studs (5114-25MMSS), 30mm Spacer with standard studs (5114-30MMSS), 40mm Spacer with standard studs (5114-40MMSS), 50mm Spacer with standard studs (5114-50MMSS)
-
Spacers with extended length studs: None, 15mm Spacer with extended studs (5114-15MM), 20mm Spacer with extended studs (5114-20MM), 25mm Spacer with extended studs (5114-25MM), 30mm Spacer with extended studs (5114-30MM), 40mm Spacer with extended studs (5114-40MM), 50mm Spacer with extended studs (5114-50MM)
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
- Nissan Skyline GT-R R32 (1989–1994), RB26DETT
- Nissan Skyline GTS-T R32 (1989–1993), RB20DET
- Nissan Skyline GTS4 R32 (1989–1993), RB20DET
- Nissan Skyline GT-R R33 (1995–1998), RB26DETT
- Nissan Skyline GTS R33 (1993–1998), RB25DE
- Nissan Skyline GTS-T R33 (1993–1998), RB25DET
- Nissan Skyline GTS4 R33 (1993–1998), RB25DET
- Nissan Skyline GT R34 (1998–2002), RB25DE
- Nissan Skyline GT-T R34 (1998–2002), RB25DET
- Nissan Skyline GT-R R34 (1999–2002), RB26DETT
- Nissan 350Z Z33 (2002–2009), VQ35DE
- Nissan 370Z Z34 (2009–2020), VQ37VHR
- Nissan Z RZ34 (2022–on), VR30DDTT
- Nissan Skyline V35 (2001–2007), VQ35DE
- Nissan Skyline V36 (2006–2014), VQ37VHR
- Nissan 300ZX Z32 (1989–2000), VG30DETT
- Nissan Skyline R31 (1985–1990), RB20DET
- Nissan Cefiro A31 (1988–1994), RB20DET
- Nissan Laurel C33 (1989–1993), RB20DET
- Nissan Laurel C34 (1993–1997), RB25DET
- Nissan Laurel C35 (1997–2002), RB25DET
- Nissan Stagea WGNC34 (1996–2001), RB25DET
