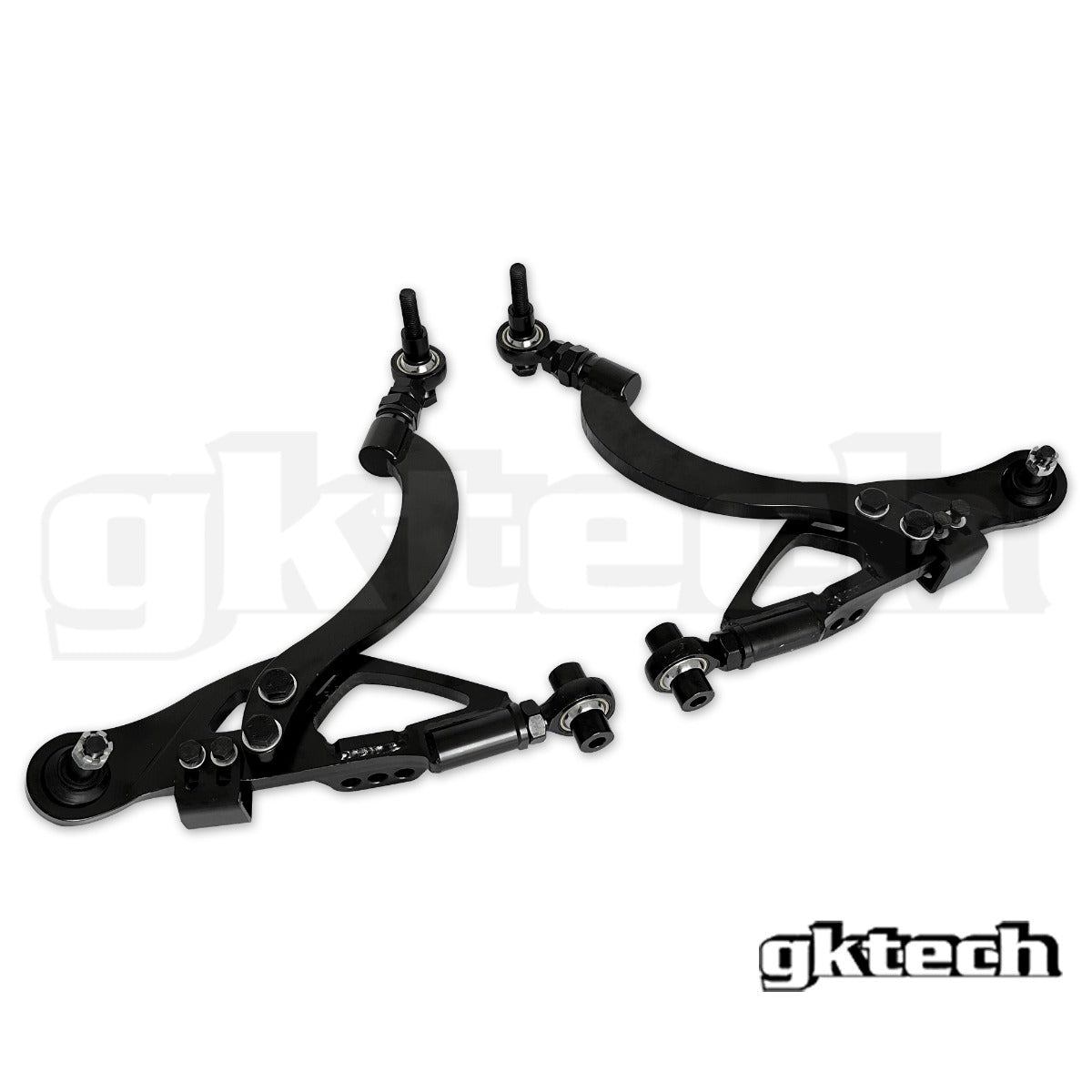

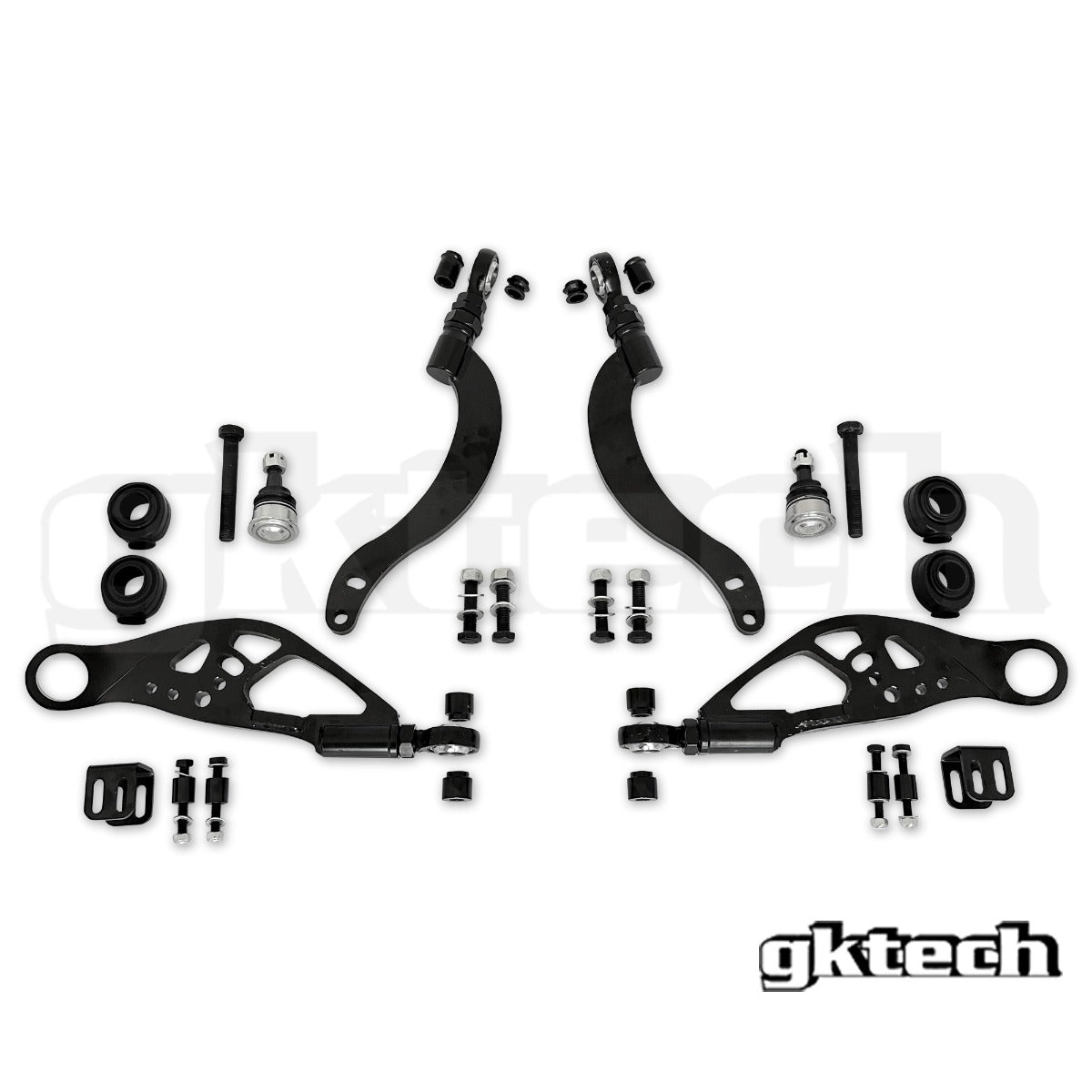

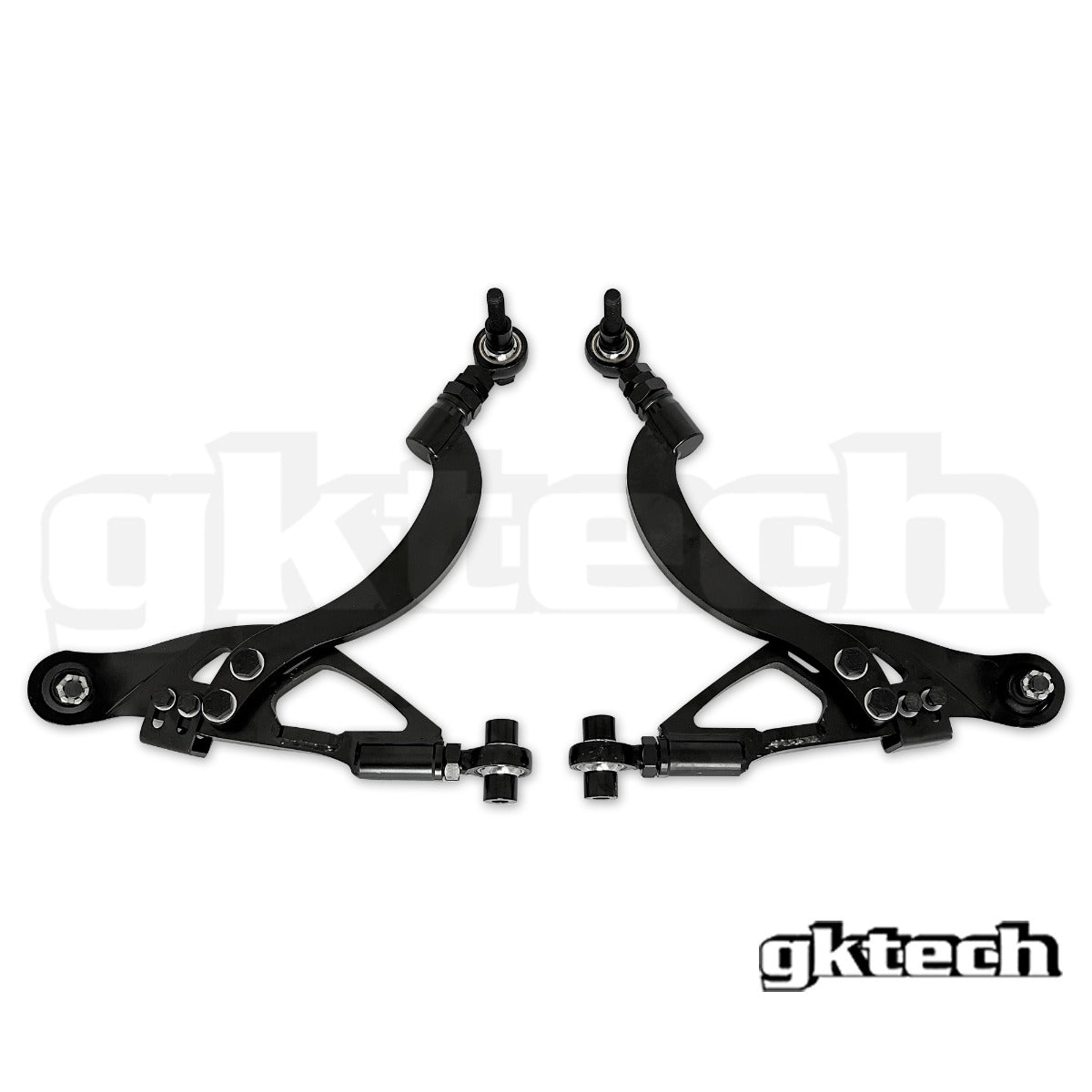

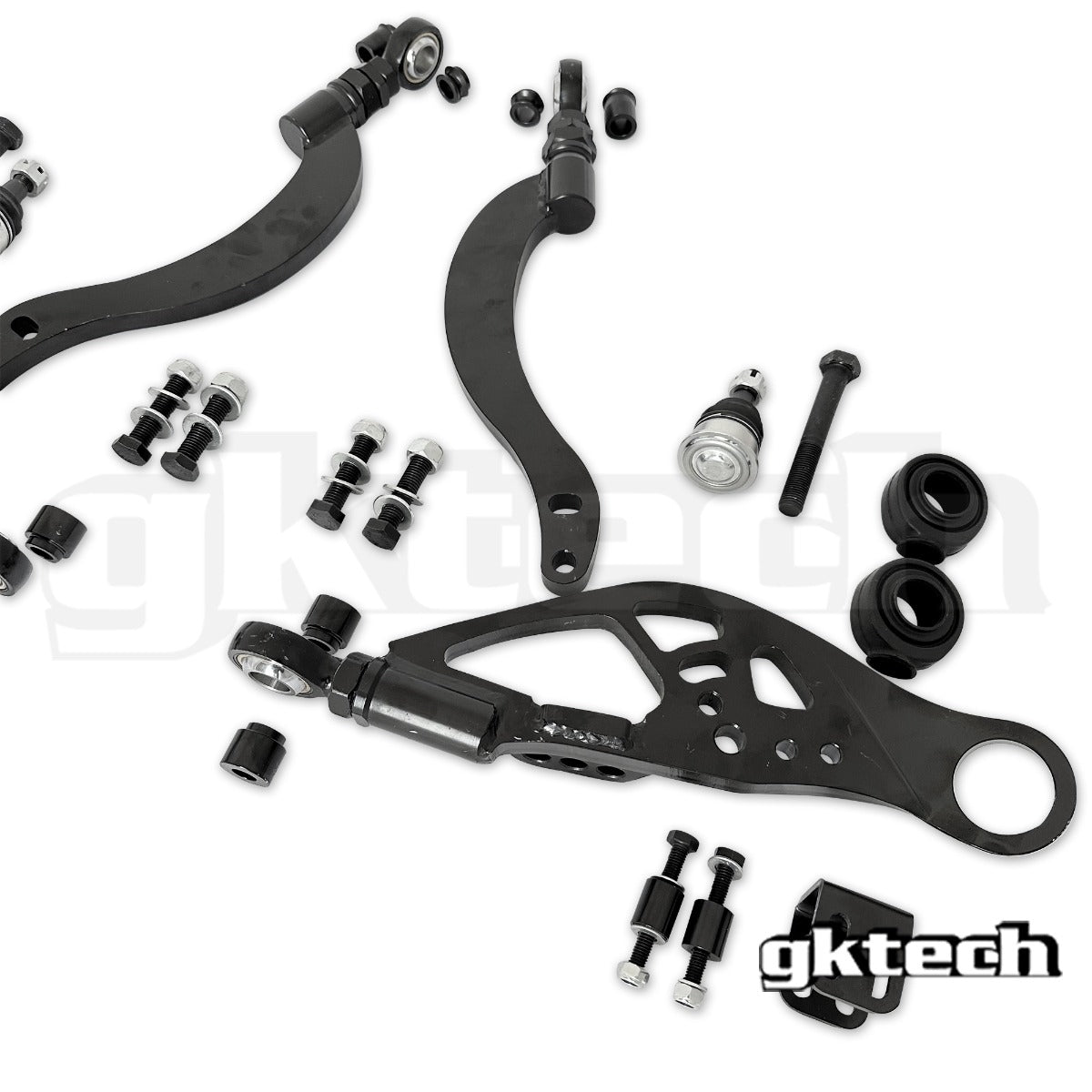

GKTech 86, GR86, BRZ Front Lower control arms (86FLCA)
Suits Toyota / Subaru 86 ZN6, BRZ ZC6, GR86 ZN8, BRZ ZD8
Brand: GKTech
Part Number: 86FLCA
Description:
GKTech 86, GR86, BRZ Front Lower control arms, kit part number 86FLCA. Suits Toyota / Subaru 86 ZN6, BRZ ZC6, GR86 ZN8, BRZ ZD8. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTECH Super Lock front lower control arms simplify, improve and replace the front lower control arm and caster rods on the 86 / GR86 or BRZ, while also supporting around 65+ degrees of steering lock.
These arms are designed based off CMM data, they are CAD designed, FEA tested, have CNC machined ends and the main body is laser cut and bent from 4130 Chromoly Steel.
Adjustable, with 2 different length options; OEM length and adjust out to +30mm from OEM or; +40mm through to +70mm over OEM length.
Designed with the OEM knuckle in mind, meaning they will work with GKTech's bolt on steering kit which uses the OEM knuckle.
As they do all their arms, common sized PTFE bearings throughout the arm, which can be found locally, however, they do have them on the shelf should you wish to carry spares. They also use their high misalignment rose/ heim joints to allow the arm to rotate freely.
Dust boots to protect the rose/ heim joints are included and have lock stops built into the arm for those that want to dial down the fun.
Finally, the arms are E-coated (electrophoresis coating) for rust prevention.
- Allow for 65+ degrees of steering lock
- Adjustable from OEM length through to +30mm or +40mm through to +70mm
- Designed to be used with OEM knuckle
- Adjustable lockstop
- 3 swaybar mounting positions for adjustment
- On car caster adjustment (6.75 default, max 10.2, min 4)
- High misalignment rose/ heim joints
- CMM measured, CAD designed, FEA tested
- CNC machined ends
- Laser cut 4130 Chromoly steel design
NOTE: OEM end links can not be used with these LCA's. However, their adjustable end links (or possibly other brands) will work with these LCA's should you wish to retain the swaybar.
NOTE: If you are using their older style V1/V2 86 steering kits with these lower control arms that use the straight style tie rod end you will need to replace that with their curved style tie rod end, which can be seen here -
Options
-
Short or long FLCA's?: OEM length to +30mm (GT86-0LCA), +40mm through to +70mm (GT86-FLCA)
-
Adjustable Swaybar end links: None, GK FLCA high clearance variant (GT86-FELS)
-
Super long inner tie rods: None, 71mm - 255mm Super Lock replacement inner tie rods (GT86-INTR), 140mm - 315mm Super Lock replacement inner tie rods (GT86-LONG)
Suits
- Toyota 86 ZN6 (2012–2021), FA20
- Subaru BRZ ZC6 (2012–2021), FA20
- Toyota GR86 ZN8 (2021–on), FA24
- Subaru BRZ ZD8 (2021–on), FA24
