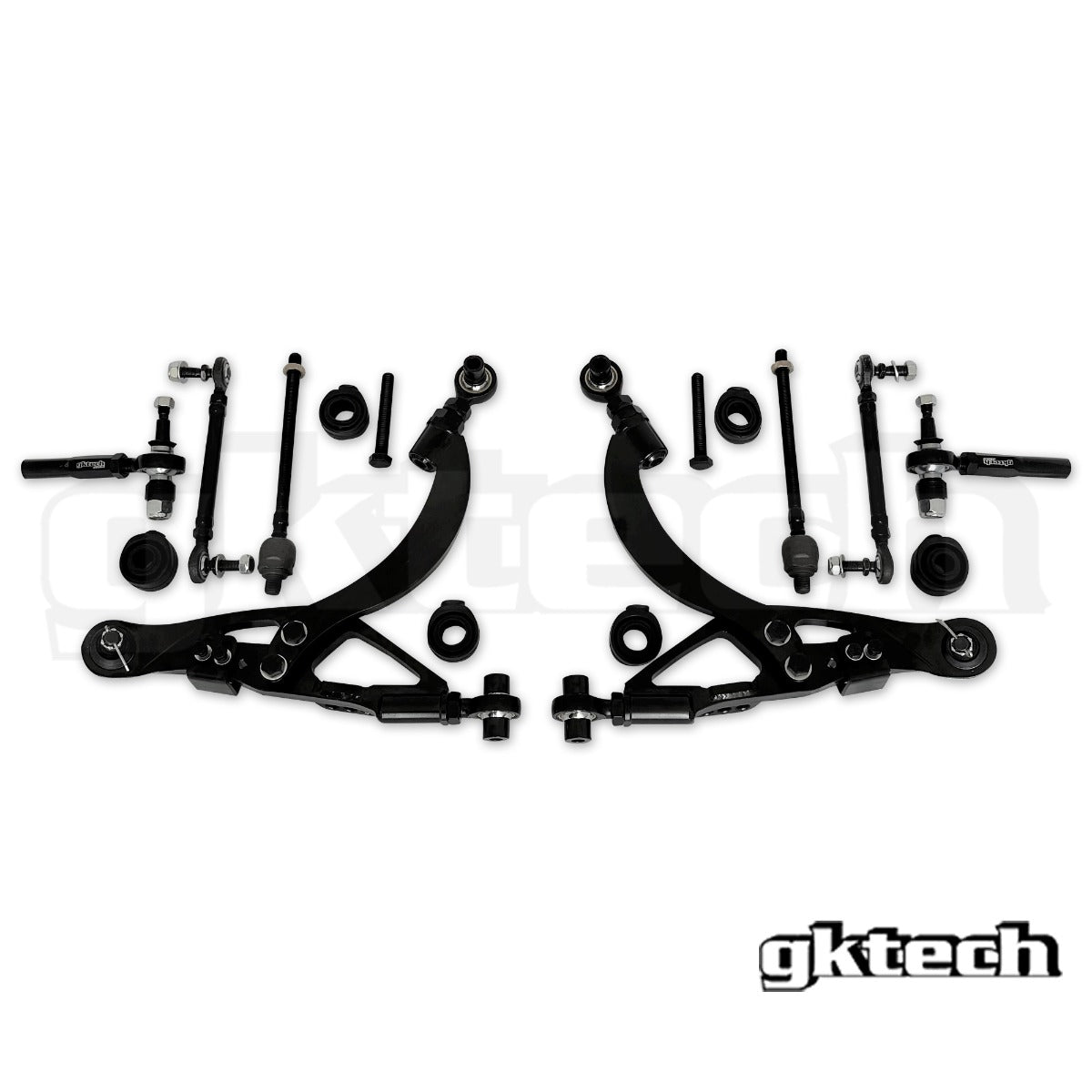

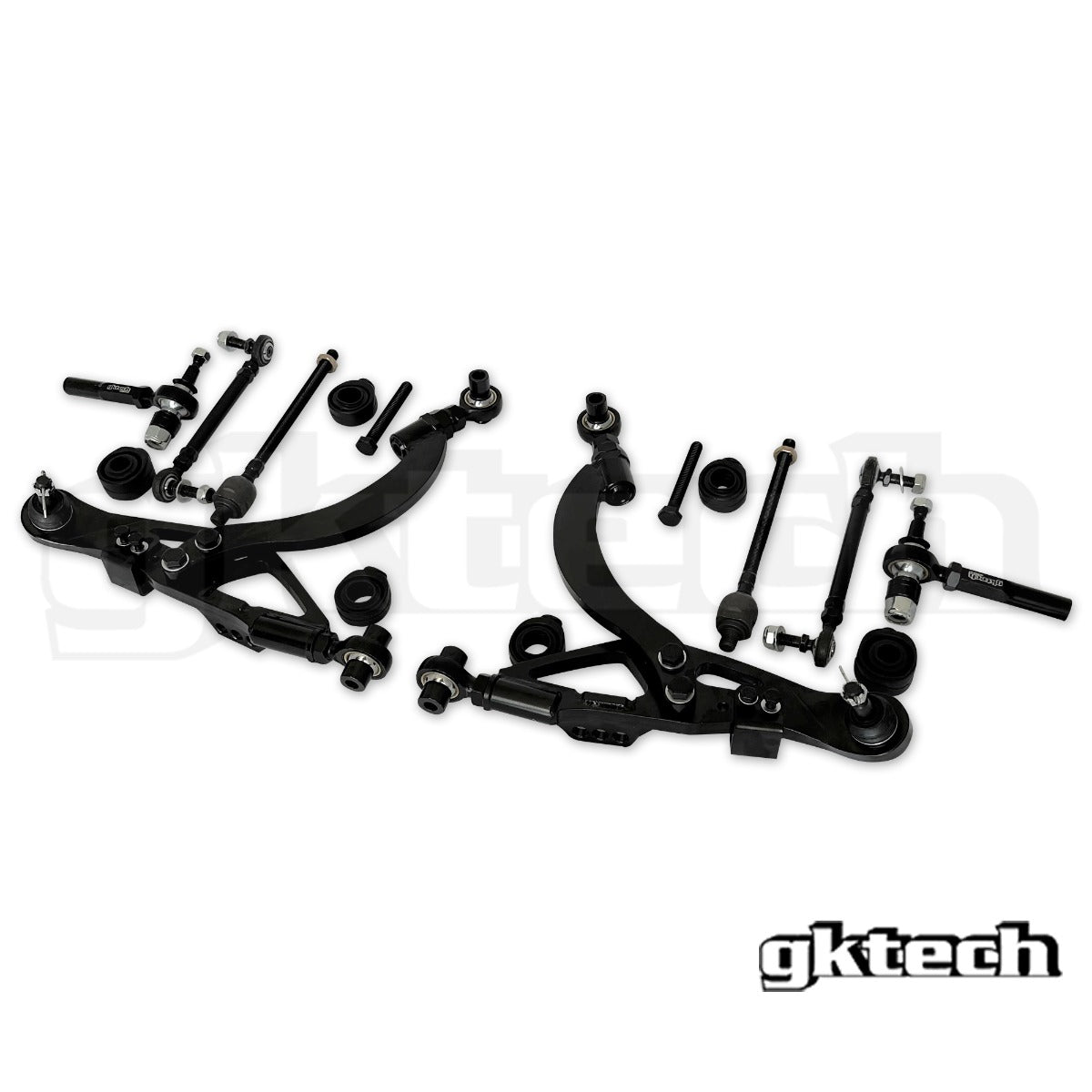

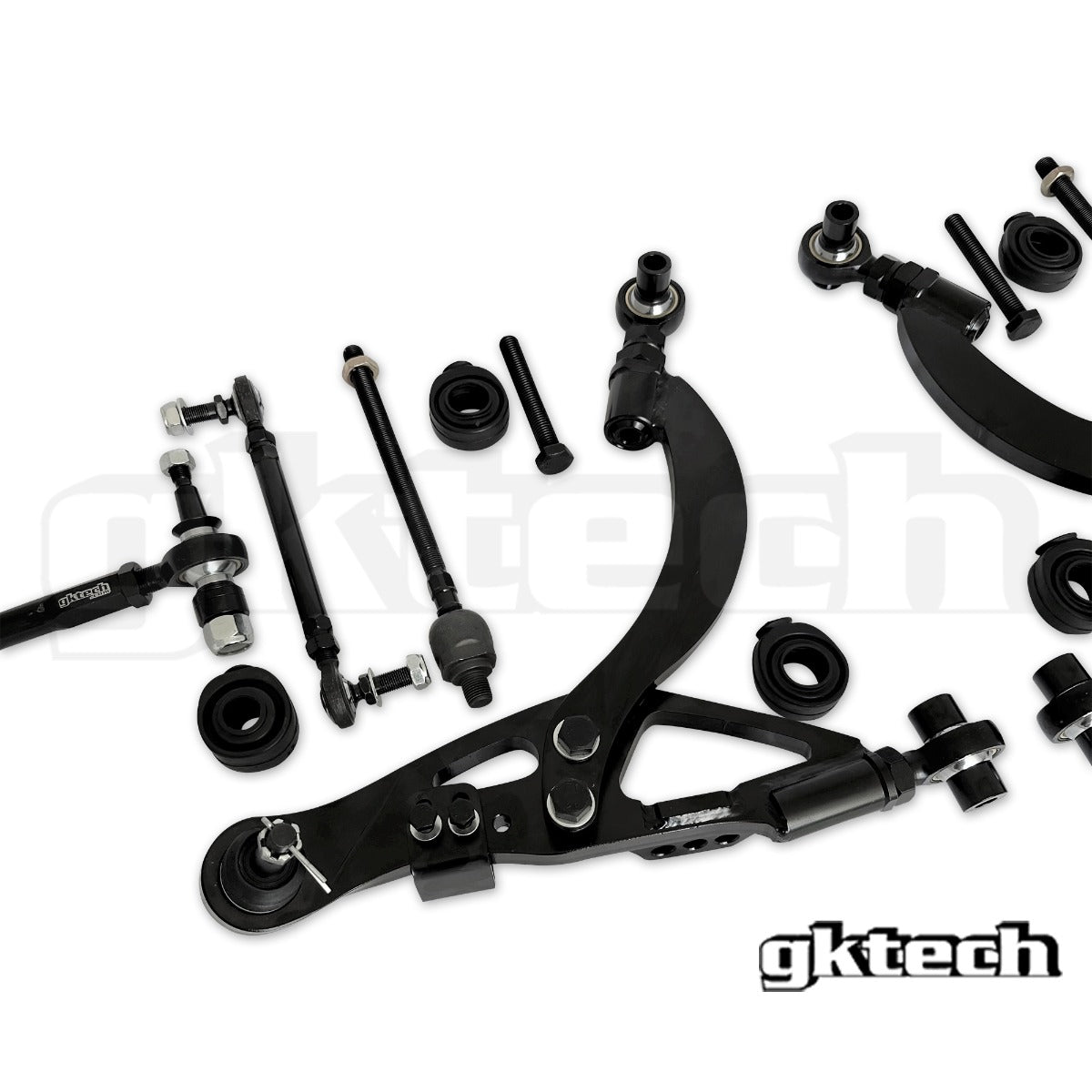

GKTech 86, GR86, BRZ Front Suspension arm package (86GRIP)

GKTech 86, GR86, BRZ Front Suspension arm package (86GRIP)
Suits Toyota / Subaru 86 ZN6, BRZ ZC6, GR86 ZN8, BRZ ZD8
Brand: GKTech
Part Number: 86GRIP
Description:

GKTech 86, GR86, BRZ Front Suspension arm package, kit part number 86GRIP. Suits Toyota / Subaru 86 ZN6, BRZ ZC6, GR86 ZN8, BRZ ZD8. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.

The new GKTECH suspension arms are unlike any other suspension arms on the market and they're manufactured to a standard not made available to the average motorsport enthusiast:

CAD designed, FEA tested, CNC machined ends and TIG welded and to finish the arms off they're E-coated (aka electrophoresis coating) for rust prevention and they are exclusively using high quality 5/8" Teflon lined rod ends.

FRONT LOWER CONTROL ARMS/CASTER ARMS

Front lower control arms allow for the ability to change your front track. In this instance each side is adjustable from OEM length through to +30mm or the longer version being +40mm through to +70mm. Caster arms (aka tension rods) allow adjustment in vehicle castor to bring the wheels forward and increase steering response. In general, the more caster the better. Allowing sharper turn in and faster return to the straight position when letting go of the wheel.

For more information
86 / GR86 / BRZ front lower control arms

SWAYBAR END LINKS
These adjustable swaybar end links have been designed for both adjustability for lowered vehicles and to feature high levels of misalignment to ensure that throughout your suspensions range of travel you don't have issues with bind. With 30mm of adjustment your swaybar will be exactly where you want it. NOTE. OEM end link will not work with their FLCA's.

For more information
86 / GR86 / BRZ Adjustable front swaybar end links

INNER TIE RODS

Depending on whether you run rack spacers or not and also the length that you set the LCA at you will need different length inner tie rods. They have made inner tie rods that had enough adjustment to suit any configuration with their LCA's.

For more information
86 / GR86 / BRZ super lock replacement inner tie rod

TIE ROD ENDS

Adjustable tie rod ends to adjust your bump steer. This allows the tie rod end balljoint to sit along the same plane as the front lower control arm balljoint, which is exactly what you want for a lowered car to handle at its peak.

For more information
86 / GR86 / BRZ high misalignment tie rod ends

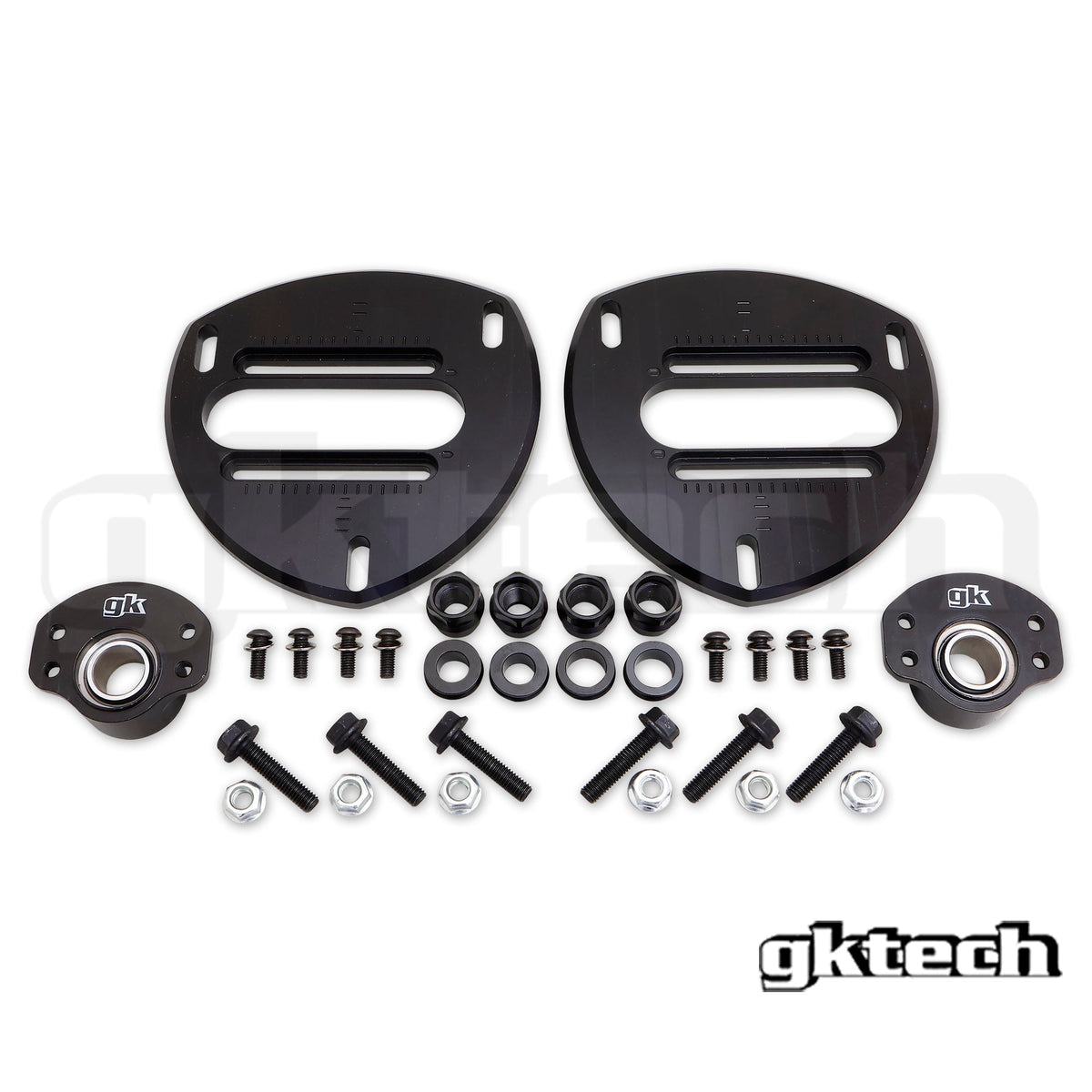

CAMBER AND CASTER ADJUSTABLE STRUT TOPS

Their strut tops requiring no additional modifications and allow for on-car adjustment of both camber and caster, providing a significant adjustment range.

For more information
86 / GR86 / BRZ CAMBER AND CASTER ADJUSTABLE STRUT TOPS

Kit Includes

• 1 x GK FLCA high clearance variant (GT86-FELS)
• 1 x 86 / GR86/ ZC6 BRZ High Misalignment Tie rod Ends (GT86-TROD)

Options

• Front Lower Control Arms/Caster arms: OEM length to +30mm (GT86-0LCA), +40mm through to +70mm (GT86-FLCA)
• Super long inner tie rods: None, 71mm - 255mm Super Lock replacement inner tie rods (GT86-INTR), 140mm - 315mm Super Lock replacement inner tie rods (GT86-LONG)
• Adjustable strut tops?: None, Camber and caster adjustable strut tops (GT86-DTOP)

Suits

• Toyota 86 ZN6 (2012–2021), FA20
• Subaru BRZ ZC6 (2012–2021), FA20
• Toyota GR86 ZN8 (2021–on), FA24
• Subaru BRZ ZD8 (2021–on), FA24
