GKTech 86, GR86, BRZ In-line IN-CONSOLE ONLY Hydraulic handbrake line kit
Suits Toyota / Subaru 86 ZN6, BRZ ZC6
Brand: GKTech
Part Number: GT86-RCIL, GT86-LCIL
Description:
GKTech 86, GR86, BRZ In-line IN-CONSOLE ONLY Hydraulic handbrake line kit. Suits Toyota 86 ZN6, Subaru BRZ ZC6. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.

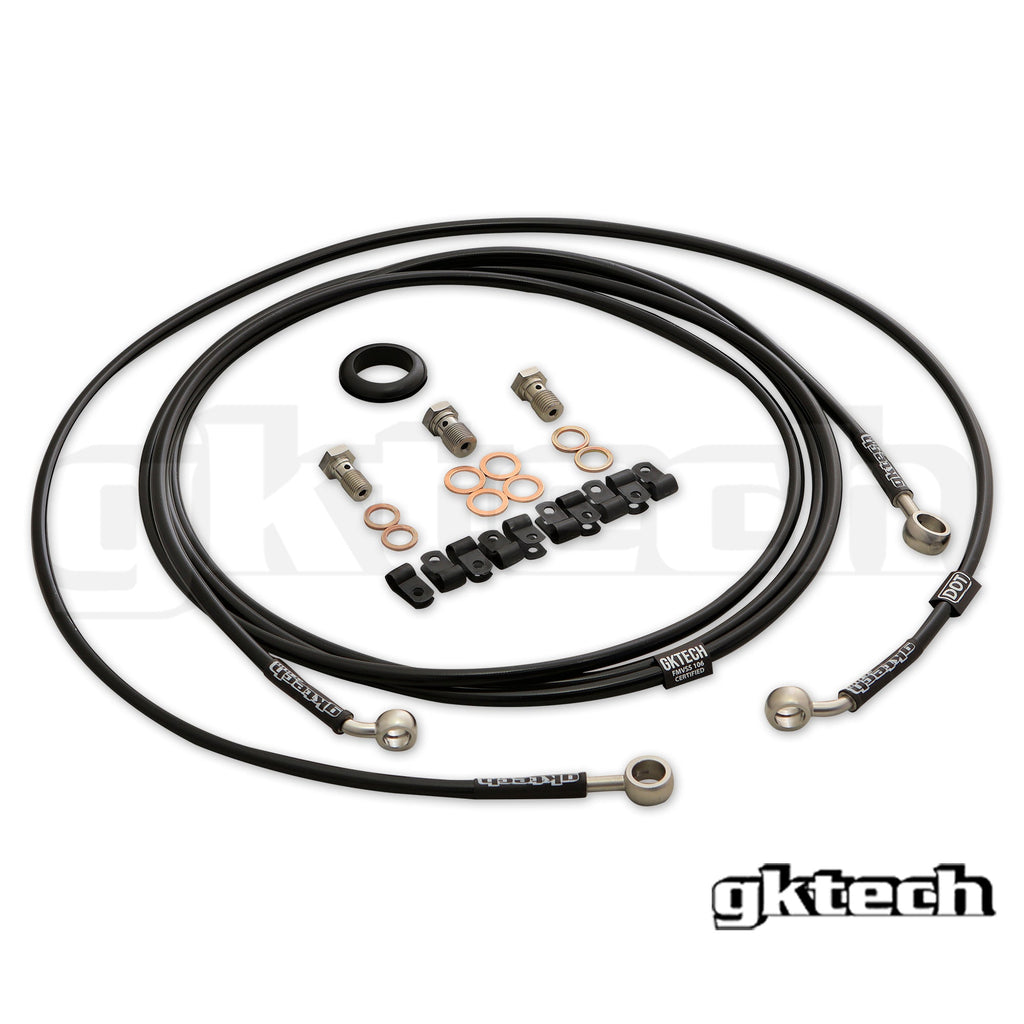

The GKTECH In-line IN-CONSOLE ONLY braided brake line kit is designed to be used with your existing brake calipers. These lines are to suit the Flux master cylinders GKTech sell along with their ABS delete kit and their hydraulic handbrake assembly.
The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
- For race cars only however no permanent modifications are required.
NOTE: Can NOT be installed on cars with ABS still fitted however can be used in conjunction with their ABS delete kit.
NOTE: This kit is only to suit when choosing the in-console option in the hydraulic handbrake combo by clicking HERE
Suits
- Toyota 86 ZN6 (2012–2021), FA20
- Subaru BRZ ZC6 (2012–2021), FA20
Part Numbers
- RHD: GT86-RCIL
- LHD: GT86-LCIL
