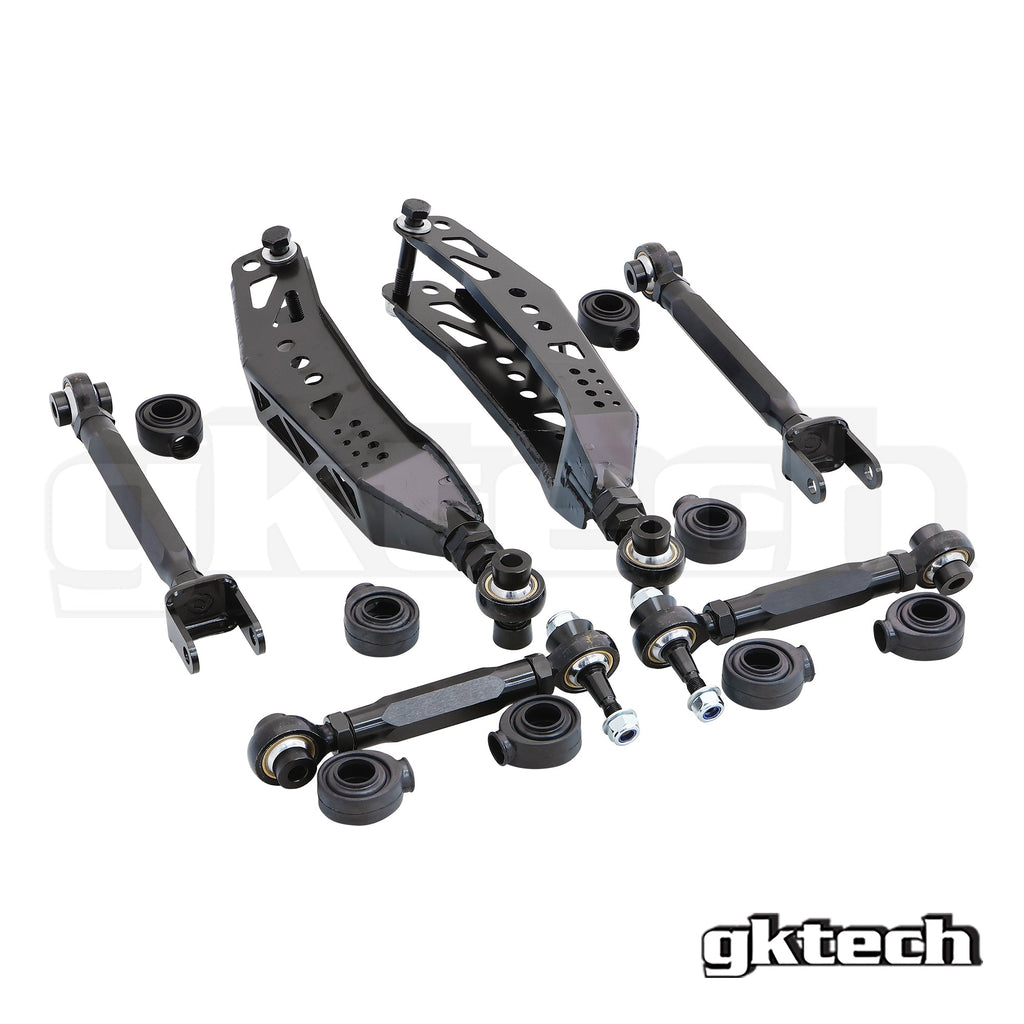

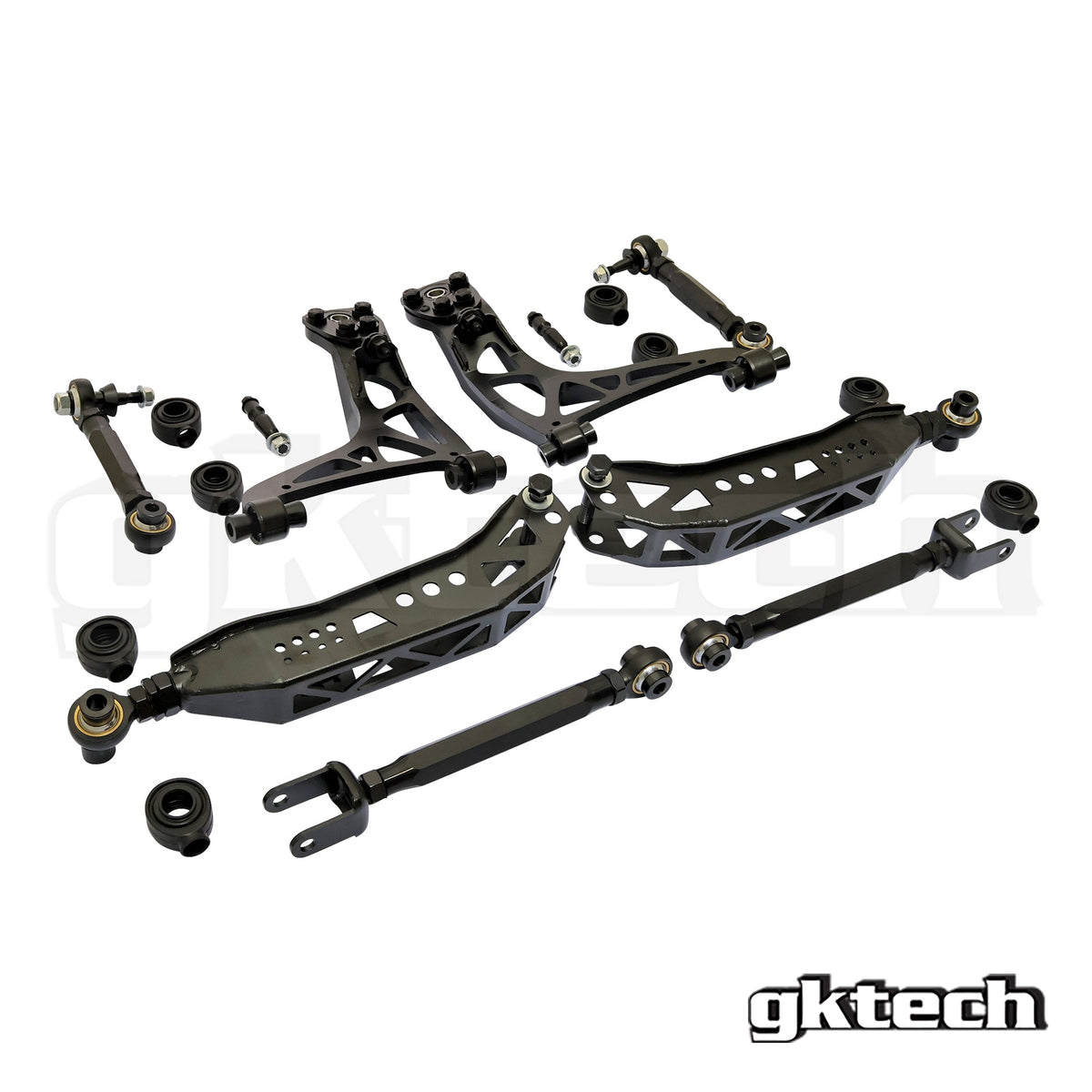

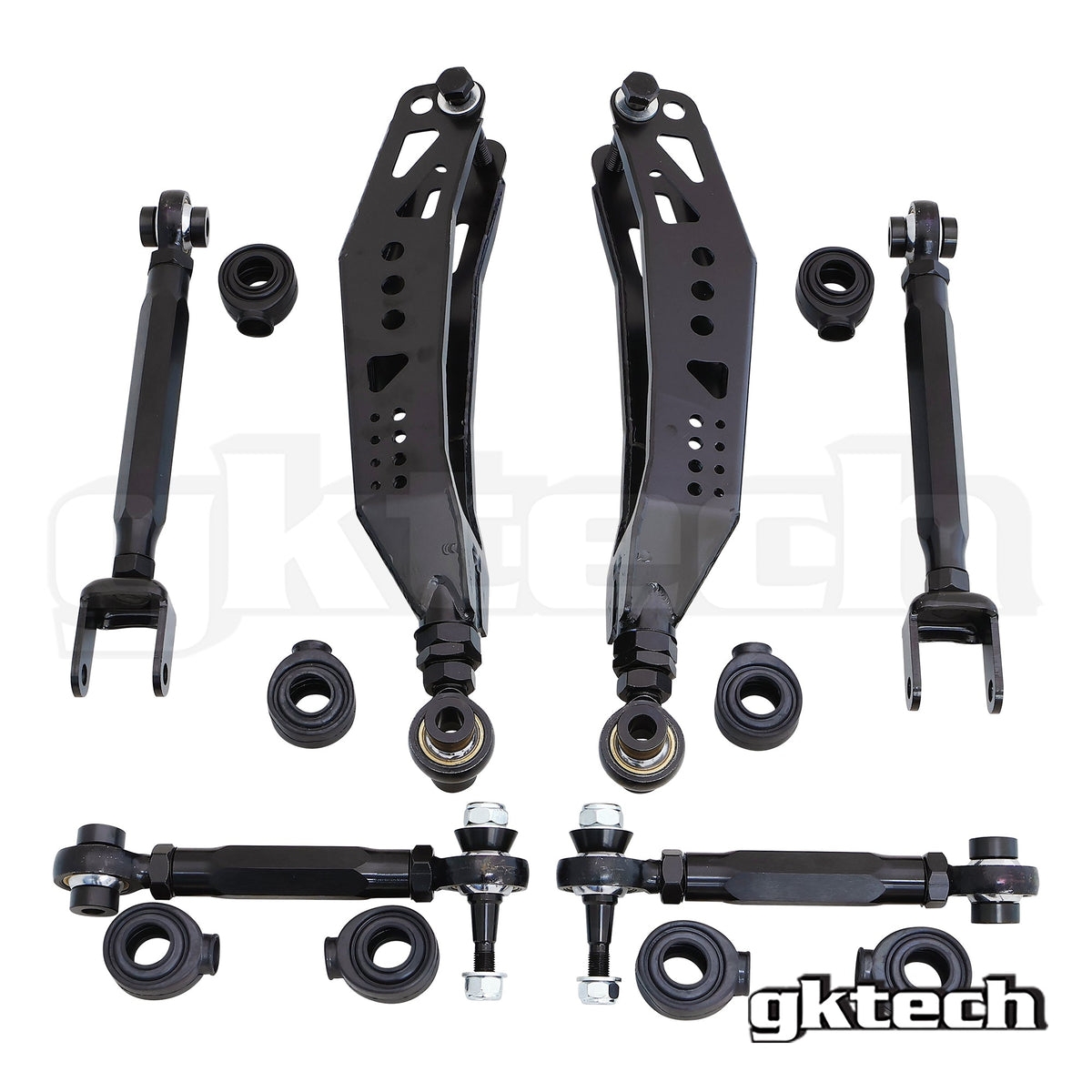

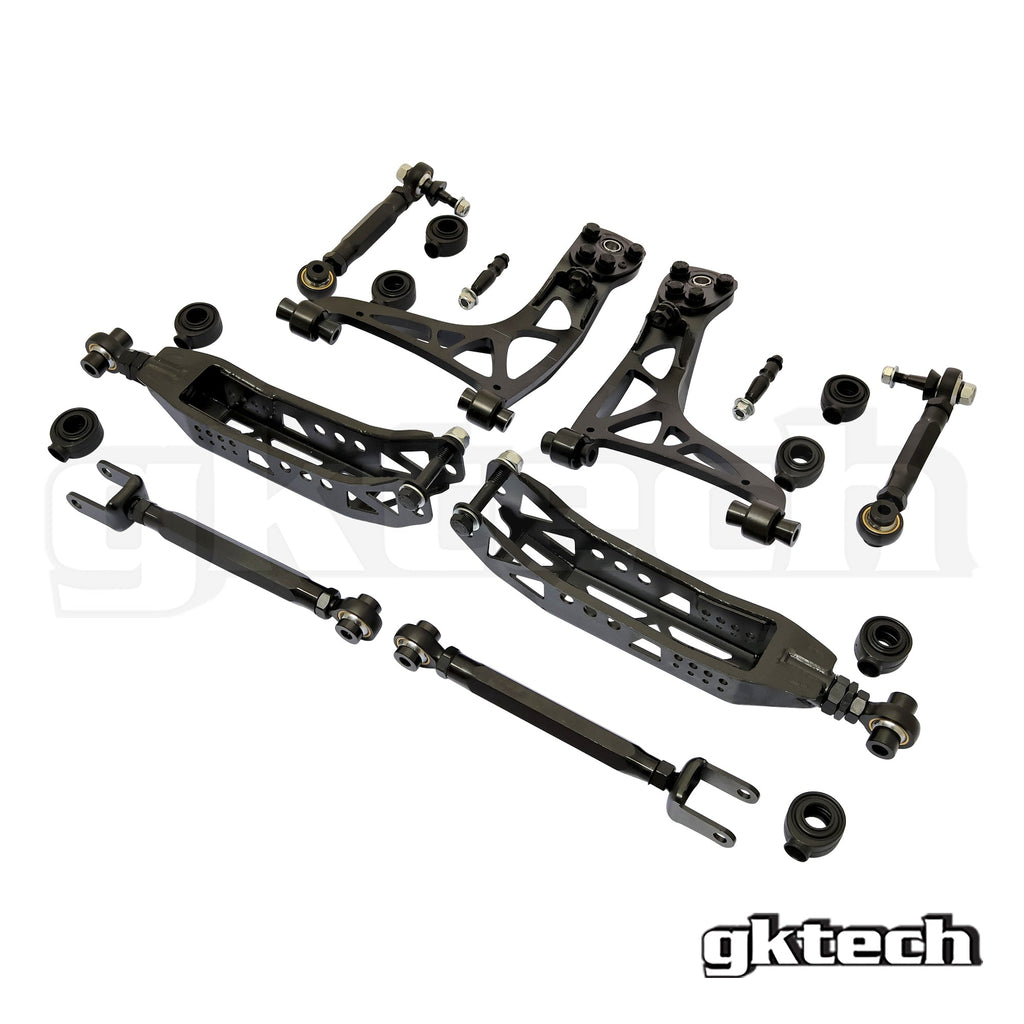

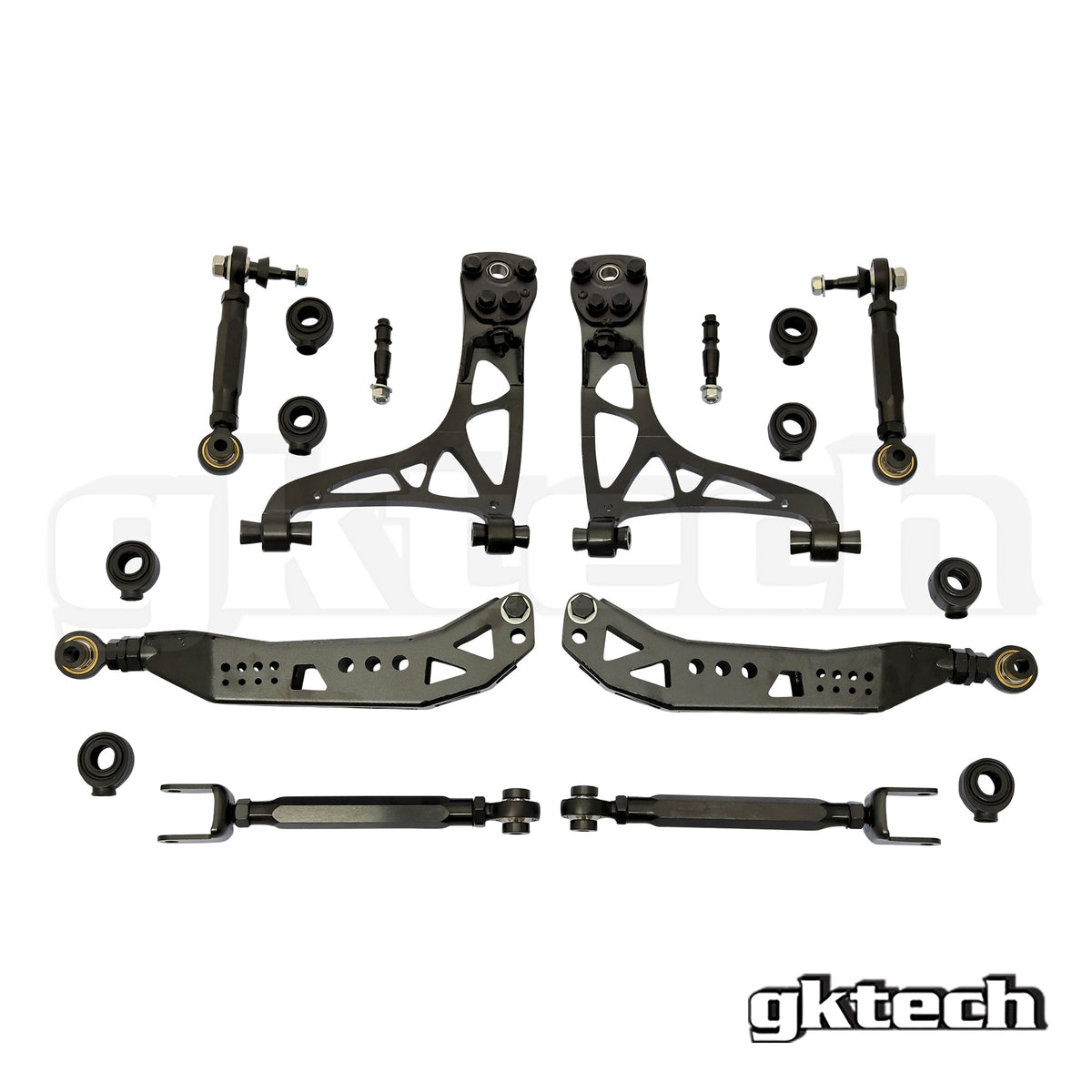

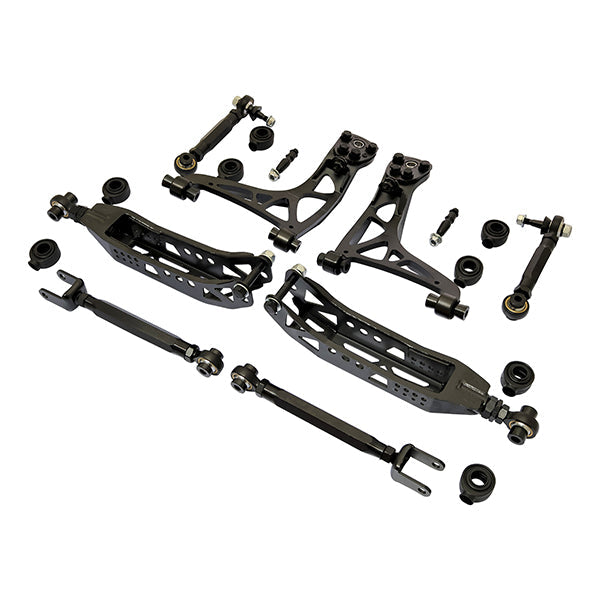

GKTech Lexus IS200, IS300 & Toyota JZX110 Rear Suspension Combo (XE10-SUSPENSION-BUNDLE)
Suits Toyota / Lexus JZX110, SXE10, GXE10, JCE10
Brand: GKTech
Part Number: XE10-SUSPENSION-BUNDLE
Description:
GKTech Lexus IS200, IS300 & Toyota JZX110 Rear Suspension Combo, kit part number XE10-SUSPENSION-BUNDLE. Suits Toyota / Lexus JZX110, SXE10, GXE10, JCE10. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The traction arms and toe arms are manufactured from 6061-T6 aluminium with a Hexagonal shape for lightweight and ease of adjustment and the RLCAs are manufactured from 4130 chromoly steel.
CAD designed, FEA tested and TIG welded with also on car adjustment!

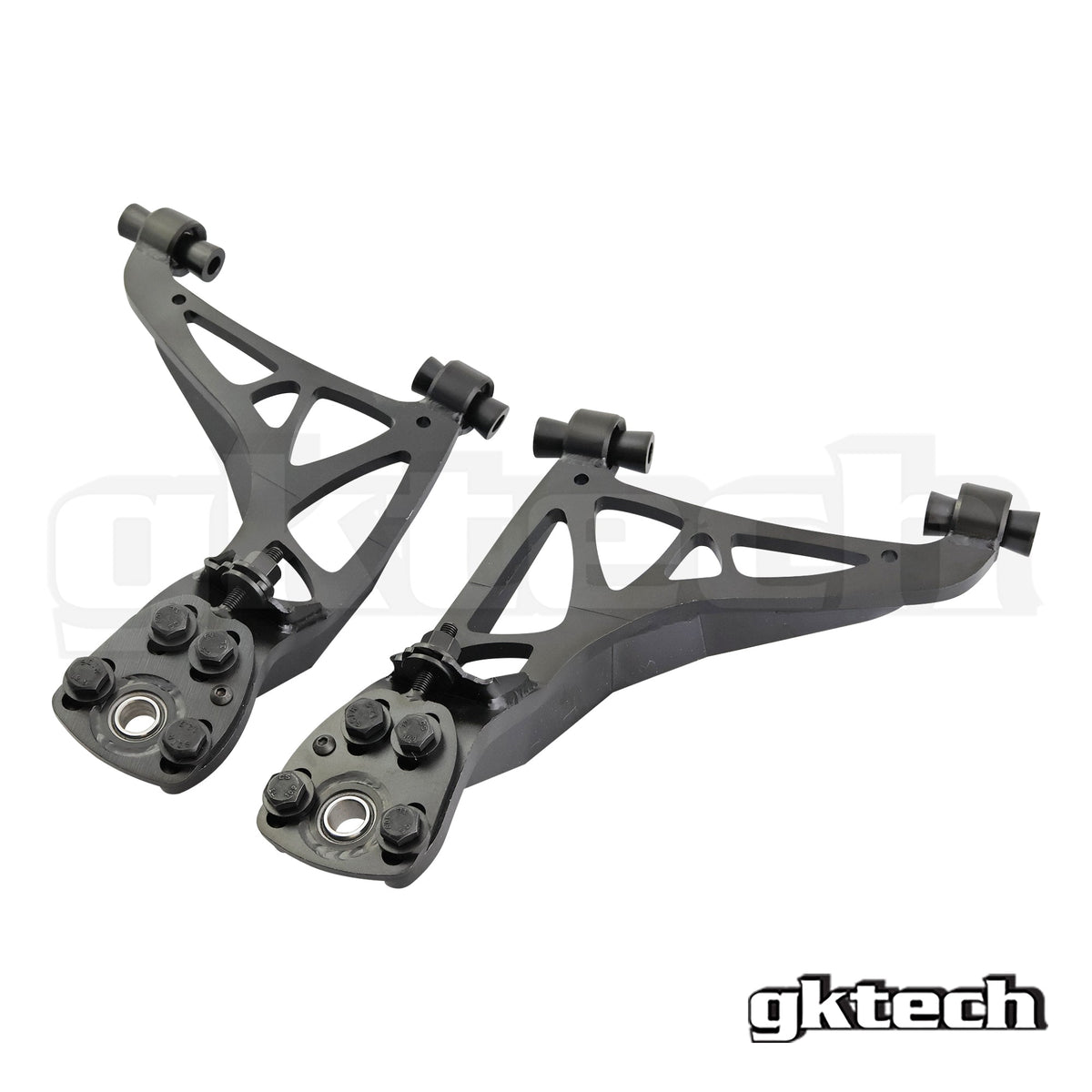

REAR LOWER CONTROL ARMS
Rear Lower Control Arms (RLCA's) allow for 50mm of track adjustment, motion ratio adjustment and can be used to lower your car 25mm.
Adjustable rear lower control arms allow adjustment of the rear multi-link suspension. Typically, adjustable LCA's can be adjusted to alter camber however they have incorporated some extra features.
For more information;
IS200 XE10 & Toyota JZX110 Adjustable Rear Lower Control Arms (RLCA)
REAR TOE ARMS
The GKTECH rear toe arms give you the ability to adjust and tune your vehicle's rear toe.
The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved with on car adjustment from -32mm from OEM to +32mm from OEM
For more information:
IS200 XE10 & Toyota JZX110 Rear Toe Arms
REAR TRACTION ARMS
Rear traction rods allow adjustment of the rear multi-link suspension. They can be adjusted to eliminate bump steer and alter other rear suspension traction settings to improve suspension response.
The lengths on these arms are fully adjustable and with the right adjustments, you can change the position and pitch of which the suspension rotates on, along with the amount of "anti-squat" of the rear with on car adjustment from -27mm from OEM to +29mm from OEM
For more information
IS200 XE10 Rear & Toyota JZX110 Traction Arms

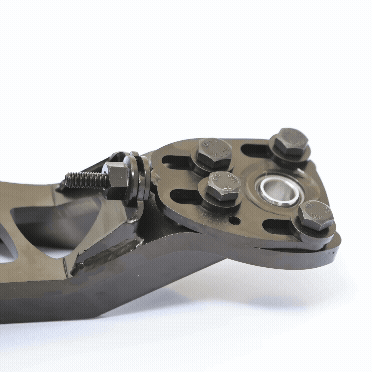

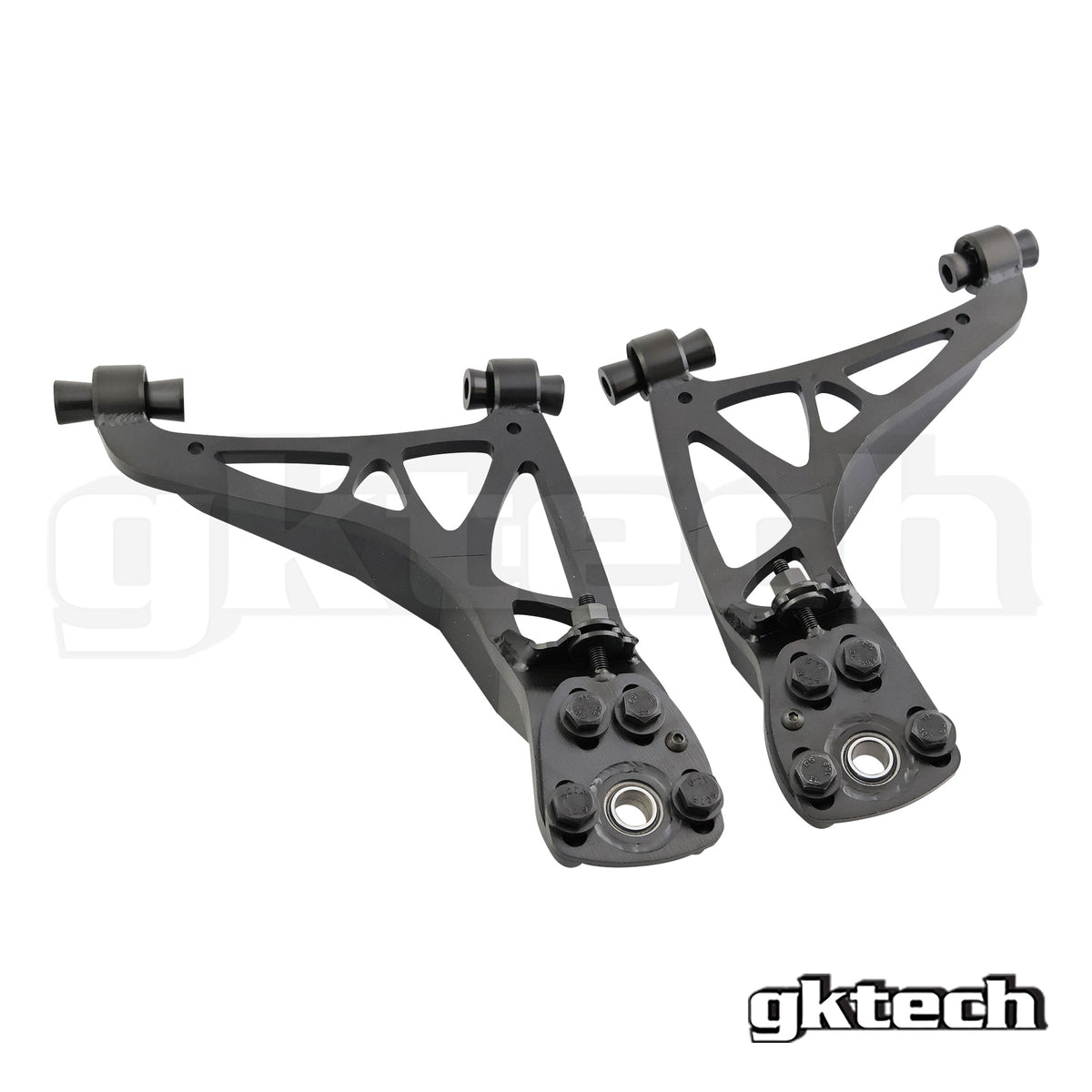

REAR UPPER CAMBER ARMS
When you lower your car negative camber is introduced. This reduces the contact patch of your tyres and thus available traction. Their rear camber arms are a direct replacement of the OEM arm and will correct this issue.
The lengths on these arms are fully adjustable with increased bump travel and clearance over the OEM arm.
The adjustment range is -10mm to +10mm which equates to +/- 2.25 degrees of adjustment
For more information
IS200 XE10 Rear Upper Camber Arms
Kit Includes
- 1 x Lexus IS200/IS300 & Toyota JZX110 Adjustable Rear Lower Control Arms (RLCA) (XE10-RLCA)
- 1 x Lexus IS200/IS300 & Toyota JZX110 Rear Toe Arms (XE10-TOEX)
Options
-
Traction Arms?: None, Lexus IS200/IS300 & Toyota JZX110 Rear Traction Arms (XE10-TRTN)
-
Rear Upper Camber Arms?: None, Lexus IS200/IS300 Rear Upper Camber Arms (RUCAs) (XE10-RUCA)
Suits
- Toyota Mark II Verossa JZX110 (2000–2007), 1JZ-GTE
- Lexus IS200 SXE10 (1998–2005), 3S-GE
- Lexus IS200 GXE10 (1998–2005), 1G-FE
- Lexus IS300 JCE10 (2001–2005), 2JZ-GE
