GKTech Lexus IS200, IS300 Wilwood Dual Caliper Hydraulic Handbrake Setup (IS-HYDRO-BUNDLE)
Suits Lexus SXE10, GXE10, JCE10
Brand: GKTech
Part Number: IS-HYDRO-BUNDLE
Description:
GKTech Lexus IS200, IS300 Wilwood Dual Caliper Hydraulic Handbrake Setup, kit part number IS-HYDRO-BUNDLE. Suits Lexus SXE10, GXE10, JCE10. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
Avoid wasting time shopping around for all the individual parts, getting custom brake lines made up, or running generic parts that may or may not work.
The GKTECH Lexus IS200/IS300 dual caliper hydraulic handbrake setup is the only COMPLETE kit available anywhere. Literally, everything required is included and it's a range of GKTECH and Wilwood components. If you have an IS200/IS300 and you want your rear brakes to lock up in an instant, this kit is the way to go.
The contents:

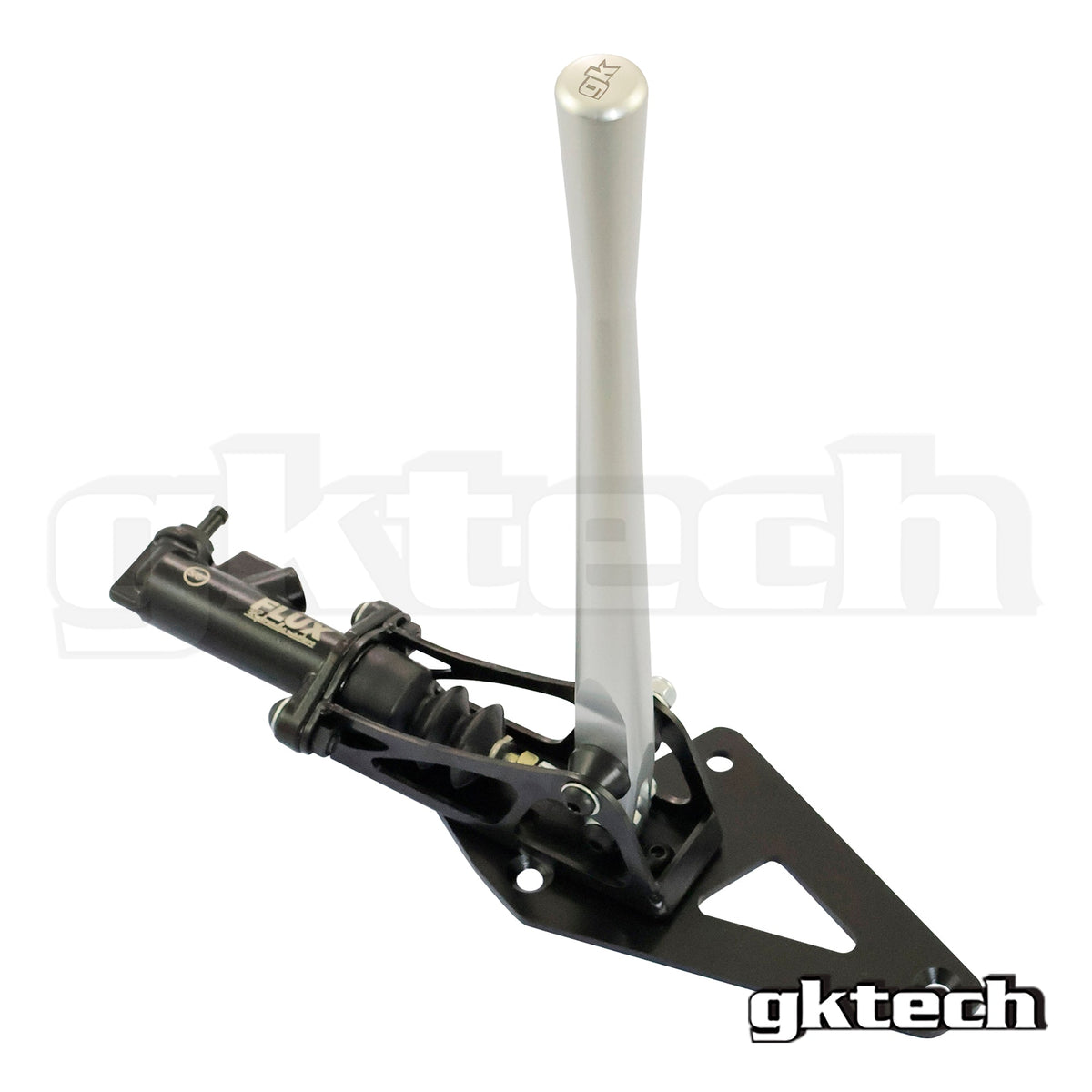

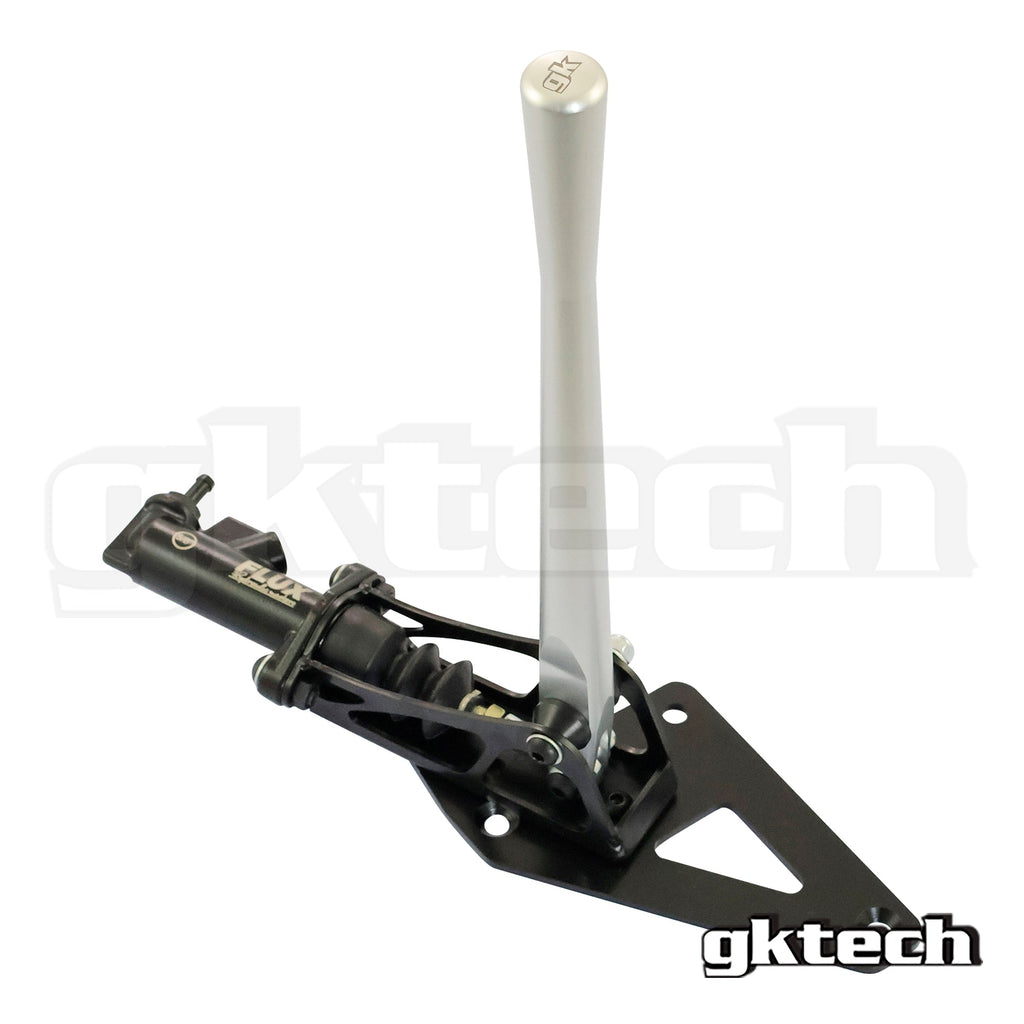

Handbrake assembly:
Self explanatory, this is the handbrake assembly that houses the lever and master cylinder.
Handbrake handle:
This beautifully crafted CNC machined aluminium lever has been designed with ergonomics in mind whilst being aesthetically pleasing. Eg. it is comfortable and it looks good. Choose between silver, black, blue, pink, purple, red, orange, gold or neo chrome.

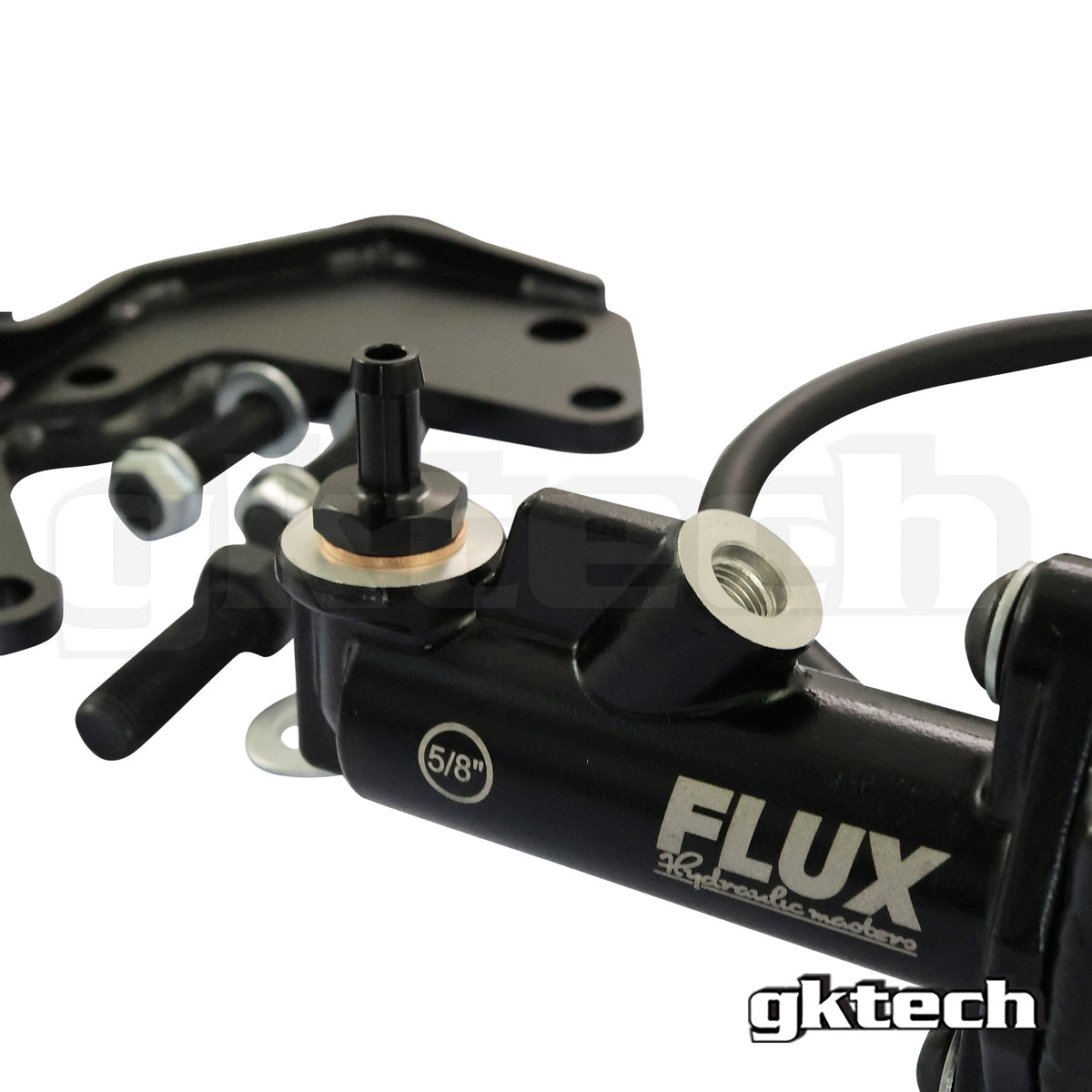

Master cylinder:
Choose between the remote mounted 5/8" and 3/4" master cylinders which use a remote mounted reservoir. For the Wilwood 2 pot calipers GKTech's recommendation is 5/8" but more on that below in the FAQ's.

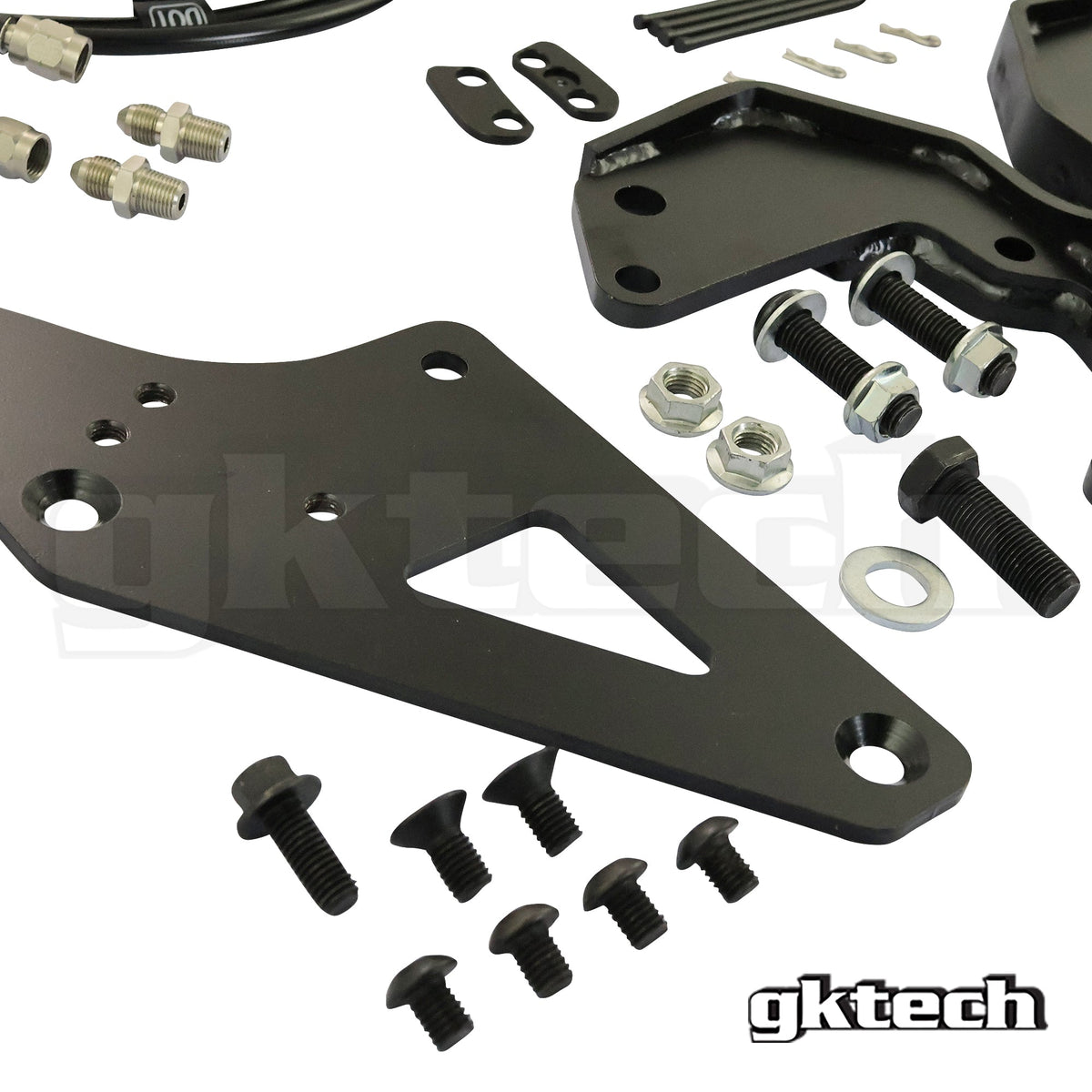

Chassis specific handbrake mount:
Their chassis specific handbrake mounts are designed to ensure that their handbrake assembly can be fitted in an optimal position without the need to cut or drill into your transmission tunnel.
These handbrake mounts require no trimming to the center console and is an optional item in the event you already have your own as well as suiting AT and MT tunnels.
NOTES
- OEM airbag module will need to be removed
- Trimming of shifter surround required underneath
- Light massaging of transmission tunnel may be required for manual transmission vehicles
- Lever will replace cigarette lighter on LHD models and ashtray on RHD models

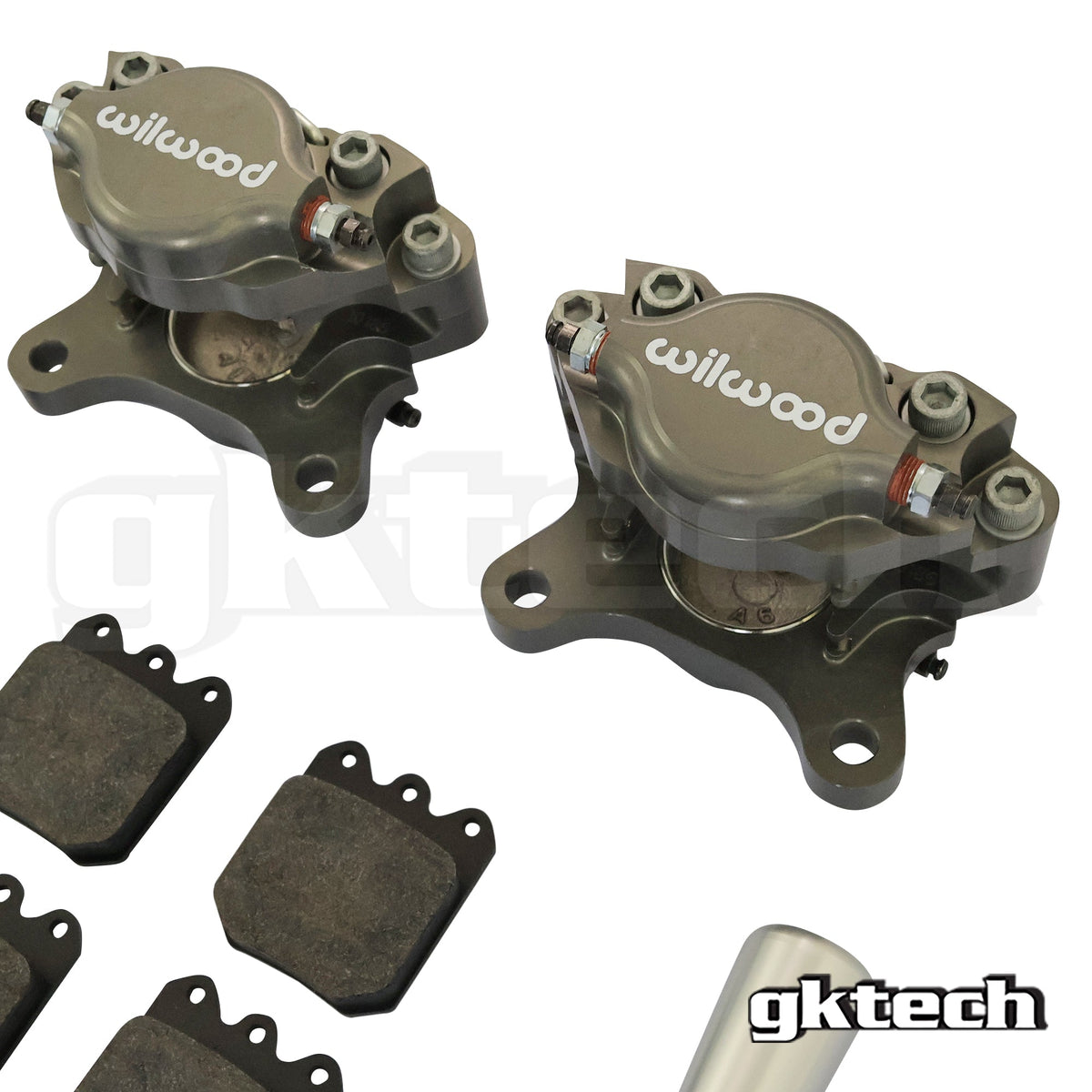

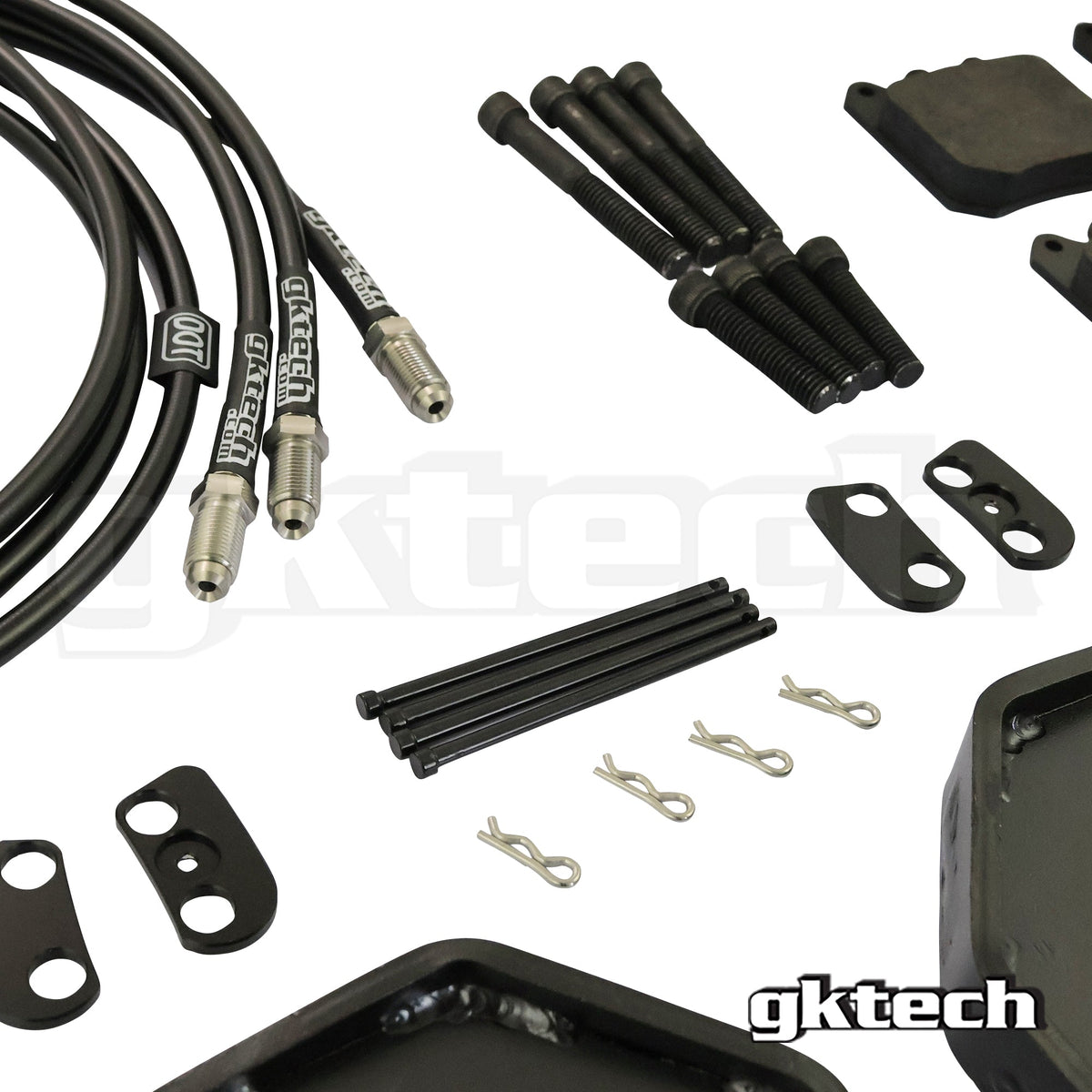

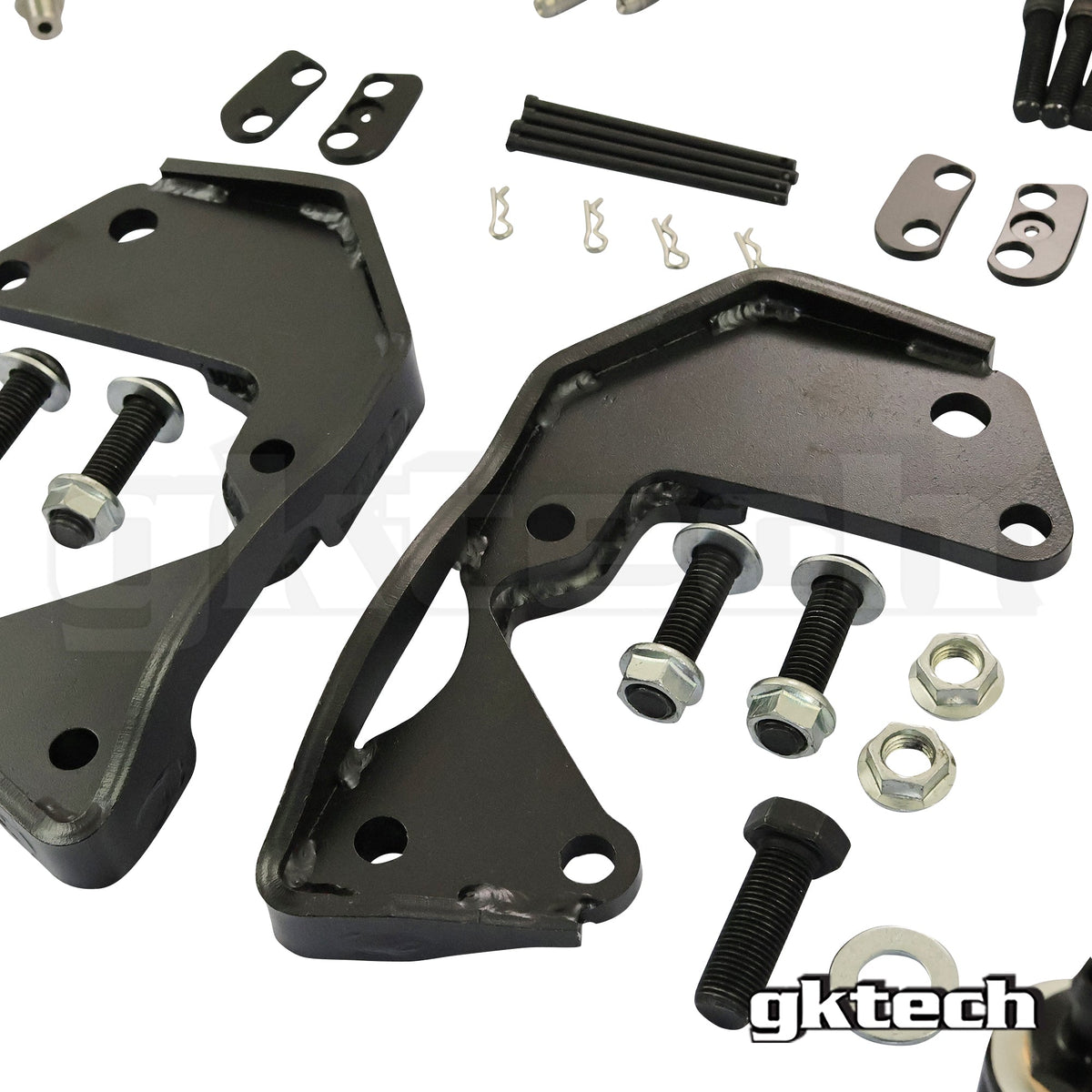

Dual caliper brackets, calipers, pads & spacers:

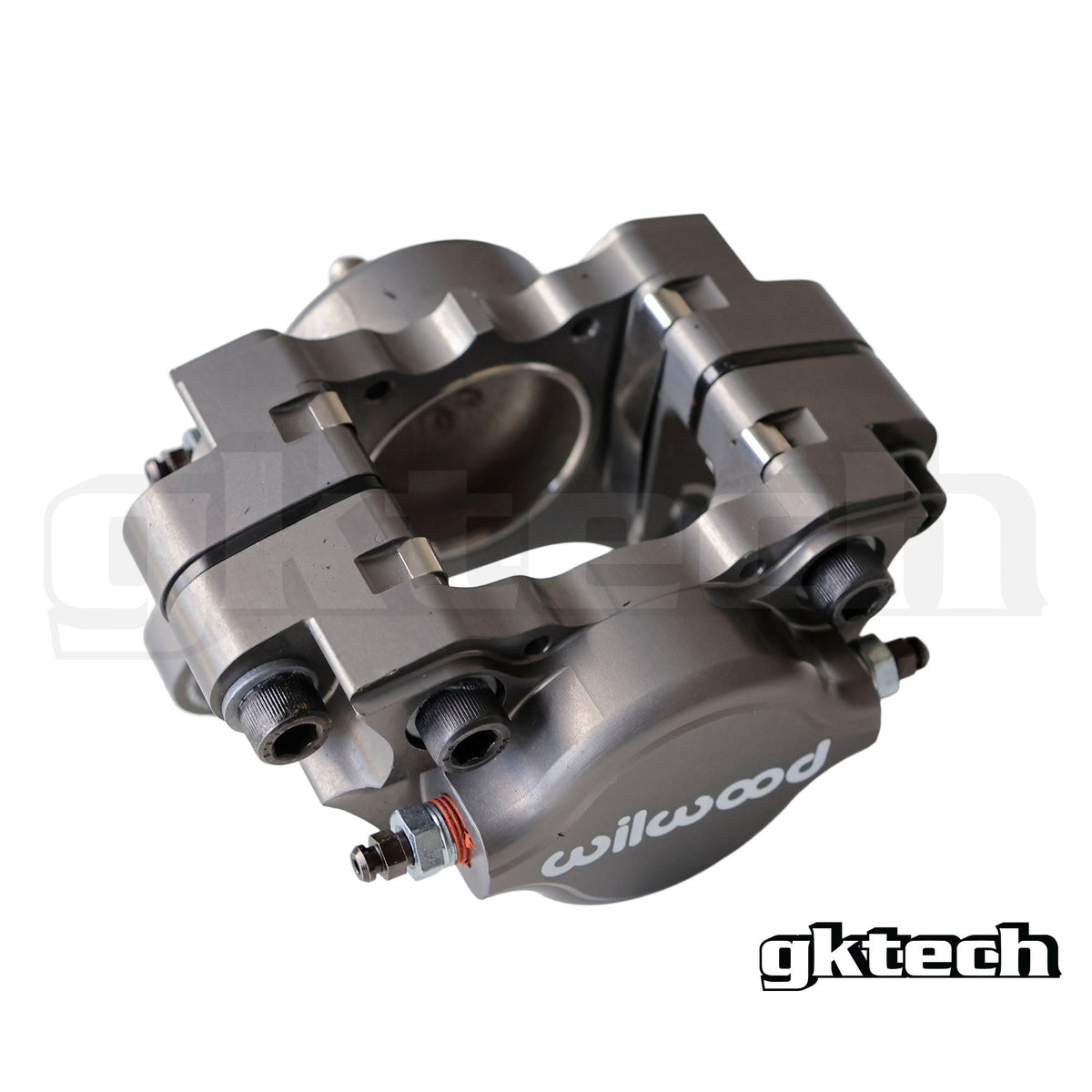

The bracket that allows the Wilwood Dynapro 120-10188 caliper for this setup. They are a small but bitey caliper and only caliper that they found to work with the OEM rotors.
This kit includes aluminium caliper spacers, EPDM O-ring, replacement fasteners, brake pad pins, r-clips which is everything needed to widen the caliper from 9mm to 12mm.
To suit the OEM rotor/ knuckle and does NOT work with OEM calipers.
Over the years they have tested many brake pads with these calipers and ended up at the Wilwood BP-10's. They're economical, readily available, very bitey and last.
NOTES
- Modification / removal of the dust shield is required for fitment.
- Some grinding of the upright is required due to casting marks and variation, see customer assembly guide.

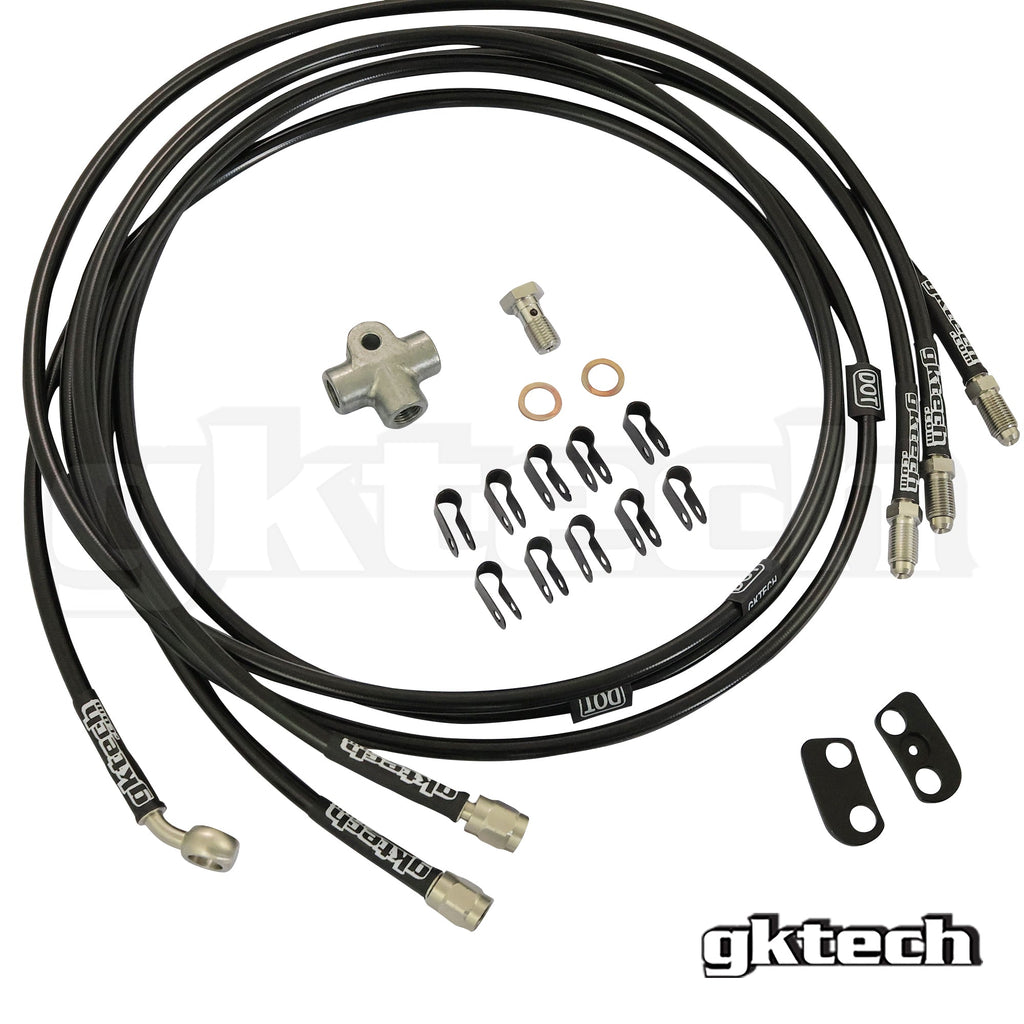

Braided lines:
Made in-house in Australia using stainless steel fittings and using stainless steel braided line with a PTFE outer these lines include the P clips to locate the line throughout your vehicle.

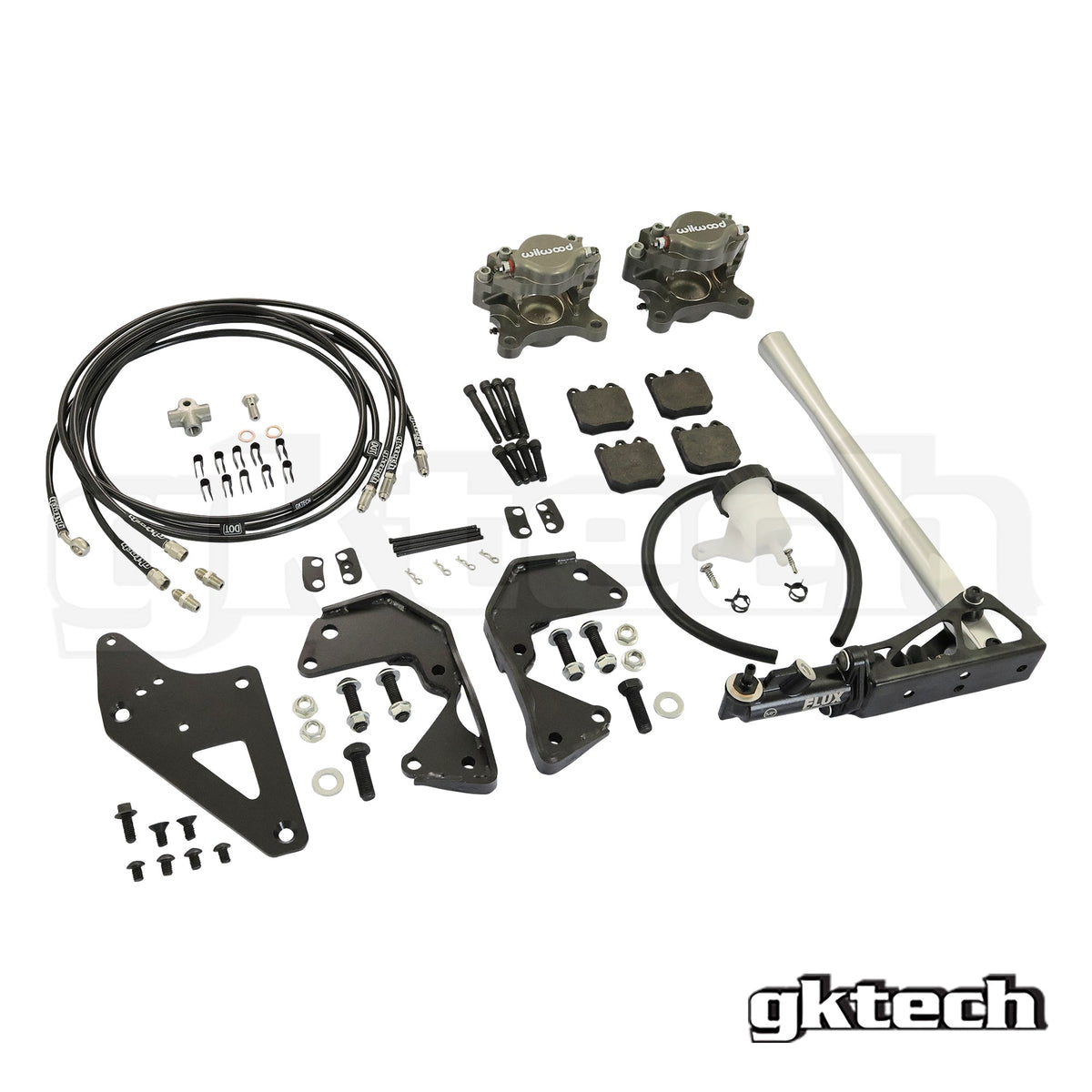

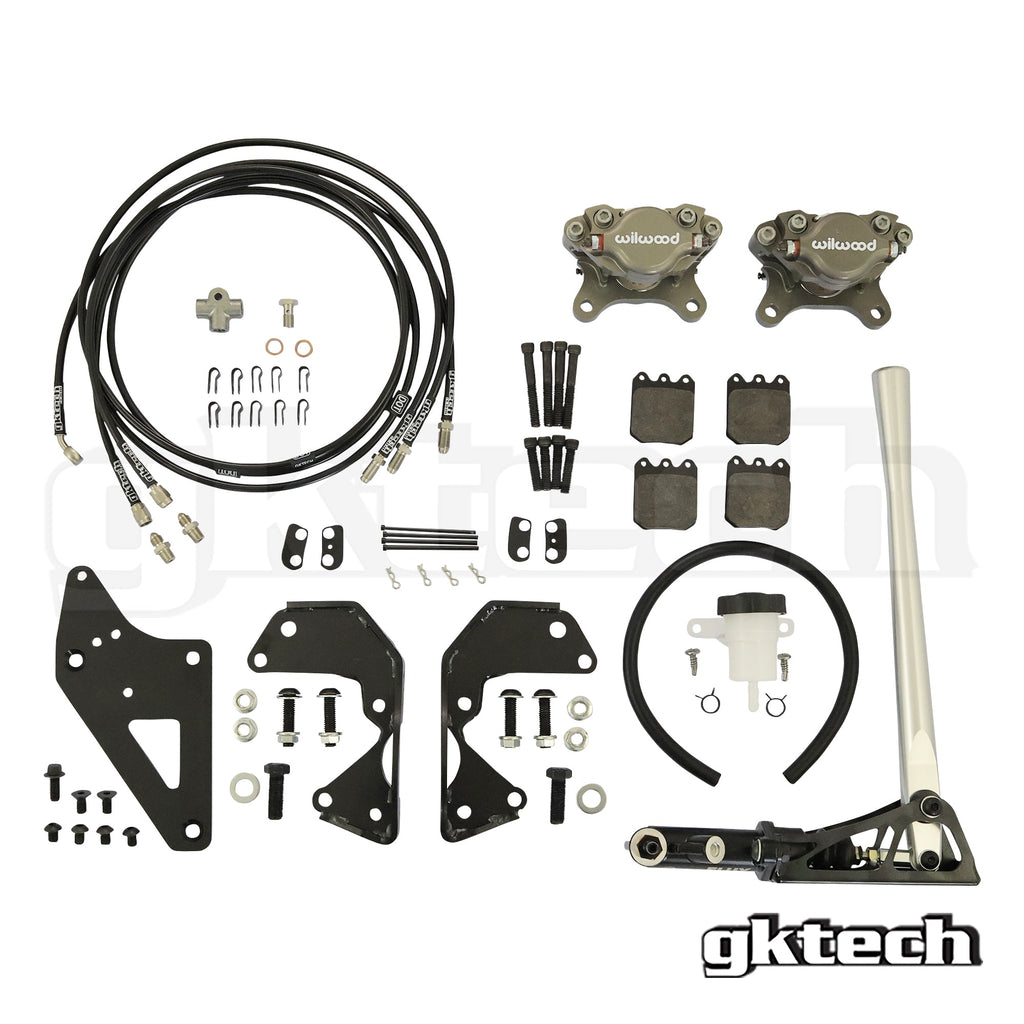

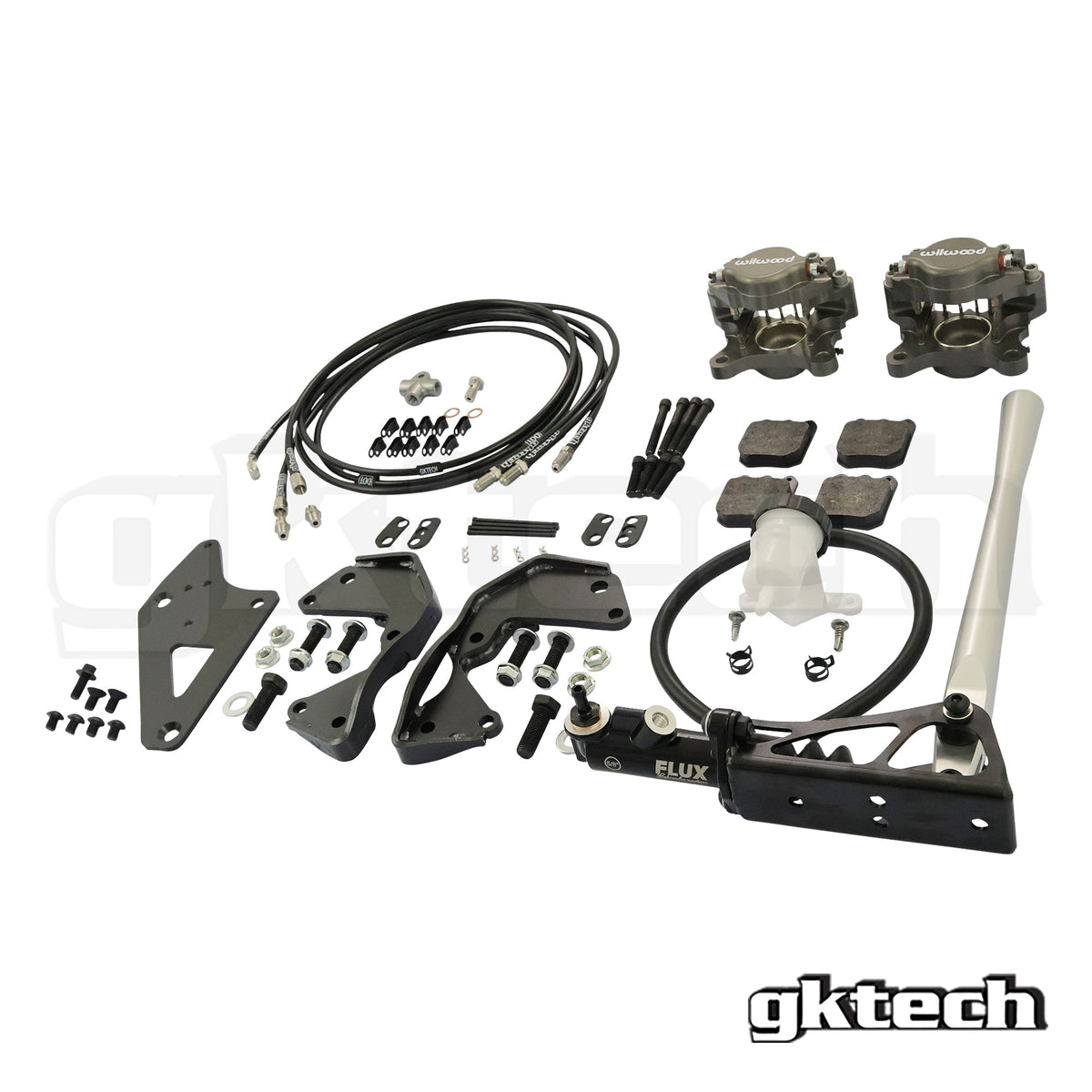

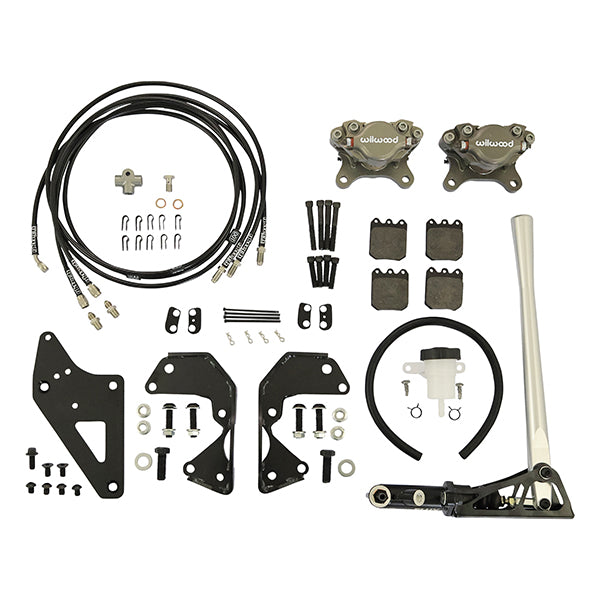

Kit Includes
- 1 x Hydraulic Handbrake assembly (LOWX-HBRK)
- 1 x Dual caliper bracket (XE10-BRKT)
- 1 x Stand alone SS braided brake line kit (XE10-DUAL)
- 1 x Wilwood Dynapro Caliper spacers - 12mm (WWDP-12MM)
- 2 x Wilwood DynaPro dual piston calipers x2 (889545000740)
- 1 x Wilwood BP-10 brake pads (889545033663)
- 1 x Remote mount reservoir kit (FL-RR-KIT)
Options
-
Select Handle Colour: Blue (ALUM-BLUE), Gold (ALUM-GOLD), Orange (ALUM-ORNG), Pink (ALUM-PINK), Red (ALUM-REDX), Purple (ALUM-PRPL), Black (ALUM-BLCK), Neo Chrome (ALUM-NEOX), Silver (ALUM-HAND)
-
Master Cylinder: 5/8" remote reservoir master cylinder (FL-RR-58), 3/4" remote reservoir master cylinder (FL-RR-34)
-
Handbrake Base: Inside Console Trim Mount - RHD (XE10-CNSR), Inside Console Trim Mount - LHD (XE10-CNSL)
Suits
- Lexus IS200 SXE10 (1998–2005), 3S-GE
- Lexus IS200 GXE10 (1998–2005), 1G-FE
- Lexus IS300 JCE10 (2001–2005), 2JZ-GE
