GKTech S chassis Steering rack relocation kit (SCHA-RCKR-BUNDLE)
Suits Nissan S13, S14, S15, A31
Brand: GKTech
Part Number: SCHA-RCKR-BUNDLE
Description:

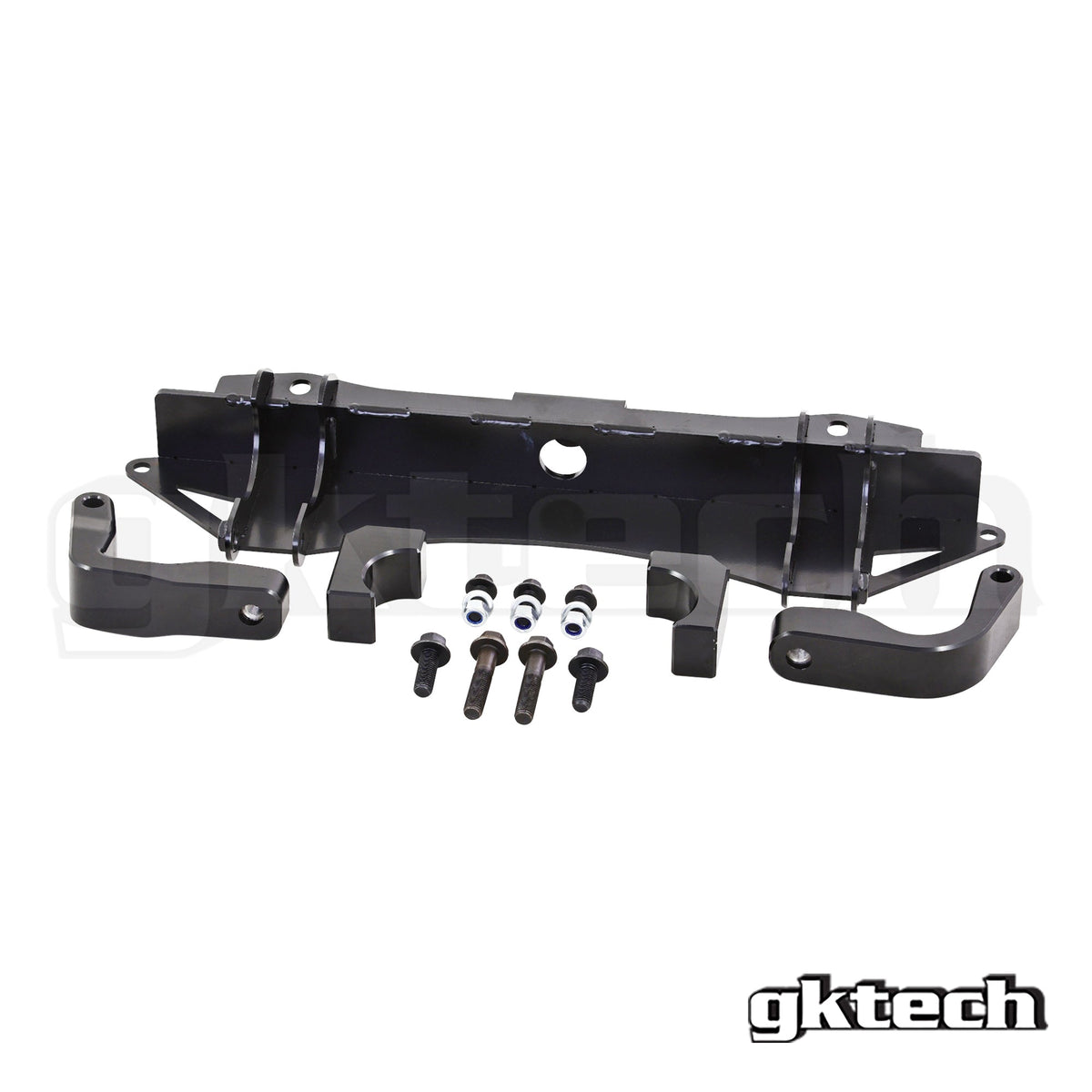

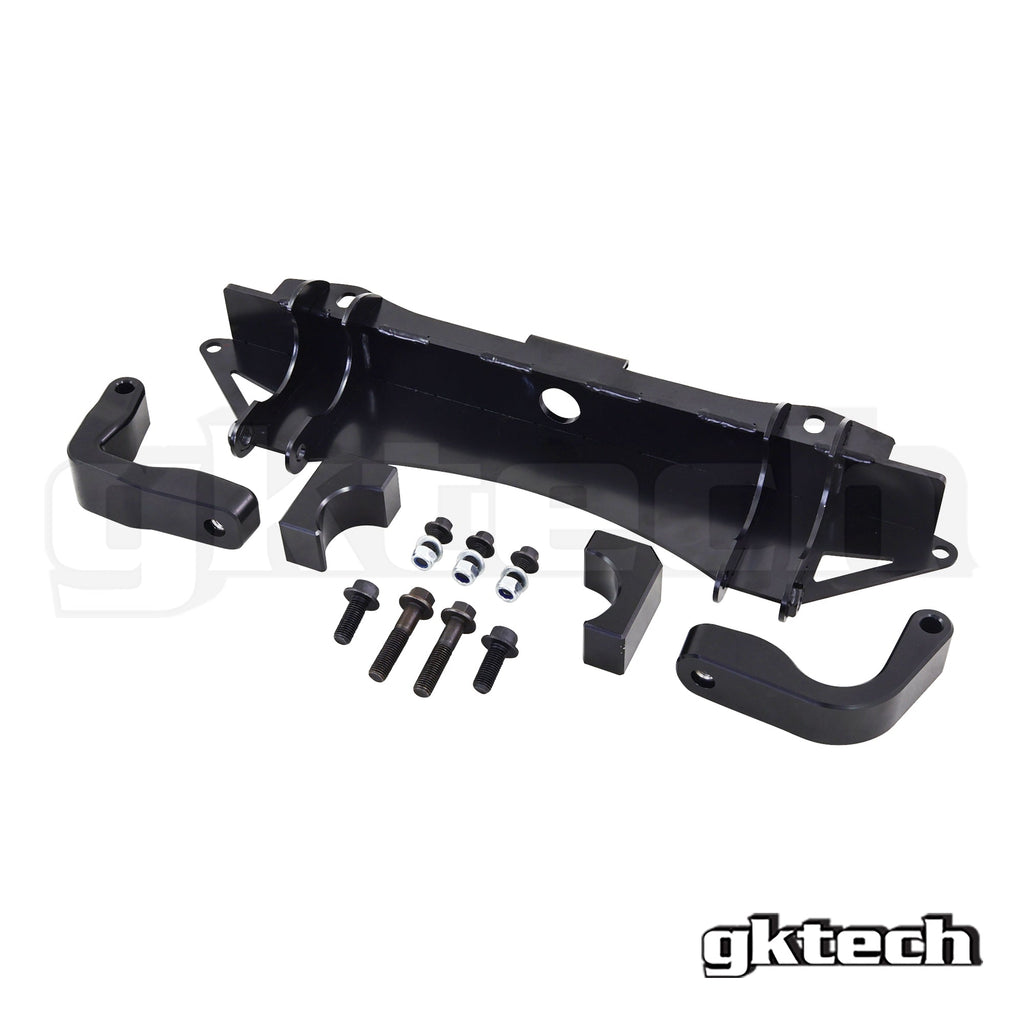

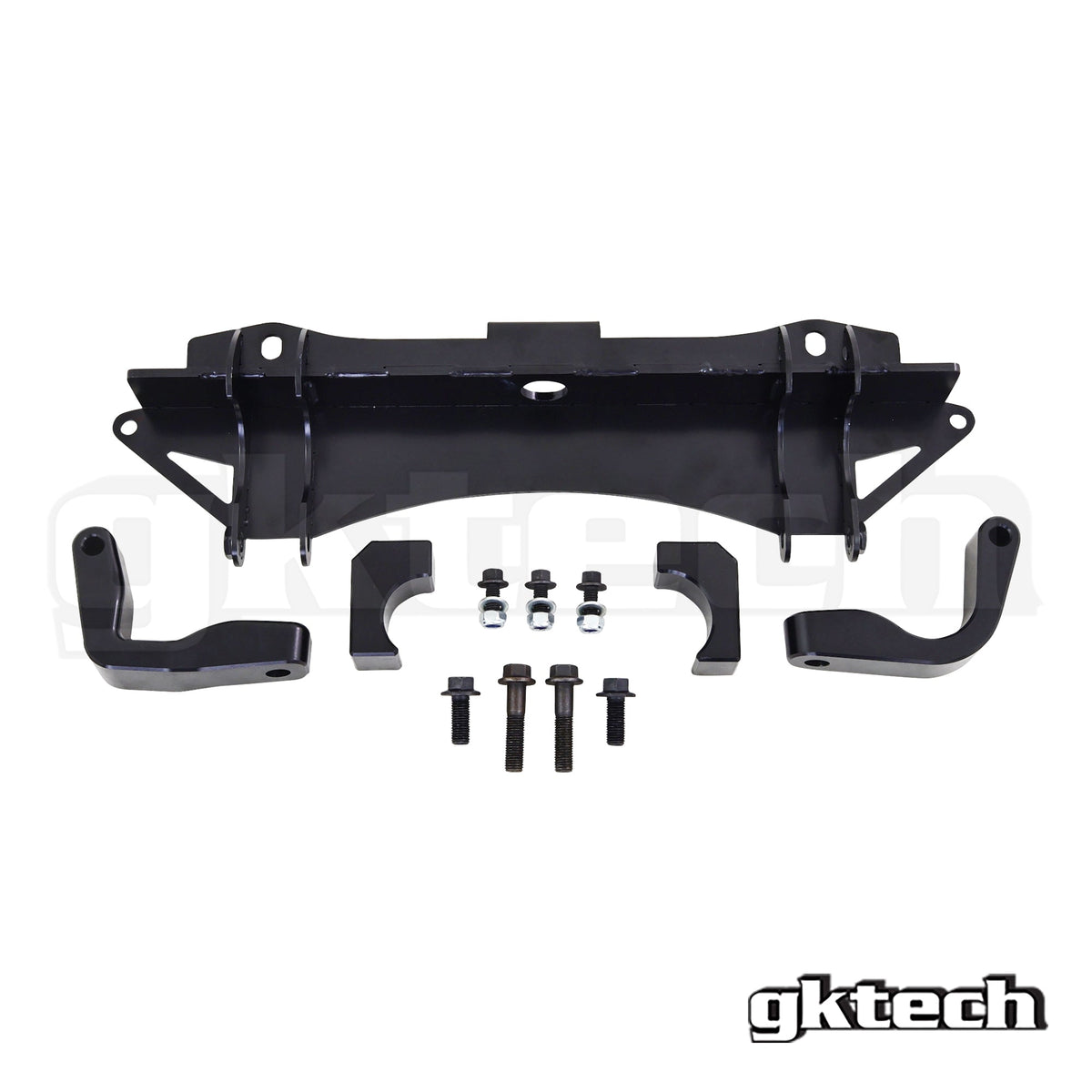

GKTech S chassis Steering rack relocation kit, kit part number SCHA-RCKR-BUNDLE. Suits Nissan S13, S14, S15, A31. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
In a drift application when high steering angles are required, the steering link and knuckle position can align, making steering very difficult. This is known as steering bind or over centering and the best solution is to move forward the inboard mount on the steering rack. This can be achieved with offset rack spacers, however, by creating this offset, a bending moment is applied to the steering rack. This over time leads to the deterioration of the rack seals, or even the bending of the rack. So, for a dedicated drift car, the best solution to steering bind is to do away with the offset rack spacers and relocate the entire rack forward.

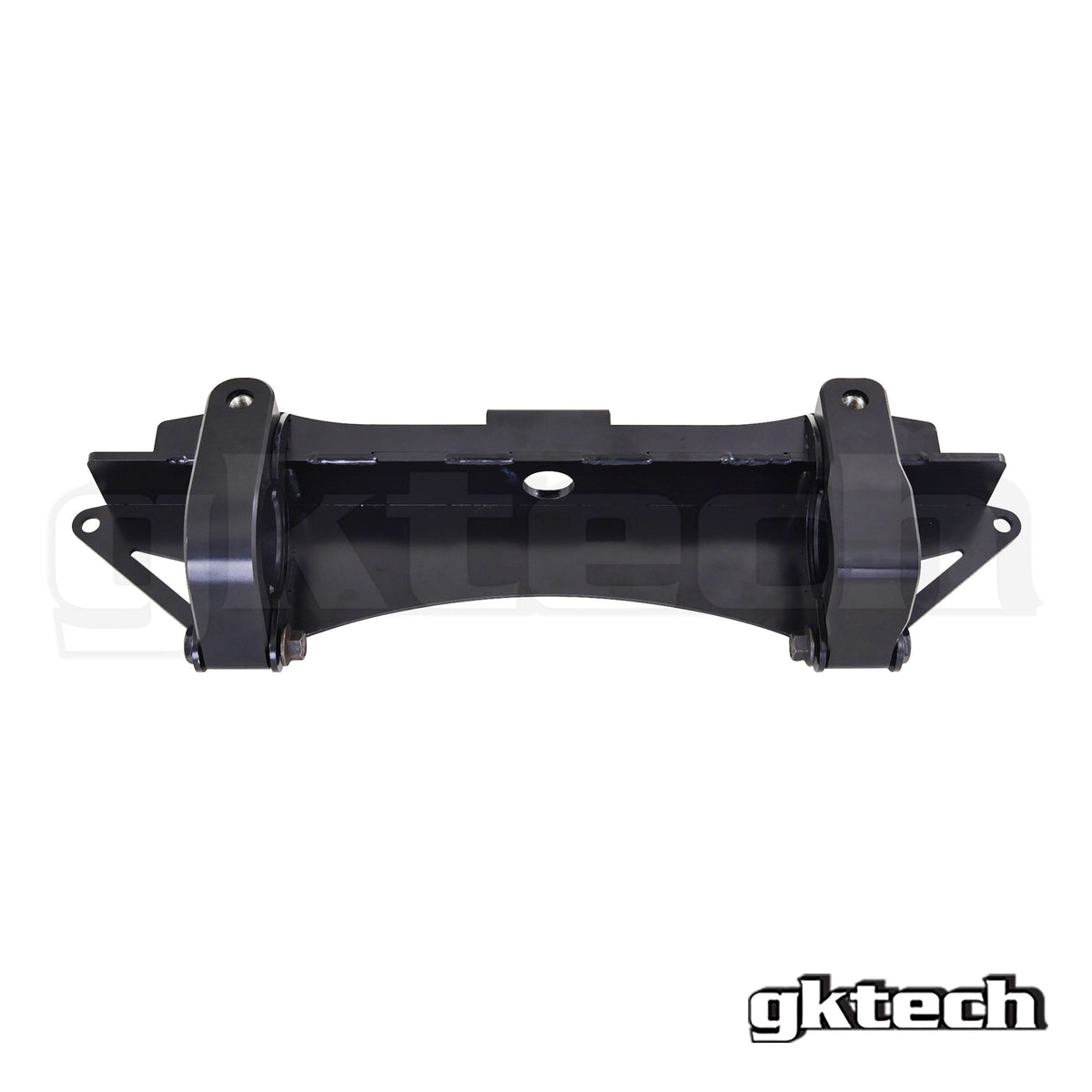

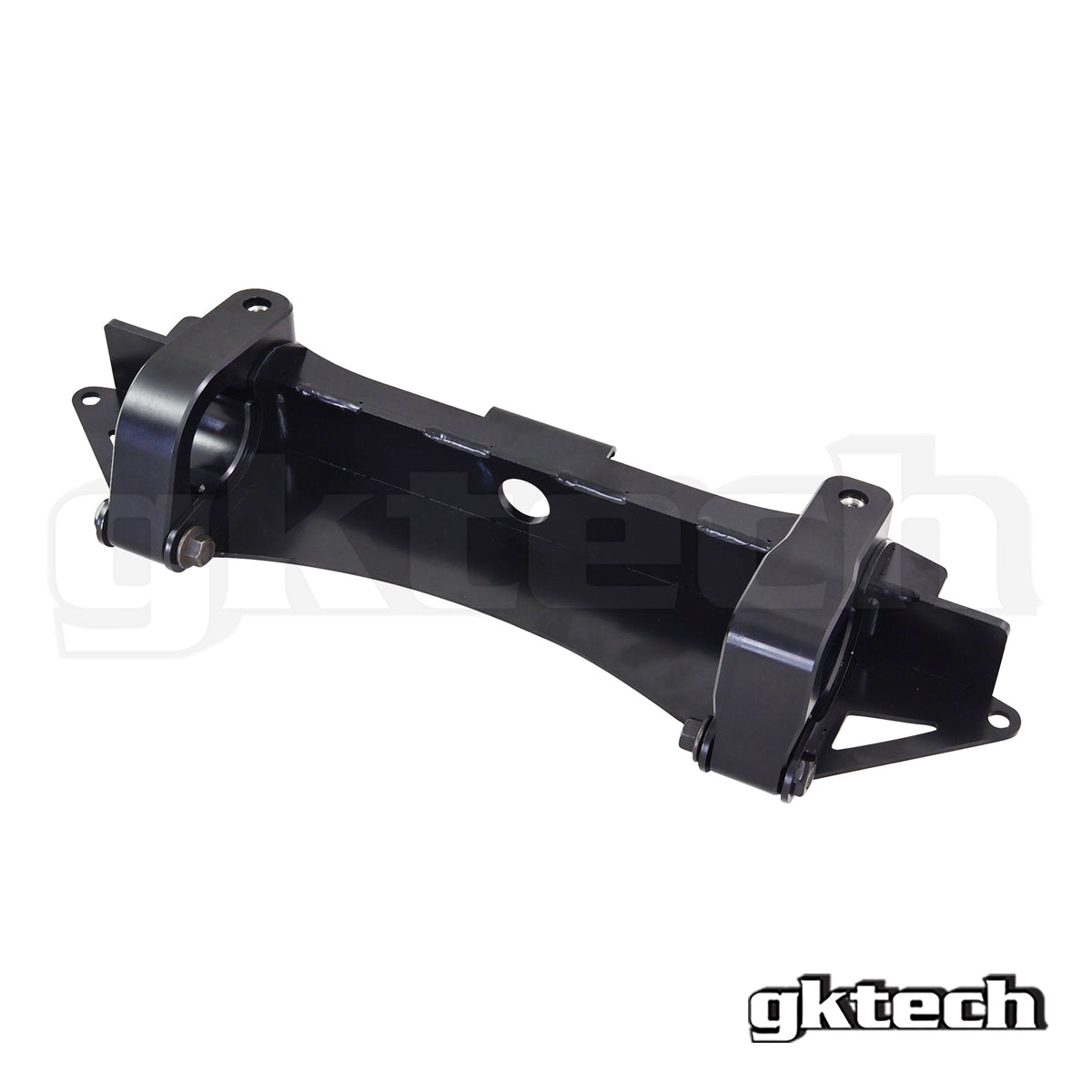

Because of the shape of the OEM subframe, in order to relocate the rack, the OEM subframe must be cut apart and new mounts welded in along with bracing to strengthen the cut away sections.
GKTech's kit moves the rack forward 30mm and contains a detailed install guide along with cutting templates to make the install process as smooth as possible.
This rack relocation has been designed from a 3D scan to ensure an accurate match and fitment.

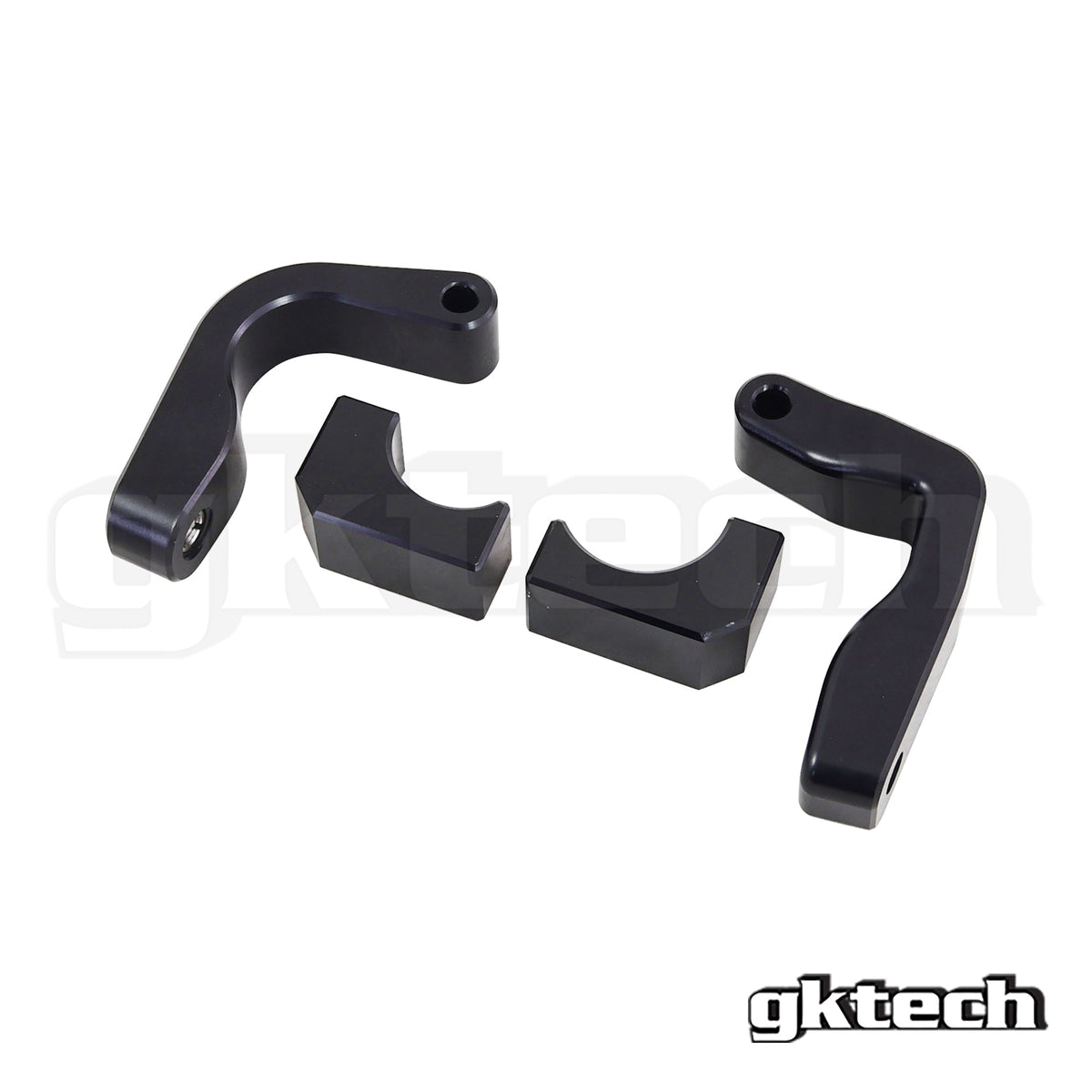

This rack relocation also includes a set of billet solid steering rack bushes to ensure the relocated rack does not move. Solid bushes minimize toe compliance for a more direct feel for vehicle control and improved driver feedback.
Can be used in either a LHD or RHD configuration.

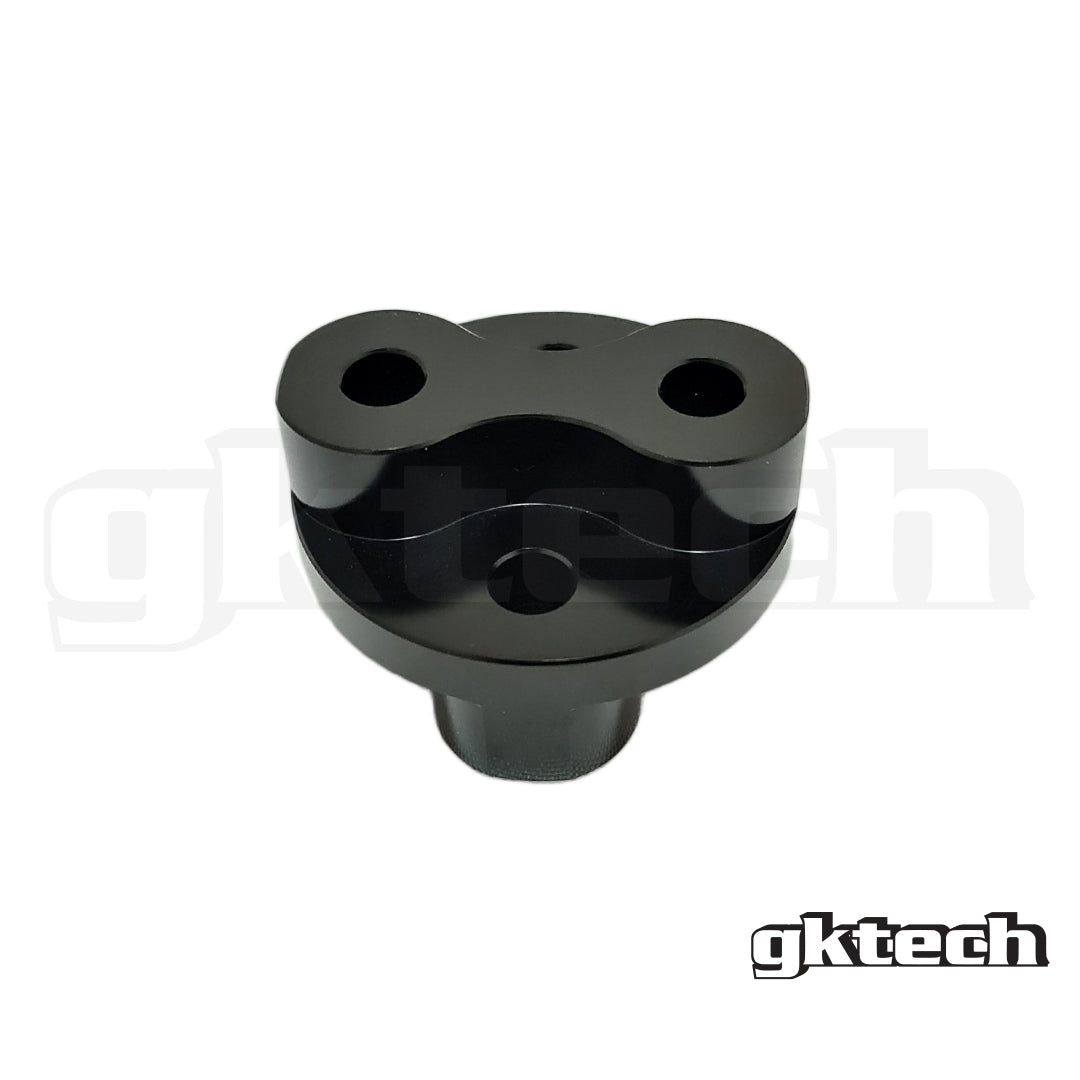

They have the option of including the steering shaft extender or spacer. When relocating your steering rack the OEM steering column will NOT have sufficient thread engagement. Their steering shaft extender/spacer is the solution. This is chassis specific. If you have an S13/180sx order the S13/180sx variant. If you have an S14 or S15 order the S14/S15 variant.
Kit Includes
- 1 x S chassis Steering rack relocation kit (SCHA-RCKR)
Options
-
S13/180sx or S14/S15 steering rack? (45mm or 48mm diameter): S14/S15 solid rack bushes (45MM-RCKR), S13/180sx solid rack bushes (48MM-RCKR)
-
Steering shaft extension: None, S13/180sx extended Steering Shaft Bushing (EXTN-SSSS), S14/S15 steering shaft extension (SPLN-STEX)
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
- Nissan Cefiro A31 (1988–1994), RB20DET
