GKTech S/R Chassis Solid diff bushes (SOLIDDIFF)
Suits a wide range of Nissan models
Brand: GKTech
Part Number: SOLIDDIFF
Description:
GKTech S/R Chassis Solid diff bushes, kit part number SOLIDDIFF. Suits a wide range of Nissan models. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.

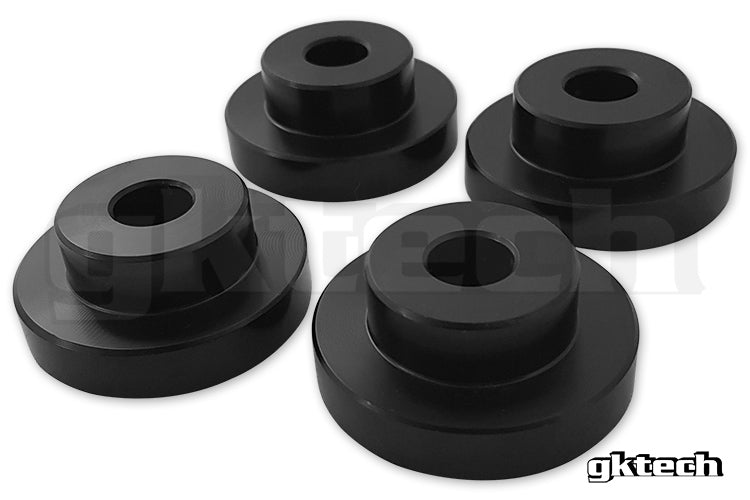

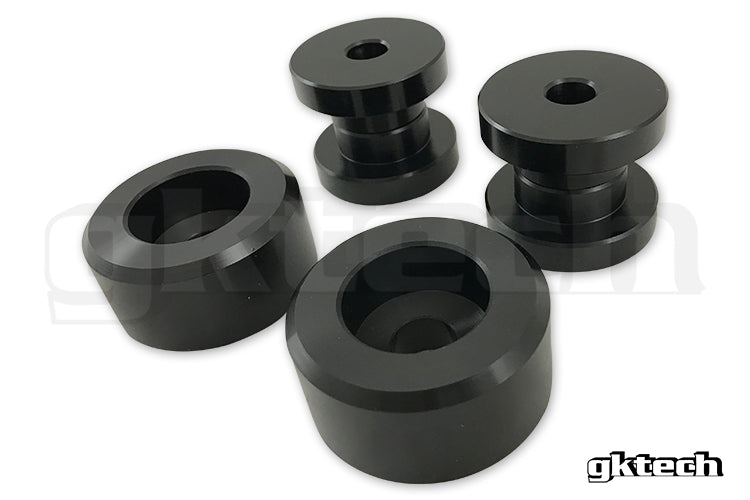

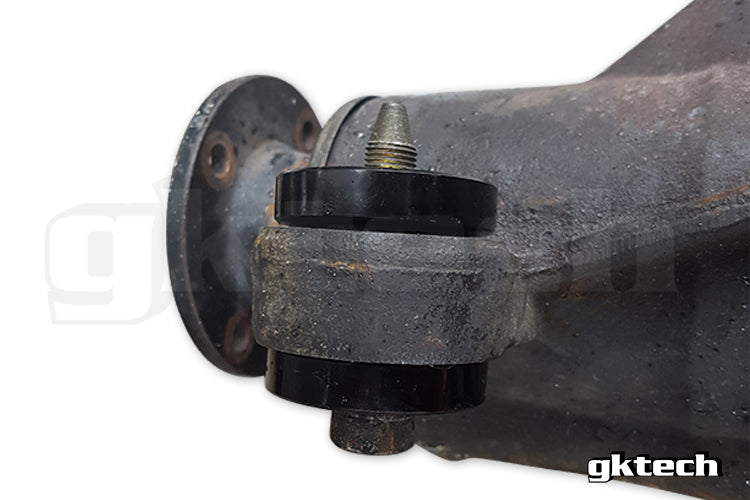

The GKTECH solid aluminium diff bushes are a direct replacement of the standard items and ensure that movement of the diff is kept to a minimum within the subframe which is quite common under hard driving conditions.
- CNC machined 6061-T6 aluminium and anodized black
- Available to order as front, rear or front and rear kit
Front, rear or front and rear?
Front only:
The front diff bushes are to be used when installing an S14/S15/R33/R34 diff in an S13/R32 subframe. The S14/S15/R33/R34 diffs have bushes on both the front and rear of the diff whereas the S13/R32 diffs do not. You use the original rear diff cover and then to get the front of the diff positioned correctly and then these bushes are to be installed.
NOTE: Longer front mount bolts are required when installing an S14/S15/R33/R34 diff in an S13/R32 subframe (20mm longer = 80mm thread length). Nissan OEM part number is 55424-33P00

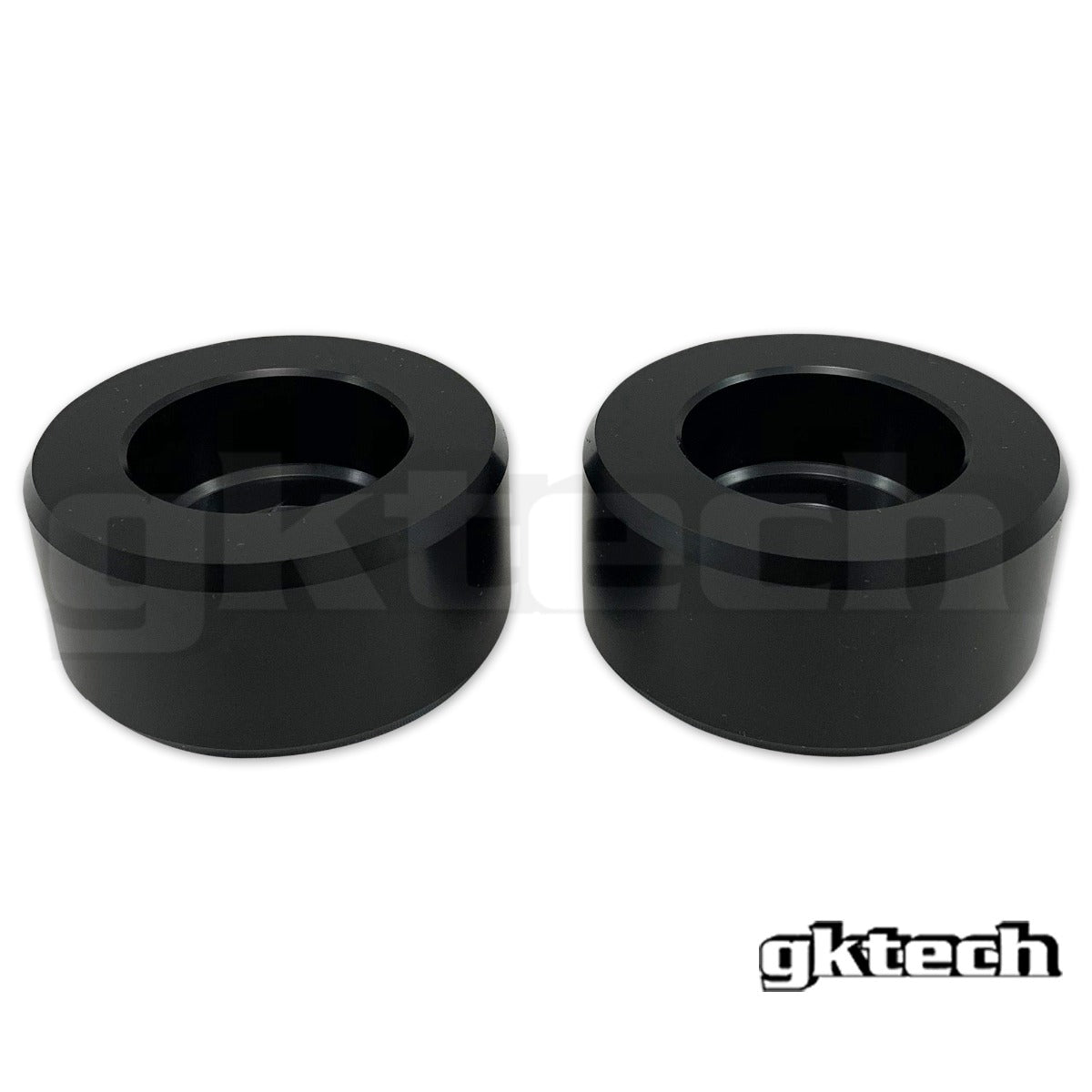

Rear only:
Not very common but if you're running an S13/R32 diff in an R200 subframe (2 bolt cover) you will only need the rear bushes as the front of the diff is already solid mounted.

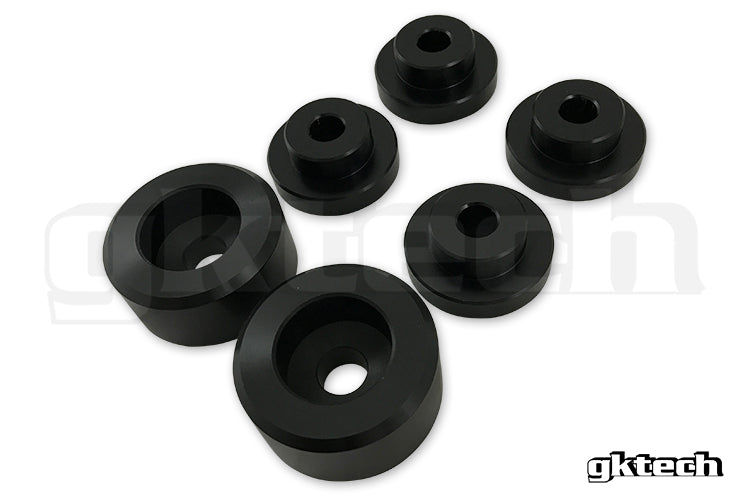

Front and rear:
All those non conversion 2 bolt cover cars. eg. S14, S15, R32 GTR, R33, R34, C33, C34 and C35

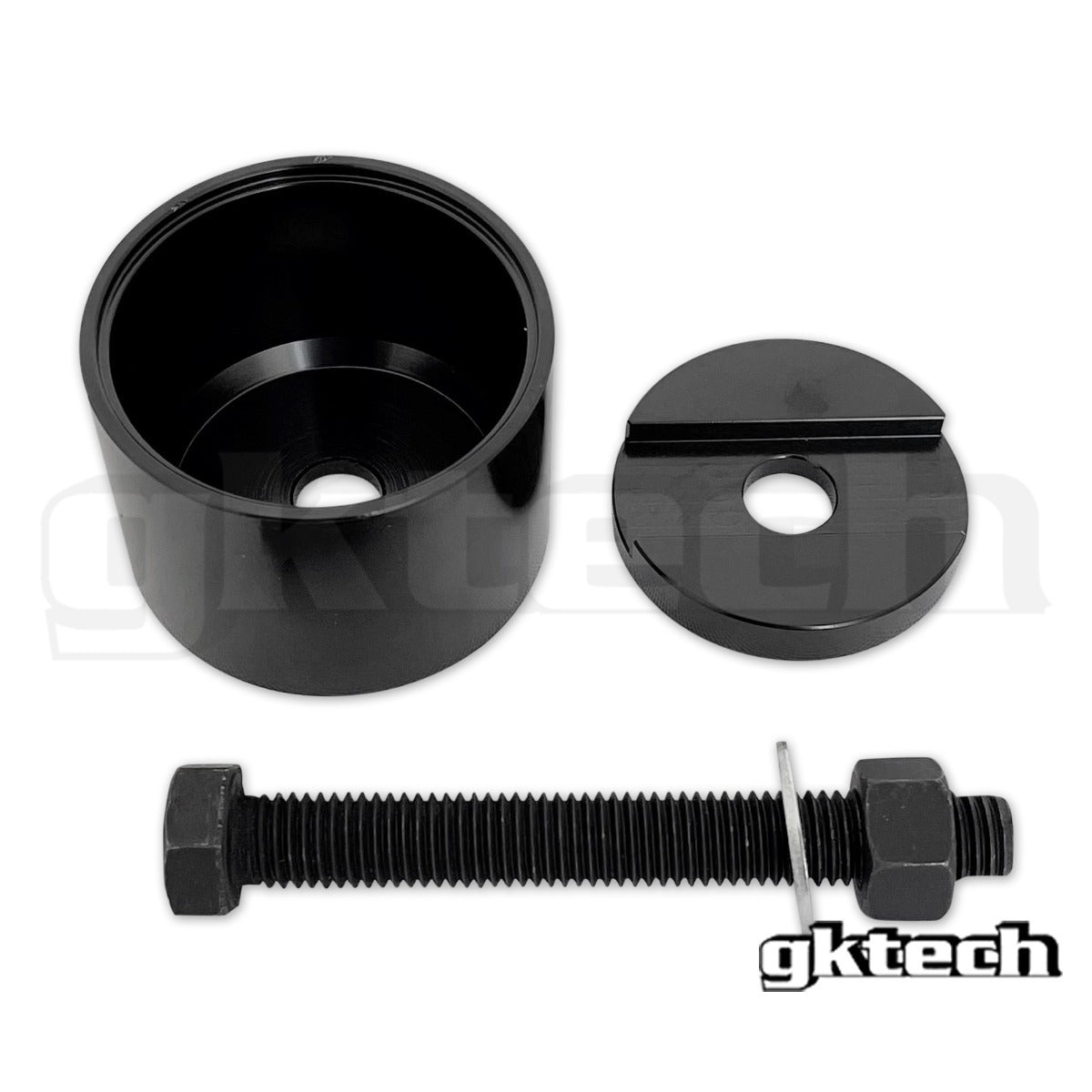

GKTech also offer a super handy diff bush removal/installation tool, more information can be seen here - this product
NOTE: The Z32 300zx only fits the REAR bushes only, fronts do NOT fit and are not the same.
Options
-
Front, rear or front and rear?: Front bushes only (S13X-DIFF), Rear bushes only (R200-REAR), Front and rear (S145-DIFF)
-
Did you need a diff bush remover/installer tool set?: None, S/R Chassis diff bush removal tool/installation tool set (SCHA-DRMV)
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
- Nissan Skyline GT-R R32 (1989–1994), RB26DETT
- Nissan Skyline GTS-T R32 (1989–1993), RB20DET
- Nissan Skyline GTS4 R32 (1989–1993), RB20DET
- Nissan Skyline GT-R R33 (1995–1998), RB26DETT
- Nissan Skyline GTS R33 (1993–1998), RB25DE
- Nissan Skyline GTS-T R33 (1993–1998), RB25DET
- Nissan Skyline GTS4 R33 (1993–1998), RB25DET
- Nissan Skyline GT R34 (1998–2002), RB25DE
- Nissan Skyline GT-T R34 (1998–2002), RB25DET
- Nissan Skyline GT-R R34 (1999–2002), RB26DETT
- Nissan 300ZX Z32 (1989–2000), VG30DETT
- Nissan Cefiro A31 (1988–1994), RB20DET
- Nissan Laurel C33 (1989–1993), RB20DET
- Nissan Laurel C34 (1993–1997), RB25DET
- Nissan Laurel C35 (1997–2002), RB25DET
