GKTech S/R Chassis to 350, 370Z Diff Conversion (Z33DIFFBUNDLE)
Suits Nissan S14, S15, R32, R33, R34
Brand: GKTech
Part Number: Z33DIFFBUNDLE
Description:
GKTech S/R Chassis to 350, 370Z Diff Conversion, kit part number Z33DIFFBUNDLE. Suits Nissan S14, S15, R32, R33, R34. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTECH S/R Chassis to 350z/370z Diff conversion bushes allow you to bolt in the stronger 350z/370z/G35/G37 differential to your 2 bolt R200 S14/S15/R33/R34 subframe.

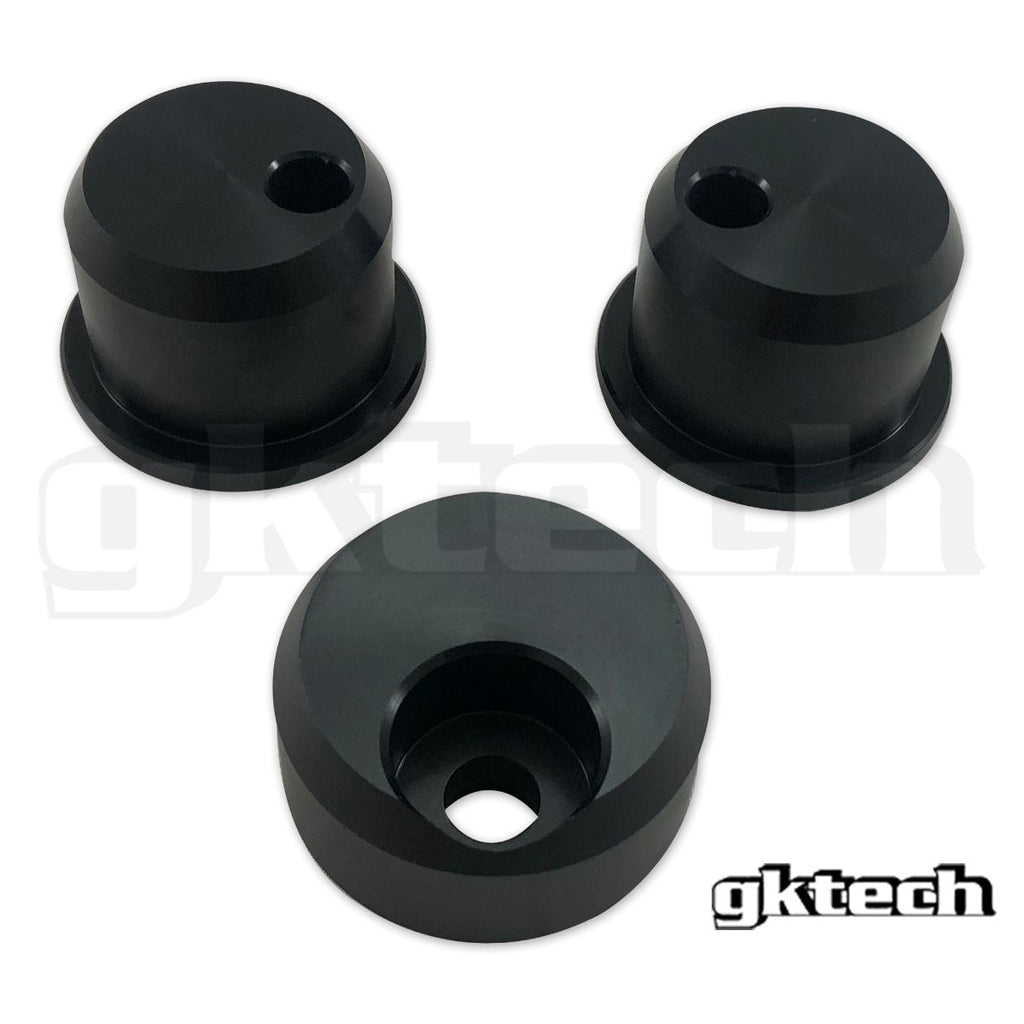

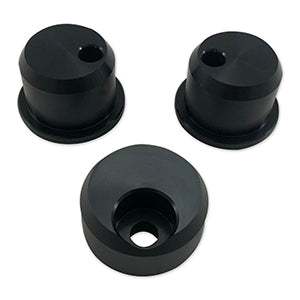

The bushings are CNC Machined from 6061-T6 aluminium and require no further modification to the subframe, just simply press the two bushings into the diff, while pressing the other in the subframe.

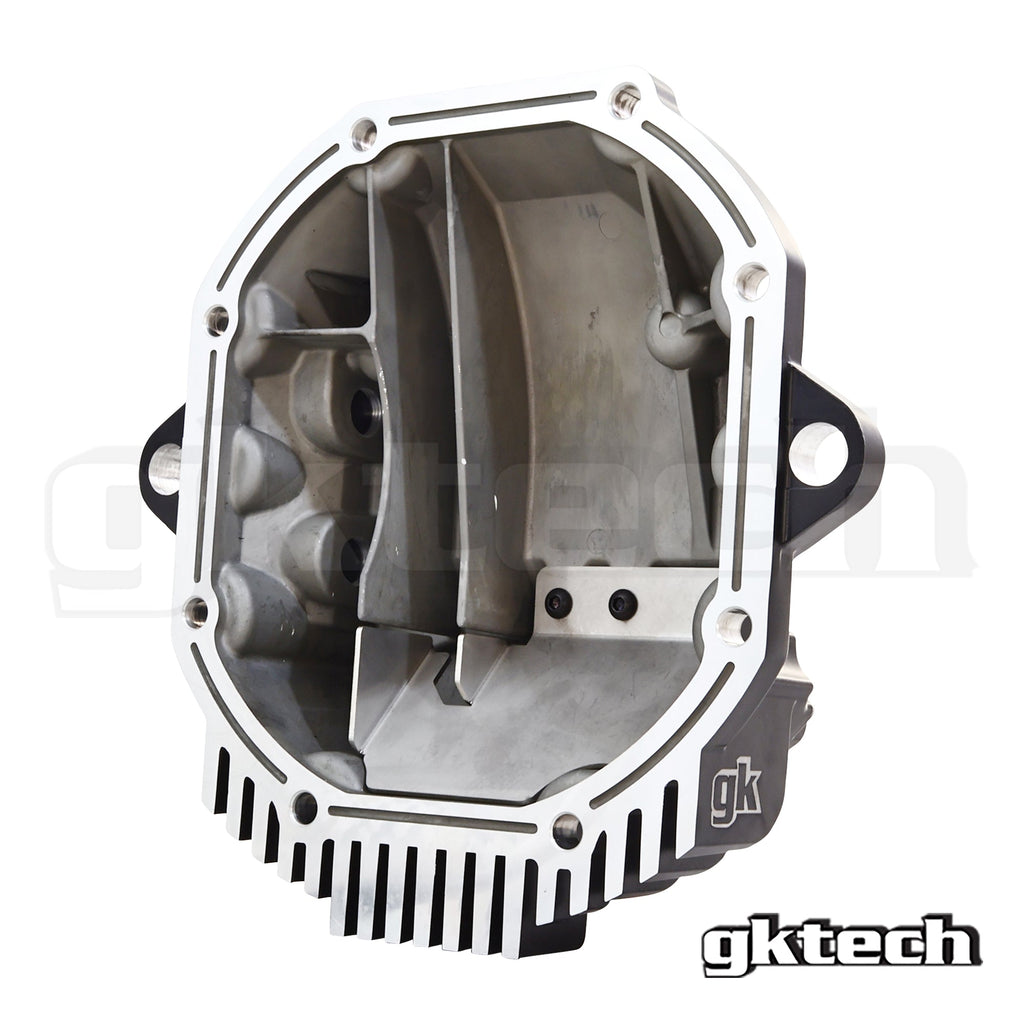

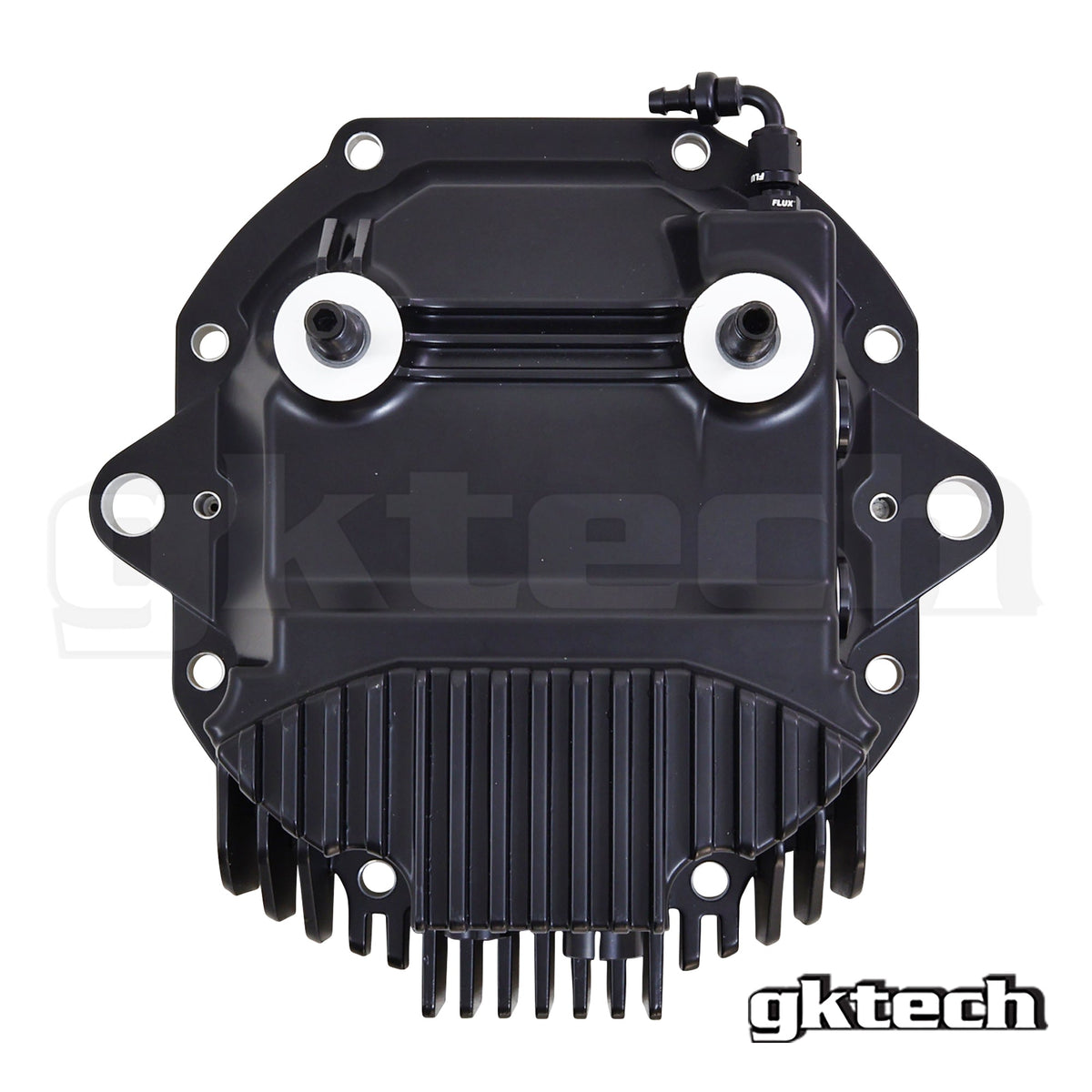

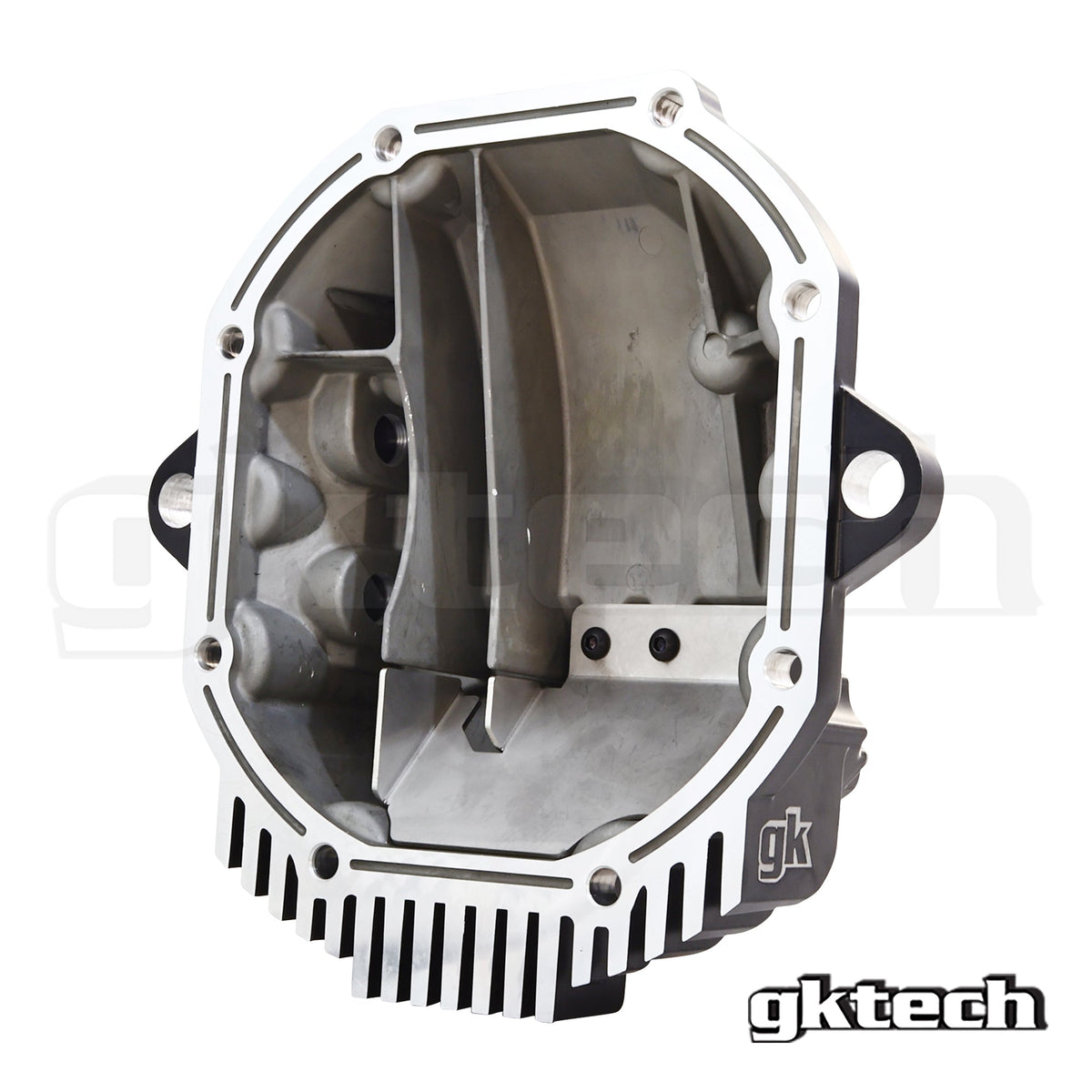

You will notice there are two options to choose from, most commonly people have the OEM single bolt cover, which comes as shown in the product photo. To help strengthen the rear support of the diff and counteract the single stud GKTech do now also offer an extended capacity dual stud diff cover (now available).

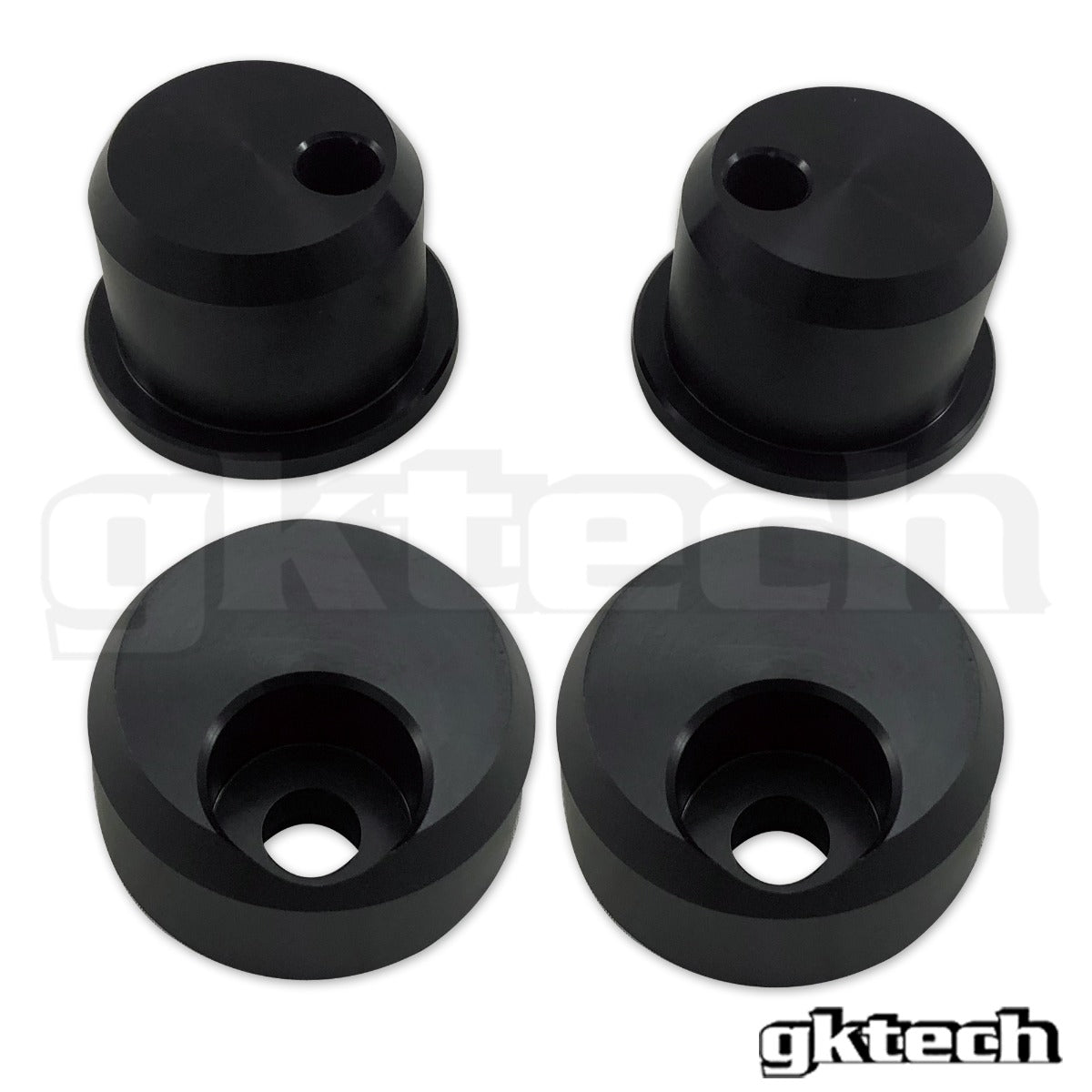

The other selection is for two bolt Z33/Z34 diff housings, which will come with two front bushings and two rear bushings.
NOTE: Upon fitment, please check driveshaft (CV/axle) length to ensure there are no possibilities of the driveshaft (CV/axle) overextending or driveshaft (CV/axle) compression, which may lead to failures.
NOTE #2: The option "Z33/Z34 diff conversion secondary bush (for S14/S15 subframe)" is for those that are already running the conversion bush set (3pcs) and only want to purchase the 4th bush when running one of their machined dual stud diff covers or the Greddy dual stud diff cover.
Options
-
Which rear housing do you have?: Single bolt diff housing (three bushes in total) (Z33X-CONV), 2 bolt diff housing (four bushes in total) (Z33X-2BLT), Secondary rear diff bushing only (single bush) (CONV-BUSH)
-
Did you also want to add a diff brace?: None, S/R Chassis diff brace for 350Z/370Z diff conversion (S14X-DBRC)
-
Extended capacity dual stud diff cover?: None, Z33 350z/Z34 370z & RZ34 Extended dual stud diff cover (Z334-CAST)
Suits
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
- Nissan Skyline GT-R R32 (1989–1994), RB26DETT
- Nissan Skyline GT-R R33 (1995–1998), RB26DETT
- Nissan Skyline GTS-T R33 (1993–1998), RB25DET
- Nissan Skyline GTS4 R33 (1993–1998), RB25DET
- Nissan Skyline GT-T R34 (1998–2002), RB25DET
- Nissan Skyline GT-R R34 (1999–2002), RB26DETT
