GKTech S13 Silvia 5 Stud Hub Conversion (Front and Rear) (13HUBCOMBO)
Suits Nissan S13, A31
Brand: GKTech
Part Number: 13HUBCOMBO
Description:
GKTech S13 Silvia 5 Stud Hub Conversion (Front and Rear), kit part number 13HUBCOMBO. Suits Nissan S13, A31. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
It's time, you know it - GKTech know it. The 4 stud needs to go and lucky for you they have got the kit to start you off.

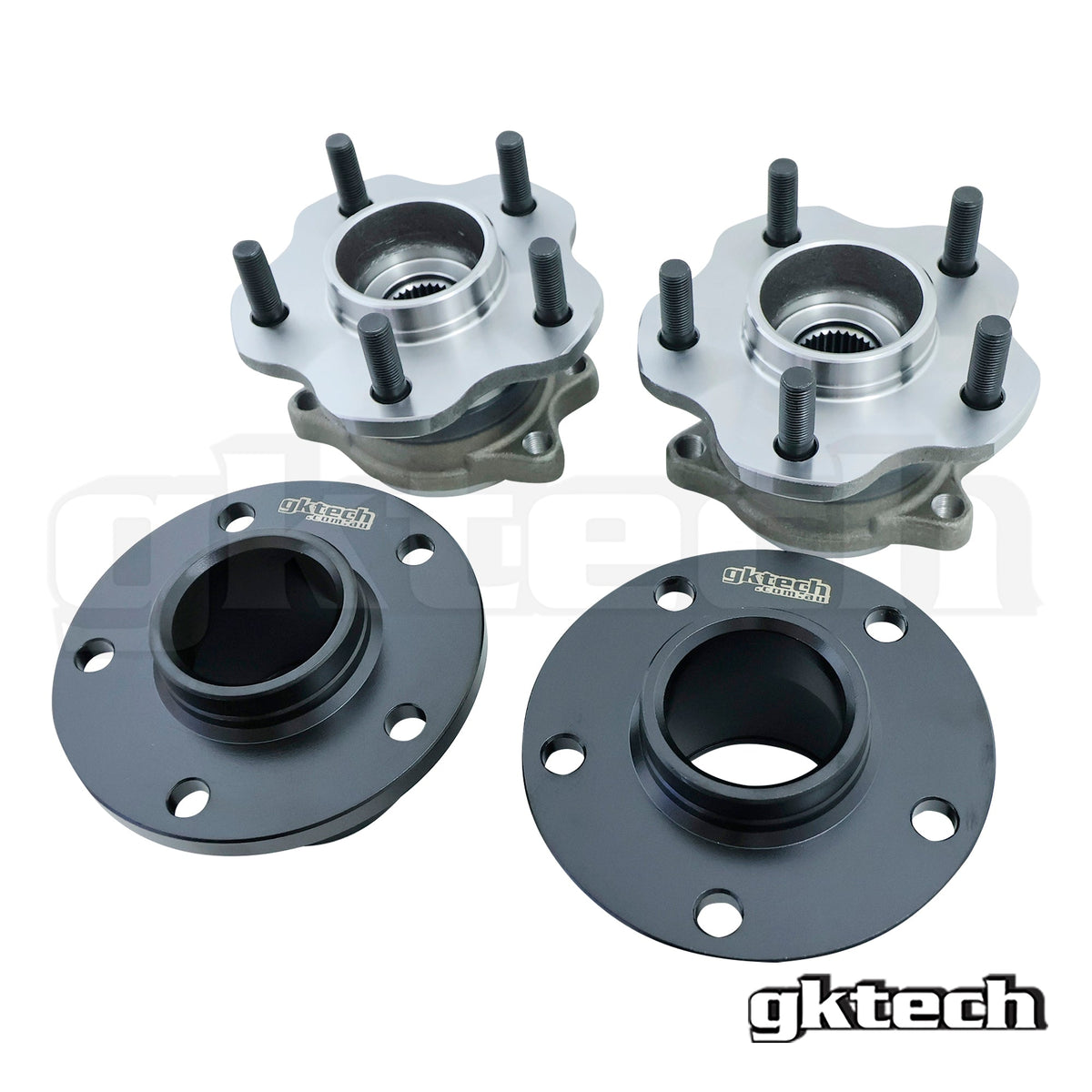

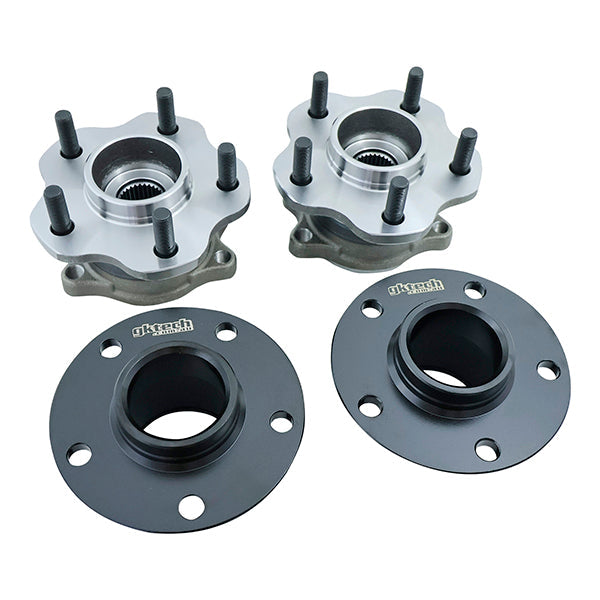

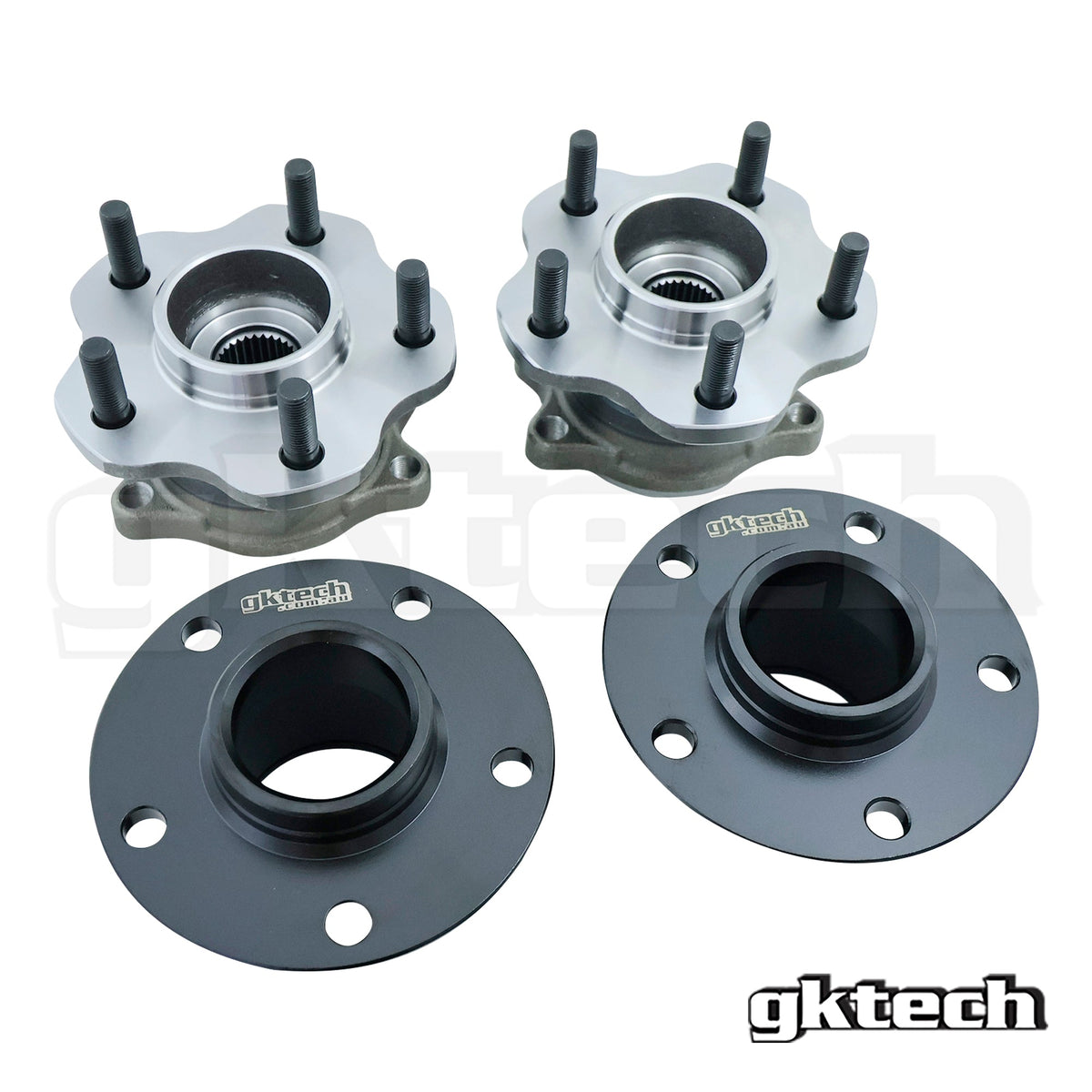

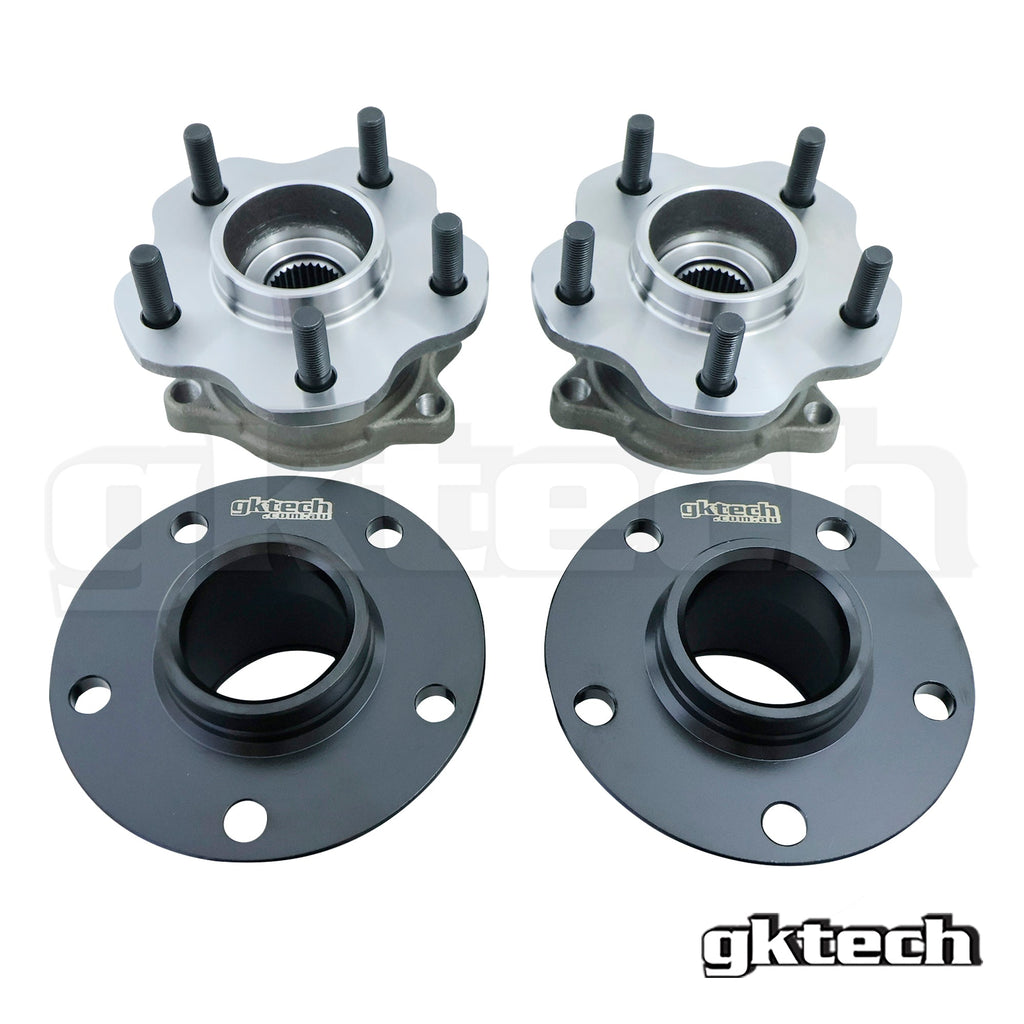

The GKTECH CNC machined Billet Chromoly 4 to 5 Stud Front Conversion Hubs are a direct replacement of the OEM hub and are designed to have the OEM snap ring and wheel bearing able to be swapped over. These Front Hubs take your S Chassis from 4x114.3 to 5x114.3 allowing a new range of brake upgrades and wheel choices.
The 5 Stud Rear Hubs are a replacement of the OEM S14 Silvia / S15 200SX Rear Hub Assembly which are a direct bolt on to your S13 rear knuckles.
Testing for all their hubs consist of cyclical loading through a range of real world load cases including extreme high loads to simulate impacts, up to 800kg of load (equivalent to a total car weight of 3200kg). Over 900hrs of total loaded running time, 70+ days @ 12hrs a day whilst monitored for temperature and vibration throughout the testing and MORE!
Features:
- Converts from 4x114.3 to 5x114.3 PCD

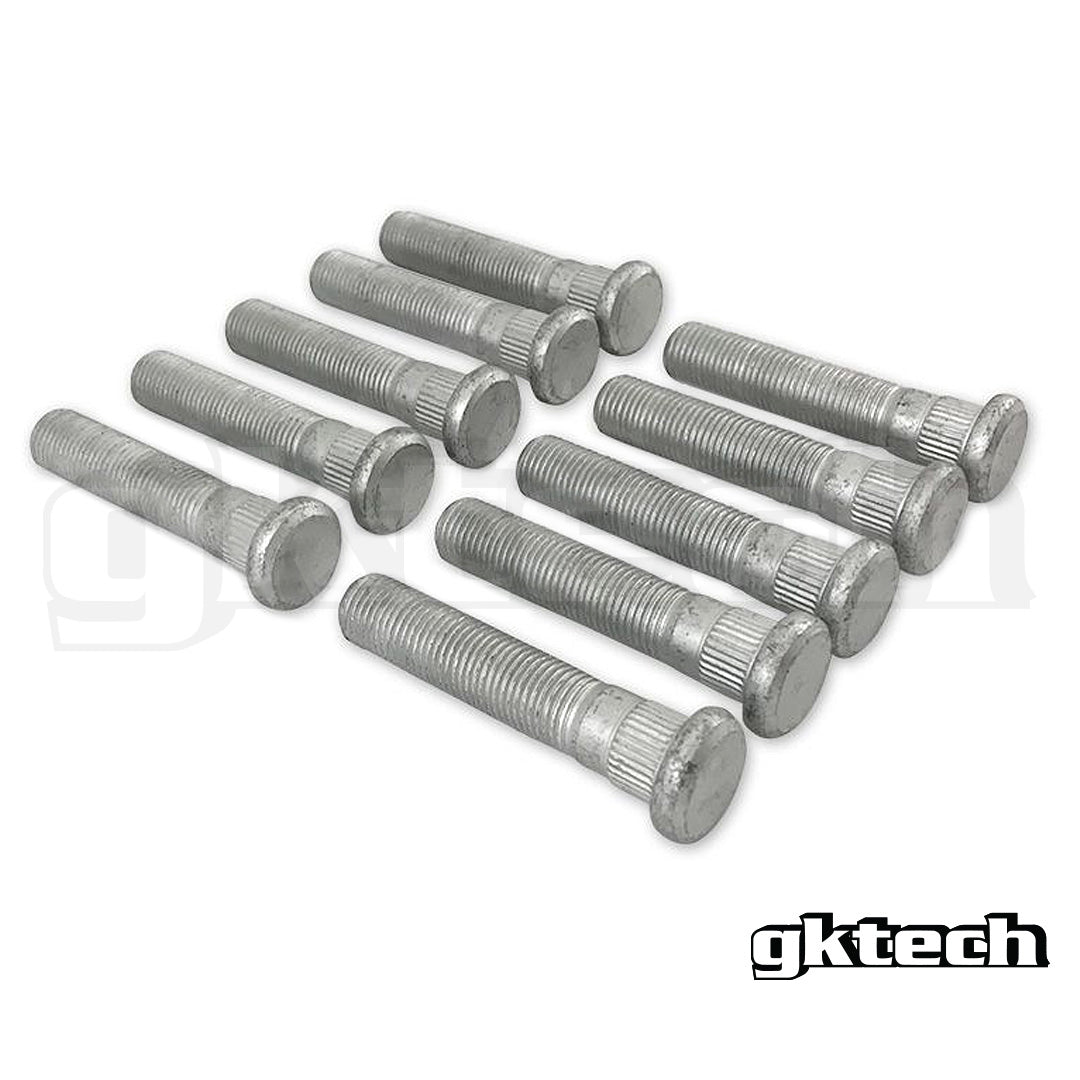

- Grade 10.9 M12x1.25 +20MM 12.8mm front studs (NOT installed)
- Grade 10.9 M12x1.25 OEM 14.3mm rear studs (PRE installed)
- Rear OE Quality bearings, seals and quality SHELL grease pre installed
- Fully serviceable with rear hubs and bearings available separately
Note: Sold in PAIRS
Note 2: Front bearings are NOT included - these are designed to be used with OEM bearings
Note 3: ABS ring and SNAP ring are not NOT included
Options
-
Front Hubs:: None, S13 Silvia 5 Stud Conversion Hubs (Pair) (S13X-HUBS)
-
Wheel Studs: None, 12.8MM Knurl +20MM Extended Wheel Studs (1280-50MM)
-
Rear Hubs:: None, S14 Silvia / S15 200SX Rear Hub Assembly (PAIR) (REAR-HUBX)
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Cefiro A31 (1988–1994), RB20DET
