GKTech Toyota 5x114.3 Hub Centric Wheel Spacers (TOYOBUNDLE)
Suits Toyota / Lexus JZX90, JZX100, JZX110, SXE10, GXE10, JCE10 & more
Brand: GKTech
Part Number: TOYOBUNDLE
Description:

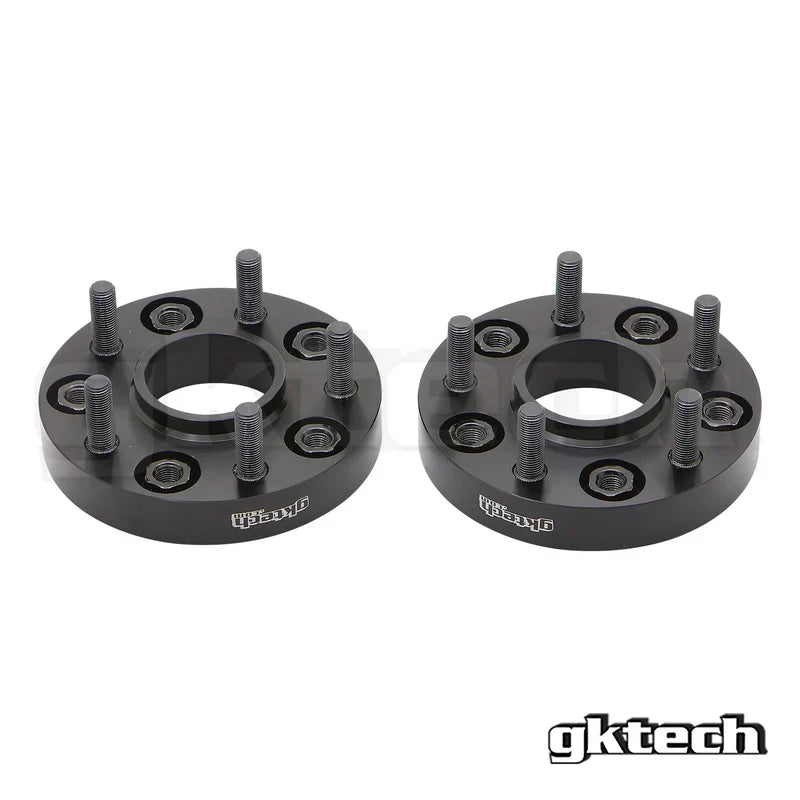

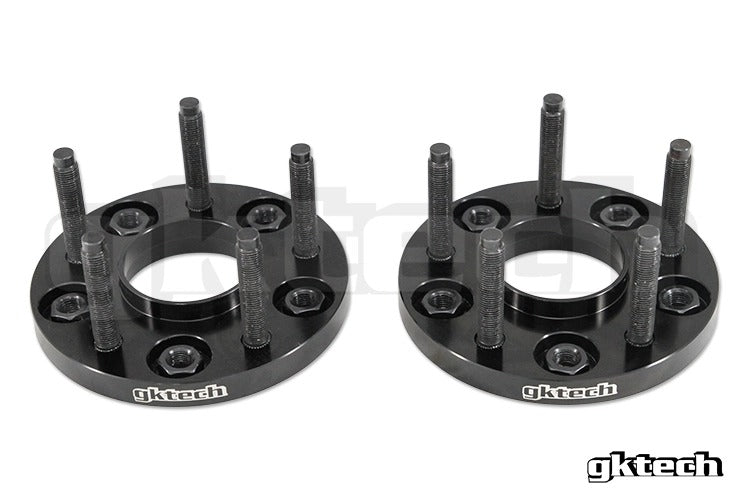

GKTech Toyota 5x114.3 Hub Centric Wheel Spacers, kit part number TOYOBUNDLE. Suits Toyota / Lexus JZX90, JZX100, JZX110, SXE10, GXE10, JCE10 & more. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTECH bolt on spacers are used to space the wheel, they not only allow for adjustment of the fitment of your wheels but can provide clearance to the suspension components and even provide more lock!

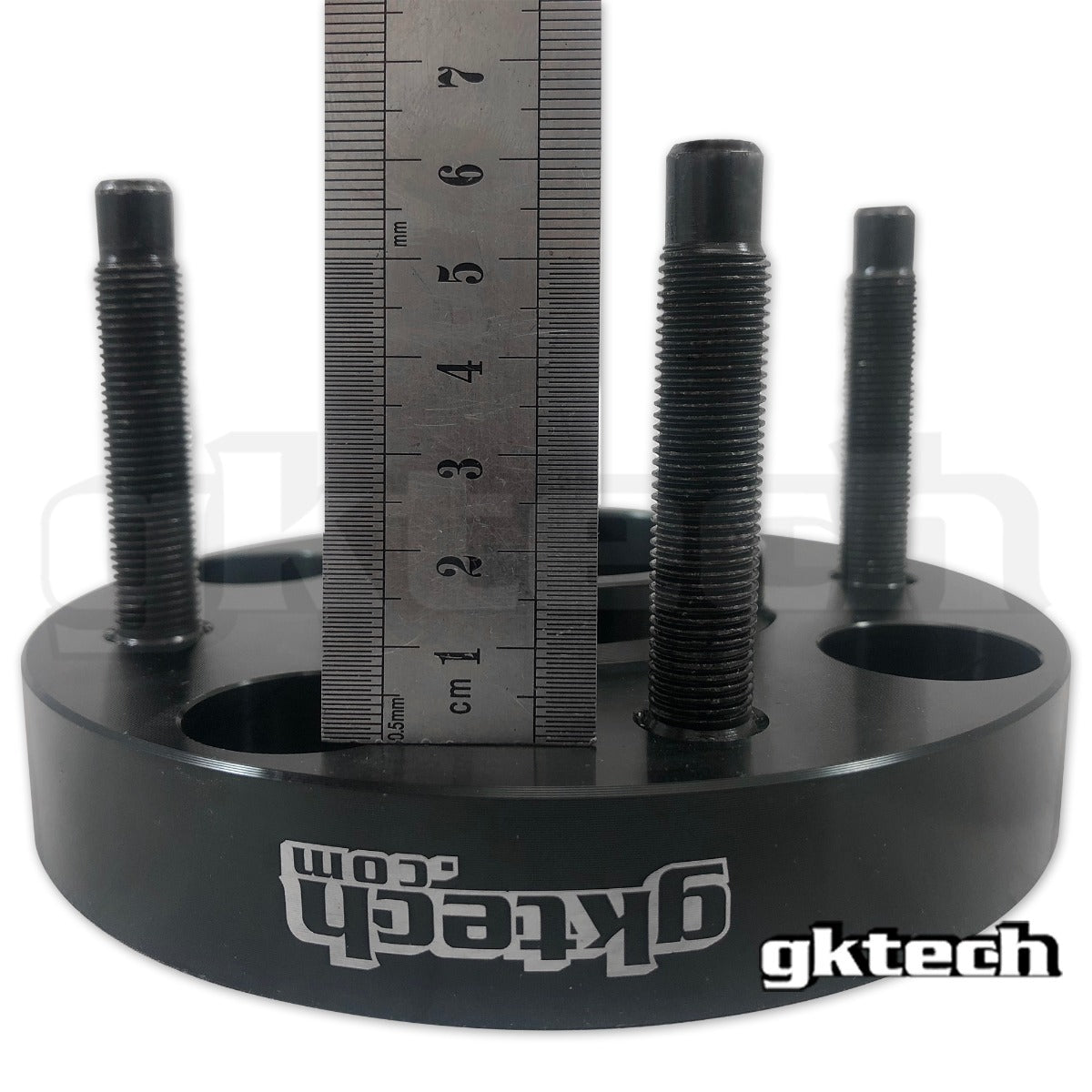

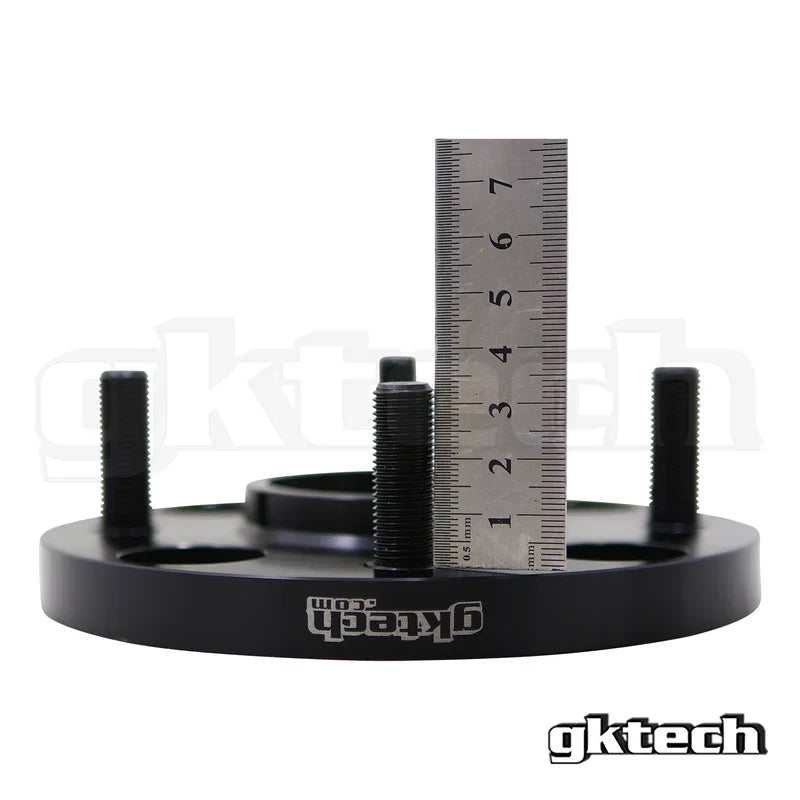

The wheel spacers are hub centric to suit Toyotas 60.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength along with grade 10.9 extended studs, which you have the option of either standard length studs or extended wheel studs.
GKTech's unique design uses an oval-shaped stud to prevent any chance of the stud spinning within the spacer and damaging the knurl when over tightened, a common occurrence with generic spacers found on the market.
NOTE: Sold as a PAIR
| Sizes (width) |
PCD |
Centre bore |
Wheel Bore |
Spacer O.D |
Standard stud length
|
Extended stud length |
Stud thread |
| 15mm |
5x114.3 |
60.1mm |
60.1mm |
150mm |
35mm |
60mm |
M12 x 1.5 thread |
| 20mm |
5x114.3 |
60.1mm |
60.1mm |
150mm |
35mm |
60mm |
M12 x 1.5 thread |
| 25mm |
5x114.3 |
60.1mm |
60.1mm |
150mm |
35mm |
60mm |
M12 x 1.5 thread |
| 30mm |
5x114.3 |
60.1mm |
60.1mm |
150mm |
35mm |
60mm |
M12 x 1.5 thread |
| 40mm |
5x114.3 |
60.1mm |
60.1mm |
150mm |
35mm |
60mm |
M12 x 1.5 thread |
| 50mm |
5x114.3 |
60.1mm |
60.1mm |
150mm |
35mm |
60mm |
M12 x 1.5 thread |
Options
-
Spacers with standard length studs: None, 15mm Spacer with standard studs (TOYO-15MMSS), 20mm Spacer with standard studs (TOYO-20MMSS), 25mm Spacer with standard studs (TOYO-25MMSS), 30mm Spacer with standard studs (TOYO-30MMSS), 40mm Spacer with standard studs (TOYO-40MMSS), 50mm Spacer with standard studs (TOYO-50MMSS)
-
Spacers with extended length studs: None, 15mm Spacer with extended studs (TOYO-15MM), 20mm Spacer with extended studs (TOYO-20MM), 25mm Spacer with extended studs (TOYO-25MM), 30mm Spacer with extended studs (TOYO-30MM), 40mm Spacer with extended studs (TOYO-40MM), 50mm Spacer with extended studs (TOYO-50MM)
Suits
- Toyota Chaser Mark II Cresta JZX90 (1992–1996), 1JZ-GTE
- Toyota Chaser Mark II Cresta JZX100 (1996–2001), 1JZ-GTE
- Toyota Mark II Verossa JZX110 (2000–2007), 1JZ-GTE
- Lexus IS200 SXE10 (1998–2005), 3S-GE
- Lexus IS200 GXE10 (1998–2005), 1G-FE
- Lexus IS300 JCE10 (2001–2005), 2JZ-GE
- Lexus GS300 JZS161 (1997–2005), 2JZ-GE
