GKTech Toyota JZX90 & JZX100 Wilwood Dual Caliper Bracket (JZXX-BRKT-BUNDLE)
Suits Toyota JZX90, JZX100
Brand: GKTech
Part Number: JZXX-BRKT-BUNDLE
Description:
GKTech Toyota JZX90 & JZX100 Wilwood Dual Caliper Bracket, kit part number JZXX-BRKT-BUNDLE. Suits Toyota JZX90, JZX100. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.

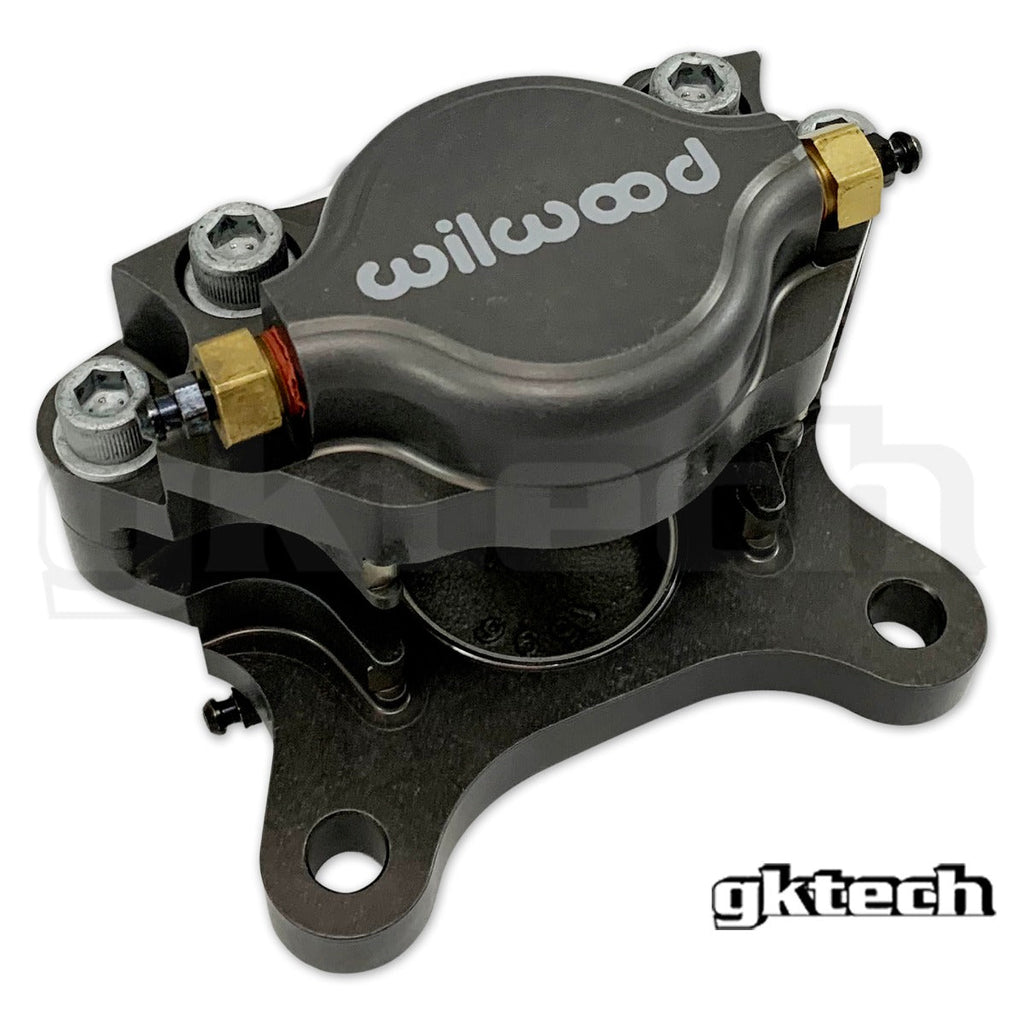

The GKTECH Toyota JZX90 & JZX100 Dual Caliper Bracket bracket adds a second brake caliper to the rear of the OEM rear knuckle of the JZX chassis for hydraulic handbrakes.

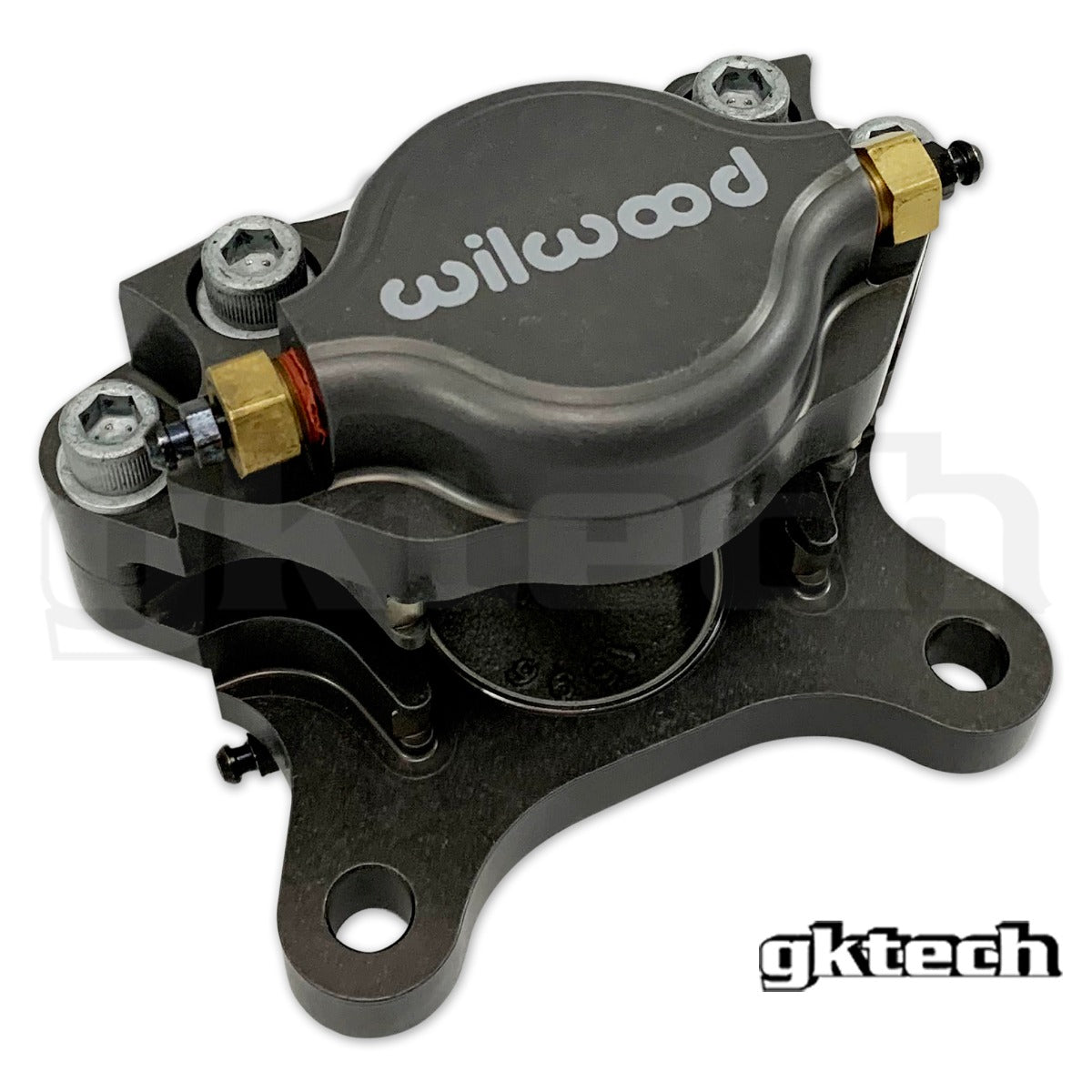

The second caliper must be a Wilwood Dynapro that has been updated with GKTech's caliper spacer kit (WWDP-16MM - Already a mandatory option in this listing) to suit the OEM 16mm rotor.
The Wilwood Dynapro calipers and respective brake pads are a selectable option.

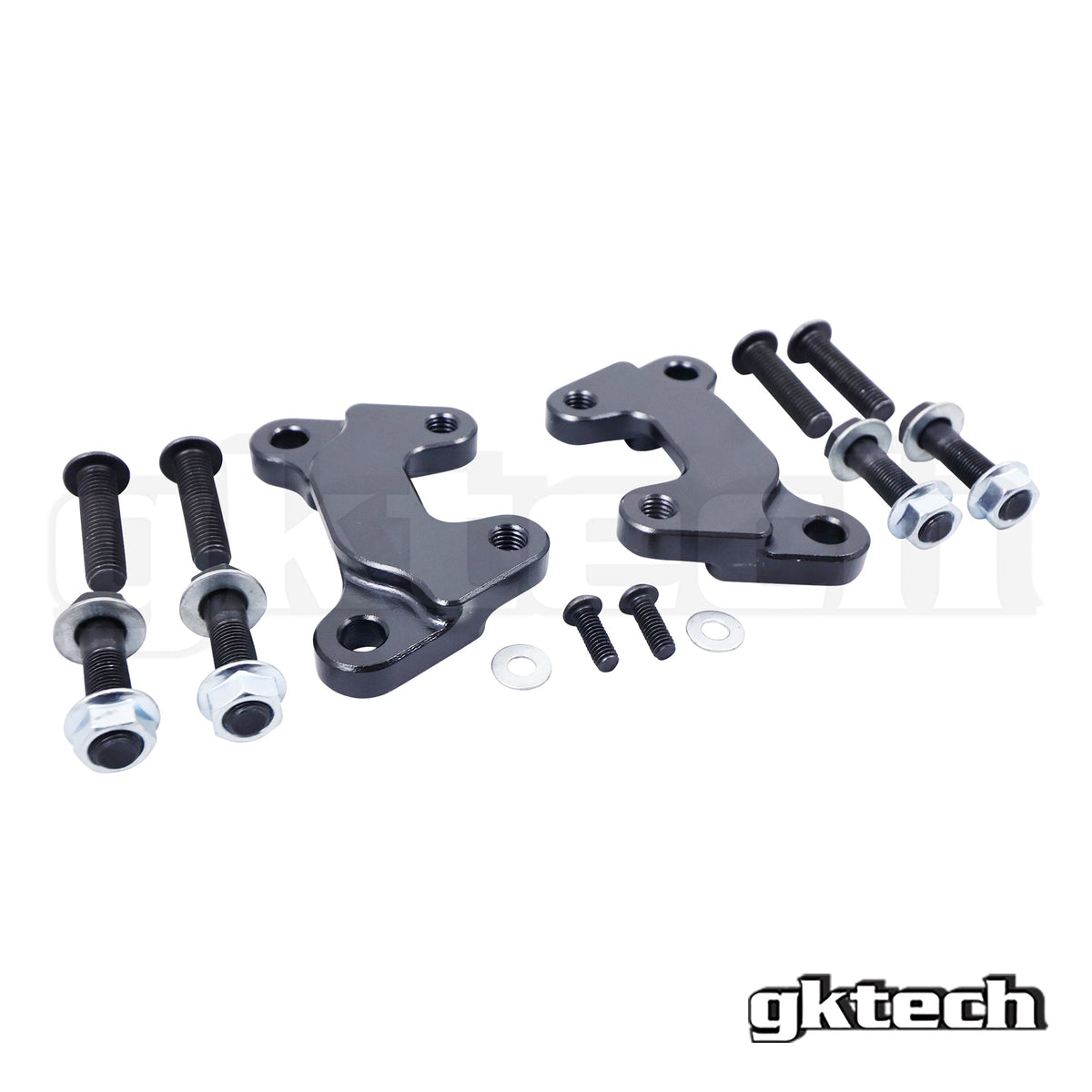

This kit features a sturdy, bolt on CNC machined 4130 Steel bracket that mounts using OEM hole locations and comes complete with accessories to suit.
Their bracket also retains the OEM 16mm brake rotor, the OEM drum handbrake assembly and the ABS sensors!
NOTES
- Does NOT work with the OEM caliper
- The OEM dust shield must be modified or removed for fitment.
- Some grinding of the upright is required due to casting marks and variation, see customer assembly guide.
Kit Includes

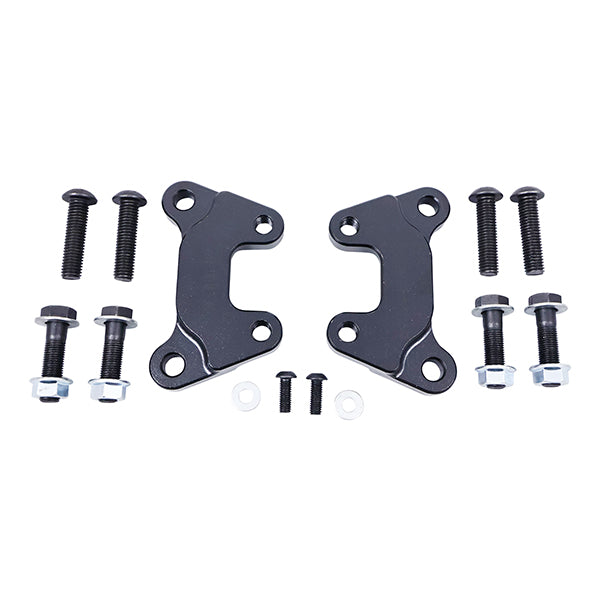

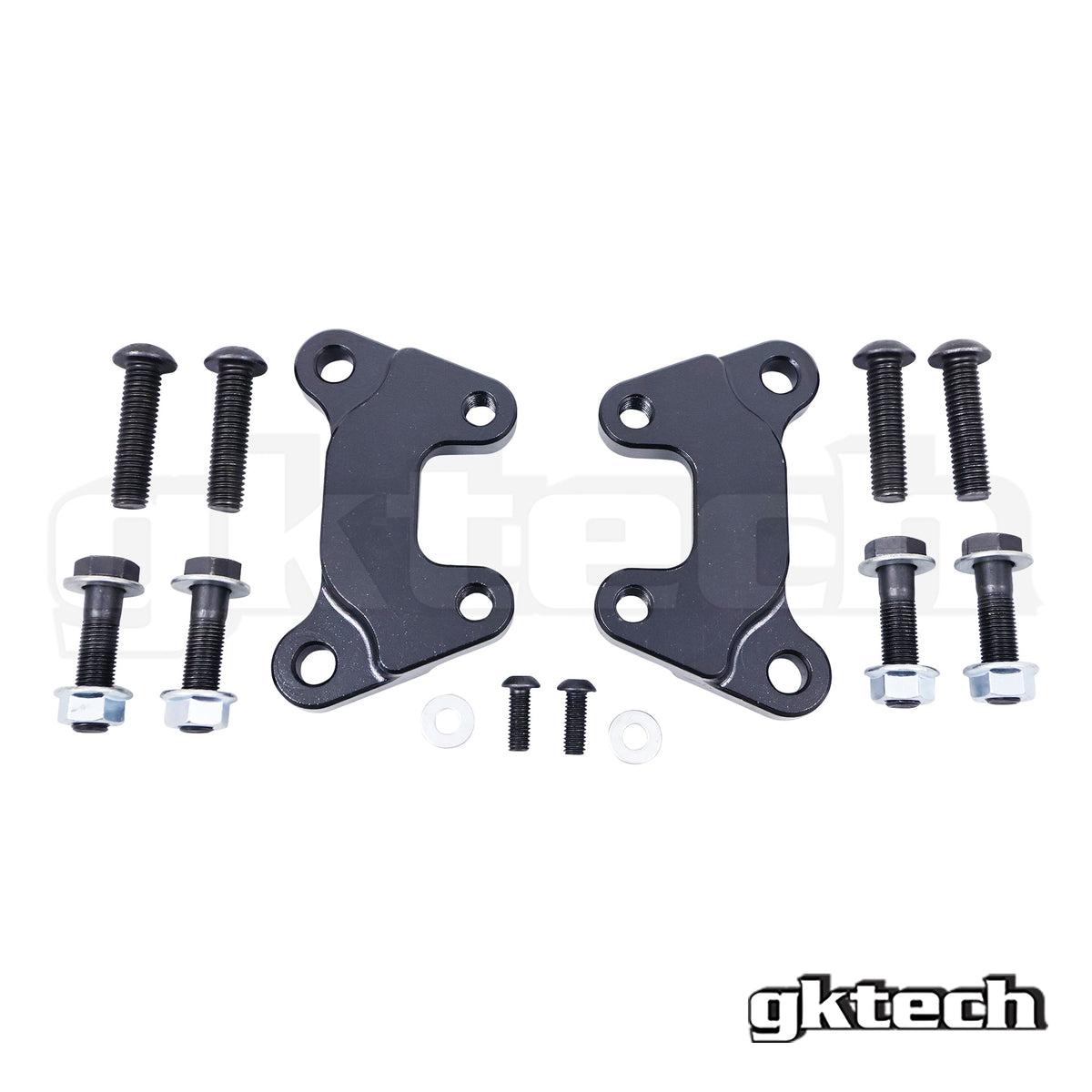

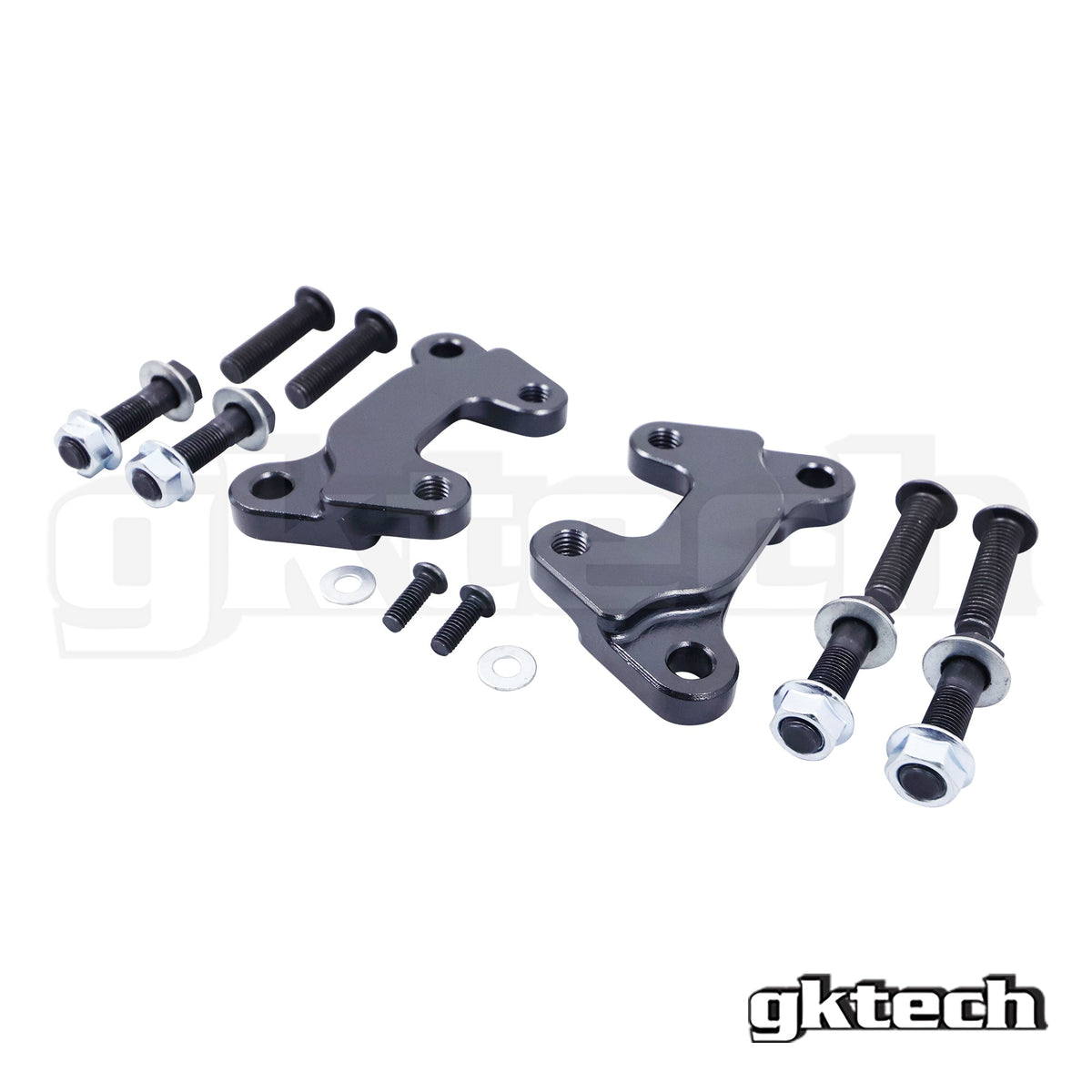

- 1 x JZX Wilwood Dual Caliper Bracket (JZXX-BRKT)
- 1 x Wilwood Dynapro Caliper spacers - 16mm (WWDP-16MM)
Options
-

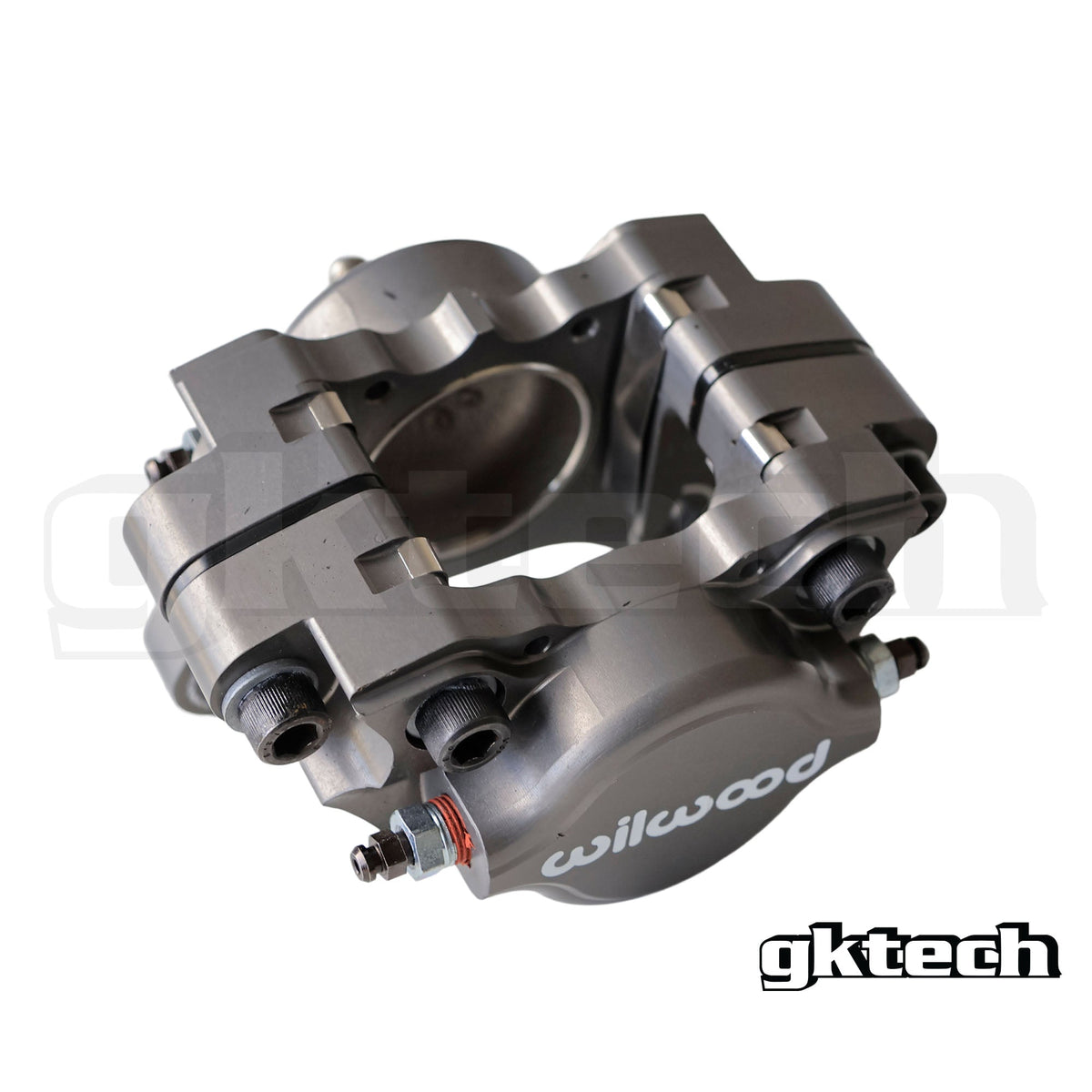

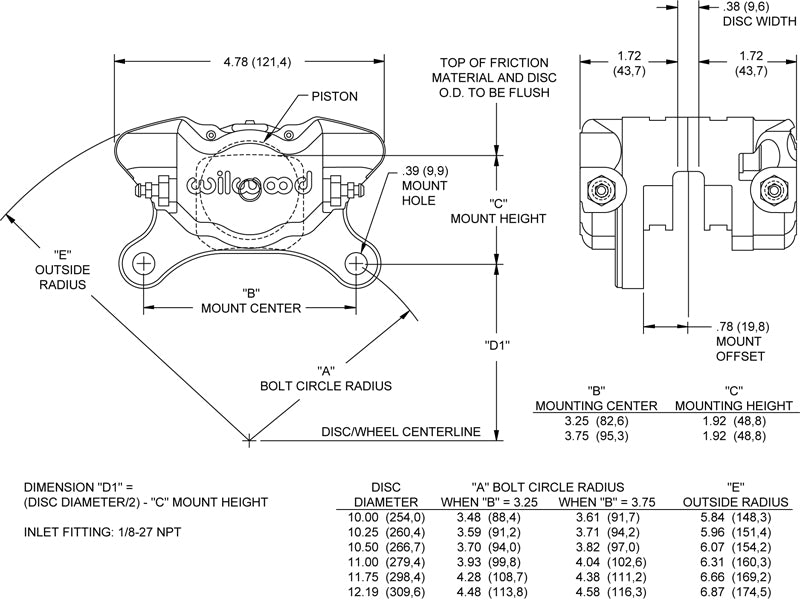

Did you need Wilwood calipers to suit?: None, Wilwood DynaPro dual piston calipers x2 (889545000740)
-

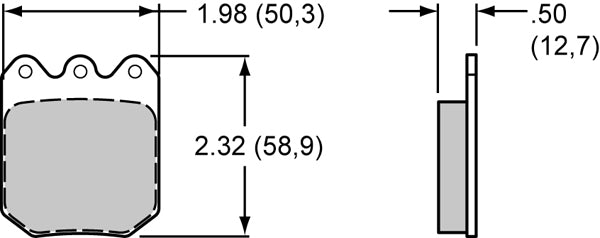

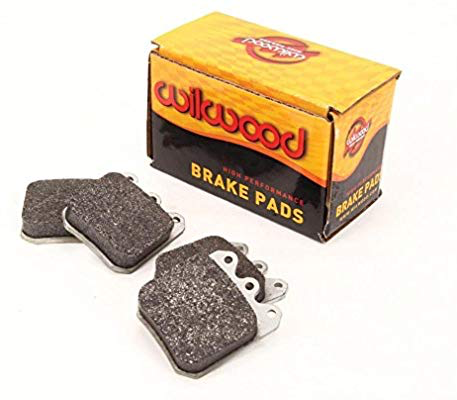

Did you need pads to suit the Wilwood Calipers?: None, Wilwood BP-10 brake pads (set of 4 pads for 2 calipers) (889545033663)
Suits
- Toyota Chaser Mark II Cresta JZX90 (1992–1996), 1JZ-GTE
- Toyota Chaser Mark II Cresta JZX100 (1996–2001), 1JZ-GTE
