GKTech Toyota JZX90 & JZX100 Wilwood Dual Caliper Hydraulic Handbrake Setup (JZX-HYDRO-BUNDLE)
Suits Toyota JZX90, JZX100
Brand: GKTech
Part Number: JZX-HYDRO-BUNDLE
Description:
GKTech Toyota JZX90 & JZX100 Wilwood Dual Caliper Hydraulic Handbrake Setup, kit part number JZX-HYDRO-BUNDLE. Suits Toyota JZX90, JZX100. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
Avoid wasting time shopping around for all the individual parts, getting custom brake lines made up, or running generic parts that may or may not work.
The GKTECH Toyota JZX90 & JZX100 Wilwood Dual Caliper Hydraulic Handbrake Setup is the only COMPLETE kit available anywhere. Literally, everything required is included and it's a range of GKTECH and Wilwood components. If you have an JZX and you want your rear brakes to lock up in an instant, this kit is the way to go.
The contents:
Handbrake assembly:
Self explanatory, this is the handbrake assembly that houses the lever and master cylinder.
Handbrake handle:
This beautifully crafted CNC machined aluminium lever has been designed with ergonomics in mind whilst being aesthetically pleasing. Eg. it is comfortable and it looks good. Choose between silver, black, blue, pink, purple, red, orange, gold or neo chrome.

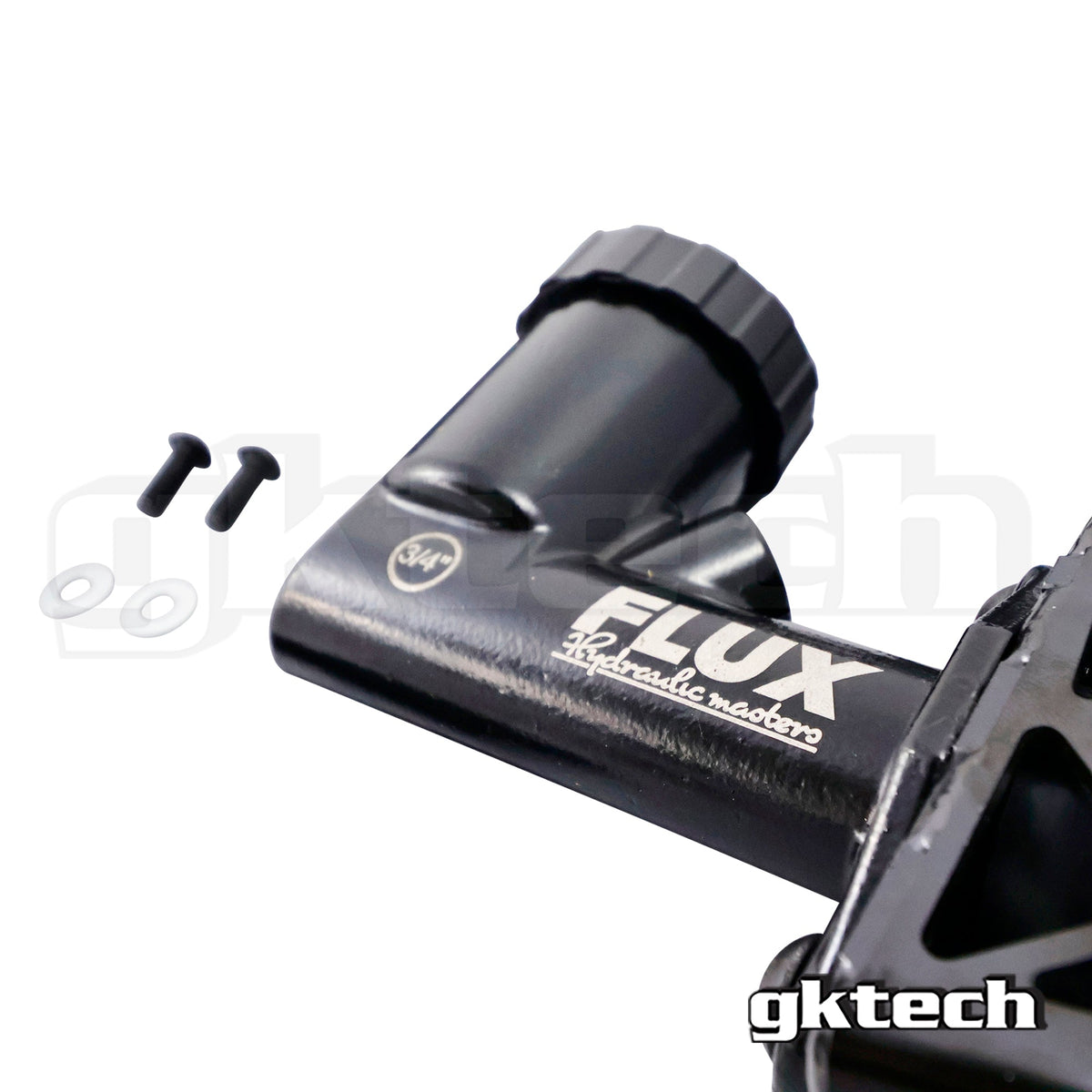

Master cylinder:
Choose between the internal reservoir 5/8" and 3/4" master cylinders. For the Wilwood 2 pot calipers GKTech's recommendation is 5/8" but more on that below in the FAQ's.
Chassis specific handbrake mount:
Their chassis specific handbrake mounts are designed to ensure that their handbrake assembly can be fitted in an optimal position without the need to cut or drill into your transmission tunnel.
These handbrake mounts require no trimming to the center console and is an optional item in the event you already have your own.

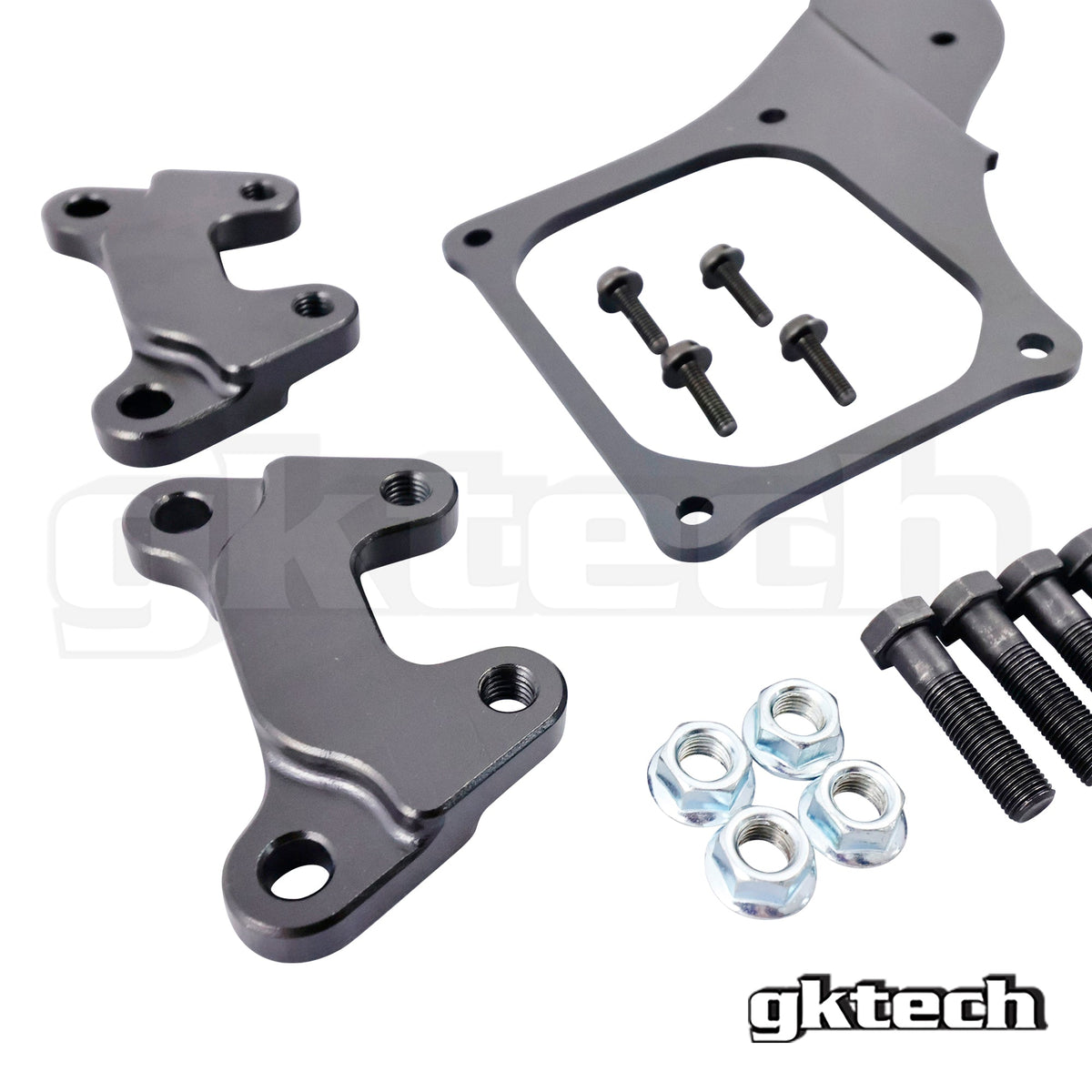

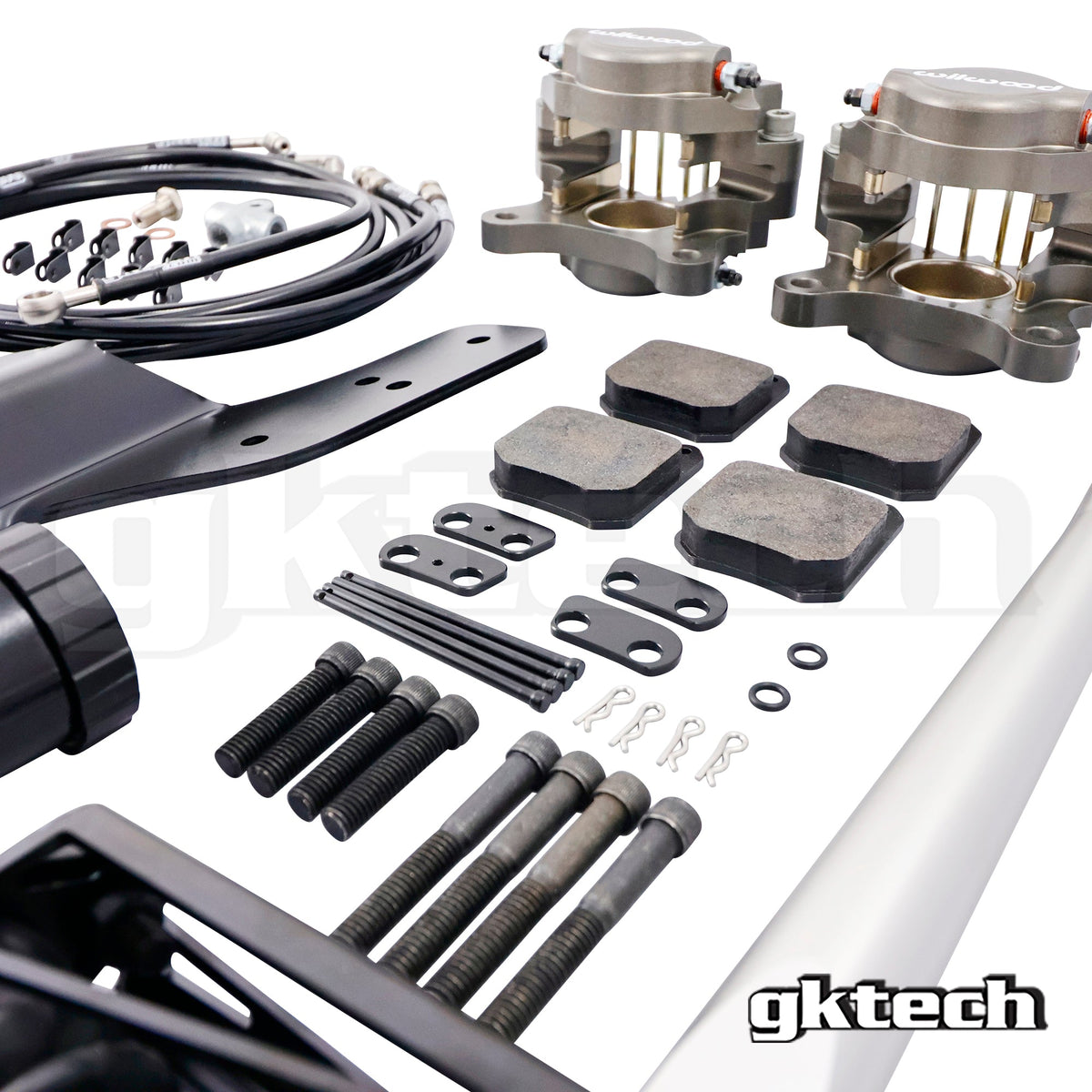

Dual caliper brackets, calipers, pads & spacers:

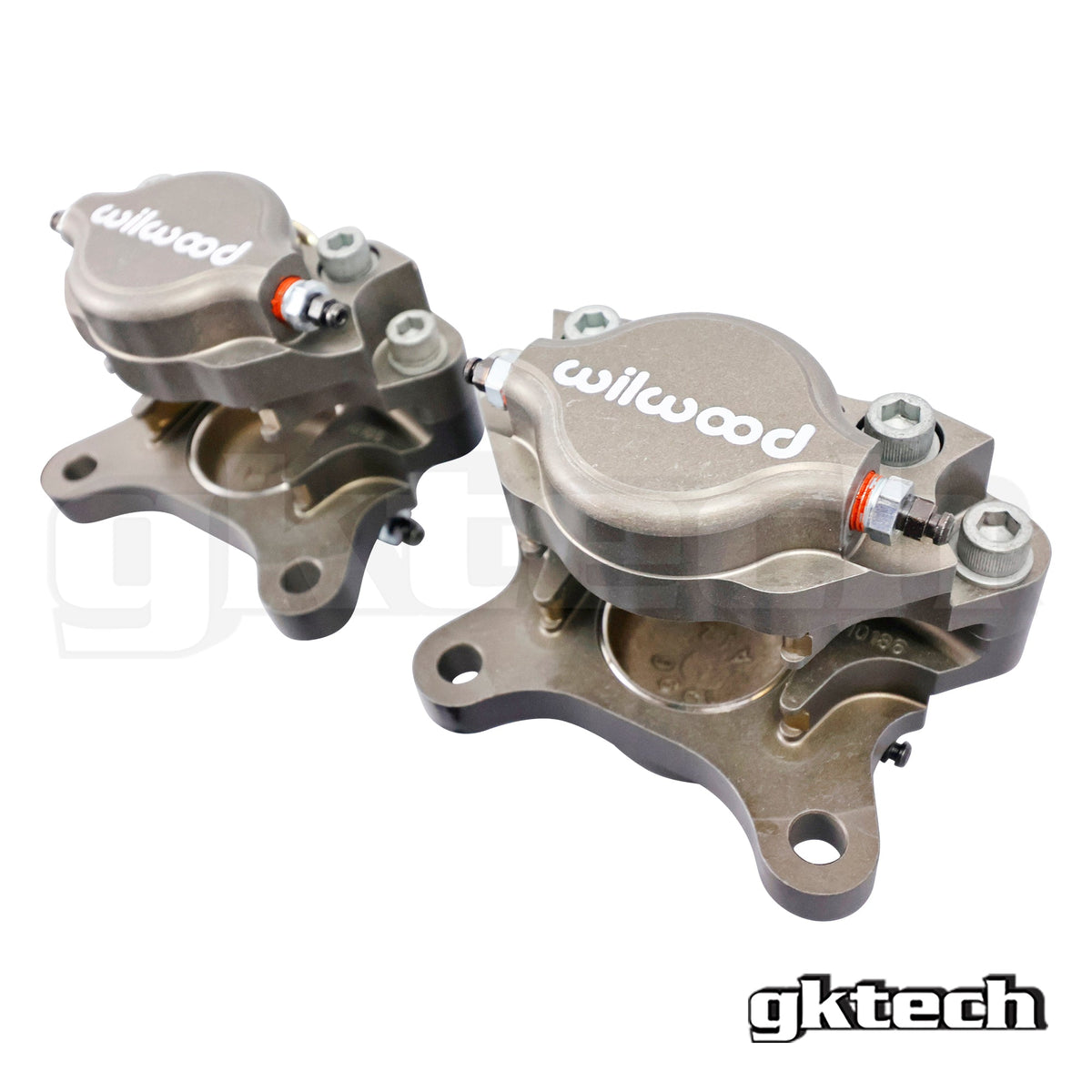

The bracket that allows the Wilwood Dynapro 120-10188 caliper for this setup. They are a small but bitey caliper and only caliper that they found to work with the OEM rotors.
Their bracket also bolts to the OEM mount, retains the OEM 16mm brake rotor, the OEM drum handbrake assembly and the ABS sensors!
This kit includes aluminium caliper spacers, EPDM O-ring, replacement fasteners, brake pad pins, r-clips which is everything needed to widen the caliper from 9mm to 16mm.
To suit the OEM rotor/ knuckle and does NOT work with OEM calipers.
Over the years they have tested many brake pads with these calipers and ended up at the Wilwood BP-10's. They're economical, readily available, very bitey and last.
Braided lines:
Made in-house in Australia using stainless steel fittings and using stainless steel braided line with a PTFE outer these lines include the P clips to locate the line throughout your vehicle.
NOTES
- Modification / removal of the dust shield is required for fitment.
- Some grinding of the upright is required due to casting marks and variation, see customer assembly guide.

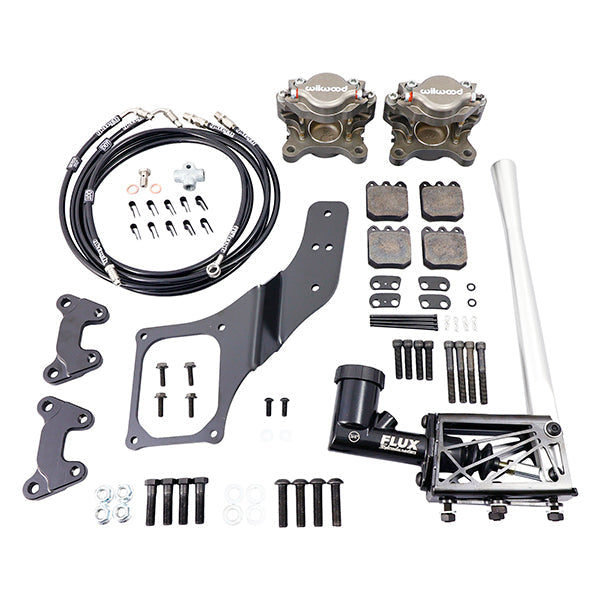

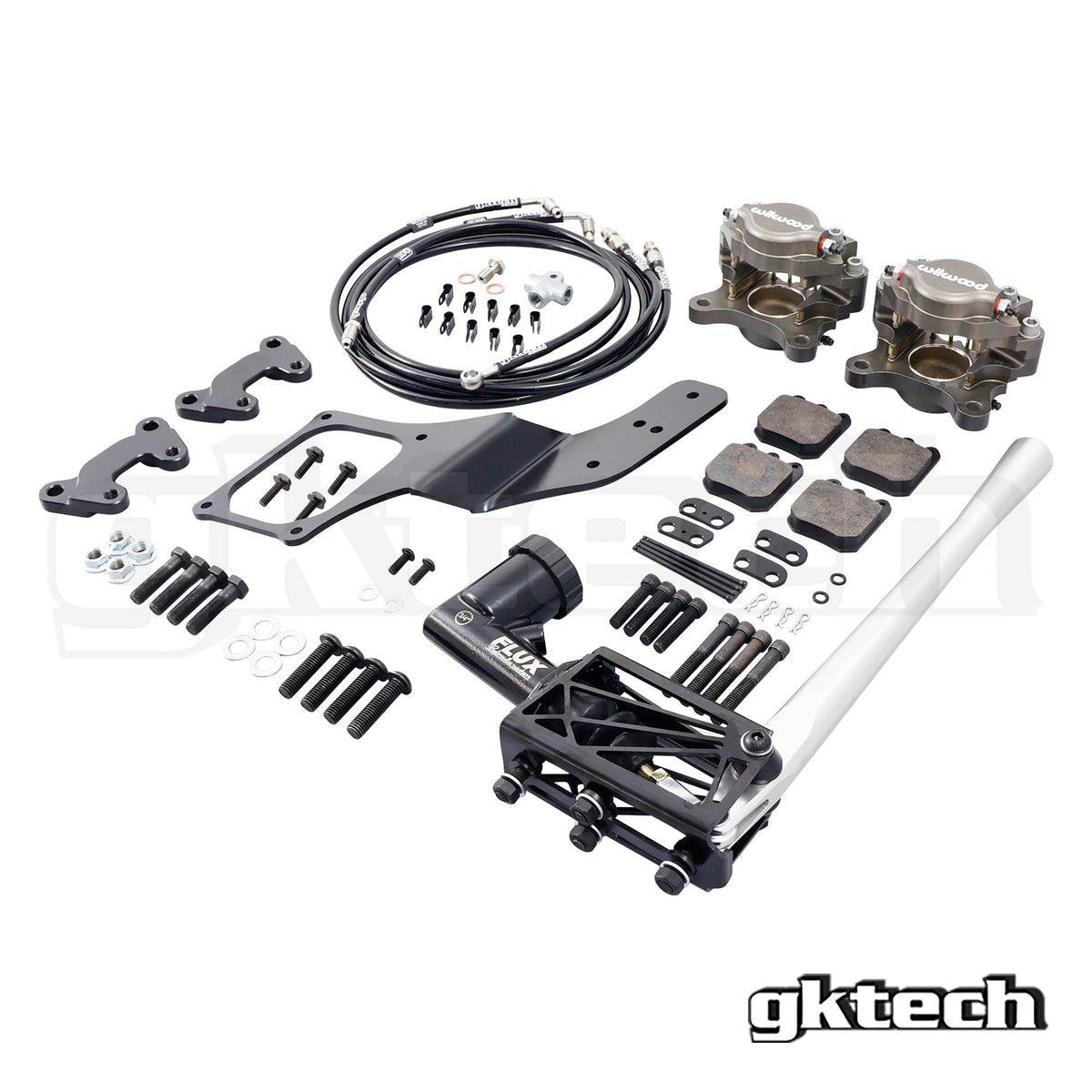

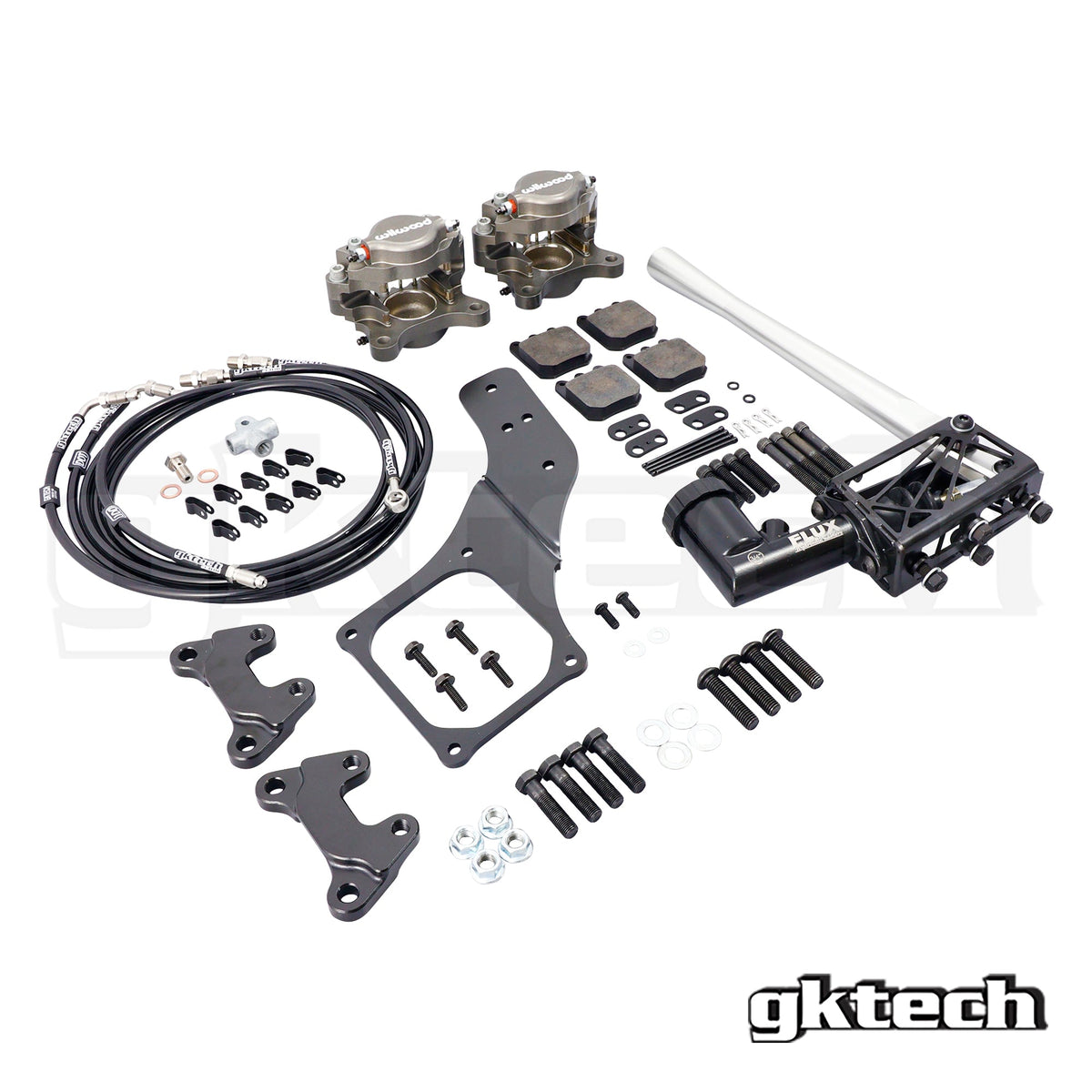

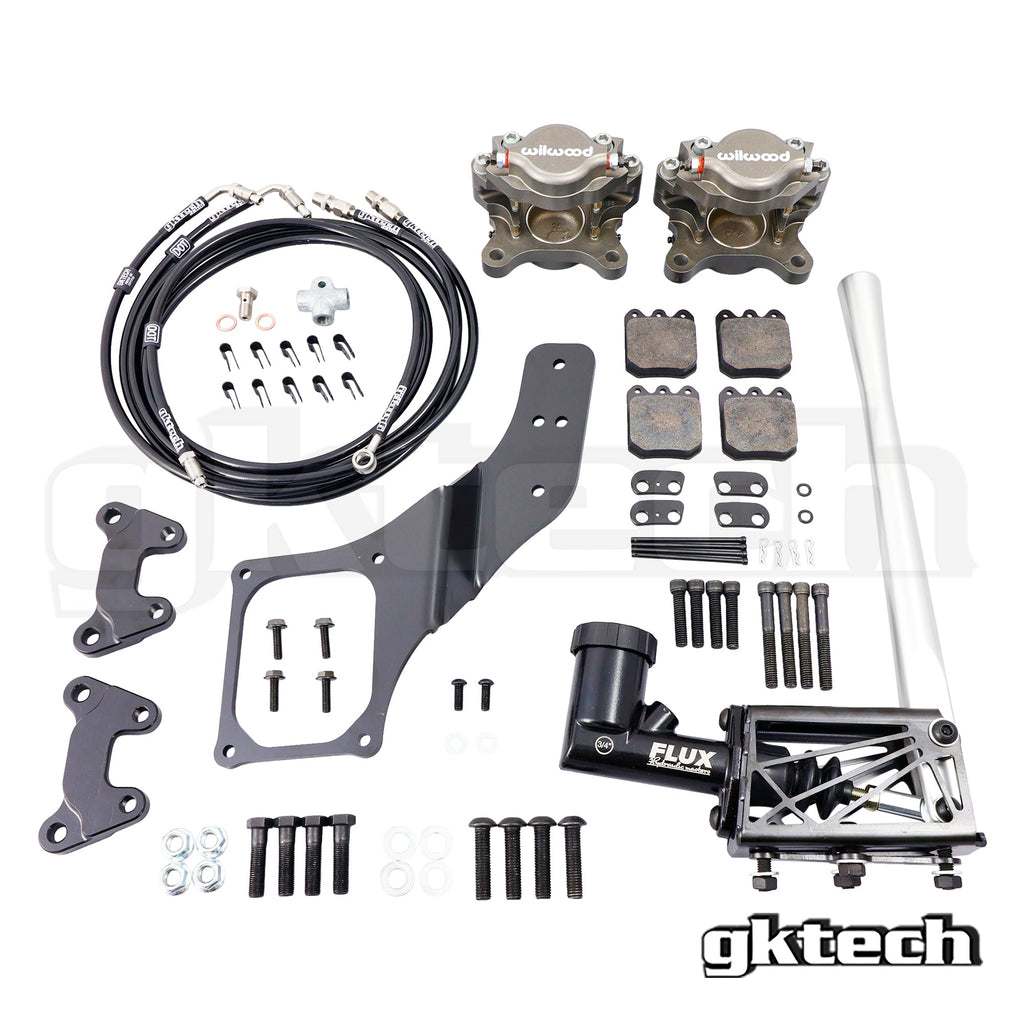

Kit Includes
- 1 x Hydraulic Handbrake Assembly (HYDR-HBRK)
- 1 x Dual Caliper Bracket (JZXX-BRKT)
- 1 x SS Braided Brake Line Kit (JZXX-DUAL)
- 2 x Wilwood DynaPro dual piston calipers x2 (889545000740)
- 1 x Wilwood BP-10 brake pads (889545033663)
- 1 x Wilwood Dynapro Caliper Spacers - 16mm (WWDP-16MM)
Options
-
Select Handle Colour: Blue (ALUM-BLUE), Gold (ALUM-GOLD), Orange (ALUM-ORNG), Pink (ALUM-PINK), Red (ALUM-REDX), Purple (ALUM-PRPL), Black (ALUM-BLCK), Neo Chrome (ALUM-NEOX), Silver (ALUM-HAND)
-
Master Cylinder: 5/8" internal reservoir master cylinder (FL-IR-58), 3/4" internal reservoir master cylinder (FL-IR-34)
-
Handbrake Base: None, Toyota JZX Outside Handbrake Mount (JZXX-HBKR)
Suits
- Toyota Chaser Mark II Cresta JZX90 (1992–1996), 1JZ-GTE
- Toyota Chaser Mark II Cresta JZX100 (1996–2001), 1JZ-GTE
