GKTech Z33 350Z car specific handbrake mount (Z33XMOUNT)
Suits Nissan Z33
Brand: GKTech
Part Number: Z33XMOUNT
Description:
GKTech Z33 350Z car specific handbrake mount, kit part number Z33XMOUNT. Suits Nissan Z33. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.

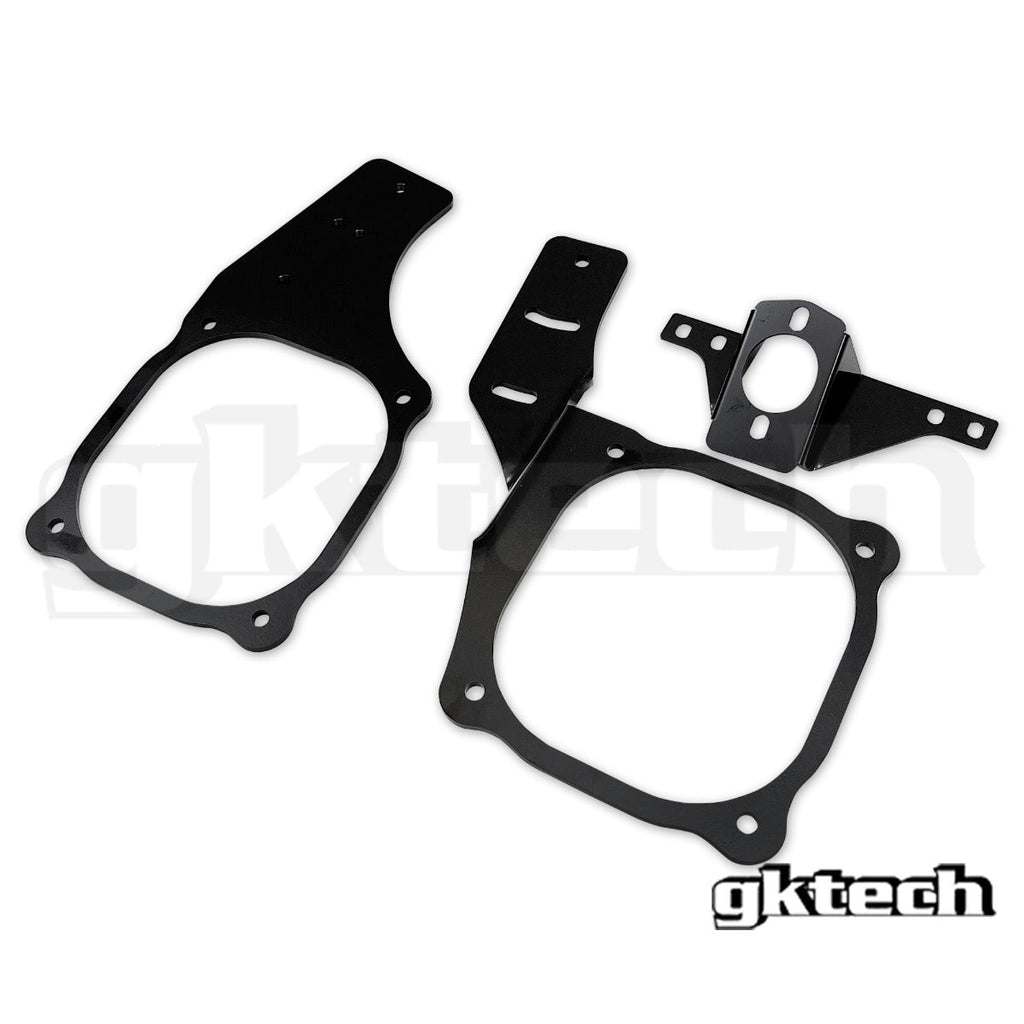

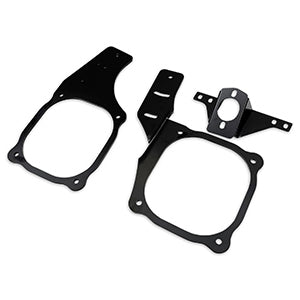

When installing a hydraulic handbrake in your car, you'd typically have to drill holes or weld a bracket in place. GKTech understand that not everyone wants to do that, so they have made these bolt in brackets. The brackets bolt to the stock gearbox shifter hole and allows you to fit their hydraulic handbrake assembly without modifications to the gearbox tunnel.
- 100% direct fit with no modifications required to the gearbox tunnel
- Available for either center console or side mount LHD and RHD variants.

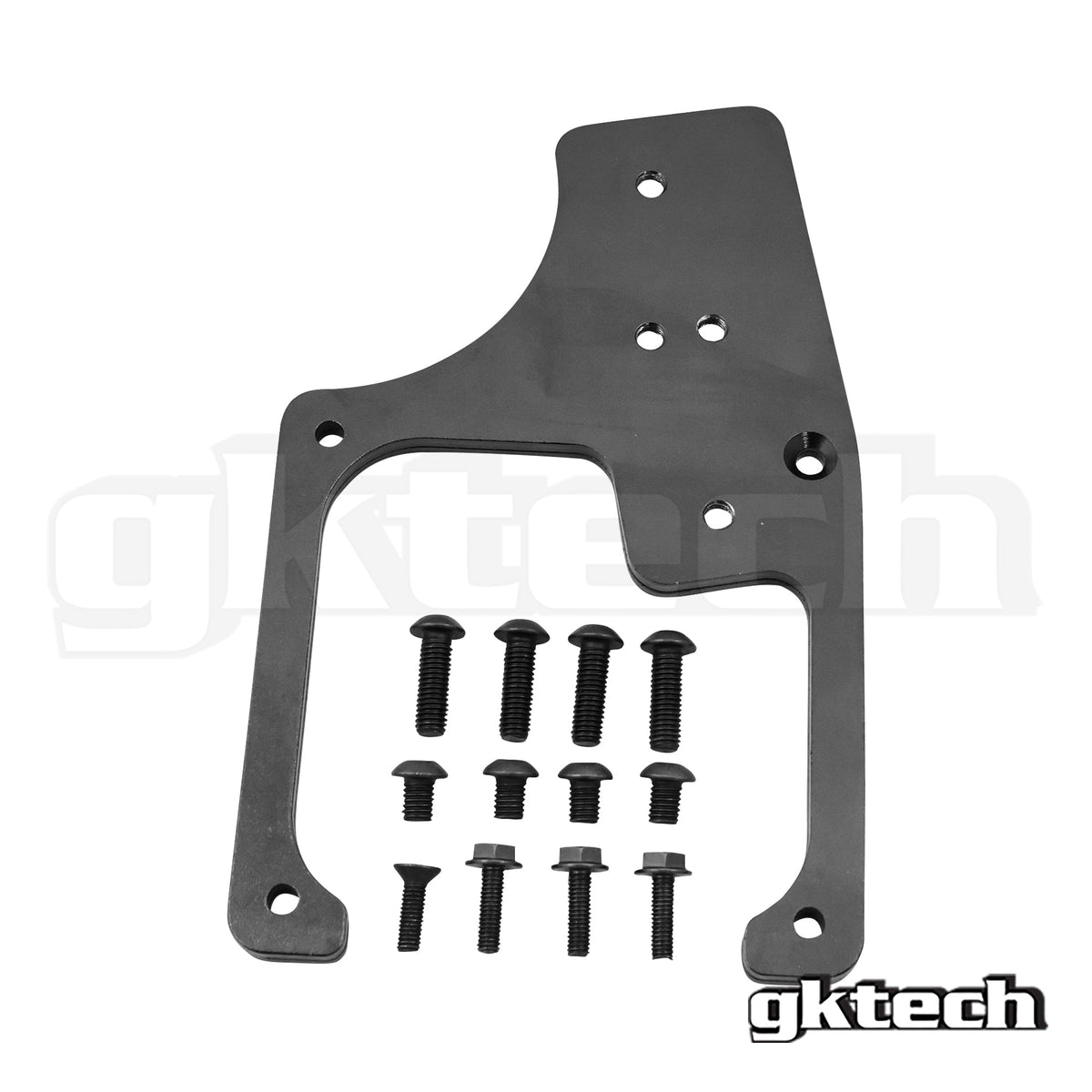

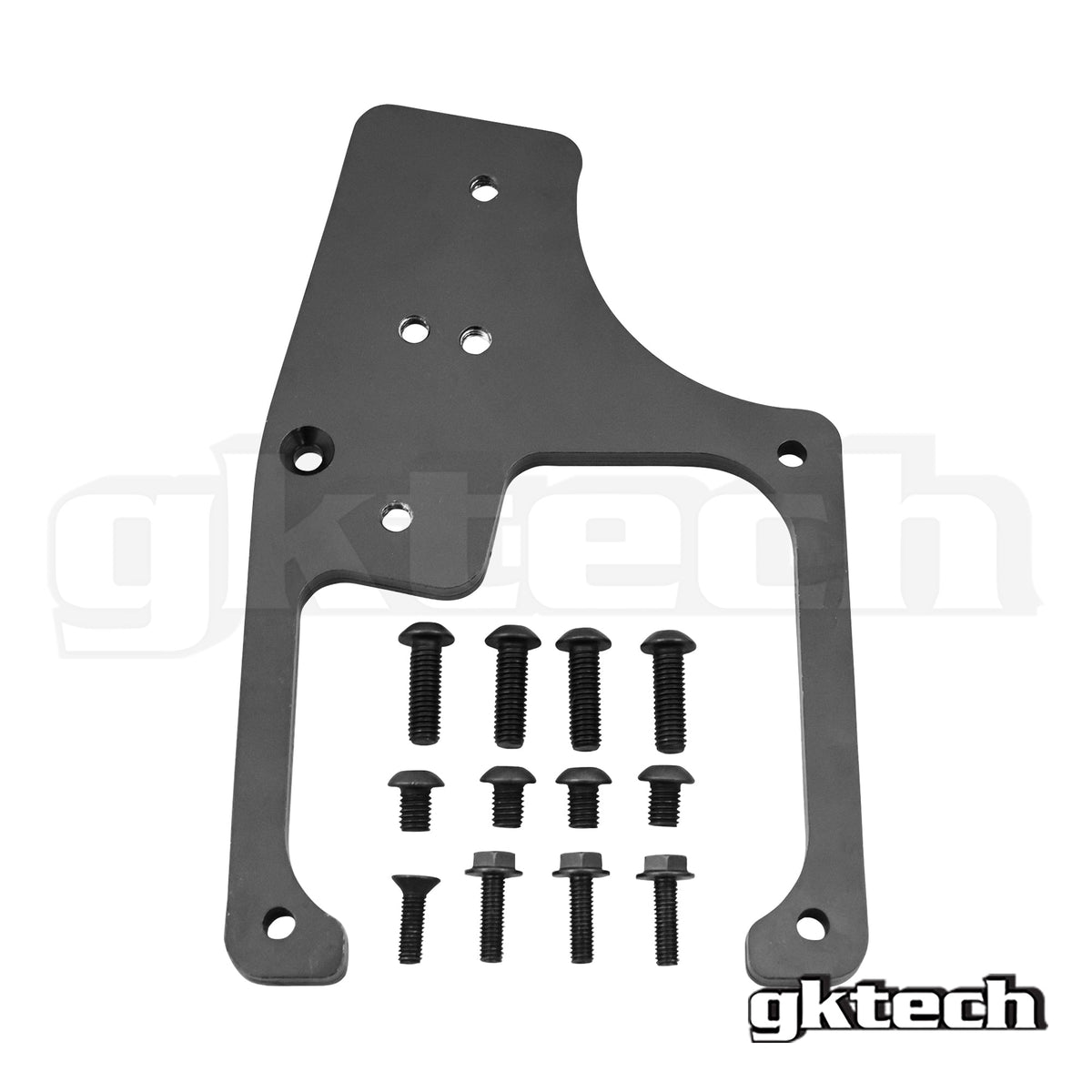

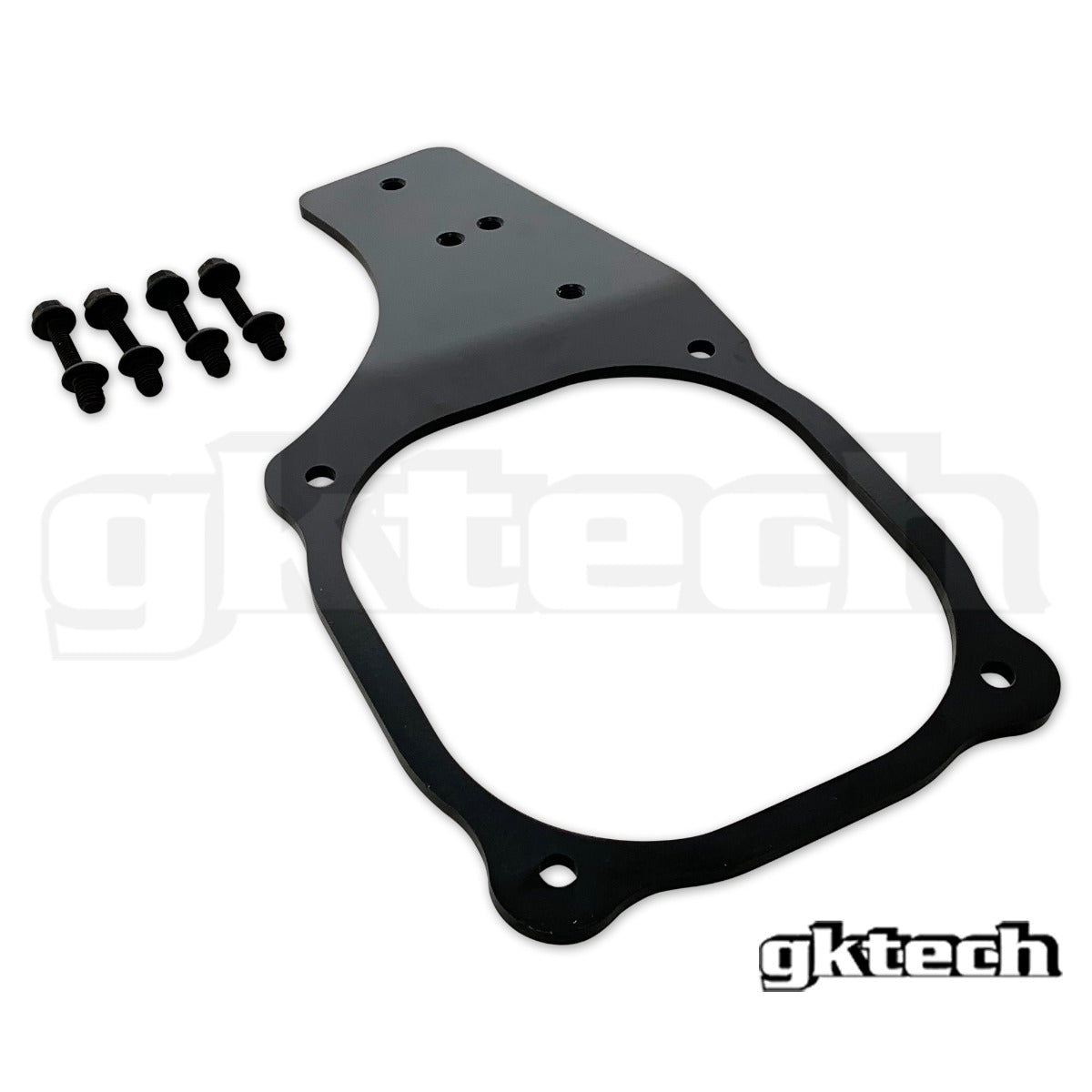

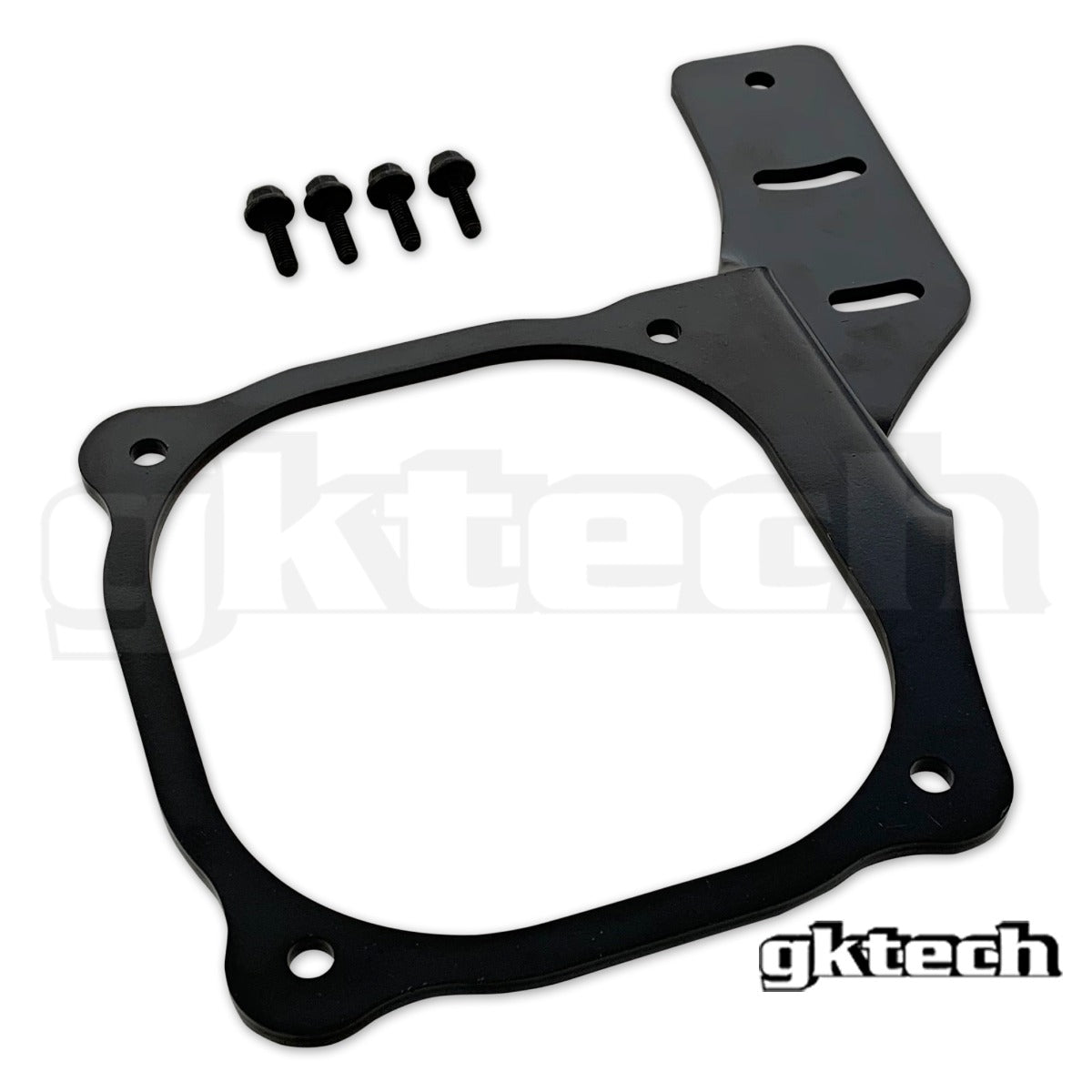

- Laser cut from 5mm thick 4130 Chromoly sheet and zinc coated for longevity
- Includes 4x replacement M6x20mm bolts
Inside mount = mounts inside/within the center console itself, this will require trimming beneath the AC unit when used on both the left and right-hand side.
Outside mount = mounts outside the center console itself, no modifications required to the trim when used on both the left and right-hand side.
Please refer to product images upon ordering.
NOTE: Console version will require some trimming under the center console and require you to cut a hole for the lever.
For the 350z AT Tunnel - INSIDE Trim Mount the transmission tunnel will require one tab to be flattened & some minor sound deadening removal and also only work with the LOW style handbrake seen HERE
They cannot confirm fitment of the AT Tunnel mounts to V35/G35, only Z33. Please contact Stealth Ride if you do have an automatic V35/G35.
NOTE #3 Outside mount when used on the drivers side may have contact with the OEM seat when the seating position is close to the steering wheel, the OEM seat can still be used but can cause damage with prolonged use.
Options
-
Console mount or off to the side?: INSIDE trim mount - LEFT side (Z33X-CNSL), INSIDE trim mount - RIGHT side (Z33X-CNSR), 350z handbrake OUTSIDE trim mount - LEFT side of console (350Z-HBKL), 350z handbrake OUTSIDE trim mount - RIGHT side of console (350Z-HBKR), 350z AT Tunnel - INSIDE Trim Mount LEFT Side (33AT-CNSL), 350z AT Tunnel - INSIDE Trim Mount RIGHT Side (33AT-CNSR), 350z AT Tunnel - OUTSIDE Trim Mount LEFT Side (33AT-HBKL), 350z AT Tunnel - OUTSIDE Trim Mount RIGHT Side (33AT-HBKR)
-

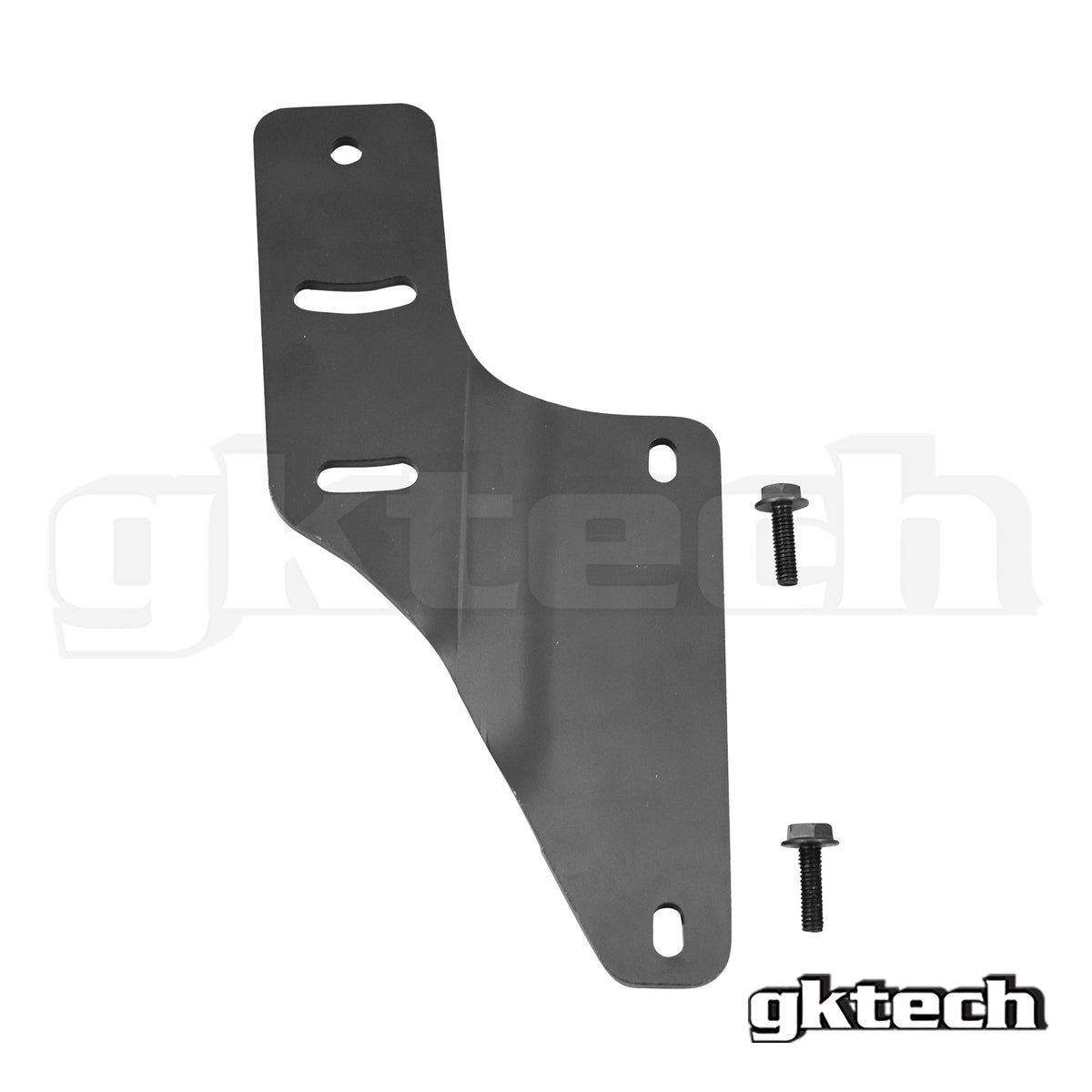

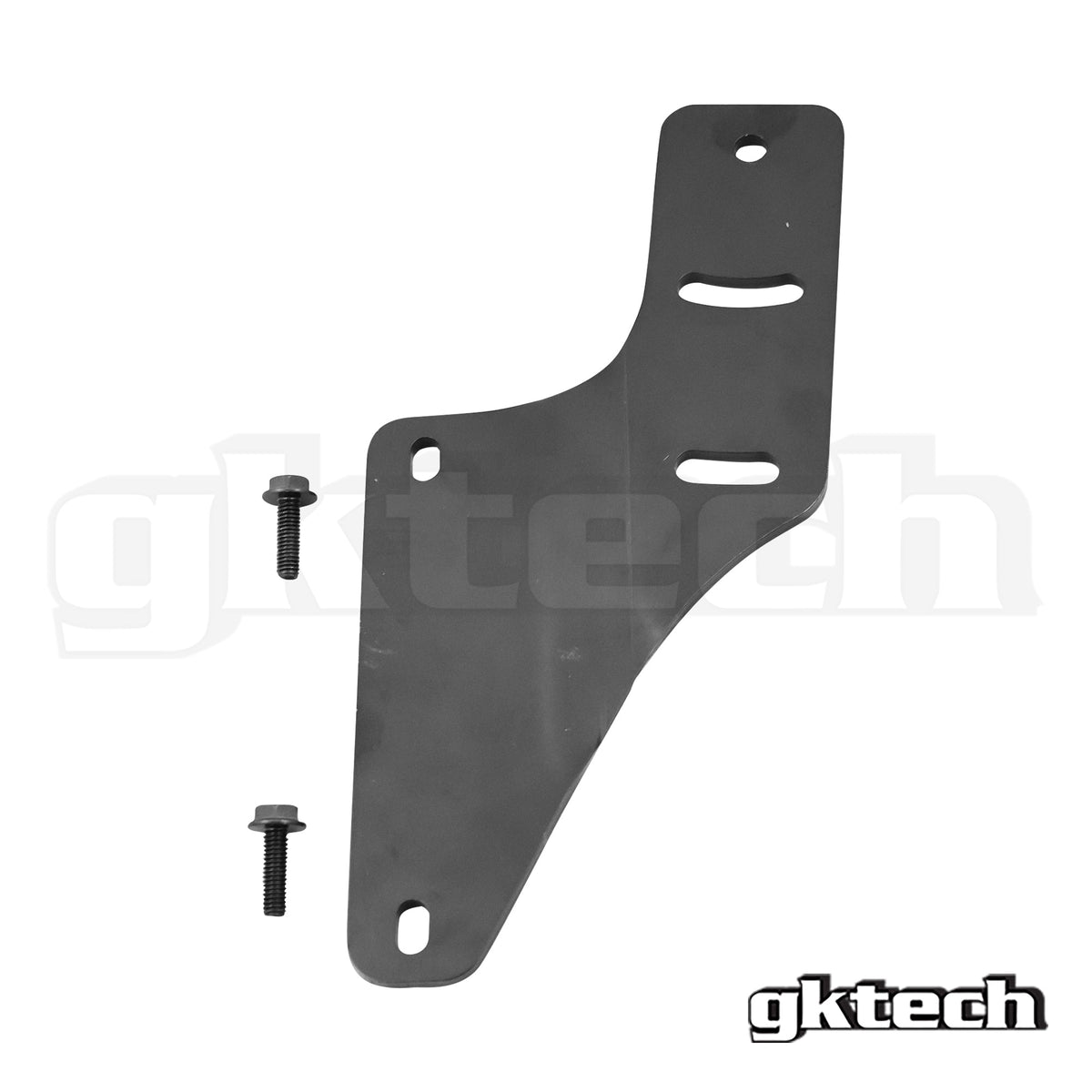

Did you want to add an additional support brace? (recommended): None, additional support brace to suit 350z hydraulic handbrake assembly - to suit RHD (CNSR-BRCE), additional support brace to suit 350z hydraulic handbrake assembly - to suit LHD (CNSL-BRCE)
Suits
- Nissan 350Z Z33 (2002–2009), VQ35DE
