GKTech Z34 370Z M14 Inner Tie Rod Conversion (Z34X-M14I-BUNDLE)
Suits Nissan Z34, V36
Brand: GKTech
Part Number: Z34X-M14I-BUNDLE
Description:
GKTech Z34 370Z M14 Inner Tie Rod Conversion, kit part number Z34X-M14I-BUNDLE. Suits Nissan Z34, V36. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTECH high tensile 4130 zinc coated tie rod extender conversions screw on to the end of M16 tie rods and allow the tie rods to travel further into the steering rack which creates more steering lock. Great for drift or getting out of parking spots.
This product converts what are normally an 18mm inner tie rod thread to a 16mm inner tie rod thread which is a much more common size. In addition to converting to a more common tie rod thread this rack spacer set offers a grand total of 16mm of rack travel equating to around 12-15 degrees of extra lock without compromising on the amount of thread left in the steering rack.
To complete the install of the M14 tie rod conversion GKTech has included their best-selling M14 inner tie rods, available in two lengths, extra adjustment VIA a deep cut thread etc.
- DIY installation
- CNC machined high tensile zinc coated 4130 steel rack spacer

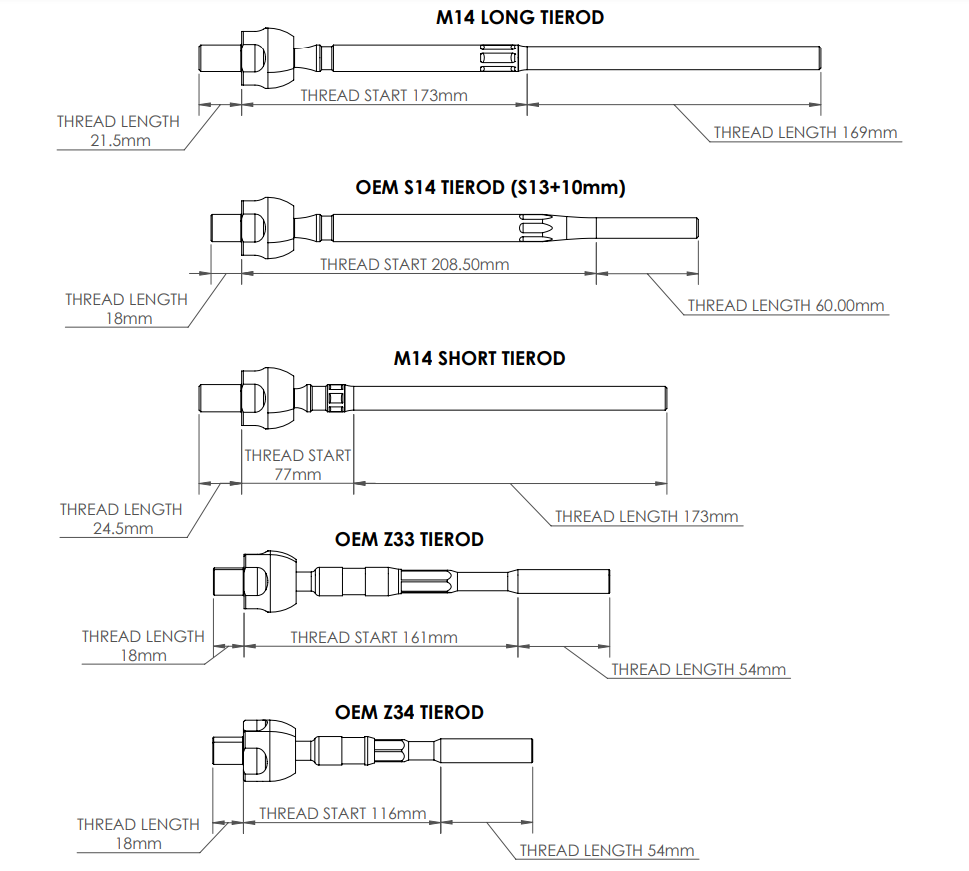

- Short tie rod adjustable from 66mm minimum length through to 250mm(183mm) of adjustment

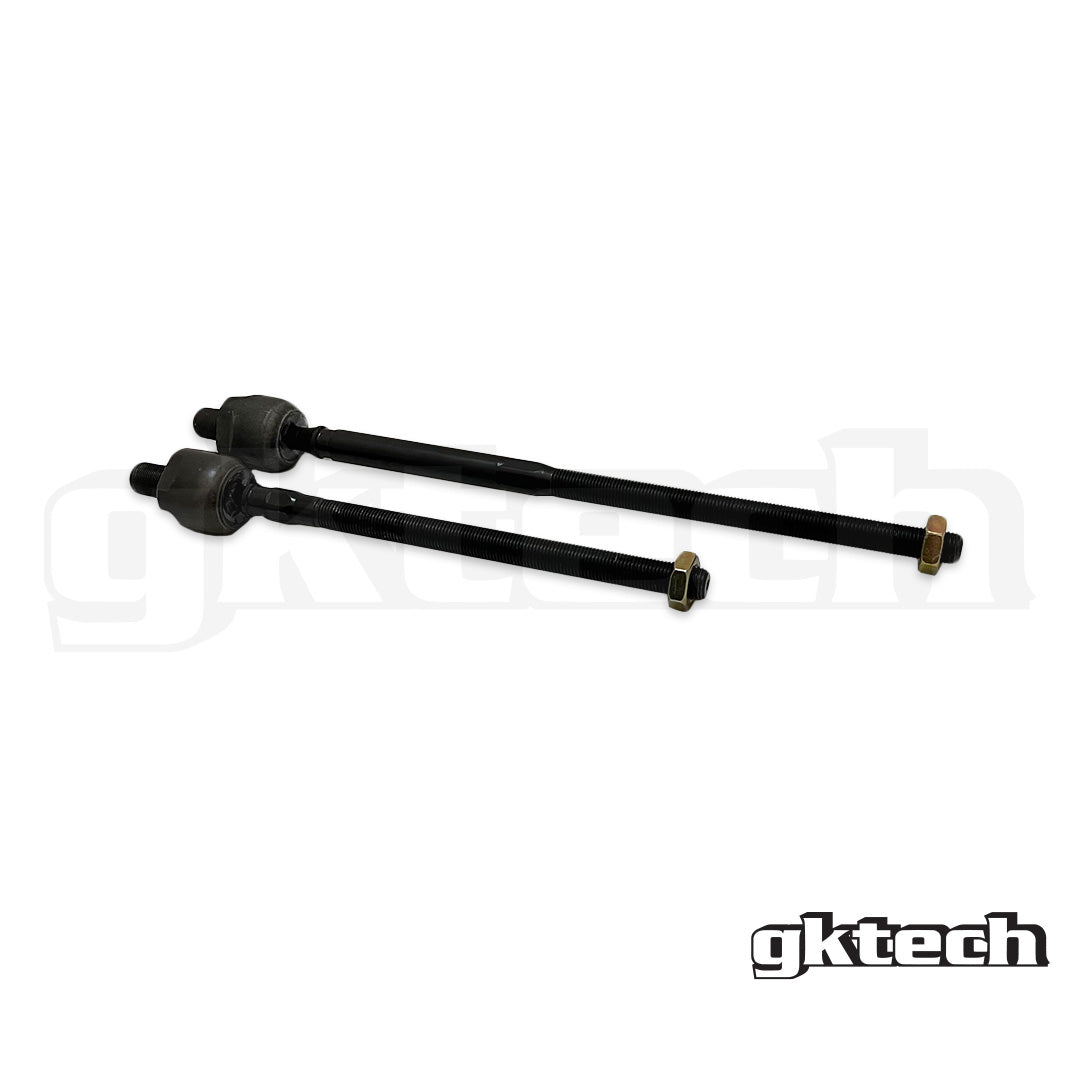

- Long tie rod adjustable from 175mm minimum length through to 340mm(175mm) of adjustment
- Increased rack side thread length for more thread overlap
- Rod is manufactured from HRC 25-28 Steel with PTFE (Teflon) lined maintenance free bearing
- 50 degrees range of motion (25 degrees misalignment)
NOTE: Will not work with OEM inner tie rods. This product is designed to convert your car to use M16 (on the rack side) tie rods as used on Nissan Silvias, Skylines, Z33 350z etc with a 14mm outer.
NOTE 2: RACK SPACERS AND TIE RODS SOLD AS A PAIR
NOTE 3: Long inner tie rods are only recommended on cars using aftermarket LCA's that are longer than OEM, such as their super lock FLCA. Cars using OEM LCA's are to use the shorter option inner tie rod.
Kit Includes
- 1 x Steering rack spacer/Tie rod conversion (Z34X-EXCO)
Options
-
Short or long inner tie rods?: Short? (M14I-SHRT), Long? (M14I-TROD)
Suits
- Nissan 370Z Z34 (2009–2020), VQ37VHR
- Nissan Skyline V36 (2006–2014), VQ37VHR
