GKTech Z34 370Z, V36 4130 Super Lock Drift Knuckles (Z34X-DKNK)
Suits Nissan Z34, RZ34, V36
Brand: GKTech
Part Number: Z34X-DKNK
Description:
GKTech Z34 370Z, V36 4130 Super Lock Drift Knuckles, part number Z34X-DKNK. Suits Nissan 370Z Z34, Nissan Z RZ34, Nissan Skyline V36. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
NOTE: ONLY to be used with the V2 Gktech FLCA NOT the V1 - See FAQ for more information
Introducing the ultimate drifting upgrade for the Z34 370Z! The GKTECH Super Lock Drift Knuckles are engineered to provide precise and predictable steering response while delivering up to 65 degrees of steering angle, they are not for the faint-hearted.

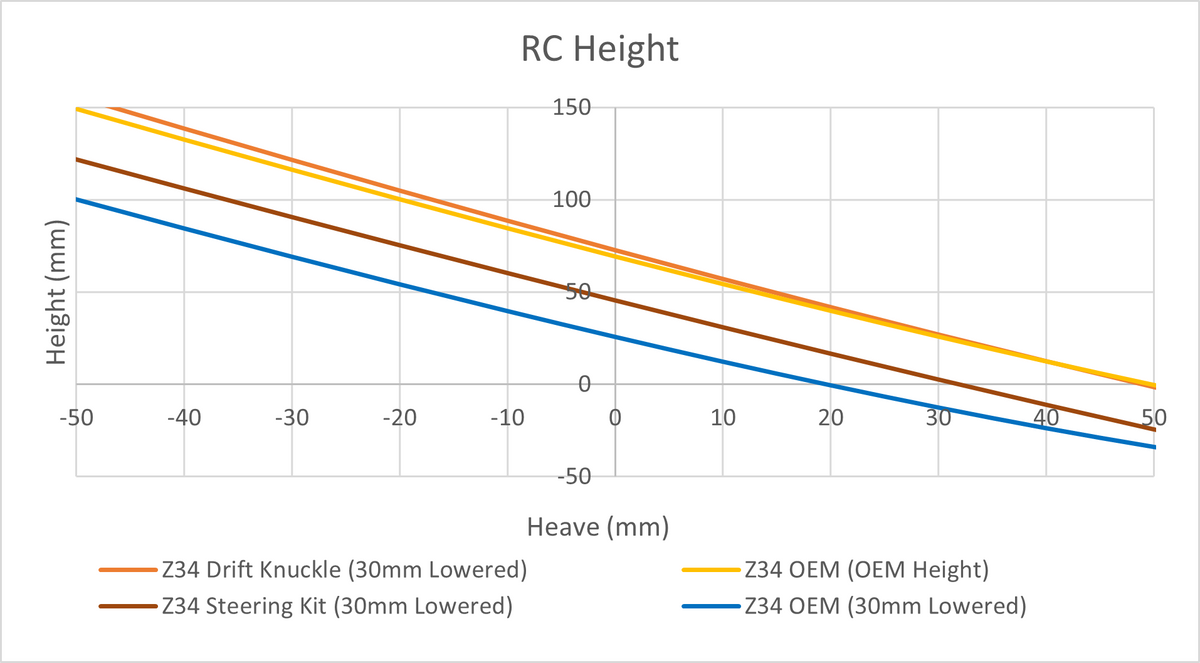

GKTech has lowered the ball joint height to achieve a 30mm roll center correction while also relocating the tie rod pickup to provide faster steering, reduced ackerman and optimized bump steer. Alongside this, the ackerman is adjustable, giving either some ackerman or parallel steering and the bump steer is adjustable for those that want to dial their setup in.
The caster has been reduced which in turn reduces camber change through steering angle resulting in a flatter contact patch and more consistent steering feedback during drifting. The added caster trail makes up for the reduced caster to ensure that self steer remains desirable.
Their knuckles are constructed from 4130 chromoly steel which provides incredible strength while still being lightweight. They are specifically designed for aftermarket single-piece lower A-arms instead of the OEM two-piece virtual A-arm. To further enhance performance, they have added high misalignment PTFE lined spherical bearings throughout the knuckles.
- 30mm roll center correction

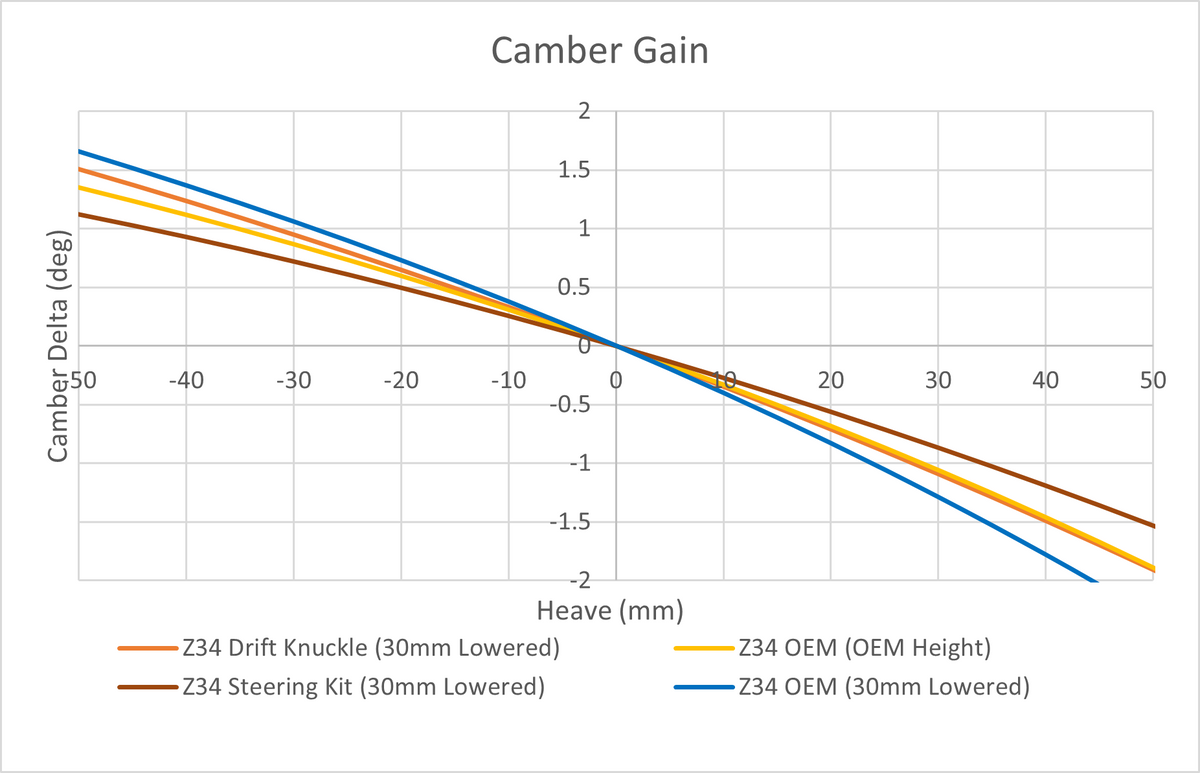

- Optimized camber gain in roll and bump
- Reduced caster which reduces camber change through steering for a flatter contact patch and more consistent steering feedback during drift
- Increased steering speed and adjustable ackerman
- Strong but lightweight sheet metal design, constructed from 4130 chromoly steel
- Specifically designed for aftermarket single piece lower A-arm instead of the OEM two piece virtual a-arm

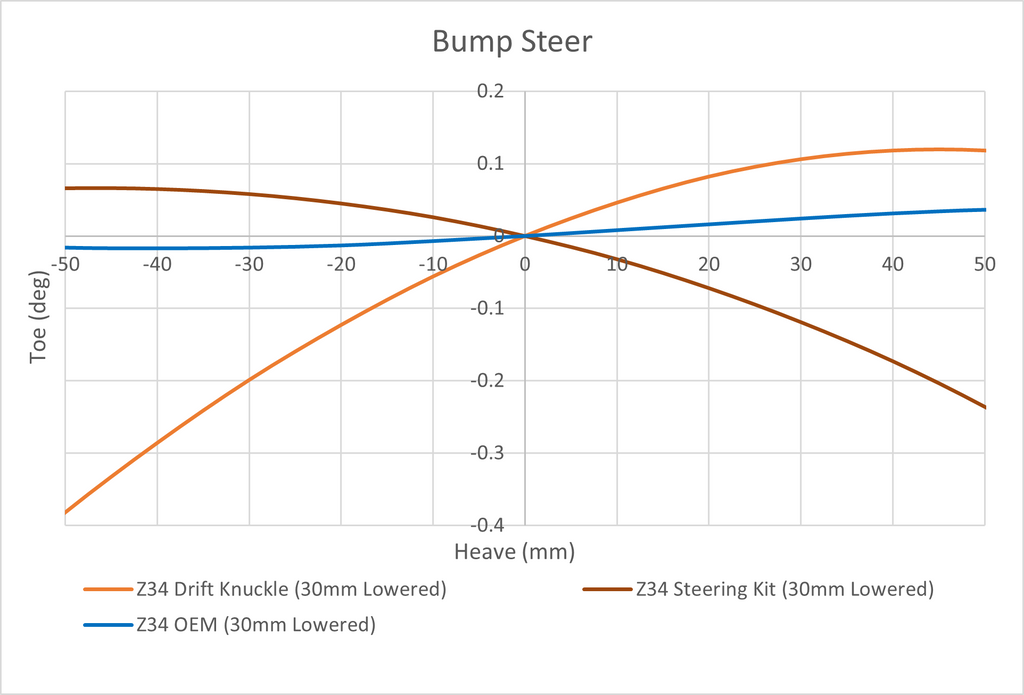

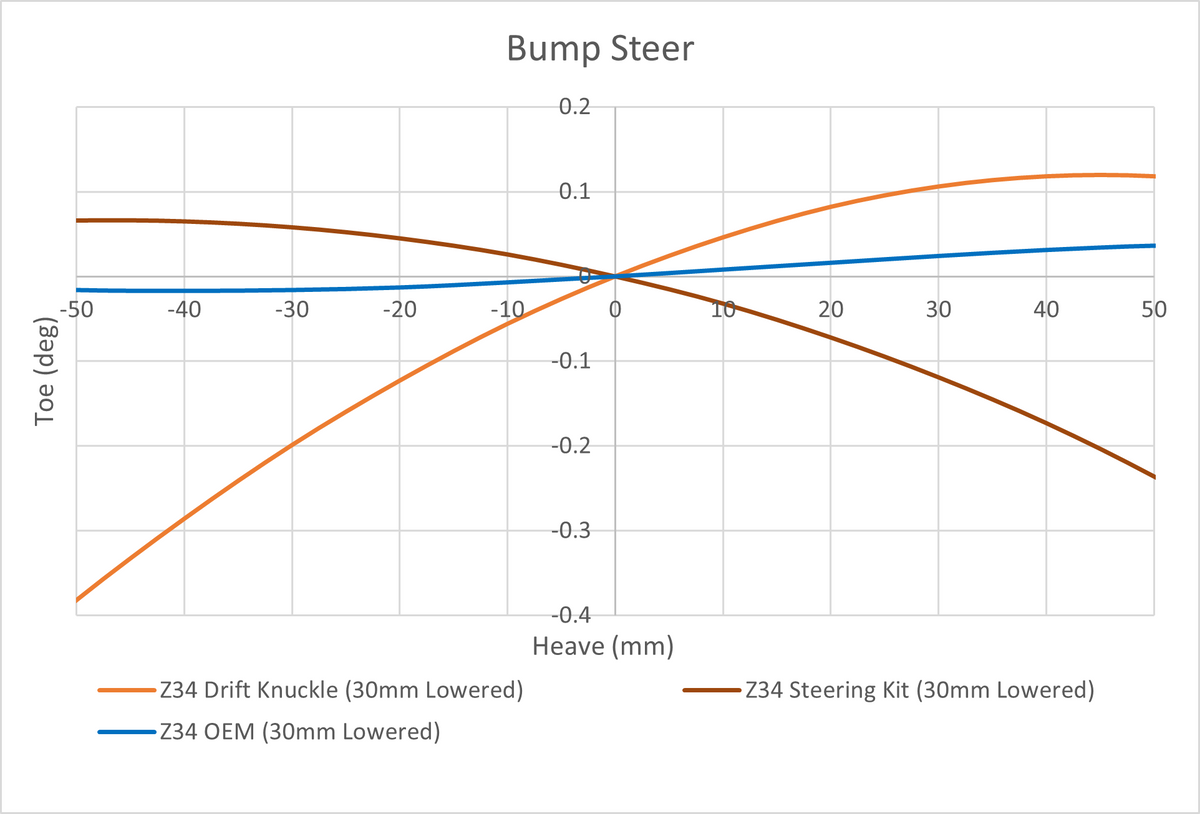

- Corrected bump steer for predictability and consistency, with spacers for bump steer adjustment
- High misalignment PTFE lined spherical bearings throughout
- High clearance to support up to 65 degrees of steering angle
- Provision for ABS
NOTE: ONLY to be used with the V2 Gktech FLCA NOT the V1 - See FAQ for more information
NOTE #2 - Adjustable front upper camber arms with negative adjustment and extended brake lines are required.
They offer these knuckles, as well as their FLCAs, FUCAs and other selectable items that come in their 15% off Super Lock combo HERE
Suits
- Nissan 370Z Z34 (2009–2020), VQ37VHR
- Nissan Z RZ34 (2022–on), VR30DDTT
- Nissan Skyline V36 (2006–2014), VQ37VHR
