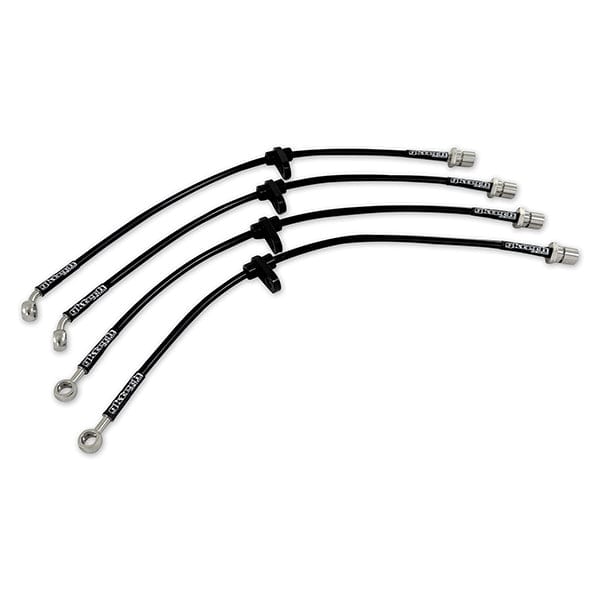

GKTech ZN6 86, BRZ Braided Brake Lines
Suits Toyota / Subaru 86 ZN6, BRZ ZC6, GR86 ZN8, BRZ ZD8
Brand: GKTech
Part Number: GT86-BRKEF, GT86-BRKER
Description:
GKTech ZN6 86, BRZ Braided Brake Lines. Suits Toyota 86 ZN6, Subaru BRZ ZC6, Toyota GR86 ZN8, Subaru BRZ ZD8. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTECH 86/BRZ braided brake lines are a direct replacement of the factory lines and are stronger (read: more reliable) than the factory rubber lines which are prone to breaking but they also eliminate the spongy feel of the standard brake lines.
The front lines are also longer to compensate for big brake setups or cars with more steering lock (which would see stretching with the factory line)
The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
Suits
- Toyota 86 ZN6 (2012–2021), FA20
- Subaru BRZ ZC6 (2012–2021), FA20
- Toyota GR86 ZN8 (2021–on), FA24
- Subaru BRZ ZD8 (2021–on), FA24
Part Numbers
- OEM Replacement Front only: GT86-BRKEF
- OEM Replacement Rear only: GT86-BRKER
