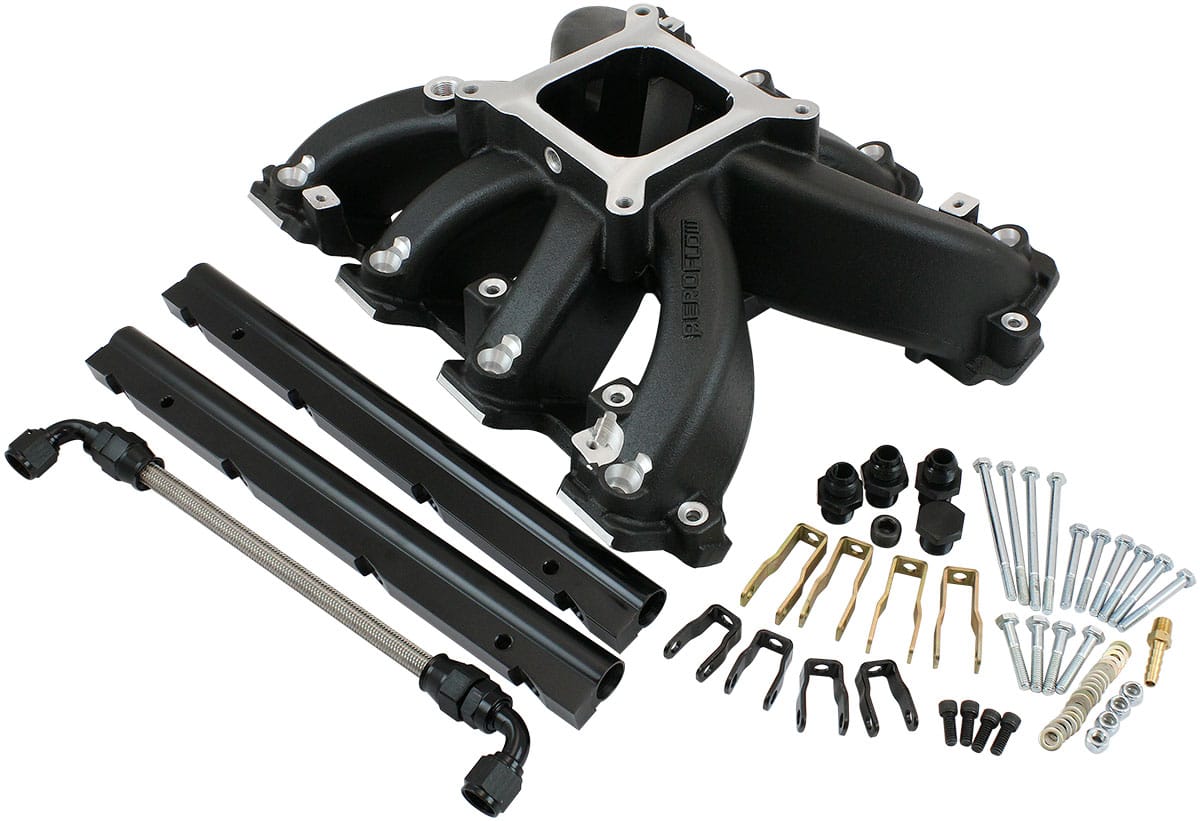

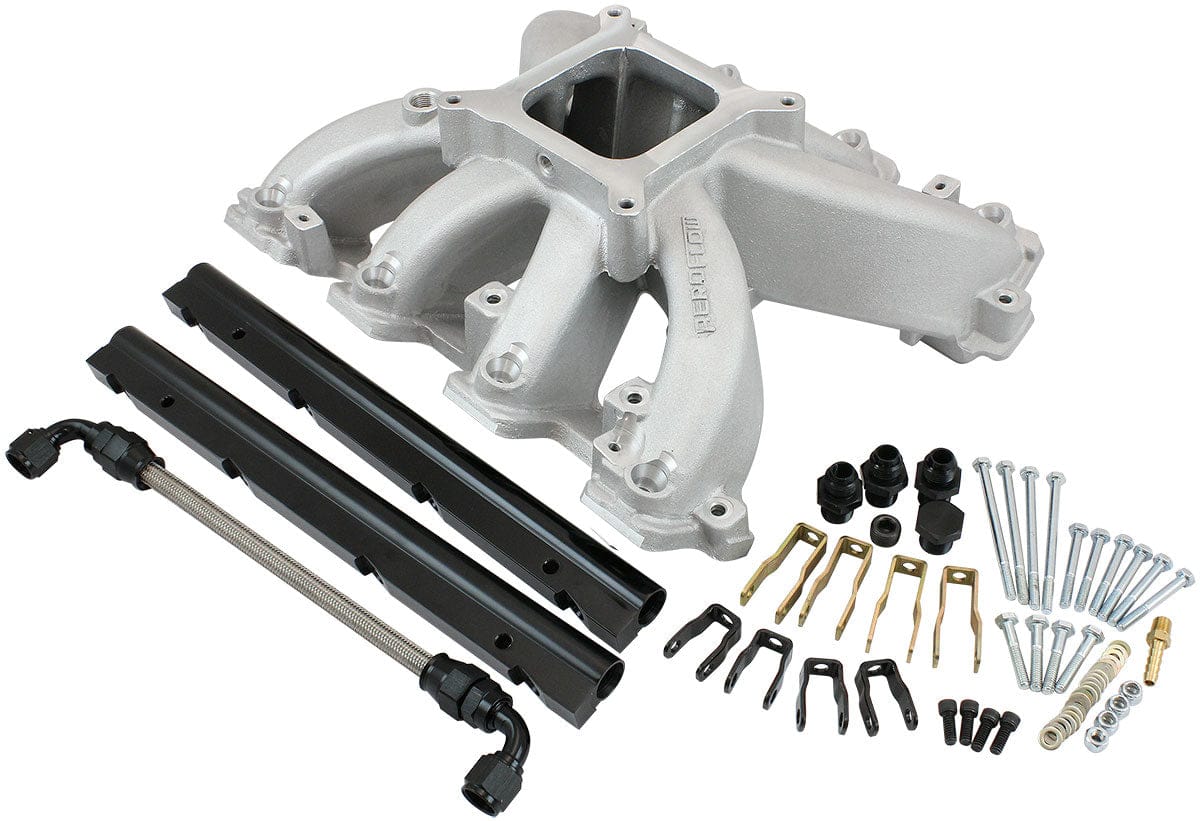

Aeroflow GM LS Rectangle Port Carburettor Hi Rise Race Single Plane EFI Intake Manifold, Black or Natural Cast Finish 4 Barrel 4150 Square Bore Carburettor Pad
Brand: AEROFLOWPart Number: AF6250-6001Description: Convert your GM LS engine to allow a 4150 style throttle body to sit on top of your engine for retrofit applications with this Aeroflow Performance Hi Rise Race cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS1/LS2 rectangle port cylinder heads.
¢ Fits GM LS3 Rectangle Port Engines.
¢ EFI Applications.
¢ This is designed for GM LS Engines with EFI only. Use AF6240-6005 for NON-EFI applications.
¢ This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
¢ Requires the use of 14mm short (33.60mm) fuel injectors (Sold Separately).
¢ Fits GM LS3 Engines.
¢ Single Plane Configuration.
¢ High Rise Intake Manifold.
¢ RPM operating range - 2500 to 7000.
¢ Black Finish.
¢- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
