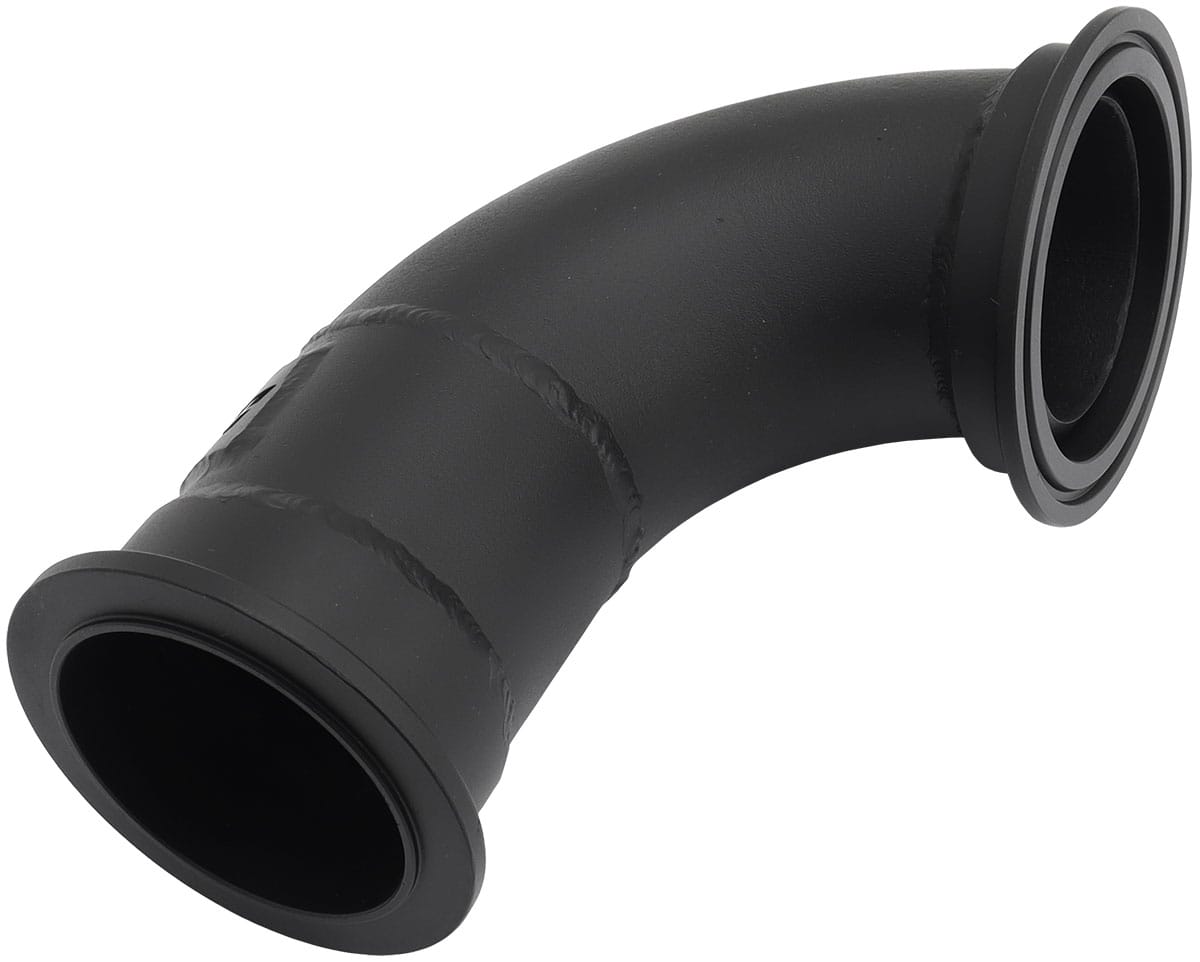

GM LS Twin Turbo ShortTurn Up Adapter Manifold2.5" V-Band and AF8080-1016 Flange, Sold IndividuallyBrand: AEROFLOWPart Number: AF8200-2011Description: GM LS twin turbo short turn up adapter steampipe manifold.
Sold Individually.
2.5" V-Band welded on one end and AF8080-1016 flange welded on the other end, this will suit Boosted 4849 up to 6862 Turbochargers.
Aeroflow turbo turn up adapters are finished to the highest of standards, constructed from thick wall 3mm mandrel bent steam pipe with CNC Machined header and turbo flanges. Eachflange is milled after weldingto ensure precise surface finish.
Specifically designed to suit the Aeroflow Performance GM LS twin Turbo exhaust manifolds AF8200-2000.They will allow the user to mount their turbochargers in line with the outlets of theseturbo manifolds. Alternatively, they can be rotated to any position or modified to suit your application. They feature V-bands on both sides of the turn up adapter. 2.5” V-Band welded on one end and AF8080-1016 flange welded on the other end, this will suit Boosted 4849 up to 6862 Turbochargers. These short turn ups have a offet of 80mm compared to the longer turn up(AF8200-2012) which has a offset of 110mm.
Each manifold is finished with a black enamel coat for shippingpurposes only. We do recommendto have these turn ups either wrapped with exhaust wrap or ceramic coated to ensure protection for external accessories and reduce under bonnet temperatures.
