Haltech Elite 2500 + Terminated Harness Kit for Nissan RB Engines (no ignition sub-harness, no CAS sub-harness) (HT-151306)

Haltech Elite 2500 + Terminated Harness Kit for Nissan RB Engines (no ignition sub-harness, no CAS sub-harness)
Brand: Haltech
Part Number: HT-151306
Description:

Harness Overview The fastest and most cost effective way to wire your race car or engine conversion!

FREE Haltech IAT sensor kit included with every Haltech ECU purchased from Stealth Ride.

Suits

• Nissan RB RB20/25/26/30

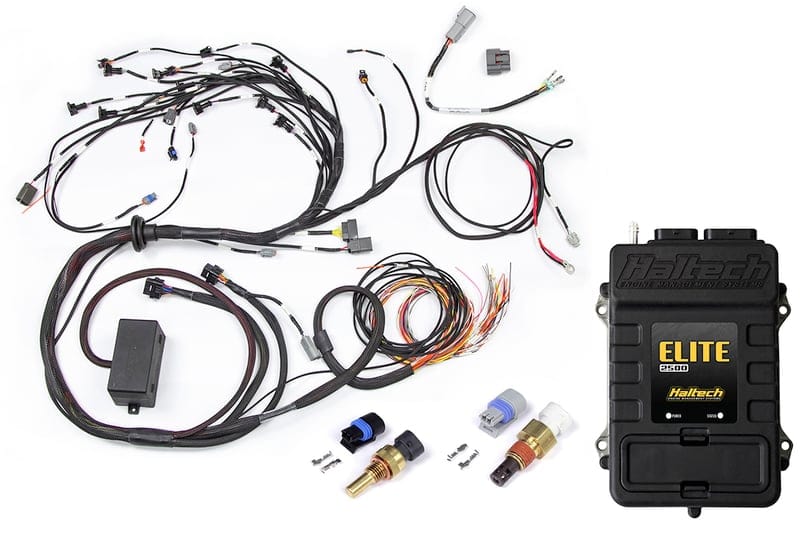

What's in the Box

• Elite 2500 ECU, Nissan RB Series Terminated Engine Harness (HT-130326),, Air Temp Sensor (HT-010200), Coolant Temp Sensor (HT-010300), Connector Pack for auxiliary I/O, Quick Start Guide

Specifications

• Analog Voltage Inputs (AVI): 10
• Differential Engine Position Inputs: 2 (Trigger and Home)
• Digital Pulsed Inputs (DPI): 0
• Synchronized Pulsed Inputs (SPI): 4
• Knock Sensor Inputs: 2
• On-board Wideband Controller: NO
• Injection: 8 (peak and hold)
• Ignition: 8
• Ignition Switch Input: 1
• Engine Control Relay output: 1
• Total Digital Pulsed Outputs (DPO): 5
• Half Bridge Outputs (HBO): 4 Stepper 2 DBW
• On-Board PDM: NO
• 25A High Current Outputs (HCO): 0
• CAN Bus Networks: 2
• MAP sensor: Internal (4 BAR)
• Inertia / G-Sensor: NO
• USB 2.0: USB-B
• Low Power Up via Cable: NO
• Wi-Fi: NO
• Compatible with Haltech Connect App: NO
• Anti-Lag/Rotational Idle: YES
• Boost Control: 4D Closed Loop
• Closed Loop O2 Control: Dual
• CO2 Control: YES
• Drive-By-Wire Throttle: Single
• Engine Protection: Multi-Level
• Flat Shift Support: Advanced
• Flex Fuel: YES
• Intake Air Bleed Control: YES
• Knock Control: Dual
• Launch Control: YES
• Long Term Learning: Up to 4D
• Nitrous Control Stages: Up to 6
• Race Timer: YES
• Rolling Anti-Lag: YES
• Shock Travel & Ride Height: YES
• Torque Management (Driveshaft and Engine RPM Targeting): NO
• Traction Control: YES
• Trans Brake: YES
• Tuning Table Resolution: 32x32x8 4D
• Variable Cam Control: Up to 4
• Onboard storage: 8MB

Notes

Optional harnesses sold separately: CAS Sub-Harness - HT-130327, Series 1 Coil harness - HT-130331, Series 2 Coil harness - HT-130330, RB30 Single Cam LS1 Coil Harness HT-130343
