Description

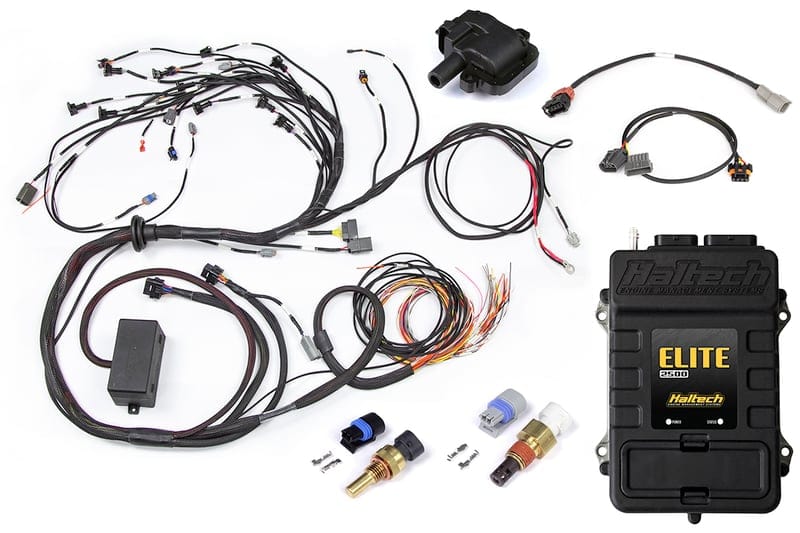

Suits: Nissan RB30 Single Cam Includes: Elite 2500 ECU, Nissan RB Single Cam Terminated Harness (HT-130326), LS1 Ignition Coil and Harness (HT-130343), CAS Harness (HT-130344), Air Temp Sensor (HT-010200), Coolant Temp Sensor (HT-010300), Connector Pack for auxiliary I/O, Quick Start Guide.
Air Temp Sensor - Small Thread M14 x 1.5Coolant Temp Sensor - Small Thread M12 x 1.5LS1 Coil with built-in IgnitorHarness Overview The fastest and most cost effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours. An efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours. The quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle. The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration. * The fastest and most cost effective way to wire your race car or engine conversion! * Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours. An efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours. The quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle. The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration. The fastest and most cost effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.ECU OVERVIEW Elite 2500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications. Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, engines with multiple variable camshafts. Featuring a robust environmentally sealed water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 2500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 2500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide. Supports 1 to 12 Cylinder engines 2 to 4 Rotor engines Normally aspirated or forced induction Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF) Staged, Sequential, semi sequential, batch or multipoint injection patterns Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems Connect to a wide range of display dashes and expansion devices via CAN. Waterproof Case (With Pocket Cover Fitted) 8 x Fuel Injection Outputs 8 x Ignition Outputs 12 x Digital Outputs 10 x Analogue Voltage Inputs 4 x Synchronised Pulsed Inputs 4 x Dedicated inputs (Dual Knock, ignition Switch & onboard MAP Sensor) 2 x Dedicated Engine Position Inputs with extensive trigger type support Up to 45 channels of Input & Output (I/O) expansion (via CAN) USB Laptop communication (Windows) Now using the new NSP Calibration Software .
Harness Features This harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle. Fully programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions. This harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle. Fully programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions. ECU FUNCTIONS Drive by Wire Throttle Control (DBW) - Requires (2) user defined outputs (4) user defined inputs Low Impedance Injector control with Programmable Injector Peak and Hold Currents & Programmable peak time Flex Fuel Function (Direct sensor input) - Tune your engines boost, fuel and ignition by ethanol content Flexible tuning setup for Petrol (Gasoline), LPG, Methanol and Ethanol allows you to simply select your fuel type Closed Loop 02 Control - Dual bank control for precise tuning (With optional external CAN O2 Wideband Controller Kit) Dual Channel Knock Control - Synchronised to engine position with high speed digital filtering for accurate detection Variable cam control - Independently control up to 4 camshafts - Requires a minimum of 1 user defined input & output per variable cam Closed Loop Idle Speed Control with learning for consistent idle stability Requires 1 or 2 user defined outputs (BAC type) or 4 user defined outputs (Stepper motor type) Long term learning (Auto tune) on fuel, ignition, cam, boost & idle control maps (up to 4D) On-board data logging - Up to 40 channels of logging at sample rates up to 5ms (200Hz) with 2MB of internal memory Laptop data logging -Data log all available channels directly to your laptop's hard drive for both tuning and diagnostics Dual CAN Bus communication for Haltech Dashes and expansion devices, Supported OEM CAN & OBDII (view live engine data & set and clear diagnostic trouble codes) Injection Stages: up to 4 with individual injector flow rates per injector 8 Injector drivers for 2 sequential stages on 4 cylinder & 3 rotor engines and up to 4 sequential stages on 2 rotor engines Anti-Lag/Rotational idle - for closed course racing, rally, circuit or drift. Build and maintain boost during closed throttle conditions Rolling Anti-Lag - lock to your current (or pre-set) RPM or road speed for roll racing or pit lane limiting Launch Control - Control your engines power delivery, RPM & boost for consistent performance at the start line Traction Control - Control your engines power output via mappable front vs rear axle or individual wheel speed slip. ADVANCED TUNING Tuning Table Resolution up to 32 x 32 x 8 Limitless tuning flexibility -Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections Example tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height or any channel for ultimate flexibility - Dual mapping is a thing of the past. Per Cylinder Tuning Correction - 3D Wideband O2 - Connect up to 9 Channels via CAN expansion devices Thermocouples/EGT (Exhaust Gas Temperature) - Connect up to 12 Channels via external CAN expansion devices Engine Protection - Set advanced multi-level limits for sensors and protect your engine against common causes of failure RACE FUNCTIONS Nitrous control with advanced programming of up to 6 stages of wet or dry nitrous kits with on/off delays & banked control options. 3D fuel and ignition corrections for all stages. Boost Control -Intelligent 4D Closed loop, with learning, flexible user definable axis and 14 fully user definable boost target and duty cycle corrections. Multiple modes - example boost by gear, road speed, race timer, shock travel, ride height etc. Sequential turbo control CO2 Boost control, wastegate pressure and position, intake air bleed control (charge pipe wastegate) functionality for the hard-core racer Flat shift - Optimise your shifting precision via a combination of inputs such as a clutch switch or strain gauge. Shock Travel/Ride Height inputs allow dynamic tuning and data logging to assist in chassis development and power delivery Timer Functions - Use the combination of the race timer and 5 additional programmable timers for time based control of multiple engine parameters, power delivery and other user definable functions Trans brake function allows smooth and consistent control of start line staging (Bump or Creep) Optional Upgrade - Advanced Torque Management - A fully integrated driveshaft RPM target race function that provides the ultimate control and consistency for the serious drag racer, eliminating the need for costly external controllers
